arxiv: 2604.11192 · v1 · submitted 2026-04-13 · 🧮 math.OC

Robust Neural Policy Distillation of Long-Horizon FCS-MPC for Flying-Capacitor Three-Level Boost Converters

Jinjian Sheng , Kazumune Hashimoto , Shuang Zhao , Mahdieh S. Sadabadi This is my paper

Pith reviewed 2026-05-10 15:29 UTC · model grok-4.3

classification 🧮 math.OC
keywords neural networkpolicy distillationFCS-MPCflying-capacitor convertermodel predictive controlDAggerrobust controlpower electronics
0
0 comments X

The pith

A feedforward neural network can imitate an N-step FCS-MPC expert for flying-capacitor three-level boost converters while preserving voltage regulation and capacitor balancing under varied conditions.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes that long-horizon finite-control-set model predictive control, which improves transient performance and flying-capacitor balancing in FC-TLBCs but becomes too slow at high switching frequencies, can be replaced by a fast feedforward neural network. Expert trajectories are generated by beam search on an N-step FCS-MPC controller, with input voltage, load resistance, and component parameters randomized to build robustness, followed by a disagreement-based DAgger variant that relabels states where the student policy diverges from the expert. In simulation the resulting policy keeps stable regulation and balancing across nominal operation, operating-point shifts, and several parameter perturbations, while cutting computation time enough for real-time execution. The approach also transfers to a related NPC buck converter, where the pre-trained network speeds up learning compared with random initialization.

Core claim

Imitating an N-step FCS-MPC expert computed with beam search, using trajectories collected under randomized input voltage, load resistance, and component parameters together with disagreement-based DAgger relabeling, produces a feedforward neural network that maintains stable voltage regulation and flying-capacitor balancing in FC-TLBCs at far lower computational cost than the original controller.

What carries the argument

Disagreement-based DAgger variant that relabels on-policy states where the student neural network and beam-search FCS-MPC expert disagree, applied to trajectories generated with randomized physical parameters.

If this is right

  • The neural policy runs fast enough for high switching frequencies where the original N-step MPC is impractical.
  • Stable regulation and capacitor balancing are retained under nominal conditions, operating-point changes, and tested parameter perturbations.
  • Transferring the trained network to an NPC-type three-level buck converter improves sample efficiency over training from scratch.
  • Computational burden is reduced while the closed-loop behavior approximates the long-horizon expert.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Hardware validation on a physical converter would be required to check whether the simulated robustness survives unmodeled effects such as switching delays or measurement noise.
  • The same distillation pipeline could be applied to other power-converter topologies where long-horizon MPC is desirable but currently too slow for real-time use.
  • Tighter bounds on expected parameter variation ranges could be used to focus the randomization and potentially reduce the amount of expert data needed.

Load-bearing premise

Randomized variations of input voltage, load resistance, and component parameters during expert data generation are sufficient to cover the distribution of real-world disturbances and model mismatch the converter will encounter.

What would settle it

In a hardware prototype, observing loss of voltage regulation or flying-capacitor voltage imbalance under a parameter perturbation outside the ranges used for randomization during training would falsify the robustness claim.

Figures

Figures reproduced from arXiv: 2604.11192 by Jinjian Sheng, Kazumune Hashimoto, Mahdieh S. Sadabadi, Shuang Zhao.

Figure 1
Figure 1. Figure 1: FC-TLBC Topology sampled-data behavior, parameter variation, and performance adaptation have also been emphasized in converter applica￾tions [6], [26]–[28]. Nevertheless, their integration with long￾horizon FCS-MPC distillation remains limited. Positioning of This Work. Compared with prior studies that typically emphasize either fast neural approximation or limited robustness evaluation, and compared with … view at source ↗
Figure 2
Figure 2. Figure 2: Closed-loop responses in Scenario 1 under nominal operating [PITH_FULL_IMAGE:figures/full_fig_p007_2.png] view at source ↗
Figure 4

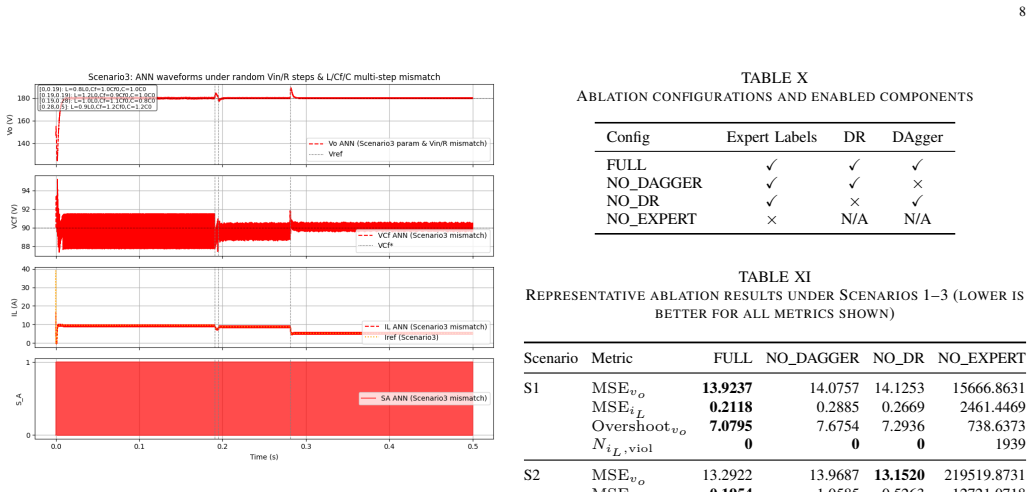

Figure 4. Figure 4: Representative ANN closed-loop responses in Scenario 3 under simul [PITH_FULL_IMAGE:figures/full_fig_p008_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Topology of NPC-Buck Converter Algorithm 3 Transfer-Learning Evaluation Protocol 1: Stage 1: Source pre-training on FC-TLBC 2: Generate the FC-TLBC expert dataset DFC 3: Train a source ANN policy πθsrc on DFC 4: Evaluate source-domain accuracy to confirm convergence 5: Stage 2: Buck-3L training from scratch 6: Generate the Buck-3L expert dataset DBuck 7: Initialize πθscratch with random weights 8: Train πθ… view at source ↗
Figure 6

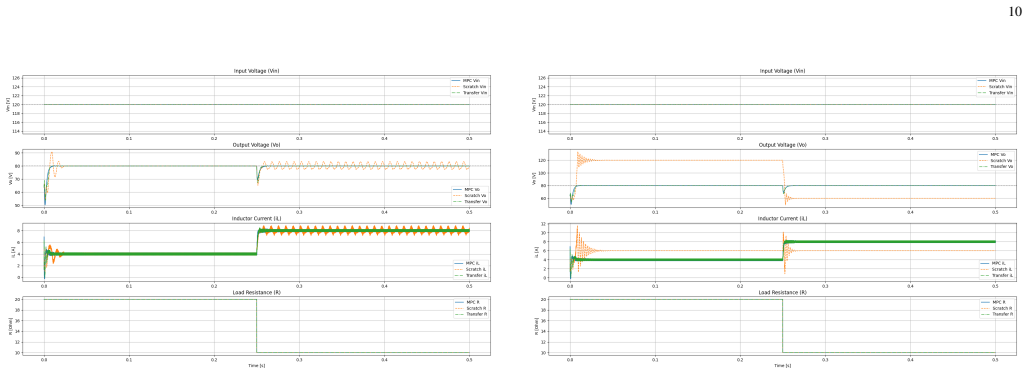

Figure 6. Figure 6: Closed-loop comparison in Transfer Learning Scenario 1 for the [PITH_FULL_IMAGE:figures/full_fig_p010_6.png] view at source ↗
Figure 8

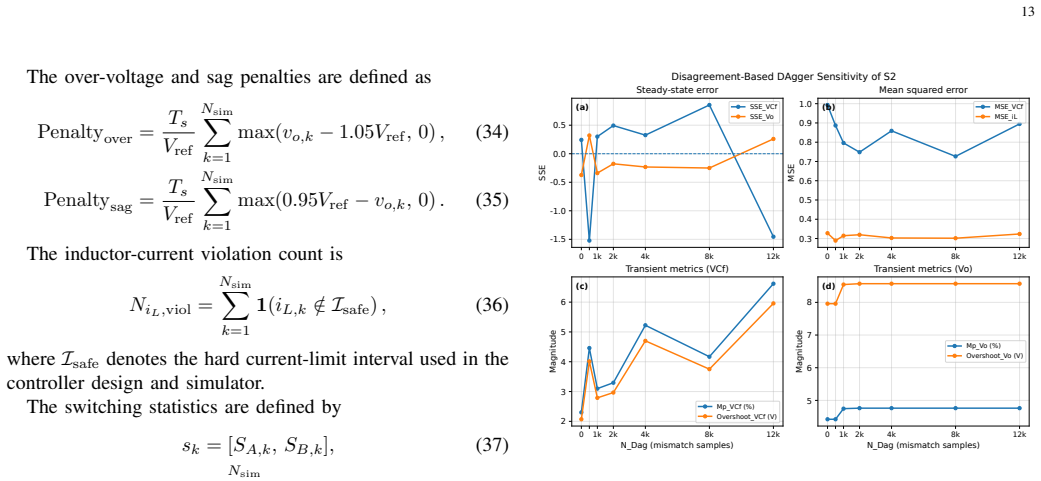

Figure 8. Figure 8: Disagreement-Based DAgger Sensitivity of S2 [PITH_FULL_IMAGE:figures/full_fig_p013_8.png] view at source ↗
Figure 9

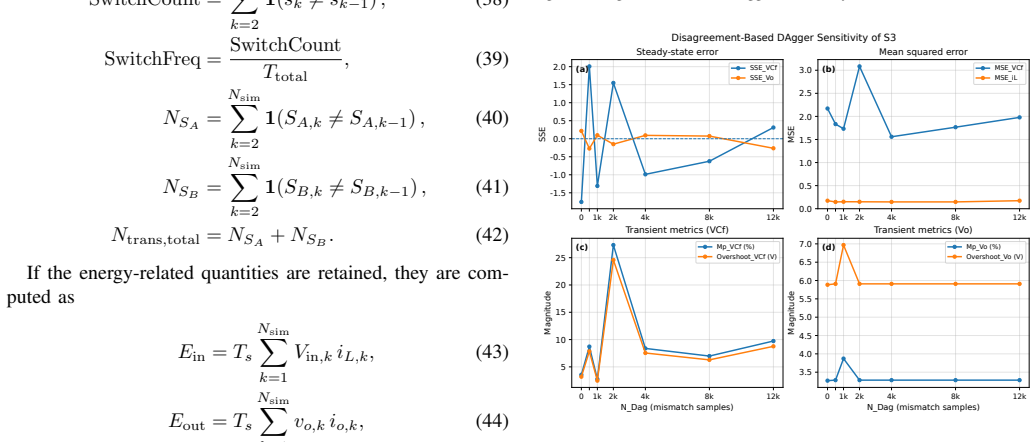

Figure 9. Figure 9: Disagreement-Based DAgger Sensitivity of S3 [PITH_FULL_IMAGE:figures/full_fig_p013_9.png] view at source ↗
Figure 10

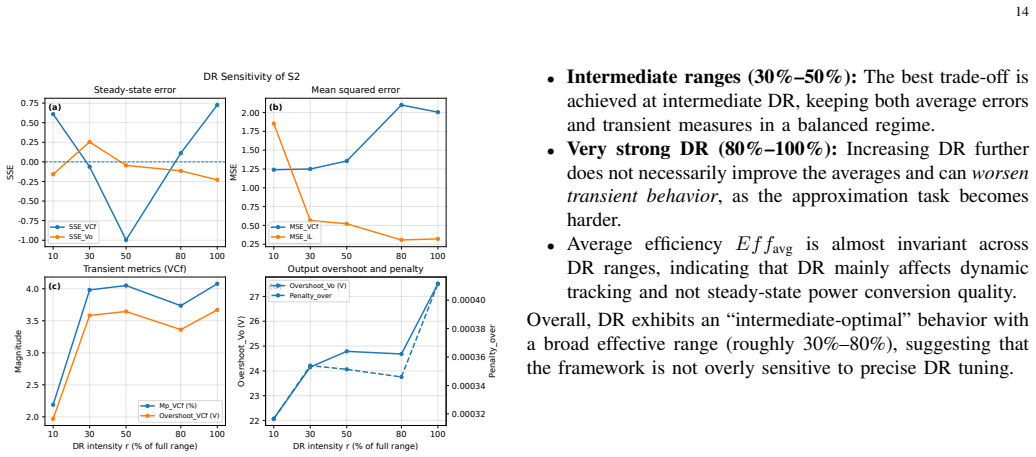

Figure 10. Figure 10: DR Sensitivity of S2 10 30 50 80 100 -1.5 -1.0 -0.5 0.0 0.5 1.0 1.5 SSE (a) Steady-state error SSE_VCf SSE_Vo 10 30 50 80 100 0.6 0.8 1.0 1.2 1.4 MSE (b) Mean squared error MSE_VCf MSE_iL 10 30 50 80 100 DR intensity r (% of full range) 1.75 2.00 2.25 2.50 2.75 3.00 3.25 Magnitude (c) Transient metrics (VCf) Mp_VCf (%) Overshoot_VCf (V) 10 30 50 80 100 DR intensity r (% of full range) 3 4 5 6 7 Magnitude … view at source ↗
Figure 11

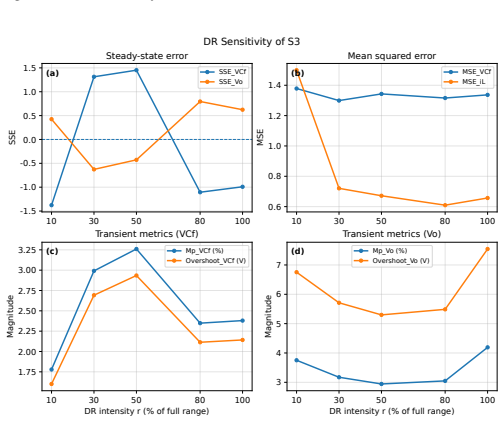

Figure 11. Figure 11: DR Sensitivity of S3 search expert providing less consistent labels in rarely visited states. This suggests that Disagreement-Based DAgger is highly sample-efficient: a few thousand additional expert queries are sufficient to obtain most of the improvement, especially in peak/overshoot behavior. B. Domain Randomization Intensity Sensitivity To evaluate DR intensity, we scale the randomization range as r ∈… view at source ↗
read the original abstract

Long-horizon finite-control-set model predictive control (FCS-MPC) can improve transient regulation and flying-capacitor balancing in flying-capacitor three-level boost converters (FC-TLBCs). However, searching over switching sequences becomes computationally expensive at high switching frequencies. We train a feedforward neural network to imitate an $N$-step FCS-MPC expert computed with beam search. To improve robustness, expert trajectories are generated under randomized input voltage, load resistance, and component parameters, and a disagreement-based DAgger variant is used to relabel on-policy states where the student and expert disagree. In simulation, the learned policy maintains stable voltage regulation and capacitor balancing under nominal conditions, operating-point changes, and perturbations of several physical parameters. We demonstrate the effectiveness of our approach by reducing the computational burden. We also demonstrate transfer to an NPC-type three-level buck converter, where initializing from the FC-TLBC network improves sample efficiency compared with training from scratch.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 3 minor

Summary. The paper proposes distilling a long-horizon FCS-MPC expert (computed via beam search) into a feedforward neural network policy for voltage regulation and flying-capacitor balancing in FC-TLBCs. Robustness is pursued by generating expert trajectories under randomized input voltage, load resistance, and component parameters, combined with a disagreement-based DAgger variant for on-policy relabeling. Simulation results are reported to show stable regulation under nominal conditions, operating-point shifts, and parameter perturbations, with reduced online computation and improved sample efficiency upon transfer initialization to an NPC three-level buck converter.

Significance. If the simulation outcomes hold under the stated conditions, the work offers a concrete route to deploy long-horizon MPC performance in high-frequency power converters where exhaustive search is prohibitive. The explicit randomization of physical parameters and the transfer-learning result to a topologically related converter are strengths that could inform similar distillation efforts in other switched-mode systems.

minor comments (3)
  1. [§4] §4 (Simulation Results): The abstract and results section state that the policy maintains stability under parameter perturbations, but no quantitative metrics (e.g., mean/variance of output voltage ripple, capacitor voltage deviation, or number of Monte-Carlo trials) are provided to support the claim; adding these would strengthen the evidence.
  2. [§3.1] §3.1 (Expert Generation): The randomization ranges for input voltage, load, and component parameters are described qualitatively; explicit numerical intervals and justification relative to typical converter tolerances would clarify the coverage of the robustness claim.
  3. [Figure 6] Figure 6 (Transfer experiment): The sample-efficiency improvement when initializing from the FC-TLBC network is shown, but the architecture adaptation details (e.g., output layer resizing, fine-tuning epochs) are not fully specified; a short table or paragraph would aid reproducibility.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for the positive summary and significance assessment of our work on distilling long-horizon beam-search FCS-MPC into a robust feedforward neural policy for FC-TLBC voltage regulation and capacitor balancing, including the transfer result to the NPC buck converter. We appreciate the recommendation for minor revision. No specific major comments were raised in the report, so we have no point-by-point rebuttals to provide at this stage.

Circularity Check

0 steps flagged

No significant circularity in derivation chain

full rationale

The paper describes an empirical imitation-learning pipeline: a feedforward NN is trained to mimic trajectories from an N-step FCS-MPC expert (computed via beam search) under randomized operating conditions, with a disagreement-based DAgger variant for on-policy relabeling. All reported outcomes are simulation demonstrations of closed-loop stability and balancing under nominal, shifted, and perturbed parameters. No load-bearing mathematical derivation, uniqueness theorem, or first-principles prediction is present that reduces by construction to a fitted parameter, self-citation, or input data. The approach relies on standard, externally verifiable techniques (randomized sampling, DAgger) whose correctness does not depend on the target results. Hence the central claim remains independent of its own outputs.

Axiom & Free-Parameter Ledger

2 free parameters · 0 axioms · 0 invented entities

The central claim rests on the assumption that simulation trajectories generated under randomized parameters adequately represent real hardware behavior. No new physical entities or mathematical axioms are introduced; the work is purely empirical.

free parameters (2)
  • randomization ranges for voltage, load, and component parameters
    These ranges are chosen by the authors to generate expert data; their exact bounds are not stated in the abstract and directly affect robustness claims.
  • neural network architecture and training hyperparameters
    Standard free parameters in any imitation-learning pipeline; their values determine whether the student successfully imitates the expert.
