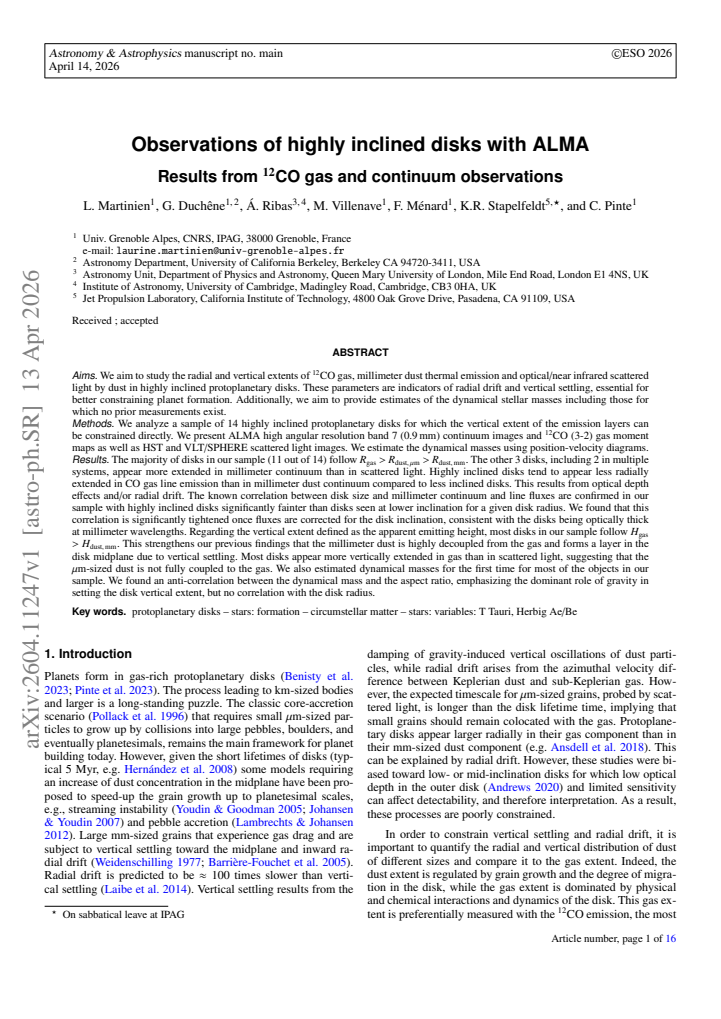

Observations of highly inclined disks with ALMA. Results from 12CO gas and continuum observations

Laurine Martinien , Gaspard Duch\^ene , \'Alvaro Ribas , Marion Villenave , Fran\c{c}ois M\'enard , Karl R. Stapelfeldt , Christophe Pinte This is my paper

Pith reviewed 2026-05-10 15:56 UTC · model grok-4.3

classification 🌌 astro-ph.SR astro-ph.EPastro-ph.GA
keywords protoplanetary disksALMA observationsradial extentvertical settlingdust evolutiondynamical massinclined disksCO gas emission
0
0 comments X

The pith

Most highly inclined protoplanetary disks show gas extending farther out than dust at both micron and millimeter scales.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper studies 14 highly inclined protoplanetary disks with ALMA continuum and carbon monoxide line data plus scattered-light images to measure how far the gas and different sizes of dust reach in radius and height. Eleven of the disks follow a clear size ordering in which the gas disk is largest, followed by micron-sized dust, then millimeter-sized dust. Most disks also show the gas layer thicker than the settled millimeter dust layer near the midplane. The work confirms that more massive disks are flatter and that inclination-corrected fluxes strengthen the known size-flux relation, pointing to optically thick millimeter emission.

Core claim

The majority of the sample follows Rgas > Rdust,micron > Rdust,mm radially and Hgas > Hdust,mm vertically, with an anti-correlation between dynamical mass and disk aspect ratio. These patterns are measured from ALMA band-7 images and 12CO moment maps combined with scattered-light data, and dynamical masses are derived from position-velocity diagrams for most objects. The results indicate that millimeter dust is vertically settled and radially drifted inward relative to the gas, while micron dust is only partially coupled to the gas.

What carries the argument

Direct comparison of radial extents (gas, micron dust, millimeter dust) and vertical extents (gas versus millimeter dust) extracted from images and moment maps, together with dynamical masses from position-velocity diagrams.

If this is right

  • Millimeter dust forms a thin midplane layer because it is vertically decoupled from the gas.
  • Inclination corrections make the disk size-flux correlation tighter, consistent with optically thick millimeter emission.
  • Gravity dominates the vertical structure, as shown by the anti-correlation between dynamical mass and aspect ratio.
  • Highly inclined disks appear less extended in CO than in millimeter dust because of optical depth and radial drift effects.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The observed size hierarchy may set preferred locations for dust concentration and planetesimal formation at specific radii.
  • Repeating the analysis on a larger sample of face-on disks would test whether the same ordering holds when vertical heights can be measured directly.
  • The mass-aspect ratio trend implies that disks around higher-mass stars may experience different migration timescales for forming planets.

Load-bearing premise

The apparent sizes measured in the images and moment maps accurately reflect the true physical extents after corrections for optical depth, projection effects in inclined systems, and Keplerian assumptions in the velocity diagrams.

What would settle it

Discovery of a highly inclined disk in which the millimeter continuum extends beyond the CO gas emission after inclination and optical-depth corrections would contradict the reported radial size ordering.
