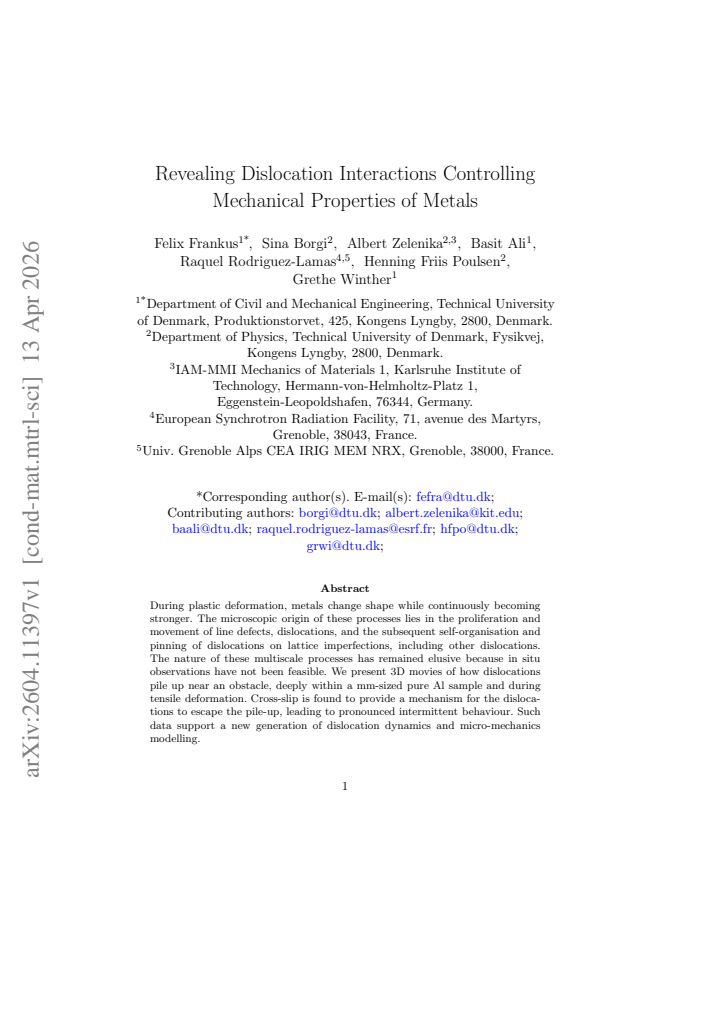

Revealing Dislocation Interactions Controlling Mechanical Properties of Metals

Albert Zelenika; Basit Ali; Felix Frankus; Grethe Winther; Henning Friis Poulsen; Raquel Rodriguez-Lamas; Sina Borgi

arxiv: 2604.11397 · v1 · submitted 2026-04-13 · ❄️ cond-mat.mtrl-sci

Revealing Dislocation Interactions Controlling Mechanical Properties of Metals

Felix Frankus , Sina Borgi , Albert Zelenika , Basit Ali , Raquel Rodriguez-Lamas , Henning Friis Poulsen , Grethe Winther This is my paper

Pith reviewed 2026-05-10 15:42 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci

keywords dislocationsplastic deformationcross-slip3D imagingaluminumtensile deformationpile-upsintermittent behavior

0 comments

The pith

3D movies inside a deforming aluminum sample reveal how dislocations pile up and escape via cross-slip.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper aims to show the microscopic processes behind how metals get stronger as they deform by capturing the behavior of dislocations in three dimensions. By recording these events deep inside a millimeter-sized pure aluminum crystal during stretching, it demonstrates that dislocations bunch up near obstacles but can escape through cross-slip, causing sudden changes in the material's response. This direct view addresses the previous lack of in-situ observations that made the self-organization of defects hard to study. A sympathetic reader would care because understanding these mechanisms at the line-defect level could lead to more accurate predictions of metal strength and plasticity in engineering applications.

Core claim

We present 3D movies of how dislocations pile up near an obstacle, deeply within a mm-sized pure Al sample and during tensile deformation. Cross-slip is found to provide a mechanism for the dislocations to escape the pile-up, leading to pronounced intermittent behaviour. Such data support a new generation of dislocation dynamics and micro-mechanics modelling.

What carries the argument

Three-dimensional X-ray movies that track individual dislocation lines piling up near obstacles and escaping via cross-slip during tensile loading of bulk aluminum.

Load-bearing premise

The specific pile-up and cross-slip behaviors observed in pure aluminum under tensile load are the dominant mechanisms that control mechanical properties in metals more broadly.

What would settle it

An experiment showing steady, non-intermittent dislocation motion without cross-slip escapes in a similar bulk metal sample would falsify the generality of the observed mechanism.

read the original abstract

During plastic deformation, metals change shape while continuously becoming stronger. The microscopic origin of these processes lies in the proliferation and movement of line defects, dislocations, and the subsequent self-organisation and pinning of dislocations on lattice imperfections, including other dislocations. The nature of these multiscale processes has remained elusive because in situ observations have not been feasible. We present 3D movies of how dislocations pile up near an obstacle, deeply within a mm-sized pure Al sample and during tensile deformation. Cross-slip is found to provide a mechanism for the dislocations to escape the pile-up, leading to pronounced intermittent behaviour. Such data support a new generation of dislocation dynamics and micro-mechanics modelling.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper delivers real 3D in-situ movies of dislocation pile-ups and cross-slip escape inside bulk pure Al, but the broader claim about controlling mechanical properties across metals lacks supporting comparisons or scaling.

read the letter

The main point is that this work achieves 3D movies of dislocation pile-ups forming near obstacles and escaping via cross-slip inside a mm-scale pure Al sample while under tensile load. This is a genuine technical step forward for observing these dynamics in bulk material in real time. What stands out positively is the direct visualization of the intermittent release mechanism. Having volumetric data on how dislocations accumulate and then break free through cross-slip gives modelers something concrete to compare against, especially for FCC systems like aluminum. The abstract frames this as supporting new generations of dislocation dynamics modeling, and the observation itself backs that up at least for this case. The softer part is the generalization. The title and abstract talk about revealing interactions that control mechanical properties of metals, yet all the data comes from pure aluminum. This material has high stacking fault energy, which makes cross-slip a natural path; the paper does not include comparisons to other metals or alloys where pile-up escape could involve different processes such as climb or interaction with precipitates. Without that, or without a scaling argument, the claim that these observations are representative stays narrow. In addition, the abstract lacks any mention of how the 3D data was reconstructed, what the spatial or temporal resolution limits are, or the specific criteria used to confirm cross-slip events. Those details matter for judging how unambiguous the findings are. This kind of paper is for experimentalists and modelers in physical metallurgy who focus on plasticity at the dislocation level. Readers looking for new experimental benchmarks in 3D dislocation dynamics will get something useful here. It is worth sending to peer review because the core observational result is new enough and potentially impactful to justify detailed referee feedback, even if revisions will likely be needed to tighten the scope and add methodological transparency.

Referee Report

2 major / 1 minor

Summary. The manuscript reports 3D in-situ observations of dislocation pile-ups near an obstacle in a mm-sized pure aluminum sample under tensile deformation. It identifies cross-slip as the mechanism enabling dislocations to escape the pile-up, resulting in intermittent dynamics, and posits that these findings support a new generation of dislocation dynamics and micro-mechanics models for understanding mechanical properties of metals.

Significance. If the observations are robust, the direct 3D visualization of dislocation pile-ups and escape mechanisms in bulk material during active loading constitutes a technical advance that can serve as a benchmark for dislocation dynamics simulations, especially in high-SFE FCC metals. The in-situ aspect and access to mm-scale depths are strengths, but the extension to general metals remains untested.

major comments (2)

[Abstract] Abstract: The identification of cross-slip as the escape mechanism for dislocations from the pile-up is central to the claim of intermittent behaviour, yet the abstract (and by extension the manuscript) provides no criteria, imaging signatures, or error analysis used to distinguish cross-slip from alternative processes such as climb or junction formation. This detail is required to substantiate the mechanistic interpretation.
[Abstract] Abstract: The manuscript asserts that the observed cross-slip and intermittency reveal interactions 'controlling mechanical properties of metals,' but supplies no quantitative correlation between the imaged dislocation events and the macroscopic stress-strain response, nor any comparison to other metals (e.g., low-SFE FCC or BCC systems where pile-up escape may involve different mechanisms). This gap makes the generalisation load-bearing for the title and concluding claim.

minor comments (1)

[Abstract] Abstract: Inclusion of a concise statement on the 3D imaging modality, sample preparation, and any data-processing steps would improve clarity for readers unfamiliar with the technique.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their constructive comments and for recognizing the technical strengths of our 3D in-situ observations. We address each major comment below and indicate the changes incorporated in the revised manuscript.

read point-by-point responses

Referee: [Abstract] Abstract: The identification of cross-slip as the escape mechanism for dislocations from the pile-up is central to the claim of intermittent behaviour, yet the abstract (and by extension the manuscript) provides no criteria, imaging signatures, or error analysis used to distinguish cross-slip from alternative processes such as climb or junction formation. This detail is required to substantiate the mechanistic interpretation.

Authors: We agree that explicit criteria and supporting analysis are necessary to substantiate the identification of cross-slip. The full manuscript already contains 3D line reconstructions and Burgers vector determinations that enable this distinction, as cross-slip events are identified by a change in slip plane while the Burgers vector remains constant and the motion is conservative. In the revised version we have added a dedicated subsection in the methods and results that lists the specific imaging signatures (e.g., out-of-plane reorientation of the dislocation line without detectable climb components), the decision criteria used to rule out climb (non-conservative displacement exceeding the imaging resolution) and junction formation (absence of line merging or reaction products), and a quantitative error analysis based on the ~1 μm spatial resolution of the tomography. These additions directly address the concern without changing the reported observations or conclusions. revision: yes
Referee: [Abstract] Abstract: The manuscript asserts that the observed cross-slip and intermittency reveal interactions 'controlling mechanical properties of metals,' but supplies no quantitative correlation between the imaged dislocation events and the macroscopic stress-strain response, nor any comparison to other metals (e.g., low-SFE FCC or BCC systems where pile-up escape may involve different mechanisms). This gap makes the generalisation load-bearing for the title and concluding claim.

Authors: We acknowledge that stronger linkage to macroscopic response and scope clarification would improve the manuscript. Our experiment records both 3D dislocation dynamics and the applied load during tensile deformation, permitting a temporal correlation between escape events and load drops. In revision we have added a new paragraph and supplementary figure that align the timing of observed cross-slip events with the recorded intermittent load drops, thereby providing the requested quantitative connection at the level of event timing. For comparisons with other metals we have expanded the discussion to reference literature on low-SFE FCC alloys (where extended partials reduce cross-slip probability) and BCC metals (where screw-dislocation core effects dominate), noting both common features of intermittency and system-specific differences in escape mechanisms. To avoid over-generalization we have revised the title to specify high-SFE FCC metals and have tempered the abstract and conclusions accordingly. These modifications address the referee's concern while remaining faithful to the experimental scope. revision: partial

Circularity Check

0 steps flagged

No circularity; purely observational study with no derivations or self-referential predictions

full rationale

The paper reports direct experimental 3D imaging of dislocation pile-ups and cross-slip events in a pure Al sample during tensile deformation. No equations, fitted parameters, predictions, or derivation chains are present in the abstract or described content. Claims rest on observed phenomena rather than any reduction to inputs by construction, self-citation, or ansatz. This is a standard non-finding for observational work.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

This is an experimental observation paper; the abstract introduces no mathematical derivations, fitted parameters, or new postulated entities.

pith-pipeline@v0.9.0 · 5427 in / 1130 out tokens · 26416 ms · 2026-05-10T15:42:55.324557+00:00 · methodology
