Security Implications of 5G Communication in Industrial Systems

Pith reviewed 2026-05-10 15:22 UTC · model grok-4.3

classification 💻 cs.CR cs.NIcs.SYeess.SY
keywords 5G securityindustrial control systemsvirtual testbedchannel conditionsattack amplificationICS resilienceopen-air interface
0
0 comments X

The pith

Degraded 5G channels amplify attacks on industrial control systems and break pattern-based detection.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper evaluates how replacing wired links with 5G in industrial control systems changes their exposure to attacks. It builds SWICS, a virtual testbed that places a realistic ICS inside a simulated 5G radio environment, then measures security and stability under both ideal and impaired channel conditions. The central result is that good radio conditions let 5G match the resilience of wired systems, yet poor conditions make known attacks more effective, destabilize the plant, and invalidate detectors that assume steady traffic patterns. The authors also show that the open-air 5G interface itself cannot be fully protected against eavesdropping or jamming. Because many factories are adopting 5G for flexibility, these channel-dependent weaknesses affect the security of critical infrastructure.

Core claim

Under optimal channel conditions, industrial 5G networks can achieve resilience comparable to wired systems, while degraded channel conditions can amplify traditional attacks, threaten system stability, and undermine detection mechanisms based on predictable traffic patterns. The work further demonstrates the inherent limits of securing 5G channels for ICS through eavesdropping and jamming on the open-air interface.

What carries the argument

The SWICS virtual testbed, which places a simulated industrial control system inside a realistic 5G radio environment to measure attack success, system stability, and detection performance across varying channel conditions.

If this is right

  • Traditional security controls become insufficient once 5G replaces wired links in ICS.
  • Detection methods that rely on steady traffic patterns lose effectiveness when radio conditions vary.
  • System stability can be directly threatened by attacks that exploit poor channel conditions.
  • Securing the open-air 5G interface alone cannot prevent eavesdropping or jamming against industrial traffic.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Operators could add real-time channel-quality monitoring to trigger extra defenses when conditions degrade.
  • The same evaluation approach could be applied to other wireless standards such as 6G in critical infrastructure.
  • Testbed validation against physical hardware remains necessary before the results guide deployment decisions.

Load-bearing premise

The virtual testbed accurately reproduces real-world 5G channel conditions, attack surfaces, and industrial control system behavior.

What would settle it

Running the same attack scenarios on a physical 5G industrial testbed under controlled degraded channel conditions and comparing attack success rates, stability loss, and detection false-negative rates against the SWICS results.

Figures

Figures reproduced from arXiv: 2604.11509 by Jonas Holtwick, Martin Henze, Moritz Rickert, Sotiris Michaelides, Stefan Lenz.

Figure 2

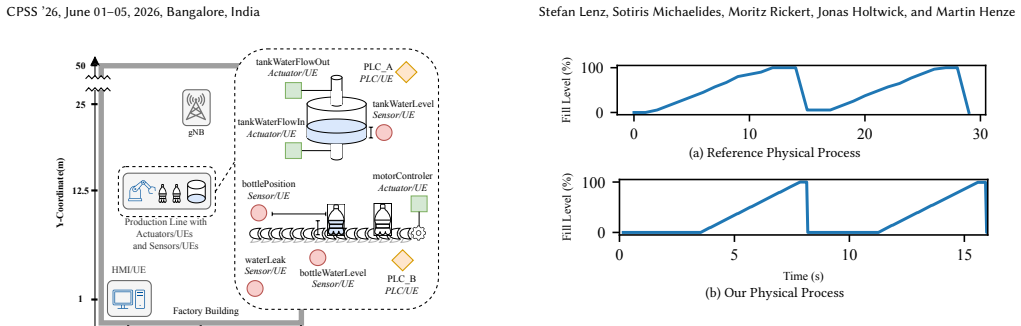

Figure 2. Figure 2: SWICS’s behavior (b) closely matches the original [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3

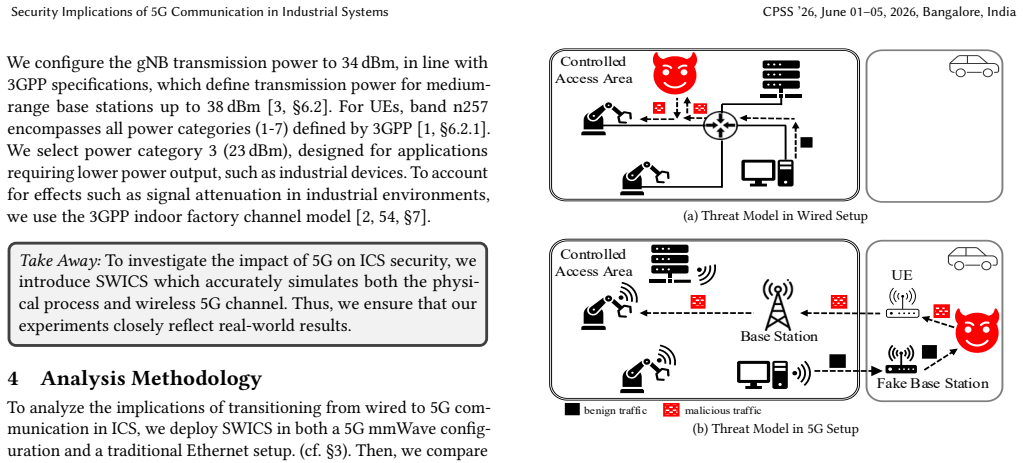

Figure 3. Figure 3: We assume that the attacker can modify ICS traffic [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: The conveyor belt speed in the Wired, 5G-GC, and 5G-DC deployments is stable under benign conditions. Under attack, Wired and 5G-GC show similar resilience with only minor jitter-induced deviations, whereas the noisy 5G-DC deployment significantly amplifies the effects of DoS and MiTM attacks due to increased jitter, packet loss, and latency [PITH_FULL_IMAGE:figures/full_fig_p007_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: The distributions of inter-arrival times in the [PITH_FULL_IMAGE:figures/full_fig_p008_5.png] view at source ↗
Figure 6

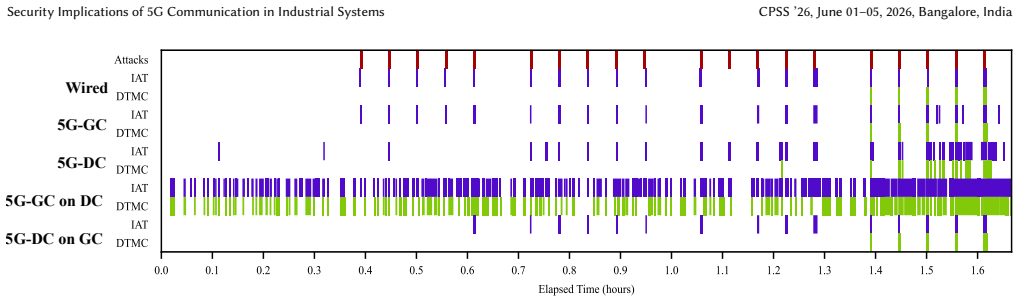

Figure 6. Figure 6: The alert behavior of communication-based detectors deployed in the [PITH_FULL_IMAGE:figures/full_fig_p009_6.png] view at source ↗
Figure 7

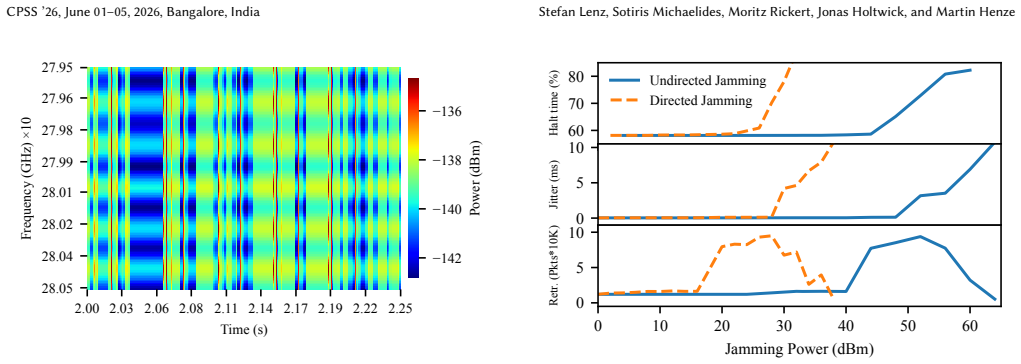

Figure 7. Figure 7: By passively monitoring the 5G channel even from [PITH_FULL_IMAGE:figures/full_fig_p010_7.png] view at source ↗
read the original abstract

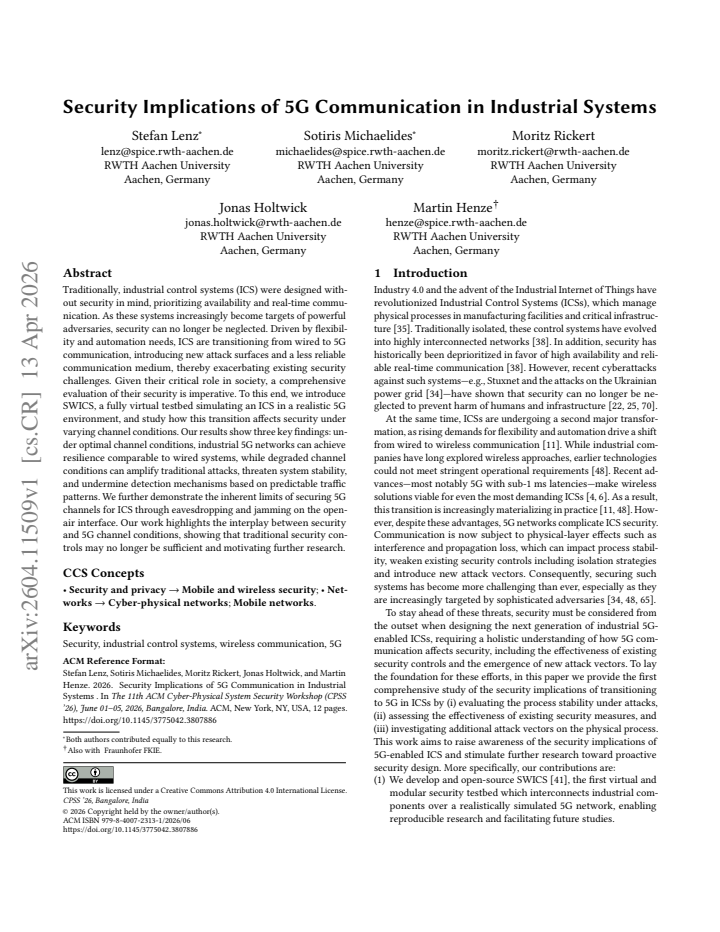

Traditionally, industrial control systems (ICS) were designed without security in mind, prioritizing availability and real-time communication. As these systems increasingly become targets of powerful adversaries, security can no longer be neglected. Driven by flexibility and automation needs, ICS are transitioning from wired to 5G communication, introducing new attack surfaces and a less reliable communication medium, thereby exacerbating existing security challenges. Given their critical role in society, a comprehensive evaluation of their security is imperative. To this end, we introduce SWICS, a fully virtual testbed simulating an ICS in a realistic 5G environment, and study how this transition affects security under varying channel conditions. Our results show three key findings: under optimal channel conditions, industrial 5G networks can achieve resilience comparable to wired systems, while degraded channel conditions can amplify traditional attacks, threaten system stability, and undermine detection mechanisms based on predictable traffic patterns. We further demonstrate the inherent limits of securing 5G channels for ICS through eavesdropping and jamming on the open-air interface. Our work highlights the interplay between security and 5G channel conditions, showing that traditional security controls may no longer be sufficient and motivating further research.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The manuscript introduces SWICS, a fully virtual testbed for simulating industrial control systems (ICS) in realistic 5G environments, and uses it to evaluate how the transition from wired to 5G communication affects security under varying channel conditions. The central claims are that optimal 5G channel conditions can yield resilience comparable to wired systems, while degraded conditions amplify traditional attacks, threaten system stability, undermine pattern-based detection mechanisms, and expose inherent limits of open-air 5G security through eavesdropping and jamming.

Significance. If the SWICS simulation faithfully captures real 5G PHY/MAC effects, protocol behavior, and ICS dynamics, the work would be significant for industrial cybersecurity by demonstrating the strong dependence of security properties on channel quality and motivating channel-aware defenses. The introduction of a virtual testbed itself is a constructive contribution that could support further reproducible studies in the area.

major comments (2)
  1. [Abstract] Abstract: The three key findings on channel-dependent resilience, attack amplification, and detection undermining are presented as simulation outcomes, yet the abstract (and by extension the evaluation) supplies no methodological details on the 5G channel model, error analysis, statistical validation, or comparison baselines against wired systems.
  2. [SWICS testbed description] SWICS testbed description: All reported security deltas rest on the unverified assumption that the virtual testbed accurately reproduces real-world 5G channel conditions (fading, interference, open-air eavesdropping/jamming), protocol stack, and control-loop dynamics; no calibration data, hardware cross-checks, or comparison to physical 5G traces or deployed ICS are described, which is load-bearing for the transferability of the claims.
minor comments (1)
  1. The abstract is information-dense; consider separating the three key findings into a bulleted list for improved readability.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive and detailed feedback on our manuscript. We have reviewed the major comments carefully and provide point-by-point responses below, indicating planned revisions to strengthen the presentation of the SWICS testbed and its results.

read point-by-point responses
  1. Referee: [Abstract] Abstract: The three key findings on channel-dependent resilience, attack amplification, and detection undermining are presented as simulation outcomes, yet the abstract (and by extension the evaluation) supplies no methodological details on the 5G channel model, error analysis, statistical validation, or comparison baselines against wired systems.

    Authors: We agree that the abstract, while concise, would benefit from a brief indication of the methodological foundation to better contextualize the findings. In the revised manuscript we will update the abstract to reference the use of standardized 3GPP 5G channel models (incorporating fading and interference), the statistical validation performed across repeated simulation runs with error analysis, and the explicit wired-system baselines employed for comparison. These elements are described in detail in the methods and evaluation sections; the abstract revision will improve immediate accessibility without altering its length substantially. revision: yes

  2. Referee: [SWICS testbed description] SWICS testbed description: All reported security deltas rest on the unverified assumption that the virtual testbed accurately reproduces real-world 5G channel conditions (fading, interference, open-air eavesdropping/jamming), protocol stack, and control-loop dynamics; no calibration data, hardware cross-checks, or comparison to physical 5G traces or deployed ICS are described, which is load-bearing for the transferability of the claims.

    Authors: We acknowledge the referee's point on the importance of testbed fidelity for claim transferability. The SWICS testbed is constructed from established, publicly documented simulation components for the 5G PHY/MAC layers and ICS dynamics. In the revised version we will expand the testbed description section to include explicit parameter values for the channel models (fading, interference, and open-air effects), the protocol stack emulation details, control-loop timing models, and the statistical validation procedures (including run counts, confidence intervals, and error analysis). We will also add a dedicated limitations subsection discussing model assumptions and citing prior validation studies of the underlying simulators against real 5G traces. As the work is a fully virtual study, hardware cross-checks with physical deployments were outside its scope; however, the added details and citations will better substantiate the simulation's grounding in accepted models. revision: partial

Circularity Check

0 steps flagged

No significant circularity: empirical simulation study with independent testbed results

full rationale

The paper introduces the SWICS virtual testbed and reports simulation outcomes on 5G ICS security under optimal versus degraded channel conditions. No equations, derivations, parameter fittings, or predictions appear in the abstract or described content. The central findings are presented as direct outputs of the simulation runs rather than reductions to prior inputs or self-citations. The testbed fidelity is an external modeling assumption, not a self-referential loop, and the work contains no load-bearing self-citations or ansatz smuggling. This is a standard empirical simulation paper whose claims stand or fall on the (unverified) accuracy of the simulator, not on any internal definitional circularity.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 1 invented entities

The central claim depends on the simulation being a faithful model of real 5G ICS environments and on the chosen attack scenarios being representative.

axioms (1)
  • domain assumption The virtual testbed SWICS faithfully reproduces real 5G channel conditions and industrial control system dynamics
    All reported results rest on this unverified modeling assumption stated in the abstract.
invented entities (1)
  • SWICS testbed no independent evidence
    purpose: Simulate an ICS in a realistic 5G environment to study security under varying channel conditions
    Newly introduced simulation platform whose realism is not independently validated in the abstract.
