Bipedal-Walking-Dynamics Model on Granular Terrains

Xunjie Chen , Xinyan Huang , Peter Shan , Jingang Yi , Tao Liu This is my paper

Pith reviewed 2026-05-10 15:46 UTC · model grok-4.3

classification 💻 cs.RO
keywords bipedal locomotiongranular terrainsdynamics modelingfoot sinkagefoot slipcost of transportground reaction forcerobot walking
0
0 comments X

The pith

A dynamics model with three extra degrees of freedom predicts bipedal robot walking on granular media by estimating foot sinkage and slip.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a dynamics model for bipedal robots walking on yielding surfaces such as sand. It adds three degrees of freedom to a foot-terrain interaction model to track how much the feet sink and slip. These effects matter because they change the forces the ground exerts back on the robot and raise the energy needed for walking. The model is tested on a physical biped robot, where it matches observed walking patterns, intrusion depths, and ground forces. If accurate, the approach gives robots a practical way to plan stable and efficient gaits on loose terrain without full particle simulations.

Core claim

We present a new dynamics-modeling approach to capture and predict bipedal-walking locomotion on granular media. A dynamic foot-terrain interaction model is integrated to compute the ground reaction force. The proposed granular dynamic model has three additional degrees of freedom to estimate foot sinkage and slip that are critical to capturing robot-walking kinematics and kinetics such as cost of transport. Experiments using a biped robotic walker on sand validate the model with gait profiles, media-intrusion prediction, and ground reaction force estimations.

What carries the argument

The dynamic foot-terrain interaction model that incorporates three additional degrees of freedom to estimate foot sinkage and slip while computing ground reaction forces during bipedal walking.

If this is right

  • The model allows analysis of bipedal kinetics and cost of transport on granular terrains.
  • It predicts foot-terrain rolling and intrusion effects during walking.
  • The approach supports development of locomotion control and optimization methods for bipedal robots on such surfaces.
  • Validation shows good agreement with robot gait profiles and measured ground reaction forces.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If the three-DoF model generalizes well, it could be applied to other granular or soft terrains like gravel or mud with minimal recalibration.
  • Integrating this model into optimization loops might yield lower-energy gait patterns for robots operating in deserts or beaches.
  • Real-time versions of the model could enable adaptive stepping strategies that respond to detected sinkage during locomotion.

Load-bearing premise

The three additional degrees of freedom sufficiently represent the dominant effects of foot sinkage and slip on granular media without needing more complex particle-level simulations or terrain-specific parameter tuning.

What would settle it

Measurements from the biped robot showing that the predicted ground reaction forces deviate significantly from actual sensor readings across multiple gait cycles on sand would indicate the model fails to capture the dynamics accurately.

Figures

Figures reproduced from arXiv: 2604.11981 by Jingang Yi, Peter Shan, Tao Liu, Xinyan Huang, Xunjie Chen.

Figure 1
Figure 1. Figure 1: Schematic of the bipedal walking model with foot sinkage and slip on granular media. (a) [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2

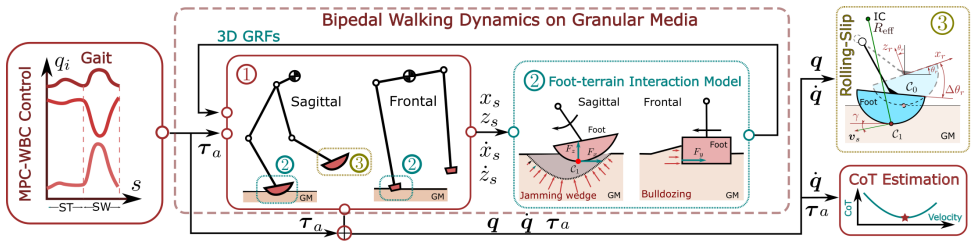

Figure 2. Figure 2: Bipedal-walking-dynamics modeling on granular media with the inclusion of foot–terrain [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗
Figure 3

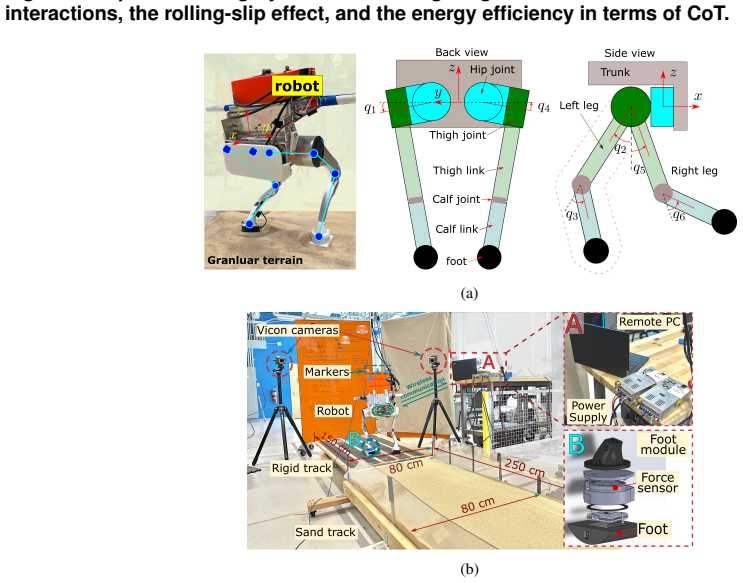

Figure 3. Figure 3: Experimental setup of the bipedal robot walking locomotion on granular media. (a) [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 4

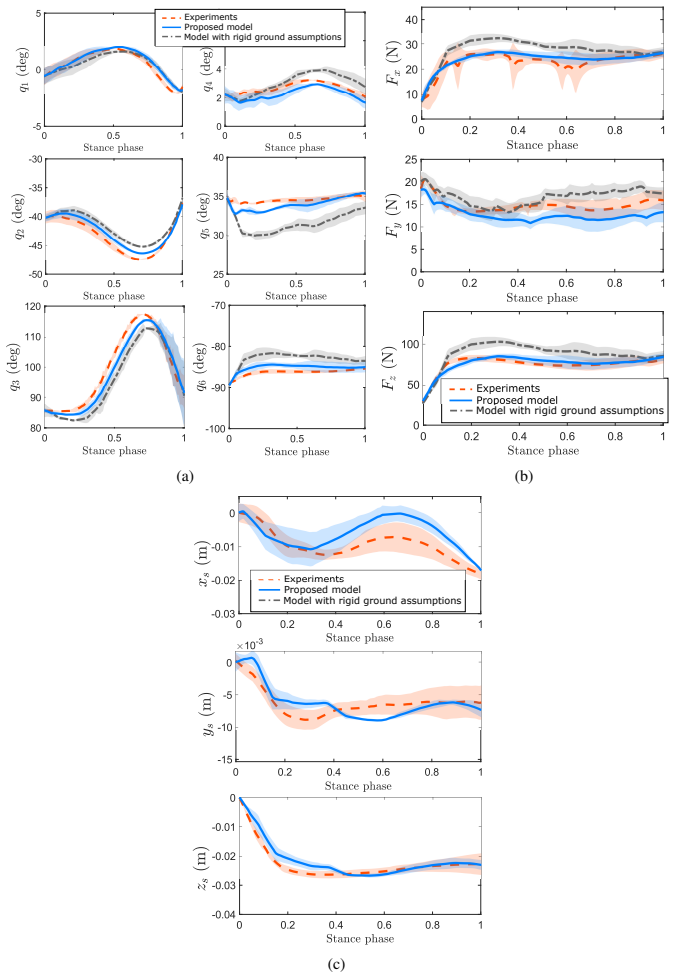

Figure 4. Figure 4: Comparisons of robot locomotion results on granular media within one stance phase. [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗
Figure 6

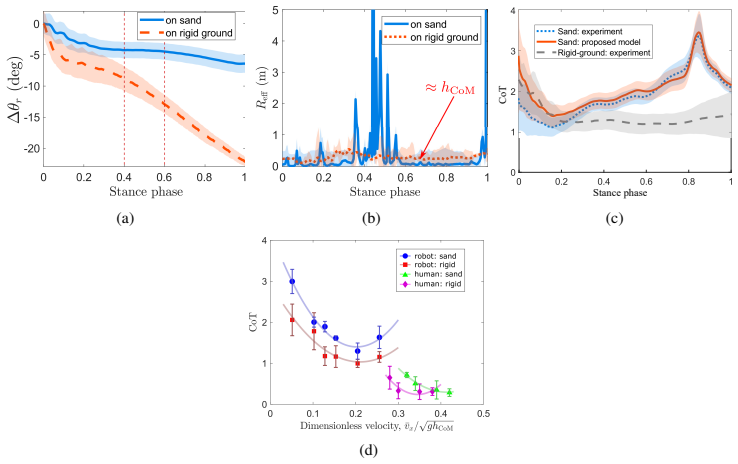

Figure 6. Figure 6: (a)-(c) Foot orientation angle ∆θr (negative sign presents decreasing values), the effective rolling radius of the stance foot, and the CoT of walking on sand and rigid ground during one stance phase, respectively. Shadowed areas represent the standard deviations. v¯ x CoM/ √ ghCoM = 0.1. (d) Velocity dependency of locomotion CoT of the bipedal robot and human on sand and rigid ground, respectively. Each C… view at source ↗
Figure 5

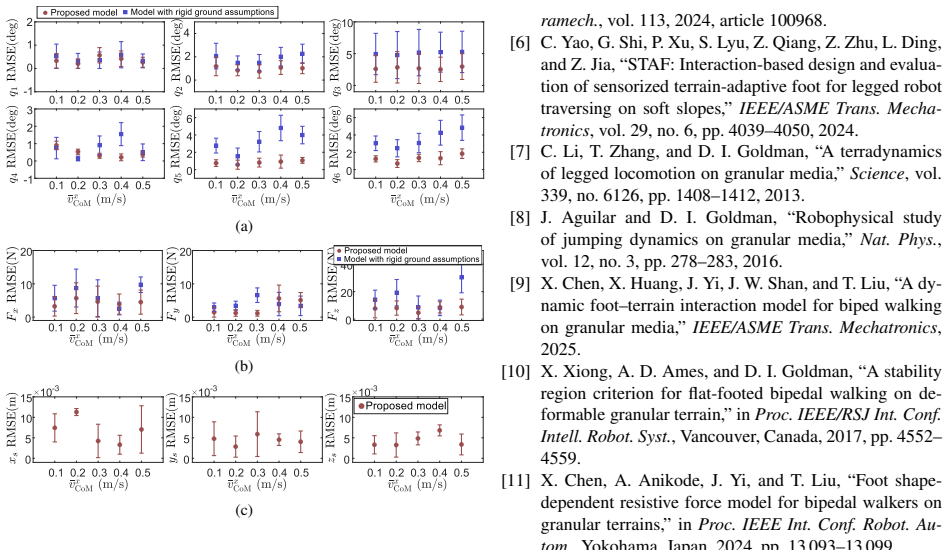

Figure 5. Figure 5: Comparisons of RMSE under differ￾ent forward-velocity commands. (a) Joint an￾gle q. (b) GRFs. (c) Intrusion variables xs , ys , and zs . Circle dots: the proposed model. Square dots: model with rigid-ground assump￾tions. References [1] J. Aguilar, T. Zhang, F. Qian, M. Kingsbury, B. McIn￾roe, N. Mazouchova, C. Li, R. Maladen, C. Gong, M. Travers, R. L. Hatton, H. Choset, P. B. Umban￾howar, and D. I. Goldma… view at source ↗

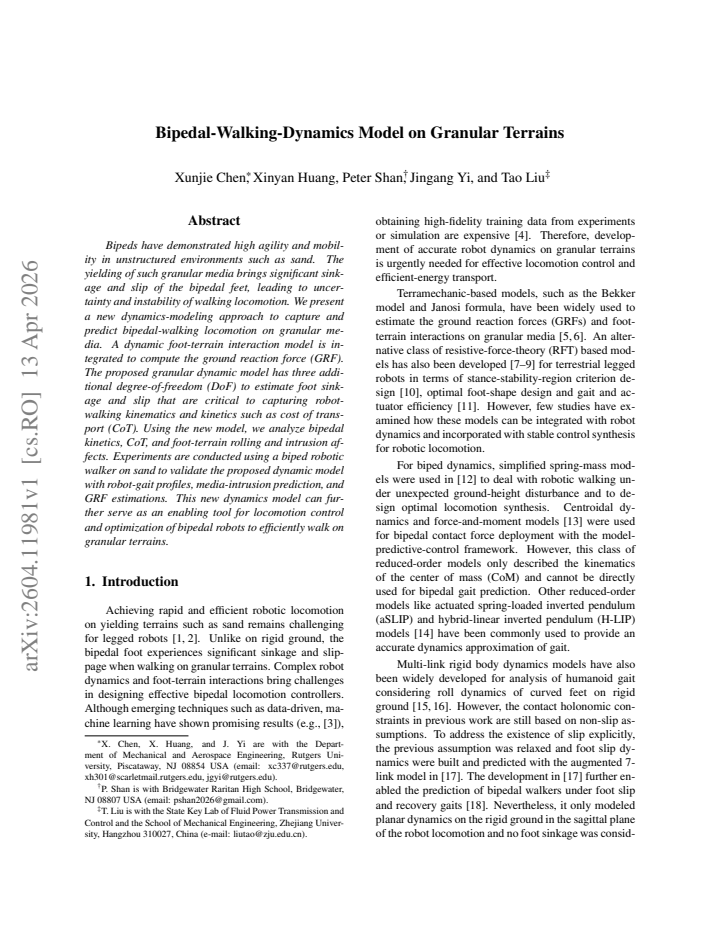

read the original abstract

Bipeds have demonstrated high agility and mobility in unstructured environments such as sand. The yielding of such granular media brings significant sinkage and slip of the bipedal feet, leading to uncertainty and instability of walking locomotion. We present a new dynamics-modeling approach to capture and predict bipedal-walking locomotion on granular media. A dynamic foot-terrain interaction model is integrated to compute the ground reaction force (GRF). The proposed granular dynamic model has three additional degree-of-freedom (DoF) to estimate foot sinkage and slip that are critical to capturing robot-walking kinematics and kinetics such as cost of transport (CoT). Using the new model, we analyze bipedal kinetics, CoT, and foot-terrain rolling and intrusion affects. Experiments are conducted using a biped robotic walker on sand to validate the proposed dynamic model with robot-gait profiles, media-intrusion prediction, and GRF estimations. This new dynamics model can further serve as an enabling tool for locomotion control and optimization of bipedal robots to efficiently walk on granular terrains.
