arxiv: 2604.12106 · v1 · submitted 2026-04-13 · 🪐 quant-ph · eess.SP

Hybrid Six-Level Rydberg Atomic Quantum Receiver for Multi-Band RF Communication

Lahiru Shyamal , Harini Hapuarachchi , Saman Atapattu , Jared H. Cole This is my paper

Pith reviewed 2026-05-10 15:12 UTC · model grok-4.3

classification 🪐 quant-ph eess.SP
keywords Rydberg atomsquantum receivermulti-band RFEITvapor cellhybrid architectureRF sensingatomic communication
0
0 comments X

The pith

A hybrid six-level Rydberg receiver enables four simultaneous RF channels in one vapor cell by combining cascaded and parallel pathways.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a six-level hybrid Rydberg atomic quantum receiver that merges cascaded and parallel RF coupling pathways to support simultaneous multi-band reception inside a single atomic vapor cell. Standard four-level EIT schemes restrict the number of accessible RF transitions, but this architecture overcomes that limit. An analytical steady-state expression for probe coherence is derived to connect incident RF fields directly to optical transmission, and the model is checked through Lindblad simulations using realistic parameters. Numerical evaluation then shows higher ergodic sum-rate performance than pure cascade or parallel receivers. This setup matters because it opens a route to more compact, calibration-free multi-channel RF sensing and communication hardware.

Core claim

The hybrid six-level Rydberg atomic quantum receiver combines cascaded and parallel RF coupling pathways within one atomic manifold to support four simultaneous RF channels. This yields higher ergodic sum-rate throughput than conventional cascade Rydberg state or parallel Rydberg state receivers. The relationship between the incident RF fields and the optical probe transmission is established through a derived steady-state expression for probe coherence, which is validated by numerical simulations of the Lindblad master equation with chosen relaxation and detuning values.

What carries the argument

Hybrid six-level architecture that merges cascaded and parallel RF coupling pathways to map multiple incident RF fields onto a single optical probe transmission through steady-state probe coherence.

Load-bearing premise

The steady-state analytical expression for probe coherence and the Lindblad simulations with chosen relaxation and detuning parameters accurately represent real physical behavior in a vapor cell.

What would settle it

A laboratory test that applies four distinct RF fields simultaneously to a six-level Rydberg vapor cell and measures the resulting probe transmission to check whether the observed signal fidelity and throughput match the analytical and numerical predictions.

Figures

Figures reproduced from arXiv: 2604.12106 by Harini Hapuarachchi, Jared H. Cole, Lahiru Shyamal, Saman Atapattu.

Figure 1
Figure 1. Figure 1: Rydberg atoms in a vapor cell interacting with probe and [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

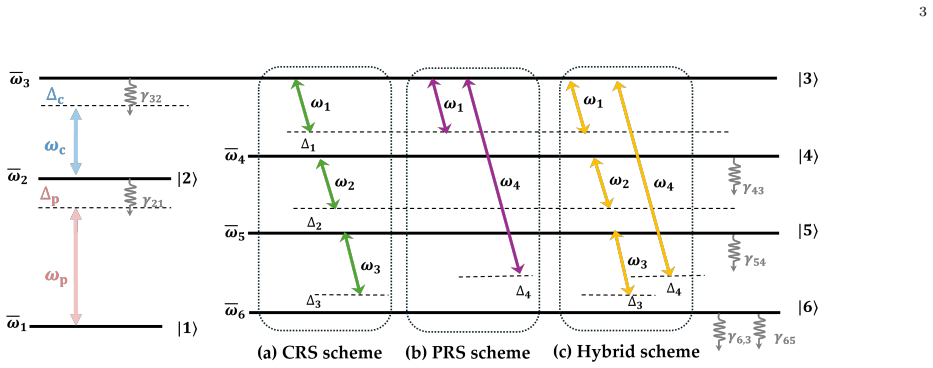

Figure 2. Figure 2: Six-level Rydberg coupling schemes: ωn and ∆n are the field frequency and detuning, ω¯j the eigenfrequency of level j, and γi,j the decay rate from i to j. (a) CRS configuration (b) PRS configurations. (c) H-RAQR configurations. less channel with complex coefficient hn ∈ C, the resulting electric field impinging on the receiver is ERF,n(t) = Re np PT ,n hn xn(t) e iωRF,nt o . (1) Assuming the RF carriers o… view at source ↗
Figure 3

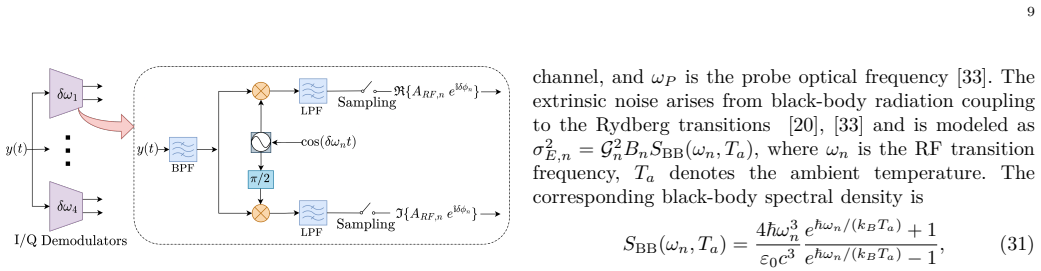

Figure 3. Figure 3: Block diagram illustrating multi-channel in-phase and [PITH_FULL_IMAGE:figures/full_fig_p009_3.png] view at source ↗
Figure 4

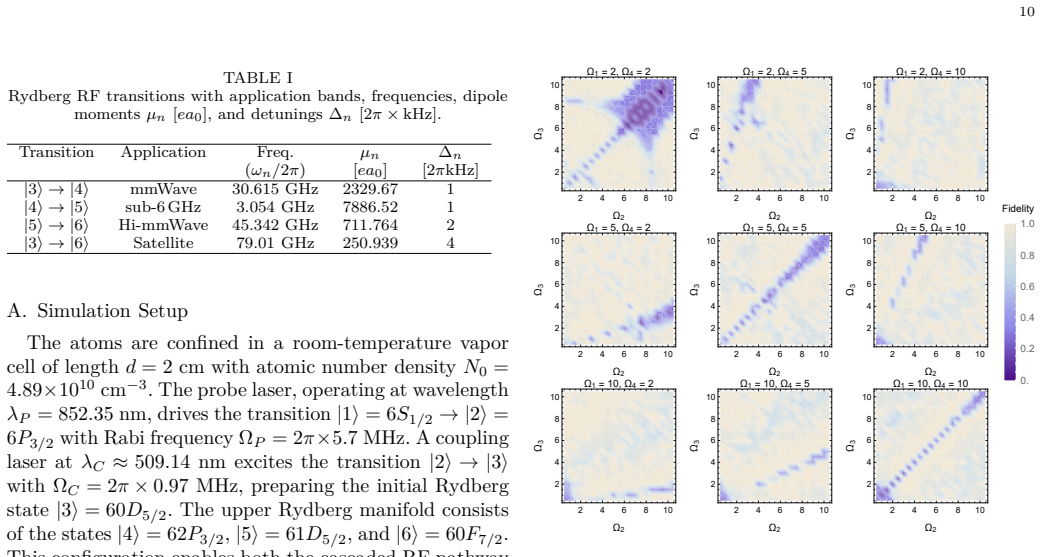

Figure 4. Figure 4: Fidelity landscape between the ρA and ρN. Each subplot shows a two-dimensional slice of the four-dimensional Rabi-frequency space, where Ω2 and Ω3 are varied while (Ω1, Ω4) are fixed to the values indicated above each panel. All Rabi frequencies are in units of 2π × MHz. presents a 3×3 grid of fidelity heatmaps. In each subplot, Ω2 and Ω3 are varied over the range 0 ≤ Ω2, Ω3 ≤ 10, while (Ω1, Ω4) are fixed … view at source ↗
Figure 5
Figure 5. Figure 5: Time evolution of the ρ1,1(t), . . . , ρ6,6(t) and the probe coherence Im(ρ2,1(t)) at the optimized LO operating point Ω⋆ LO. Solid curves show the numerical evolution. The horizontal dashed lines represent the analytical steady-state values predicted by (19). The convergence of numerical trajectories to these steady-state levels confirms the validity of the analytical model. hood is illustrated in Appendi… view at source ↗
Figure 6

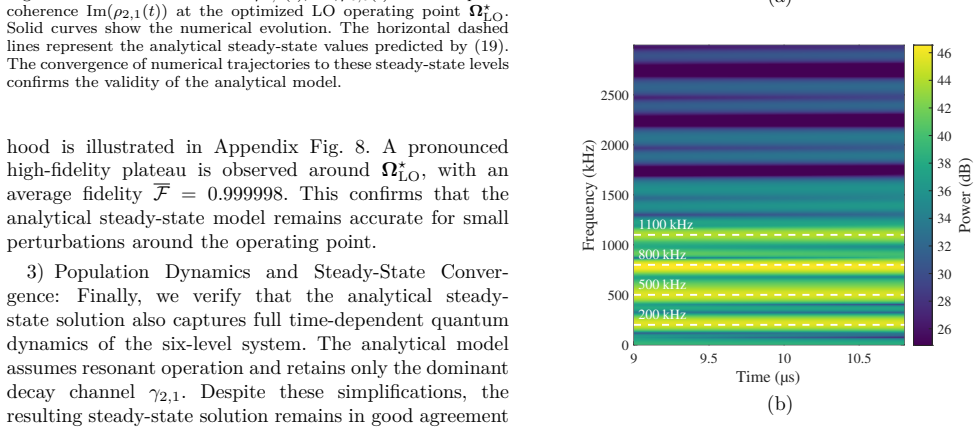

Figure 6. Figure 6: (a) Time-domain comparison between the DC-filtered and [PITH_FULL_IMAGE:figures/full_fig_p011_6.png] view at source ↗
Figure 7

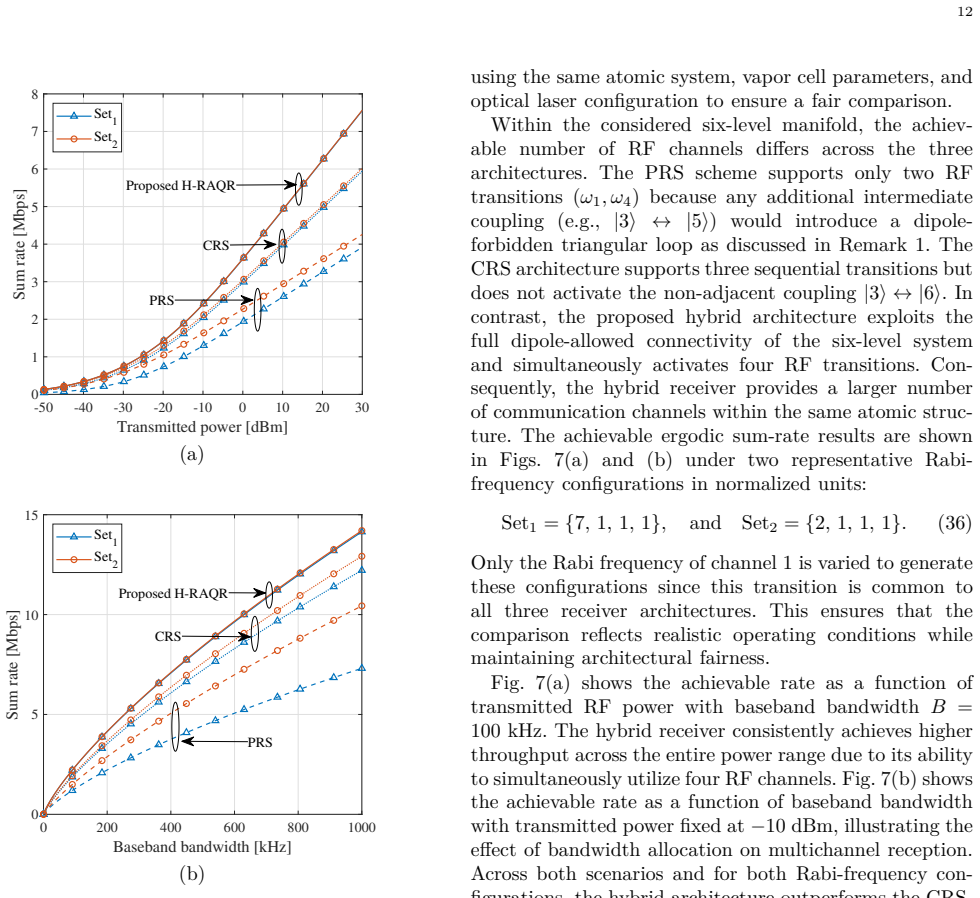

Figure 7. Figure 7: (a) Achievable sum rate versus transmitted RF power for [PITH_FULL_IMAGE:figures/full_fig_p012_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: Zoomed fidelity landscape around the optimized LO operating [PITH_FULL_IMAGE:figures/full_fig_p013_8.png] view at source ↗
read the original abstract

Rydberg atomic receivers have recently emerged as a promising platform for radio-frequency (RF) sensing and reception due to their intrinsic broadband response and calibration-free operation. Most existing receivers rely on four-level ladder-type electromagnetically induced transparency (EIT) schemes, which limit the number of simultaneously accessible RF transitions within a given atomic manifold. In this paper, a six-level hybrid Rydberg atomic quantum receiver (H-RAQR) architecture is proposed that combines cascaded and parallel RF coupling pathways to enable simultaneous multi-band RF reception within a single vapor-cell platform. A physically consistent system and electromagnetic coupling model is developed, and a steady-state analytical expression for the probe coherence is derived, establishing a direct relationship between the incident RF fields and the optical probe transmission. The analytical model is validated through numerical simulations of the Lindblad master equation with realistic relaxation and detuning parameters. Using the resulting communication signal representation, the achievable ergodic sum-rate performance of the receiver is evaluated. Numerical results demonstrate that the proposed hybrid architecture enables four simultaneous RF channels within the same six-level system and achieves higher throughput than conventional cascade Rydberg state (CRS) and parallel Rydberg state (PRS) receivers. These results demonstrate the potential of hybrid Rydberg receiver architectures for scalable multi-channel RF sensing and communication systems.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript proposes a hybrid six-level Rydberg atomic quantum receiver (H-RAQR) that combines cascaded and parallel RF coupling pathways within a single vapor-cell platform to enable simultaneous multi-band RF reception. It develops a physically consistent system model, derives a steady-state analytical expression for the probe coherence that directly relates incident RF fields to optical probe transmission, validates the expression via numerical Lindblad master-equation simulations with realistic relaxation and detuning parameters, and evaluates the resulting ergodic sum-rate, claiming that the architecture supports four simultaneous RF channels with higher throughput than conventional cascade Rydberg state (CRS) and parallel Rydberg state (PRS) receivers.

Significance. If the numerical results hold under realistic conditions, the hybrid architecture offers a route to higher channel capacity in Rydberg-based RF receivers without requiring multiple atomic ensembles, which could impact scalable multi-band sensing and communication systems. The combination of an analytical probe-coherence expression with Lindblad validation is a positive methodological feature, though the absence of experimental data or parameter-robustness checks limits immediate applicability.

major comments (2)
  1. [Numerical results / Lindblad validation section] The central performance claims (four simultaneous RF channels and sum-rate advantage over CRS/PRS) rest on Lindblad simulations performed with a fixed set of relaxation rates and detunings labeled 'realistic.' No sensitivity analysis or sweep over these parameters is reported, so it is unclear whether the simultaneous visibility of four channels or the throughput gain persists when the rates deviate from the chosen values.
  2. [Performance evaluation / sum-rate calculation] The ergodic sum-rate evaluation uses the steady-state probe-coherence expression derived from the six-level model. Because the expression depends explicitly on the chosen detunings and relaxation rates, the quantitative advantage over CRS and PRS baselines is tied to those specific parameter choices; without bounding the dependence, the claim that the hybrid architecture 'achieves higher throughput' remains conditional.
minor comments (2)
  1. [Abstract and model-validation paragraph] The abstract states that the analytical model is 'validated through numerical simulations,' but the manuscript should explicitly state the quantitative metric of agreement (e.g., relative error in probe transmission) between the closed-form expression and the Lindblad runs.
  2. [System model section] Notation for the six-level manifold (state labels, coupling strengths, detunings) should be collected in a single table or figure caption for clarity when comparing the hybrid scheme to CRS and PRS baselines.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments. We address each major comment below and will revise the manuscript accordingly to strengthen the robustness of our claims.

read point-by-point responses

  1. Referee: [Numerical results / Lindblad validation section] The central performance claims (four simultaneous RF channels and sum-rate advantage over CRS/PRS) rest on Lindblad simulations performed with a fixed set of relaxation rates and detunings labeled 'realistic.' No sensitivity analysis or sweep over these parameters is reported, so it is unclear whether the simultaneous visibility of four channels or the throughput gain persists when the rates deviate from the chosen values.

    Authors: We agree that a sensitivity analysis would improve the presentation. The selected relaxation rates and detunings are drawn from standard values in the Rydberg EIT literature for alkali vapors. In the revised manuscript we will add sweeps over these parameters (within physically plausible ranges) and show that four-channel operation and the sum-rate advantage remain visible for moderate deviations. The hybrid architecture's benefit originates from the additional parallel and cascaded pathways, which are structural rather than rate-specific. revision: yes

  2. Referee: [Performance evaluation / sum-rate calculation] The ergodic sum-rate evaluation uses the steady-state probe-coherence expression derived from the six-level model. Because the expression depends explicitly on the chosen detunings and relaxation rates, the quantitative advantage over CRS and PRS baselines is tied to those specific parameter choices; without bounding the dependence, the claim that the hybrid architecture 'achieves higher throughput' remains conditional.

    Authors: We acknowledge the parameter dependence of the quantitative sum-rate values. The primary architectural claim, however, is that four simultaneous RF channels are supported within a single six-level system, which neither the CRS nor PRS baselines can achieve without multiple ensembles. In revision we will include explicit bounds on the sum-rate advantage obtained from the new parameter sweeps and will rephrase the conclusions to state that the hybrid receiver yields higher throughput under realistic conditions while noting the dependence on the model parameters. revision: yes

Circularity Check

0 steps flagged

No significant circularity; derivation is self-contained from model to performance metrics.

full rationale

The paper develops a physically consistent six-level system and EM coupling model, derives a steady-state analytical expression for probe coherence relating RF fields to optical transmission, validates the expression via Lindblad master-equation simulations using independently chosen realistic relaxation and detuning parameters, and then computes ergodic sum-rate from the resulting communication signal representation. No quoted step reduces a prediction to a fitted input by construction, no self-citation is invoked as load-bearing for uniqueness or ansatz, and the four-channel throughput advantage follows directly from evaluating the independent model against CRS/PRS baselines. The framework remains self-contained against external benchmarks with no reduction of outputs to inputs.

Axiom & Free-Parameter Ledger

2 free parameters · 2 axioms · 0 invented entities

The central claims rest on standard quantum-optical assumptions plus several numerical parameters chosen to represent realistic atomic relaxation and detuning; no new physical entities are postulated.

free parameters (2)
  • relaxation rates
    Chosen to be realistic for the atomic species and environment in the Lindblad simulations.
  • detuning parameters
    Selected for the numerical validation of the analytical probe-coherence expression.
axioms (2)
  • standard math Lindblad master equation governs the open quantum system dynamics
    Invoked for numerical validation of the steady-state analytical model.
  • domain assumption Steady-state solution of the density matrix yields the probe coherence
    Used to derive the direct relationship between RF fields and optical transmission.
