In Situ Interferometric Spatial Mapping Of A Microwave Kinetic Inductance Detector Array

Andrew Bear; Byeong Ho Eom; Chris Albert; Farzad Faramarzi; Henry LeDuc; Peter Day; Reinier Janssen; Ritoban Basu Thakur; Sumit Dahal; Thomas Stevenson

arxiv: 2604.12287 · v1 · submitted 2026-04-14 · 🌌 astro-ph.IM

In Situ Interferometric Spatial Mapping Of A Microwave Kinetic Inductance Detector Array

Chris Albert , Ritoban Basu Thakur , Farzad Faramarzi , Byeong Ho Eom , Sumit Dahal , Andrew Bear , Reinier Janssen , Henry LeDuc

show 2 more authors

Thomas Stevenson Peter Day

This is my paper

Pith reviewed 2026-05-10 14:42 UTC · model grok-4.3

classification 🌌 astro-ph.IM

keywords mkidarrayarraysinductancekineticmappingmkidsprima

0 comments

The pith

A new cryogenic interferometer with a nonlinear kinetic inductance line maps MKID positions in a 44-pixel array by converting resonance phase shifts into spatial ordering.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Microwave kinetic inductance detectors are tiny superconducting resonators that can be packed into large arrays for detecting light in space telescopes. Each detector has its own resonance frequency, but to use the array you need to know exactly where each one sits on the chip. Traditional ways to find their locations, like shining lights or scanning beams, get hard when pixels are only hundreds of micrometers apart. The new method places the array in a dark cryogenic setup with a special transmission line that slows down microwave signals to less than one percent of light speed. When a signal hits an MKID at its resonance frequency, it reflects with a phase shift that depends on how far the MKID is along the line. By adjusting a current bias on the line, the team makes the phase wrap in a controlled way and reads out the positions from the pattern of phases. They tested it on a 44-pixel test array that matches the spacing planned for a much larger kilopixel instrument.

Core claim

Using this setup, we measure a length ordering that reflects the bimodal MKID distribution of a 44 pixel array of MKIDs designed for PRIMA which contains the same spacing as the final kilopixel array design.

Load-bearing premise

The phase accrued by on-resonance reflections is strictly proportional to the physical path length along the feedline, with no significant contributions from dispersion, losses, or non-ideal behavior in the nonlinear kinetic inductance line.

read the original abstract

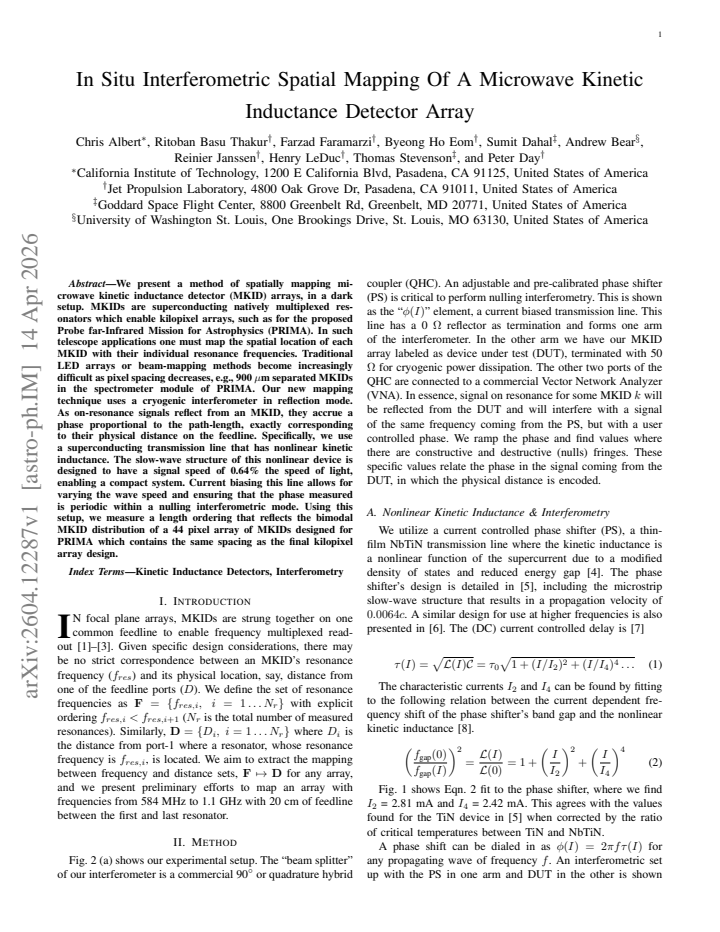

We present a method of spatially mapping microwave kinetic inductance detector (MKID) arrays, in a dark setup. MKIDs are superconducting natively multiplexed resonators which enable kilopixel arrays, such as for the proposed Probe far-Infrared Mission for Astrophysics (PRIMA). In such telescope applications one must map the spatial location of each MKID with their individual resonance frequencies. Traditional LED arrays or beam-mapping methods become increasingly difficult as pixel spacing decreases, e.g., 900 {\mu}m separated MKIDs in the spectrometer module of PRIMA. Our new mapping technique uses a cryogenic interferometer in reflection mode. As on-resonance signals reflect from an MKID, they accrue a phase proportional to the path-length, exactly corresponding to their physical distance on the feedline. Specifically, we use a superconducting transmission line that has nonlinear kinetic inductance. The slow-wave structure of this nonlinear device is designed to have a signal speed of 0.64% the speed of light, enabling a compact system. Current biasing this line allows for varying the wave speed and ensuring that the phase measured is periodic within a nulling interferometric mode. Using this setup, we measure a length ordering that reflects the bimodal MKID distribution of a 44 pixel array of MKIDs designed for PRIMA which contains the same spacing as the final kilopixel array design.
