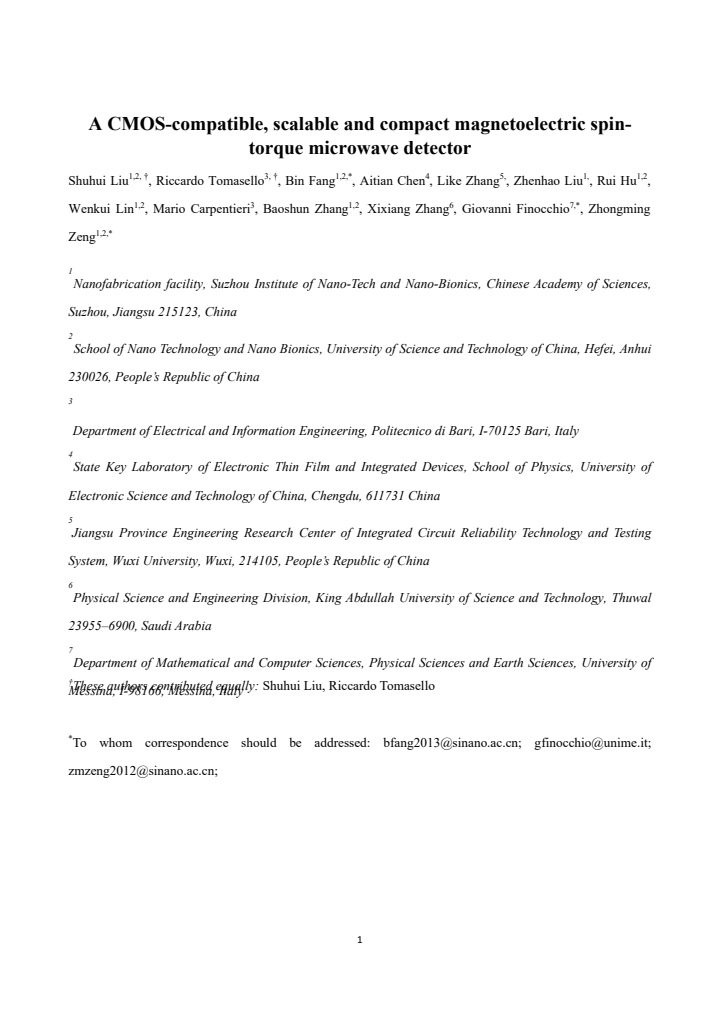

A CMOS-compatible, scalable and compact magnetoelectric spin-torque microwave detector

Shuhui Liu , Riccardo Tomasello , Bin Fang , Aitian Chen , Like Zhang , Zhenhao Liu , Rui Hu , Wenkui Lin
show 5 more authors
Mario Carpentieri Baoshun Zhang Xixiang Zhang Giovanni Finocchio Zhongming Zeng
This is my paper

Pith reviewed 2026-05-10 15:42 UTC · model grok-4.3

classification ❄️ cond-mat.mes-hall
keywords magnetoelectric antennaspin-torque diodemicrowave detectormagnetic tunnel junctionCMOS compatiblescalable arraywireless detectionDC conversion
0
0 comments X

The pith

A monolithic magnetoelectric antenna integrated with a magnetic tunnel junction converts wireless microwaves directly to DC voltage at over 90 kV/W sensitivity.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes that a compact microwave detector can be built by monolithically combining a magnetoelectric antenna, which generates both voltage and mechanical strain from incoming waves, with a magnetic tunnel junction driven by a small DC current. This setup produces a measurable DC output from sub-microwatt signals without any external antenna. A reader would care because the result removes the size and power barriers that have kept spin-torque detectors from practical wireless use. The mechanism relies on nonlinear interaction between the antenna's combined effects and the junction's magnetization dynamics, and the same structure can be repeated in arrays to raise sensitivity further. The device is also shown to be CMOS-compatible, pointing to direct on-chip integration.

Core claim

The device monolithically integrates an ME antenna with an MTJ to directly convert wireless electromagnetic signals into a DC output at sub-microwatt power levels, achieving a sensitivity greater than 90 kV/W, a noise equivalent power of 3 pW Hz^{-0.5}, and a compact footprint of 0.4 mm^{2}. This performance arises from the nonlinear coupling between incoherent magnetization dynamics, driven by a DC current in the MTJ, and the combined microwave voltage plus strain generated by the ME antenna. The same integration is scalable, as an array of four MTJs reaches sensitivity above 400 kV/W.

What carries the argument

The monolithic integration of a magnetoelectric antenna with a magnetic tunnel junction, in which the antenna's microwave voltage and strain couple nonlinearly to the junction's current-driven magnetization dynamics to generate DC voltage.

If this is right

  • The detector functions at sub-microwatt incident powers without external antennas or probes.
  • Sensitivity exceeds 90 kV/W and noise equivalent power reaches 3 pW Hz^{-0.5} in a 0.4 mm^{2} footprint.
  • The design scales directly: four MTJs in one device yield sensitivity above 400 kV/W.
  • The entire structure is CMOS-compatible and therefore compatible with standard semiconductor fabrication flows.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Arrays of such detectors could be tiled on a chip to form larger-area or direction-sensitive receivers.
  • The voltage-plus-strain drive may allow operation over a broader frequency range than voltage-only spin-torque devices.
  • Because the ME layer is thin and planar, the detector could be stacked with other CMOS circuits without extra packaging steps.

Load-bearing premise

The DC output is produced mainly by the nonlinear interaction between the magnetization dynamics and the combined voltage and strain from the antenna, with negligible interference from fabrication defects or parasitic effects.

What would settle it

Measure the DC output of an otherwise identical device fabricated without the magnetoelectric layer or without the DC bias current; a large drop or complete loss of the reported sensitivity would indicate the coupling mechanism is not dominant.

Figures

Figures reproduced from arXiv: 2604.12366 by Aitian Chen, Baoshun Zhang, Bin Fang, Giovanni Finocchio, Like Zhang, Mario Carpentieri, Riccardo Tomasello, Rui Hu, Shuhui Liu, Wenkui Lin, Xixiang Zhang, Zhenhao Liu, Zhongming Zeng.

Figure 2
Figure 2. Figure 2 [PITH_FULL_IMAGE:figures/full_fig_p009_2.png] view at source ↗
read the original abstract

The development of compact and highly sensitive microwave detectors compatible with complementary-metal-oxide-semiconductor (CMOS) processes is an active research area but remains a major challenge in microwave technology. Spin-torque diodes (STDs) are emerging nanoscale spintronic devices capable of surpassing the theoretical thermodynamic sensitivity limits of Schottky diodes. However, their practical use in compact systems is limited by the need of external antennas or probes. Here, we demonstrate a magnetoelectric (ME) spin-torque microwave detector that monolithically integrates an ME antenna with a magnetic tunnel junction (MTJ). The device directly converts wireless electromagnetic signals into a DC output at sub-microwatt power levels, achieving a sensitivity greater than 90 kV/W, a noise equivalent power of 3 pW*Hz^-0.5, and a compact footprint of 0.4 mm^2. This performance is due to the nonlinear coupling between incoherent magnetization dynamics, driven by a DC current in the MTJ, and the combined effects of the microwave voltage and strain generated by the ME antenna under incident electromagnetic waves. We further show that this design is scalable, enabling the co-integration of an ME antenna with an array of MTJs. A detector incorporating four MTJs, for example, exhibits a sensitivity exceeding 400 kV/W. This work paves the way for a new generation of highly sensitive, compact and scalable microwave detectors that combine ME antennas and spintronic diodes.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper claims to demonstrate a CMOS-compatible magnetoelectric spin-torque microwave detector formed by monolithic integration of an ME antenna with an MTJ. The device converts incident wireless EM signals directly to DC output at sub-microwatt powers, reporting sensitivity >90 kV/W, NEP of 3 pW Hz^{-0.5}, and 0.4 mm² footprint. Performance is attributed to nonlinear coupling between DC-current-driven incoherent magnetization dynamics in the MTJ and the combined microwave voltage plus piezo-strain from the ME antenna. Scalability is shown via a four-MTJ array reaching >400 kV/W.

Significance. If the measured performance and mechanism attribution are substantiated with adequate controls, the work would constitute a meaningful advance toward compact, antenna-free microwave detectors that are monolithically integrable with CMOS. The combination of spin-torque rectification with magnetoelectric strain coupling, together with the demonstrated array scaling, addresses a practical limitation of prior STDs and could enable new integrated sensing platforms.

major comments (2)
  1. [Abstract] The central sensitivity and NEP claims (Abstract) are presented as measured values but without accompanying experimental details on setup, error bars, baseline comparisons, or controls. This prevents verification that the reported figures arise from the claimed nonlinear ME-spin-torque mechanism rather than parasitic rectification or integration artifacts.
  2. [Results] No quantitative modeling or control data (e.g., response versus DC bias polarity, response with ME layer shorted or replaced by non-piezo material, or calibrated strain transfer efficiency) are provided to isolate the nonlinear coupling from possible parasitic channels in the monolithic stack. Such data are load-bearing for the attribution of the DC output and the scalability argument.
minor comments (2)
  1. The NEP unit is written as 3 pW*Hz^-0.5; standardize to pW Hz^{-1/2} and clarify the bandwidth over which it is measured.
  2. The phrase 'incoherent magnetization dynamics' is used without a supporting reference or brief definition; a short clarification or citation would improve readability.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their thorough review and positive evaluation of our work's significance. We address each major comment below and have made revisions to strengthen the manuscript accordingly.

read point-by-point responses

  1. Referee: [Abstract] The central sensitivity and NEP claims (Abstract) are presented as measured values but without accompanying experimental details on setup, error bars, baseline comparisons, or controls. This prevents verification that the reported figures arise from the claimed nonlinear ME-spin-torque mechanism rather than parasitic rectification or integration artifacts.

    Authors: The abstract summarizes the key results, but we recognize that additional details are required for full verification. In the revised manuscript, we will expand the description of the experimental setup, include error bars on the reported sensitivity (>90 kV/W) and NEP (3 pW Hz^{-0.5}), provide baseline comparisons (e.g., without incident EM signal), and discuss controls to rule out parasitic rectification. This will substantiate that the figures arise from the ME-spin-torque mechanism. revision: yes

  2. Referee: [Results] No quantitative modeling or control data (e.g., response versus DC bias polarity, response with ME layer shorted or replaced by non-piezo material, or calibrated strain transfer efficiency) are provided to isolate the nonlinear coupling from possible parasitic channels in the monolithic stack. Such data are load-bearing for the attribution of the DC output and the scalability argument.

    Authors: We agree that quantitative modeling and specific control data are essential. The current manuscript includes some analysis of the nonlinear dynamics, but lacks the requested controls. We will incorporate: response versus DC bias polarity to confirm the spin-torque origin; data with the ME layer shorted to isolate the voltage contribution; and modeling of strain transfer efficiency. These revisions will strengthen the attribution of the DC output and the array scalability demonstration. revision: yes

Circularity Check

0 steps flagged

No significant circularity in derivation chain

full rationale

The paper reports experimental fabrication and characterization of a monolithic ME antenna + MTJ device, with performance figures (sensitivity >90 kV/W, NEP 3 pW Hz^{-0.5}, footprint 0.4 mm^2) presented as direct measurement outcomes rather than outputs of any derivation, model, or parameter fit. No equations, first-principles predictions, or fitted inputs are invoked; the mechanism attribution is a qualitative statement about nonlinear coupling and does not reduce to self-definition or self-citation. The work is therefore self-contained against external benchmarks with no load-bearing step that collapses to its own inputs by construction.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only review; no explicit free parameters, axioms, or invented entities are stated. The central claim rests on experimental demonstration rather than new theory.
