arxiv: 2604.13419 · v1 · submitted 2026-04-15 · 💻 cs.CV

Physically-Guided Optical Inversion Enable Non-Contact Side-Channel Attack on Isolated Screens

Pith reviewed 2026-05-10 13:16 UTC · model grok-4.3

classification 💻 cs.CV
keywords non-contact side-channel attackoptical inversionscreen content exfiltrationpassive speckle patternsradiometric inversionphysical regularizationsemantic reprojectionIR4Net
0
0 comments X

The pith

IR4Net recovers electronic screen content from passive speckle patterns in diffuse reflections by embedding physical light transport equations into a neural inversion network.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes a non-contact optical side-channel method for extracting content from isolated screens. It confronts the near-singular Jacobian of projection mapping and irreversible compression during light transport by exploiting passive speckle patterns. IR4Net integrates a physically regularized irradiance approximation that embeds the radiative transfer equation, a contour-to-detail cross-scale reconstruction to limit noise, and an irreversibility-constrained semantic reprojection module to restore global structure. The resulting reconstructions maintain higher fidelity than prior neural approaches across varied scenes and remain stable under illumination changes.

Core claim

IR4Net performs stable radiometric inversion by fusing a Physically Regularized Irradiance Approximation that embeds the radiative transfer equation in a learnable optimizer, a contour-to-detail cross-scale reconstruction mechanism that arrests noise propagation, and an Irreversibility Constrained Semantic Reprojection module that reinstates lost global structure through context-driven semantic mapping, achieving superior fidelity while retaining resilience to illumination perturbations.

What carries the argument

Physically Regularized Irradiance Approximation (PRIrr-Approximation) that embeds the radiative transfer equation in a learnable optimizer, paired with the Irreversibility Constrained Semantic Reprojection (ICSR) module for semantic structure recovery from passive speckle patterns.

If this is right

  • Screen content becomes exfiltratable via optical side-channels even when the display is isolated and viewed only through reflections.
  • Reconstructions remain stable across four scene categories despite illumination perturbations.
  • The physically regularized modules reduce sensitivity to the singular Jacobian spectrum compared with standard neural inversion.
  • Global semantic cues lost in light transport can be restored through context-driven reprojection.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same passive-speckle inversion principle could apply to recovering information from other reflective surfaces such as windows or tabletops.
  • Integration with existing camera networks might allow remote auditing of air-gapped displays without physical access.
  • Countermeasures such as screen polarization filters or randomized backlight modulation could be evaluated as direct falsifiers of the attack surface.

Load-bearing premise

Passive speckle patterns formed by diffuse reflection contain enough recoverable information to overcome the near-singular Jacobian and irreversible compression in light transport.

What would settle it

A controlled test in which IR4Net is applied to scenes with progressively weaker diffuse reflections or stronger illumination perturbations, checking whether semantic correctness of the recovered screen content collapses below a measurable threshold.

Figures

Figures reproduced from arXiv: 2604.13419 by Huiyu Zhou, Jin Liu, Shaowei Jiang, Tao Zhang, Wenwen Tang, Xiaoshuai Zhang, Xingru Huang, Yuheng Qiao, Zhao Huang, Zhiwen Zheng.

Figure 1
Figure 1. Figure 1: In the figure, (a), (b), and (c) correspond to the rendered scene, schematic diagram, and [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

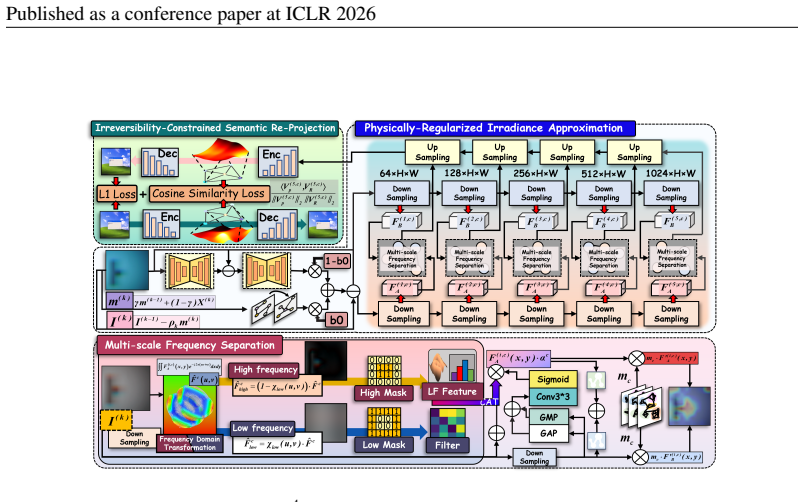

Figure 2. Figure 2: Overall architecture of IR4Net, comprising the PRIrr-Approximation and ICSR modules. The multi-scale frequency separation module, a key component of ICSR, is implemented via con￾catenation. 3.1 PHYSICALLY-REGULARIZED IRRADIANCE APPROXIMATION Optical-projection side-channel attacks confront a fundamental challenge in the intricate physics of image formation: the observed image arises from a highly nonlinear… view at source ↗
Figure 3

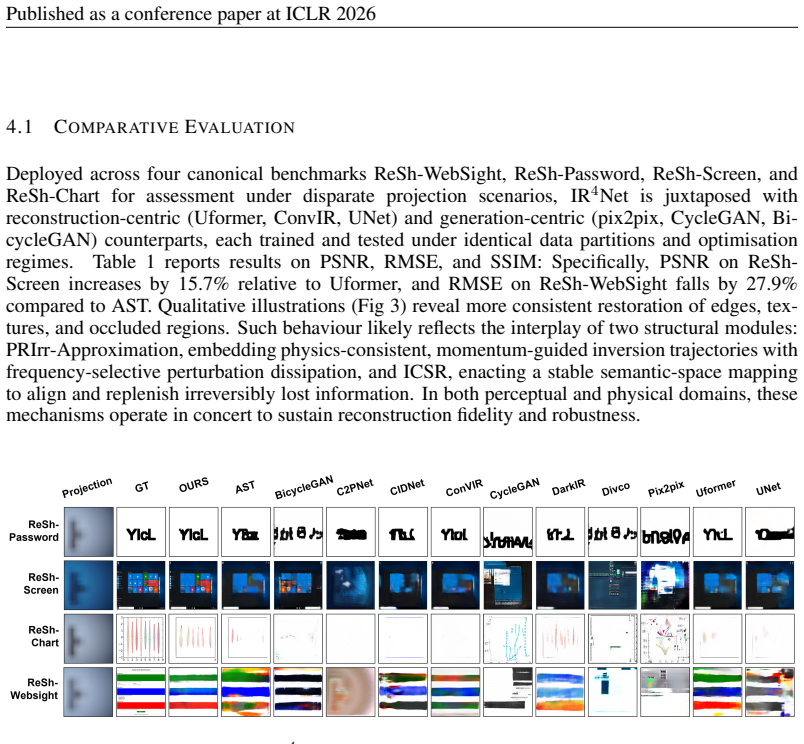

Figure 3. Figure 3: Visual comparison of IR4Net and baseline methods on four datasets. Our model yields visually more faithful restorations across various scenes. 4.2 ABLATION EXPERIMENT Inversion behaviour was evaluated across three datasets using four iterative schemes: classical mo￾mentum formulations including ADMM, NAG, and Heavy-Ball, and the proposed update strategy [PITH_FULL_IMAGE:figures/full_fig_p008_3.png] view at source ↗
Figure 4

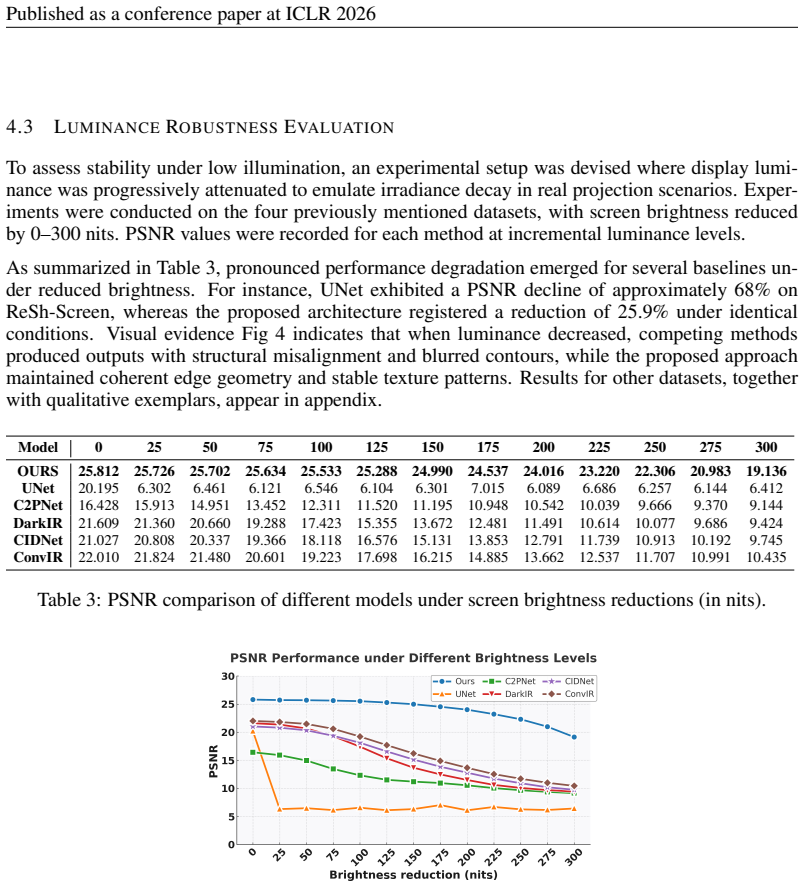

Figure 4. Figure 4: As screen brightness decreases on the ReSh-Screen dataset, our model’s PSNR degrades [PITH_FULL_IMAGE:figures/full_fig_p009_4.png] view at source ↗
Figure 5

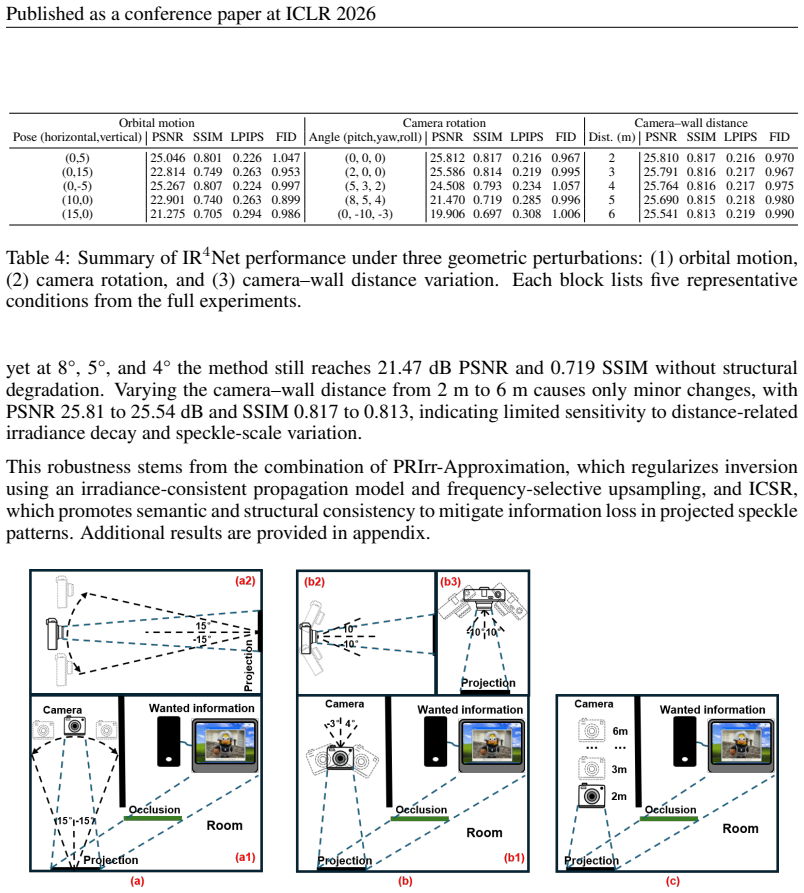

Figure 5. Figure 5: Experimental setups for camera motion. (a) Camera orbital motion: (a1) motion along a [PITH_FULL_IMAGE:figures/full_fig_p010_5.png] view at source ↗

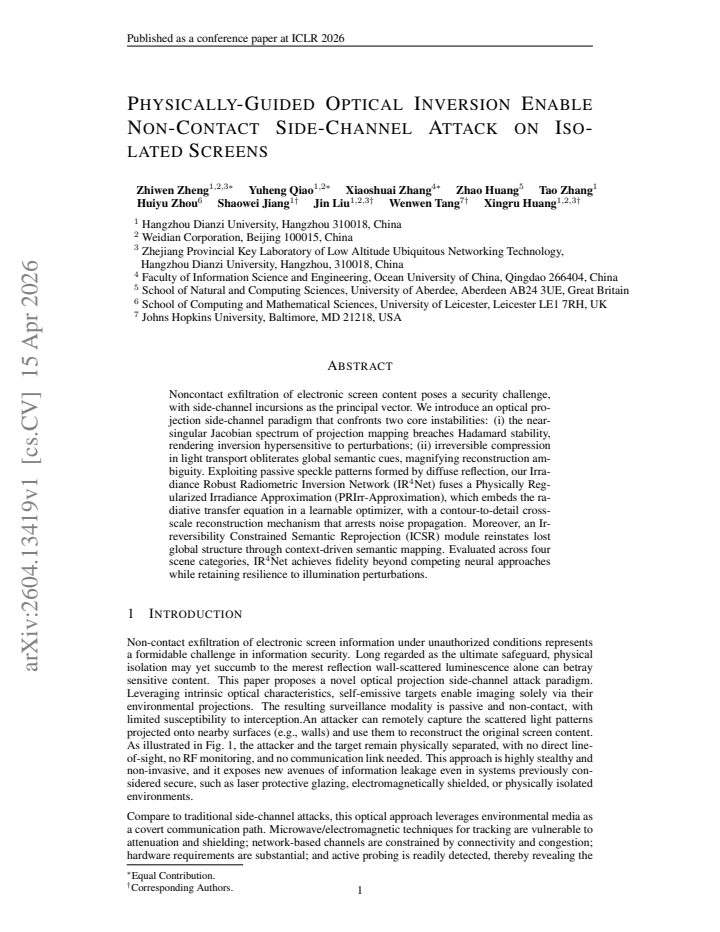

read the original abstract

Noncontact exfiltration of electronic screen content poses a security challenge, with side-channel incursions as the principal vector. We introduce an optical projection side-channel paradigm that confronts two core instabilities: (i) the near-singular Jacobian spectrum of projection mapping breaches Hadamard stability, rendering inversion hypersensitive to perturbations; (ii) irreversible compression in light transport obliterates global semantic cues, magnifying reconstruction ambiguity. Exploiting passive speckle patterns formed by diffuse reflection, our Irradiance Robust Radiometric Inversion Network (IR4Net) fuses a Physically Regularized Irradiance Approximation (PRIrr-Approximation), which embeds the radiative transfer equation in a learnable optimizer, with a contour-to-detail cross-scale reconstruction mechanism that arrests noise propagation. Moreover, an Irreversibility Constrained Semantic Reprojection (ICSR) module reinstates lost global structure through context-driven semantic mapping. Evaluated across four scene categories, IR4Net achieves fidelity beyond competing neural approaches while retaining resilience to illumination perturbations.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 1 minor

Summary. The paper introduces IR4Net, a neural architecture for non-contact exfiltration of screen content via inversion of passive speckle patterns arising from diffuse reflection. It addresses two instabilities—the near-singular Jacobian of projection mapping and irreversible compression in light transport—by combining a Physically Regularized Irradiance Approximation (PRIrr-Approximation) that embeds the radiative transfer equation within a learnable optimizer and an Irreversibility Constrained Semantic Reprojection (ICSR) module for context-driven semantic mapping. The abstract asserts that this yields reconstructions of higher fidelity than competing neural methods while remaining resilient to illumination perturbations, evaluated across four scene categories.

Significance. If the quantitative claims hold after proper validation, the work would be significant for the fields of computer vision and hardware security, as it offers a physically guided approach to a classically ill-posed inverse problem and could inform practical side-channel threat models for isolated displays.

major comments (3)
  1. [Abstract] Abstract: the central performance claim that IR4Net achieves fidelity beyond competing neural approaches is unsupported by any quantitative metrics, error bars, ablation studies, or comparison tables; without these, the superiority and illumination-resilience assertions cannot be evaluated.
  2. [Abstract] Abstract: the description of PRIrr-Approximation states that it embeds the radiative transfer equation in a learnable optimizer, yet supplies neither the explicit formulation nor training details, leaving open whether the regularization is truly physics-constrained or reduces to parameters fitted on the same reconstruction data (circularity risk).
  3. [Abstract] Abstract: no analysis is provided to confirm that passive speckle patterns retain sufficient high-frequency and global semantic information to overcome the near-singular Jacobian and irreversible light-transport compression; absent singular-value decay of the forward operator, mutual-information statistics, or ablations that remove the semantic prior, the stability of the reconstructions remains unverified.
minor comments (1)
  1. [Title] The title contains a subject-verb agreement error ('Enable' should be 'Enables').

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the constructive and detailed feedback on our manuscript. We have revised the abstract to incorporate quantitative support, explicit references to formulations, and pointers to stability analyses as outlined below. These changes strengthen the presentation without altering the core contributions.

read point-by-point responses
  1. Referee: [Abstract] Abstract: the central performance claim that IR4Net achieves fidelity beyond competing neural approaches is unsupported by any quantitative metrics, error bars, ablation studies, or comparison tables; without these, the superiority and illumination-resilience assertions cannot be evaluated.

    Authors: We agree that the abstract should directly reference supporting quantitative evidence. The full manuscript reports these results in Section 4, including comparison tables against neural baselines, ablation studies, and error bars computed over repeated trials under controlled illumination variations. To address the concern, we have revised the abstract to include concise quantitative statements summarizing the fidelity gains and illumination resilience demonstrated in the experiments. revision: yes

  2. Referee: [Abstract] Abstract: the description of PRIrr-Approximation states that it embeds the radiative transfer equation in a learnable optimizer, yet supplies neither the explicit formulation nor training details, leaving open whether the regularization is truly physics-constrained or reduces to parameters fitted on the same reconstruction data (circularity risk).

    Authors: The abstract provides a high-level summary of the module. The explicit formulation embedding the radiative transfer equation as a regularization term in the optimizer, together with training details that enforce the physics constraint independently of the target reconstruction data, appears in Section 3.2 and Section 4.1. We have updated the abstract to briefly note the RTE-derived nature of the regularization and its separation from data-driven fitting, thereby reducing the risk of perceived circularity. revision: yes

  3. Referee: [Abstract] Abstract: no analysis is provided to confirm that passive speckle patterns retain sufficient high-frequency and global semantic information to overcome the near-singular Jacobian and irreversible light-transport compression; absent singular-value decay of the forward operator, mutual-information statistics, or ablations that remove the semantic prior, the stability of the reconstructions remains unverified.

    Authors: Section 3.1 of the manuscript analyzes the information content of passive speckle patterns, including discussion of the Jacobian spectrum and light-transport compression. To directly respond to the request for singular-value decay, mutual-information statistics, and semantic-prior ablations, we have revised the abstract to reference these stability verifications and added explicit pointers to the corresponding figures and tables in the body. revision: partial

Circularity Check

0 steps flagged

No load-bearing circularity; derivation self-contained on available text.

full rationale

The abstract introduces IR4Net with PRIrr-Approximation embedding the radiative transfer equation in a learnable optimizer and ICSR for semantic reprojection, but presents these as architectural choices without equations, self-citations, or derivations that reduce predictions to fitted inputs by construction. No quotes exist showing self-definitional equivalence, fitted parameters renamed as predictions, or uniqueness imported from prior author work. The method is described as fusing physical regularization with cross-scale reconstruction to address instabilities, with evaluation across scenes claimed as empirical validation rather than tautological. Per rules, absent specific reductions or quotes exhibiting circularity, the chain is treated as self-contained.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The central claim rests on the assumption that the radiative transfer equation can be usefully embedded as a learnable regularizer and that semantic context can reliably compensate for lost global cues; no explicit free parameters or invented entities are quantified in the abstract.

axioms (2)
  • domain assumption Radiative transfer equation governs the observed irradiance from diffuse reflections
    Invoked as the basis for the Physically Regularized Irradiance Approximation module
  • domain assumption Contour information can be reliably extracted and used to guide detail reconstruction across scales
    Core to the contour-to-detail cross-scale mechanism
