pith. sign in

arxiv: 2604.13527 · v1 · submitted 2026-04-15 · ❄️ cond-mat.mes-hall

Coherent control of thermal transport with pillar-based phononic crystals

Tatu A. S. Korkiam\"aki , Tuomas A. Puurtinen , Mikko Kivek\"as , Teemu Loippo , Adam Krysztofik , Bartlomiej Graczykowski , Ilari J. Maasilta This is my paper

Pith reviewed 2026-05-10 12:59 UTC · model grok-4.3

classification ❄️ cond-mat.mes-hall
keywords phononic crystalsthermal conductancecoherent controlpillar arrayssilicon nitride membranelow temperaturephonon dispersionsurface scattering
0
0 comments X p. Extension

The pith

Periodic arrays of aluminum pillars on intact silicon nitride membranes reduce thermal conductance by up to an order of magnitude at sub-Kelvin temperatures through coherent phonon control.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper demonstrates that phononic crystals formed by placing a periodic array of aluminum pillars on an uncut silicon nitride membrane can coherently control thermal transport at low temperatures. Measurements and simulations across lattice constants from 0.3 to 5 micrometers show conductance reductions reaching a factor of ten relative to a plain membrane. This pillar-based method achieves effects similar to earlier hole-drilled structures while avoiding membrane perforation. For lattices larger than 1 micrometer the data deviate from coherent predictions, which the work links to increased diffusive scattering at rough pillar surfaces.

Core claim

Pillar-based phononic crystals formed by a periodic array of Al pillars on an uncut SiN membrane achieve coherent control of thermal conductance at sub-Kelvin temperatures, yielding up to an order of magnitude reduction in thermal conductance compared to an unaltered membrane, with coherence breaking down for lattice constants larger than 1 micrometer due to diffusive scattering from surface roughness.

What carries the argument

The periodic array of aluminum pillars on the silicon nitride membrane, which alters phonon dispersion, group velocities, and density of states to enable coherent thermal transport control.

Load-bearing premise

The reduction in thermal conductance at small lattice constants arises primarily from coherent phonon mode modification rather than from other scattering processes.

What would settle it

Fabricating pillar arrays with significantly smoother surfaces and measuring whether thermal conductance for lattice constants above 1 micrometer then matches the fully coherent simulation predictions.

Figures

Figures reproduced from arXiv: 2604.13527 by Adam Krysztofik, Bartlomiej Graczykowski, Ilari J. Maasilta, Mikko Kivek\"as, Tatu A. S. Korkiam\"aki, Teemu Loippo, Tuomas A. Puurtinen.

Figure 1
Figure 1. Figure 1: FIG. 1 [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2

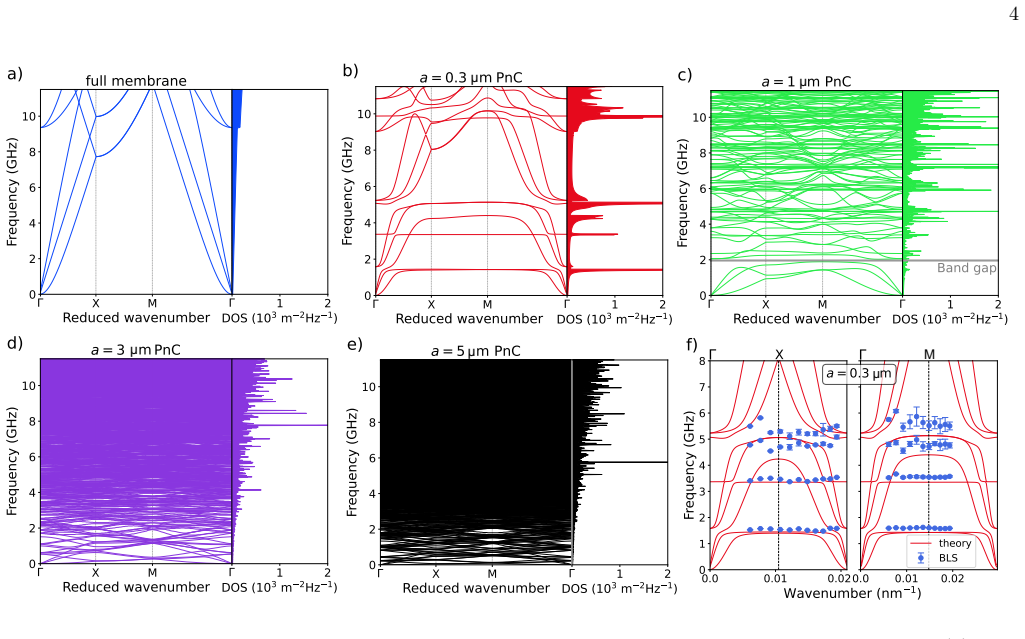

Figure 2. Figure 2: FIG. 2 [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: FIG. 3 [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 4

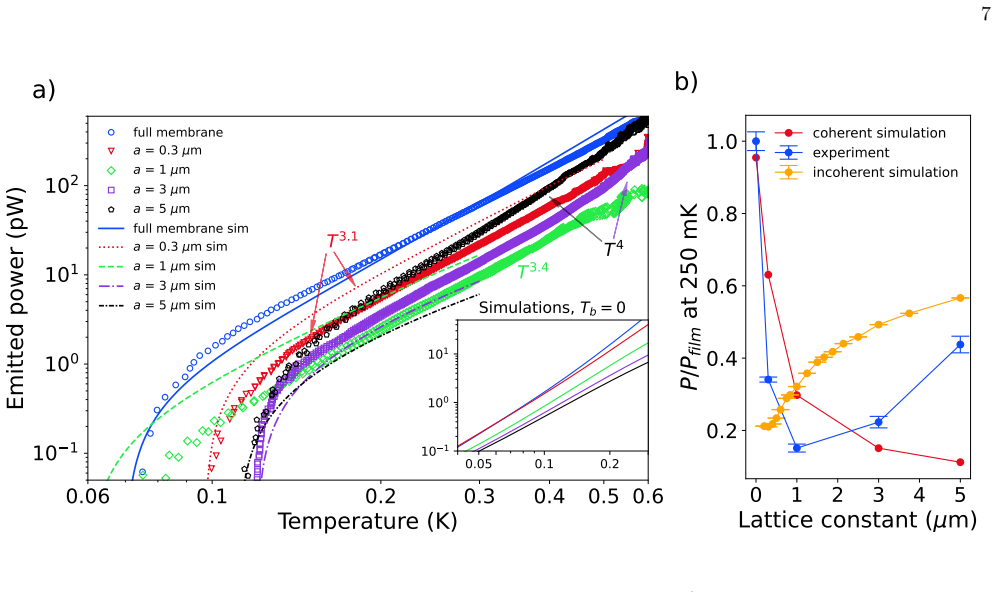

Figure 4. Figure 4: FIG. 4 [PITH_FULL_IMAGE:figures/full_fig_p007_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: FIG. 5 [PITH_FULL_IMAGE:figures/full_fig_p010_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: FIG. 6 [PITH_FULL_IMAGE:figures/full_fig_p011_6.png] view at source ↗
read the original abstract

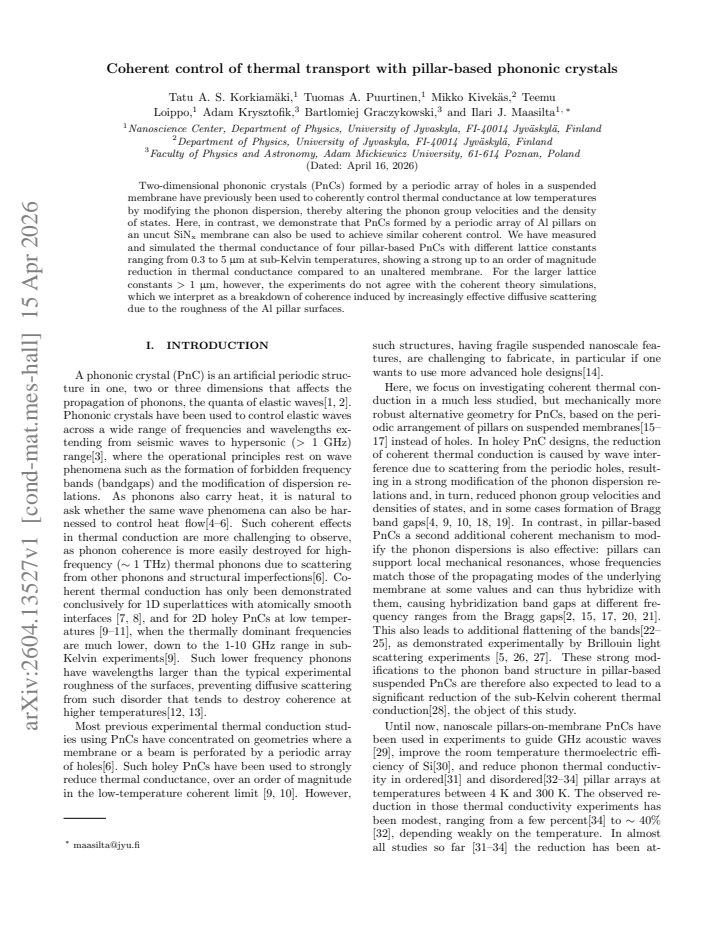

Two-dimensional phononic crystals (PnCs) formed by a periodic array of holes in a suspended membrane have previously been used to coherently control thermal conductance at low temperatures by modifying the phonon dispersion, thereby altering the phonon group velocities and the density of states. Here, in contrast, we demonstrate that PnCs formed by a periodic array of Al pillars on an uncut \SiN membrane can also be used to achieve similar coherent control. We have measured and simulated the thermal conductance of four pillar-based PnCs with different lattice constants ranging from 0.3 to 5 $\mu$m at sub-Kelvin temperatures, showing a strong up to an order of magnitude reduction in thermal conductance compared to an unaltered membrane. For the larger lattice constants $> 1 $ $\mu$m, however, the experiments do not agree with the coherent theory simulations, which we interpret as a breakdown of coherence induced by increasingly effective diffusive scattering due to the roughness of the Al pillar surfaces.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript demonstrates that phononic crystals formed by periodic arrays of aluminum pillars on uncut suspended SiN membranes can achieve coherent control of thermal transport at sub-Kelvin temperatures. Thermal conductance measurements on four devices with lattice constants a = 0.3–5 μm show reductions of up to an order of magnitude relative to a bare membrane. Finite-element simulations assuming coherent phonon propagation match the data for the smallest lattice constants but diverge for a > 1 μm; the authors interpret the mismatch as a coherence breakdown caused by diffusive scattering from roughness on the Al pillar surfaces.

Significance. If the coherence interpretation holds, the work establishes pillar-based PnCs as a viable alternative to hole-based structures for phonon dispersion engineering, with the advantage of leaving the membrane intact. The experimental reduction in conductance is clearly demonstrated and the simulations provide supporting evidence for small periods, strengthening the case for coherent phonon control in low-temperature mesoscopic systems.

major comments (2)
  1. [Abstract and discussion] Abstract and discussion of results for a > 1 μm: the attribution of the experimental–simulation mismatch to roughness-induced loss of coherence is load-bearing for the claim of coherent control across the studied range, yet no surface-roughness statistics (AFM, SEM, or otherwise), no calculated scattering rates, and no quantitative model showing that roughness becomes dominant precisely above 1 μm are provided. Without these, alternative explanations (fabrication variation in pillar geometry, incomplete coherent model, or incoherent scattering already present at small a) cannot be ruled out.
  2. [Results] Comparison of experiment and coherent simulations (results section): the manuscript states that simulations match for small lattices but does not report the precise lattice constants at which agreement holds, the magnitude of the deviation (e.g., factor by which measured G falls below simulated G), or any error analysis on the measured conductances. This quantitative detail is required to assess whether the small-a agreement securely demonstrates coherent control or could arise from other factors.
minor comments (2)
  1. [Abstract] The abstract phrase “strong up to an order of magnitude reduction” should be replaced by the actual measured reduction factors for each of the four lattice constants.
  2. [Figures] Figure captions and legends should explicitly label which curves correspond to which lattice constant and include experimental error bars.

Simulated Author's Rebuttal

2 responses · 1 unresolved

We thank the referee for their thorough review and valuable comments on our manuscript. We address each of the major comments below and have revised the manuscript to incorporate additional details and clarifications.

read point-by-point responses

  1. Referee: [Abstract and discussion] Abstract and discussion of results for a > 1 μm: the attribution of the experimental–simulation mismatch to roughness-induced loss of coherence is load-bearing for the claim of coherent control across the studied range, yet no surface-roughness statistics (AFM, SEM, or otherwise), no calculated scattering rates, and no quantitative model showing that roughness becomes dominant precisely above 1 μm are provided. Without these, alternative explanations (fabrication variation in pillar geometry, incomplete coherent model, or incoherent scattering already present at small a) cannot be ruled out.

    Authors: We agree that the manuscript would benefit from more direct evidence supporting the roughness interpretation. Unfortunately, quantitative surface roughness statistics from AFM or detailed scattering rate calculations are not available in our current dataset. In the revised manuscript, we have expanded the discussion to explicitly consider alternative explanations such as fabrication variations in pillar geometry and possible limitations in the coherent model. We have also included available SEM images of the pillars to provide qualitative information on surface morphology. We maintain that the systematic increase in discrepancy with larger lattice constants is consistent with roughness effects becoming more prominent as phonon wavelengths become comparable to feature sizes, but we have softened the language to present this as a plausible interpretation rather than a definitive conclusion. revision: partial

  2. Referee: [Results] Comparison of experiment and coherent simulations (results section): the manuscript states that simulations match for small lattices but does not report the precise lattice constants at which agreement holds, the magnitude of the deviation (e.g., factor by which measured G falls below simulated G), or any error analysis on the measured conductances. This quantitative detail is required to assess whether the small-a agreement securely demonstrates coherent control or could arise from other factors.

    Authors: We agree that additional quantitative details are necessary. In the revised manuscript, we have updated the results section to report the specific lattice constants at which the simulations match the experimental data, the magnitude of any deviations for each device, and an error analysis on the measured thermal conductances, including uncertainties from membrane thickness and temperature measurements. This provides a clearer basis for evaluating the demonstration of coherent control at small lattice constants. revision: yes

standing simulated objections not resolved
  • Quantitative AFM or SEM-based surface roughness statistics and a calculated model of roughness scattering rates to demonstrate dominance above 1 μm

Circularity Check

0 steps flagged

No significant circularity; experimental comparison to independent simulations

full rationale

The paper presents direct measurements of thermal conductance in fabricated pillar-based PnCs across multiple lattice constants, benchmarked against unaltered membranes and against coherent phonon simulations performed with standard finite-element methods. No derivation chain reduces a claimed prediction to a fitted parameter by the paper's own equations, nor does any central result depend on a self-citation whose content is itself unverified or defined in terms of the target claim. The interpretation of mismatch at large lattice constants as roughness-induced decoherence is an auxiliary assumption, not a load-bearing step that forces the main conclusion of coherent control at small periods. The work is therefore self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the domain assumption that phonon transport remains coherent at sub-Kelvin temperatures for small lattice constants and that surface roughness induces diffusive scattering for larger ones; no free parameters or invented entities are introduced in the abstract.

axioms (1)
  • domain assumption Coherent phonon transport model based on modified dispersion applies for lattice constants below 1 μm at sub-Kelvin temperatures
    Invoked to explain agreement between experiment and simulation for small lattices.

pith-pipeline@v0.9.0 · 5508 in / 1246 out tokens · 42504 ms · 2026-05-10T12:59:48.985101+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

59 extracted references · 59 canonical work pages

  1. [1]

    Sound and heat revolutions in phononics

    Maldovan, M. Sound and heat revolutions in phononics. Nature502, 209–217 (2013)

    work page 2013

  2. [2]

    Laude, V.Phononic Crystals : Artificial Crystals for Sonic, Acoustic, and Elastic Waves(De Gruyter, Inc., 2015)

    work page 2015

  3. [3]

    Vasileiadis, T.et al.Progress and perspectives on phononic crystals.Journal of Applied Physics129, 160901 (2021)

    work page 2021

  4. [4]

    Phonon wave interference and thermal bandgap materials.Nature Materials14, 667–674 (2015)

    Maldovan, M. Phonon wave interference and thermal bandgap materials.Nature Materials14, 667–674 (2015)

    work page 2015

  5. [5]

    Sledzinska, M.et al.2d phononic crystals: Progress and prospects in hypersound and thermal transport engineer- ing.Advanced Functional Materials30, 1904434 (2020)

    work page 2020

  6. [6]

    Nomura, M.et al.Review of thermal transport in phononic crystals.Materials Today Physics22, 100613 (2022)

    work page 2022

  7. [7]

    N.et al.Coherent phonon heat conduc- tion in superlattices.Science338, 936–939 (2012)

    Luckyanova, M. N.et al.Coherent phonon heat conduc- tion in superlattices.Science338, 936–939 (2012)

    work page 2012

  8. [8]

    K., Cheaito, R., Rossen, P

    Ravichandran, J., Yadav, A. K., Cheaito, R., Rossen, P. B. & Soukiassian, A. Crossover from incoherent to co- herent phonon scattering in epitaxial oxide superlattices. Nature Materials13, 168–172 (2014)

    work page 2014

  9. [9]

    A., Isotalo, T

    Zen, N., Puurtinen, T. A., Isotalo, T. J., Chaudhuri, S. & Maasilta, I. J. Engineering thermal conductance using a two-dimensional phononic crystal.Nature Communi- cations5, 3435 (2014)

    work page 2014

  10. [10]

    A., Geng, Z

    Tian, Y., Puurtinen, T. A., Geng, Z. & Maasilta, I. J. Minimizing coherent thermal conductance by control- ling the periodicity of two-dimensional phononic crystals. Phys. Rev. Applied12, 014008 (2019)

    work page 2019

  11. [11]

    Maire, J.et al.Heat conduction tuning by wave nature of phonons.Science Advances3, e1700027 (2017)

    work page 2017

  12. [12]

    M.Electrons and Phonons(Oxford University Press, Great Clarendon Street, Oxford, Great Britain, 1960/2001)

    Ziman, J. M.Electrons and Phonons(Oxford University Press, Great Clarendon Street, Oxford, Great Britain, 1960/2001)

    work page 1960

  13. [13]

    Maznev, A. A. Boundary scattering of phonons: Spec- ularity of a randomly rough surface in the small- perturbation limit.Phys. Rev. B91, 134306 (2015)

    work page 2015

  14. [14]

    Florez, O.et al.Engineering nanoscale hypersonic phonon transport.Nature Nanotechnology17, 947–951 (2022)

    work page 2022

  15. [15]

    O., Djafari-Rouhani, B., Do- brzy´ nski, L

    Pennec, Y., Vasseur, J. O., Djafari-Rouhani, B., Do- brzy´ nski, L. & Deymier, P. A. Two-dimensional phononic crystals: Examples and applications.Surface Science Re- ports65, 229–291 (2010)

    work page 2010

  16. [16]

    & Nomura, M

    Anufriev, R. & Nomura, M. Phonon and heat transport control using pillar-based phononic crystals.Science and Technology of Advanced Materials19, 863–870 (2018)

    work page 2018

  17. [17]

    Jin, Y.et al.Physics of surface vibrational resonances: pillared phononic crystals, metamaterials, and metasur- faces.Reports on Progress in Physics84, 086502 (2021)

    work page 2021

  18. [18]

    Puurtinen, T. A. & Maasilta, I. J. Low-temperature co- herent thermal conduction in thin phononic crystal mem- branes.Crystals6, 72 (2016)

    work page 2016

  19. [19]

    & Nomura, M

    Anufriev, R. & Nomura, M. Reduction of thermal conductance by coherent phonon scattering in two- dimensional phononic crystals of different lattice types. Phys. Rev. B93, 045410 (2016)

    work page 2016

  20. [20]

    & Aoubiza, B

    Khelif, A., Achaoui, Y., Benchabane, S., Laude, V. & Aoubiza, B. Locally resonant surface acoustic wave band gaps in a two-dimensional phononic crystal of pillars on a surface.Phys. Rev. B81, 214303 (2010)

    work page 2010

  21. [21]

    & Laude, V

    Achaoui, Y., Khelif, A., Benchabane, S., Robert, L. & Laude, V. Experimental observation of locally-resonant and bragg band gaps for surface guided waves in a phononic crystal of pillars.Phys. Rev. B83, 104201 (2011)

    work page 2011

  22. [22]

    Local resonances-induced low-frequency band gaps in two-dimensional phononic crystal slabs with pe- riodic stepped resonators.Journal of Physics D: Applied Physics44, 055401 (2011)

    Hsu, J.-C. Local resonances-induced low-frequency band gaps in two-dimensional phononic crystal slabs with pe- riodic stepped resonators.Journal of Physics D: Applied Physics44, 055401 (2011)

    work page 2011

  23. [23]

    Pourabolghasem, R., Khelif, A., Mohammadi, S., Eftekhar, A. A. & Adibi, A. Physics of band-gap forma- tion and its evolution in the pillar-based phononic crys- tal structures.Journal of Applied Physics116, 013514 (2014)

    work page 2014

  24. [24]

    Davis, B. L. & Hussein, M. I. Nanophononic metamate- rial: Thermal conductivity reduction by local resonance. Phys. Rev. Lett.112, 055505 (2014)

    work page 2014

  25. [25]

    Xiong, S.et al.Blocking phonon transport by struc- tural resonances in alloy-based nanophononic metamate- rials leads to ultralow thermal conductivity.Phys. Rev. Lett.117, 025503 (2016)

    work page 2016

  26. [26]

    Graczykowski, B.et al.Phonon dispersion in hypersonic two-dimensional phononic crystal membranes.Phys. Rev. B91, 075414 (2015)

    work page 2015

  27. [27]

    Yudistira, D.et al.Nanoscale pillar hypersonic surface phononic crystals.Phys. Rev. B94, 094304 (2016)

    work page 2016

  28. [28]

    & Nomura, M

    Anufriev, R. & Nomura, M. Heat conduction engineer- ing in pillar-based phononic crystals.Phys. Rev. B95, 155432 (2017)

    work page 2017

  29. [29]

    Pourabolghasem, R., Dehghannasiri, R., Eftekhar, A. A. & Adibi, A. Waveguiding effect in the gigahertz frequency range in pillar-based phononic-crystal slabs. Phys. Rev. Appl.9, 014013 (2018)

    work page 2018

  30. [30]

    T.et al.Semiconductor thermal and electri- cal properties decoupled by localized phonon resonances

    Spann, B. T.et al.Semiconductor thermal and electri- cal properties decoupled by localized phonon resonances. Advanced Materials35, 2209779 (2023)

    work page 2023

  31. [31]

    & Nomura, M

    Anufriev, R., Yanagisawa, R. & Nomura, M. Alu- minium nanopillars reduce thermal conductivity of sil- icon nanobeams.Nanoscale9, 15083–15088 (2017)

    work page 2017

  32. [32]

    & Nomura, M

    Huang, X., Gluchko, S., Anufriev, R., Volz, S. & Nomura, M. Thermal conductivity reduction in a silicon thin film 13 with nanocones.ACS Applied Materials & Interfaces11, 34394–34398 (2019)

    work page 2019

  33. [33]

    Huang, X.et al.Coherent and incoherent impacts of nanopillars on the thermal conductivity in silicon nanomembranes.ACS Applied Materials & Interfaces 12, 25478–25483 (2020)

    work page 2020

  34. [34]

    Nanoscale15, 2248–2253 (2023)

    Anufriev, R.et al.Impact of nanopillars on phonon dis- persion and thermal conductivity of silicon membranes. Nanoscale15, 2248–2253 (2023)

    work page 2023

  35. [35]

    & Chen, Y

    Wei, Z., Yang, J., Bi, K. & Chen, Y. Phonon trans- port properties in pillared silicon film.Journal of Applied Physics118, 155103 (2015)

    work page 2015

  36. [36]

    & Donadio, D

    Neogi, S. & Donadio, D. Thermal transport in free- standing silicon membranes: influence of dimensional re- duction and surface nanostructures.The European Phys- ical Journal B88, 73 (2015)

    work page 2015

  37. [37]

    & Hussein, M

    Honarvar, H., Yang, L. & Hussein, M. I. Thermal trans- port size effects in silicon membranes featuring nanopil- lars as local resonators.Applied Physics Letters108, 263101 (2016)

    work page 2016

  38. [38]

    & Hussein, M

    Honarvar, H. & Hussein, M. I. Two orders of magni- tude reduction in silicon membrane thermal conductiv- ity by resonance hybridizations.Phys. Rev. B97, 195413 (2018)

    work page 2018

  39. [39]

    Zhang, X.et al.Controlling the thermal conductance of silicon nitride membranes at 100 mk temperatures with patterned metal features.Applied Physics Letters115, 052601 (2019)

    work page 2019

  40. [40]

    T., Luukanen, A., Savin, A

    Giazotto, F., Heikkil¨ a, T. T., Luukanen, A., Savin, A. M. & Pekola, J. P. Opportunities for mesoscopics in ther- mometry and refrigeration: Physics and applications. Rev. Mod. Phys.78, 217–274 (2006)

    work page 2006

  41. [41]

    Koppinen, P. J. & Maasilta, I. J. Phonon cooling of nanomechanical beams with tunnel junctions.Phys. Rev. Lett.102, 165502 (2009)

    work page 2009

  42. [42]

    Rajauria, S.et al.Andreev current-induced dissipation in a hybrid superconducting tunnel junction.Phys. Rev. Lett.100, 207002 (2008)

    work page 2008

  43. [43]

    & Geng, Z

    Maasilta, I., Puurtinen, T., Tian, Y. & Geng, Z. Phononic thermal conduction engineering for bolometers: From phononic crystals to radial casimir limit.Journal of Low Temperature Physics184, 211–216 (2016)

    work page 2016

  44. [44]

    Tinkham, M.Introduction to Superconductivity (McGraw-Hill, 1996)

    work page 1996

  45. [45]

    F.Wave motion in elastic solids(Oxford Uni- versity Press, London, UK, 1975/1991)

    Graff, K. F.Wave motion in elastic solids(Oxford Uni- versity Press, London, UK, 1975/1991)

    work page 1975

  46. [46]

    & Maasilta, I

    K¨ uhn, T. & Maasilta, I. Ballistic phonon transport in dielectric membranes.Nuclear Instruments and Methods in Physics Research Section A: Accelerators, Spectrome- ters, Detectors and Associated Equipment559, 724 – 726 (2006)

    work page 2006

  47. [47]

    & Maasilta, I

    K¨ uhn, T. & Maasilta, I. J. Maximizing phonon thermal conductance for ballistic membranes.Journal of Physics: Conference Series92, 012082 (2007)

    work page 2007

  48. [48]

    Puurtinen, T. A. & Maasilta, I. J. Radial phononic ther- mal conductance in thin membranes in the casimir limit: Design guidelines for devices.AIP Advances4, 124503 (2014)

    work page 2014

  49. [49]

    & Sanquer, M

    Hoffmann, C., Lefloch, F. & Sanquer, M. Inelastic re- laxation and noise temperature in s/n/s junctions.Eur. Phys. J. B29, 629–633 (2002)

    work page 2002

  50. [50]

    R¨ ais¨ anen, I. M. W., Geng, Z., Kinnunen, K. M. & Maasilta, I. J. Normal metal - insulator - superconductor thermometers and coolers with titanium-gold bilayer as the normal metal.Journal of Physics: Conference Series 969, 012090 (2018)

    work page 2018

  51. [51]

    & Maasilta, I

    Chaudhuri, S. & Maasilta, I. J. Cooling, conductance, and thermometric performance of nonideal normal metal- superconductor tunnel junction pairs.Phys. Rev. B85, 014519 (2012)

    work page 2012

  52. [52]

    Shackelford, J. F. & Alexander, W. (eds.)CRC Materials Science and Engineering Handbook(CRC Press, 2001)

    work page 2001

  53. [53]

    phononRT.https://gitlab.com/ nanopnc/phonon_rt

    Puurtinen, T. phononRT.https://gitlab.com/ nanopnc/phonon_rt. Version: 2025.03.07

    work page 2025

  54. [54]

    & Dames, C

    Hori, T., Shiomi, J. & Dames, C. Effective phonon mean free path in polycrystalline nanostructures.Ap- plied Physics Letters106, 171901 (2015)

    work page 2015

  55. [55]

    & Lundstrom, M

    Jeong, C., Datta, S. & Lundstrom, M. Full dispersion versus debye model evaluation of lattice thermal con- ductivity with a landauer approach.Journal of Applied Physics109, 073718 (2011)

    work page 2011

  56. [56]

    Auld, B.Acoustic fields and waves in solids(Krieger, Malabar, Florida, 1990), second edn

    work page 1990

  57. [57]

    & T¨ or¨ ok, Z

    Huszank, R., Csedreki, L., Kert´ esz, Z. & T¨ or¨ ok, Z. De- termination of the density of silicon–nitride thin films by ion-beam analytical techniques (rbs, pixe, stim).Journal of Radioanalytical and Nuclear Chemistry307, 341–346 (2016)

    work page 2016

  58. [58]

    Silicon as a mechanical material.Proceed- ings of the IEEE70, 420–457 (1982)

    Petersen, K. Silicon as a mechanical material.Proceed- ings of the IEEE70, 420–457 (1982)

    work page 1982

  59. [59]

    N.Foundations of Nanomechanics(Springer, 2003)

    Cleland, A. N.Foundations of Nanomechanics(Springer, 2003). ACKNOWLEDGMENTS This work was supported by the Research Council of Finland Projects No. 341823 and No. 359240 (the Finnish Quantum Flagship, University of Jyv¨ askyl¨ a). The computational facilities provided by the CSC-IT Center for Science Ltd. are acknowledged. A.K. and B.G. acknowledge the Na...

    work page 2003
