arxiv: 2604.13615 · v1 · submitted 2026-04-15 · ⚛️ physics.flu-dyn · cond-mat.stat-mech

Nonlinear scalings emerge in a linear regime: an observation in electrokinetic flow

Jin'an Pang , Guangyin Jing , Xiaoqiang Feng , Kaige Wang , Wei Zhao This is my paper

Pith reviewed 2026-05-10 12:36 UTC · model grok-4.3

classification ⚛️ physics.flu-dyn cond-mat.stat-mech
keywords electrokinetic flowpower-law spectraQuad cascade processelectric body forceflow perturbationsdual-frequency excitationturbulence scalingelectric Rayleigh number
0
0 comments X

The pith

Nonlinear power-law scalings appear in small fluctuations of electrokinetic flows even when the regime is linear.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper shows that electrokinetic flows driven by two high-frequency AC electric fields produce small velocity and conductivity perturbations at a far lower difference frequency. These nominally linear fluctuations nonetheless display power-law spectra whose scaling exponents match predictions for fully developed electrokinetic turbulence from the Quad cascade process as the electric Rayleigh number increases. A reader would care because the finding reveals a nonlocal energy transfer mechanism driven purely by the nonlinearity of the electric body force, which can produce turbulent-like behavior and multiple flow transitions even at low excitations.

Core claim

Using a dual-frequency excitation scheme with two AC fields above 10^5 Hz, the authors generate flow perturbations at a difference frequency four orders of magnitude lower. These small, nominally linear fluctuations in velocity and electric conductivity exhibit power-law spectra. As the electric Rayleigh number rises, the scaling exponents agree quantitatively with those predicted for fully developed EK turbulence by the Quad cascade process theory, demonstrating that the nonlinearity of the electric body force mediates strong nonlocal energy transfer.

What carries the argument

Nonlinearity of the electric body force, which produces nonlocal energy transfer from high-frequency excitations to low-frequency perturbations through the difference frequency.

If this is right

  • Multiple flow state transitions occur even at low excitation amplitudes.
  • Intrinsic nonlinearity regulates small perturbations in the linear regime.
  • Linear approximations in electrohydrodynamics require fundamental re-examination.
  • The dual-frequency method enables clean flow control without electrode polarization artifacts.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Similar hidden nonlinear scalings may appear in other systems where small perturbations are routinely treated as linear, such as certain colloidal or plasma flows.
  • Numerical simulations of the governing equations at low Rayleigh numbers could confirm the spectra without experimental uncertainties.
  • The difference-frequency approach could be used to study controlled transitions to turbulence at reduced power in related electrokinetic devices.

Load-bearing premise

The observed power-law spectra and their match to Quad cascade predictions are produced by the nonlinearity of the electric body force and are not due to experimental artifacts or other mechanisms.

What would settle it

The claim would be falsified if the scaling exponents stop matching Quad cascade predictions when the electric Rayleigh number is raised further, or if the power-law spectra disappear when the same mean flow is driven with single-frequency excitation instead.

Figures

Figures reproduced from arXiv: 2604.13615 by Guangyin Jing, Jin'an Pang, Kaige Wang, Wei Zhao, Xiaoqiang Feng.

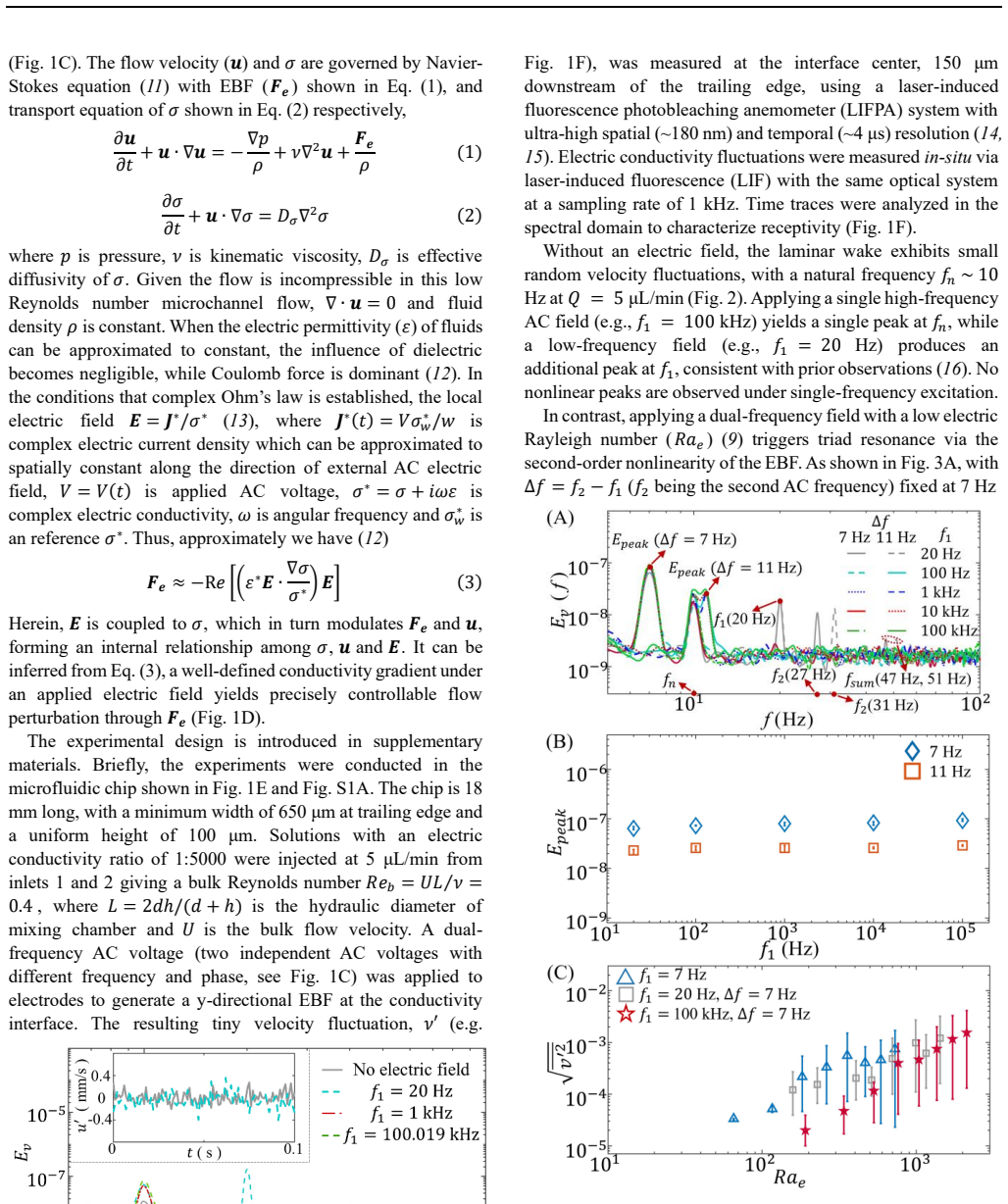

Figure 3
Figure 3. Figure 3: Comparison between single- and dual-frequency excitation. A. Velocity power spectra when excited by dual frequencies under 𝑄 = 5 μL/min. Here, Δ𝑓 = 7 Hz and 11 Hz, 𝑅𝑎𝑒 ≈ 228.2 with different 𝑓1 . B. Peak intensity of 𝐸𝑣 at 𝑓 = Δ𝑓 vs 𝑓1 after denoising. C. Receptivity evaluated by √𝑣̅̅̅′2̅ in both single- and dual-frequency cases after denoising [PITH_FULL_IMAGE:figures/full_fig_p002_3.png] view at source ↗

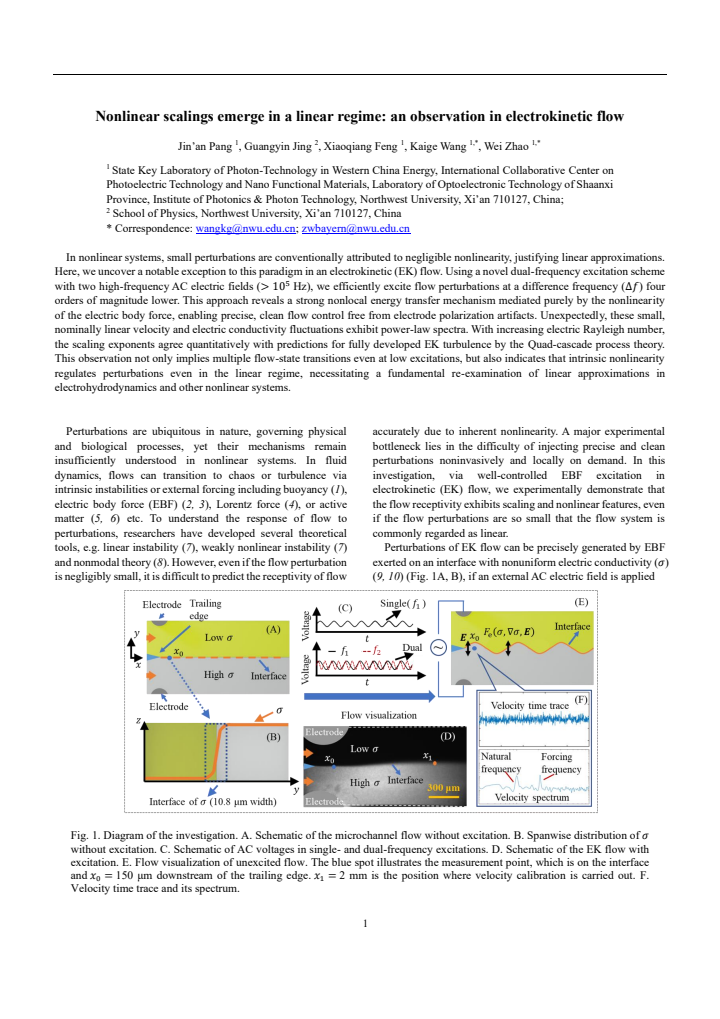

read the original abstract

In nonlinear systems, small perturbations are conventionally attributed to negligible nonlinearity, justifying linear approximations. Here, we uncover a notable exception to this paradigm in an electrokinetic (EK) flow. Using a novel dual frequency excitation scheme with two high frequency AC electric fields ($> 10^{5}$ Hz), we efficiently excite flow perturbations at a difference frequency ($\Delta f$) four orders of magnitude lower. This approach reveals a strong nonlocal energy transfer mechanism mediated purely by the nonlinearity of the electric body force, enabling precise, clean flow control free from electrode polarization artifacts. Unexpectedly, these small, nominally linear velocity and electric conductivity fluctuations exhibit power law spectra. With increasing electric Rayleigh number, the scaling exponents agree quantitatively with predictions for fully developed EK turbulence by the Quad cascade process theory. This observation not only implies multiple flow state transitions even at low excitations, but also indicates that intrinsic nonlinearity regulates perturbations even in the linear regime, necessitating a fundamental re examination of linear approximations in electrohydrodynamics and other nonlinear systems.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript presents an experimental study of electrokinetic (EK) flow using a dual-frequency AC excitation scheme to generate small perturbations at a low difference frequency. It reports that velocity and electric conductivity fluctuations exhibit power-law spectra whose scaling exponents, as the electric Rayleigh number increases, agree quantitatively with predictions from the Quad cascade process theory for fully developed EK turbulence. The central claim is that this demonstrates intrinsic nonlinearity of the electric body force regulating perturbations even in the nominally linear regime, implying multiple flow-state transitions at low excitations.

Significance. If the reported quantitative agreement is robust to analysis choices and uniquely attributable to the nonlinear body force (rather than forcing spectrum or artifacts), the result would challenge conventional linear approximations in electrohydrodynamics and highlight nonlocal energy transfer mechanisms. The dual-frequency approach to minimize electrode polarization artifacts is a methodological strength. The work provides an experimental observation that could stimulate further theoretical and numerical studies of weak nonlinearity in EK systems.

major comments (2)
  1. [§4, Fig. 5] §4 (Results), Fig. 5 and associated text: the quantitative match to Quad cascade exponents is presented without specifying the wavenumber or frequency range over which power-law fits were performed, the fitting method (e.g., least-squares in log-log space), or any goodness-of-fit metric such as R² or χ². This information is load-bearing for the claim of 'quantitative agreement' and for ruling out alternative scalings or noise-dominated regimes.
  2. [§3 and §4] §3 (Methods) and §4: no details are provided on background subtraction, noise-floor estimation, or control experiments (e.g., single-frequency excitation or zero-field cases) that would exclude the possibility that the observed spectra arise from the difference-frequency forcing spectrum itself or from measurement artifacts rather than the nonlinear body-force mechanism.
minor comments (2)
  1. [Abstract] The abstract states 'agree quantitatively' but the manuscript should explicitly define what 'quantitative' means (e.g., within 5% of theoretical exponents) and report uncertainties on the measured exponents.
  2. [Introduction] Notation for the electric Rayleigh number and the Quad cascade exponents should be introduced with a brief reminder of their definitions from the cited theory to improve readability for readers outside the immediate subfield.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their careful and constructive review. The comments highlight important aspects of methodological transparency that strengthen the presentation of our results. We address each major comment below and have revised the manuscript to incorporate the requested details.

read point-by-point responses

  1. Referee: [§4, Fig. 5] §4 (Results), Fig. 5 and associated text: the quantitative match to Quad cascade exponents is presented without specifying the wavenumber or frequency range over which power-law fits were performed, the fitting method (e.g., least-squares in log-log space), or any goodness-of-fit metric such as R² or χ². This information is load-bearing for the claim of 'quantitative agreement' and for ruling out alternative scalings or noise-dominated regimes.

    Authors: We agree that these details are necessary to support the claim of quantitative agreement. In the revised manuscript we have added a dedicated paragraph in §4 together with an expanded Fig. 5 caption that specifies the wavenumber range over which the power-law fits were performed, the least-squares procedure applied in log-log space, and the resulting R² values (all > 0.92). These additions confirm that the reported exponents are obtained within the expected Quad-cascade inertial range and are not influenced by noise-dominated regimes or arbitrary fitting intervals. revision: yes

  2. Referee: [§3 and §4] §3 (Methods) and §4: no details are provided on background subtraction, noise-floor estimation, or control experiments (e.g., single-frequency excitation or zero-field cases) that would exclude the possibility that the observed spectra arise from the difference-frequency forcing spectrum itself or from measurement artifacts rather than the nonlinear body-force mechanism.

    Authors: We acknowledge that the original text provided only a brief mention of the dual-frequency scheme. In the revised version we have substantially expanded §3 to describe the background-subtraction procedure (using zero-field reference runs), the noise-floor estimation from control measurements, and additional single-frequency excitation experiments. These controls, now summarized in §4 and illustrated in a new supplementary figure, demonstrate flat spectra without power-law scaling, confirming that the observed spectra are not produced by the forcing spectrum or measurement artifacts but emerge with the dual-frequency drive and increasing electric Rayleigh number. revision: yes

Circularity Check

0 steps flagged

No significant circularity; scalings compared to external prior theory

full rationale

The paper's central observation is that small velocity and conductivity fluctuations exhibit power-law spectra whose exponents match those predicted by the Quad cascade process theory for fully developed EK turbulence. This is presented as an experimental finding compared against an independent theoretical framework (Quad cascade), with no indication that the theory itself was derived from or fitted to the present data. The abstract and context provide no self-definitional equations, fitted parameters renamed as predictions, or load-bearing self-citations that reduce the claimed result to its own inputs by construction. The derivation chain is therefore self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

Based on abstract only; the paper relies on the prior Quad cascade process theory for interpretation but introduces no explicit free parameters or new entities.

axioms (1)
  • domain assumption Quad cascade process theory for EK turbulence
    The paper compares observed scaling exponents to predictions from this theory.

pith-pipeline@v0.9.0 · 5485 in / 1169 out tokens · 46041 ms · 2026-05-10T12:36:03.652709+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

35 extracted references · 35 canonical work pages

  1. [1]

    Lohse, K

    D. Lohse, K. -Q. Xia, Small -Scale Properties of Turbulent Rayleigh-Bénard Convection. Annual Review of Fluid Mechanics 42, 335-364 (2010)

    work page 2010

  2. [2]

    Kourmatzis, J

    A. Kourmatzis, J. S. Shrimpton, Turbulent three-dimensional dielectric electrohydrodynamic convection between two plates. Journal of Fluid Mechanics 696, 228-262 (2012)

    work page 2012

  3. [3]

    Zhang, Y .-H

    H. Zhang, Y .-H. Zhou, Unveiling the spectrum of electro - hydrodynamic turbulence in dust storms. Nature Communications 14, 408 (2023)

    work page 2023

  4. [4]

    Kowal, A

    G. Kowal, A. Lazarian, A. Beresnyak, Density Fluctuations in MHD Turbulence: Spectra, Intermittency, and Topology. The Astrophysical Journal 658, 423-445 (2007)

    work page 2007

  5. [5]

    Dunkel et al

    J. Dunkel et al. , Fluid dynamics of bacterial turbulence. Physical Review Letters 110, 228102 (2013)

    work page 2013

  6. [6]

    Alert, J

    R. Alert, J. Casademunt, J. -F. Joanny, Active Turbulence. Annual Review of Condensed Matter Physics 13, 143-170 (2022)

    work page 2022

  7. [7]

    Regev, O

    O. Regev, O. M. Umurhan, P. A. Yecko, in Modern Fluid Dynamics for Physics and Astrophysics . (Springer, New York, 2016), chap. Weakly Nonlinear Instability, pp. 473–506

    work page 2016

  8. [8]

    P. J. Schmid, Nonmodal Stability Theory. Annual Review of Fluid Mechanics 39, 129–162 (2007)

    work page 2007

  9. [9]

    J. a. Pang, Y . Han, B. Sun, W. Zhao, A discussion on the critical electric Rayleigh number for AC electrokinetic flow of binary fluids in a divergent microchannel. Langmuir 41, 1241−1249 (2025)

    work page 2025

  10. [10]

    Nan et al

    K. Nan et al. , Mixing and flow transition in an optimized electrokinetic turbulent micromixer. Analytical Chemistry 94, 12231–12239 (2022)

    work page 2022

  11. [11]

    J. C. Baygents, F. Baldessari, Electrohydrodynamic instability in a thin fluid layer with an electrical conductivity gradient. Physics of Fluids 10, 301-311 (1998)

    work page 1998

  12. [12]

    Ramos, H

    A. Ramos, H. Morgan, N. G. Green, A. Castellanos, AC Electrokinetics: A Review of Forces in Microelectrode Structures. Journal of Physics D Applied Physics 31, 2338-2353 (1998)

    work page 1998

  13. [13]

    W. Zhao, G. Wang, Scaling of velocity and scalar structure functions in ac electrokinetic turbulence. Physical Review E 95, 023111 (2017)

    work page 2017

  14. [14]

    W. Zhao, F. Yang, J. Khan, K. Reifsnider, G. Wang, Measurement of velocity fluctuations in microfluidics with simultaneously ultrahigh spatial and temporal resolution. 5 Experiments in Fluids 57, 11 (2015)

    work page 2015

  15. [15]

    Hu et al., Onset of Nonlinear Electroosmotic Flow under an AC Electric Field

    Z. Hu et al., Onset of Nonlinear Electroosmotic Flow under an AC Electric Field. Analytical Chemistry 94, 17913-17921 (2022)

    work page 2022

  16. [16]

    Shi et al

    Y . Shi et al. , Transition Routes of Electrokinetic Flow in a Divergent Microchannel with Bending Walls. Micromachines 14, 19 (2023)

    work page 2023

  17. [17]

    Zhu, Transfer Loop and Statistical Equilibrium of Korteweg-de Vries -Burgers Systems Associated to Classical Nonlinear Acoustics and Quantum Shock Waves

    J.-Z. Zhu, Transfer Loop and Statistical Equilibrium of Korteweg-de Vries -Burgers Systems Associated to Classical Nonlinear Acoustics and Quantum Shock Waves. arXiv, 2212.01252 (2022)

    work page arXiv 2022

  18. [18]

    Y . Han, W. Zhao, Unveiling nonlinear modes of induced - charge electro-osmosis in AC electric fields. Langmuir 41, 4092– 4101 (2025)

    work page 2025

  19. [19]

    H. Zhao, X. Xuan, N. Wu, Concentration polarization induced electro-osmosis around a charged dielectric microchannel corner. Physical Review Fluids 10, 044203 (2025)

    work page 2025

  20. [20]

    Fernández -Mateo, V

    R. Fernández -Mateo, V . Calero, H. Morgan, A. Ramos, P. García-Sánchez, Concentration –Polarization Electroosmosis near Insulating Constrictions within Microfluidic Channels. Analytical Chemistry 93, 14667-14674 (2021)

    work page 2021

  21. [21]

    W. Zhao, Cascades of turbulent kinetic energy and multicomponent scalars in a momentum-scalar coupling turbulence driven by multiple mechanisms under homogeneous and isotropic hypotheses. Physical Review Fluids 9, 084610 (2024)

    work page 2024

  22. [22]

    Shi et al

    Y . Shi et al. , Quad -cascade Picture of Electrokinetic Turbulence. Physics of Fluids 37, 025151 (2025)

    work page 2025

  23. [23]

    Zhao, General flux model in the turbulence driven by multiscale forces

    W. Zhao, General flux model in the turbulence driven by multiscale forces. Physical Review Fluids 7, 084607 (2022)

    work page 2022

  24. [24]

    Physical review letters 75, 4326-4329 (1995)

    Toner, Tu, Long -Range Order in a Two -Dimensional Dynamical XY Model: How Birds Fly Together. Physical review letters 75, 4326-4329 (1995)

    work page 1995

  25. [25]

    Souslov, B

    A. Souslov, B. C. van Zuiden, D. Bartolo, V . Vitelli, Topological sound in active -liquid metamaterials. Nature Physics 13, 1091-1094 (2017)

    work page 2017

  26. [26]

    Toner, Y

    J. Toner, Y . Tu, S. Ramaswamy, Hydrodynamics and phases of flocks. Annals of Physics 318, 170-244 (2005)

    work page 2005

  27. [27]

    M. C. Marchetti et al., Hydrodynamics of soft active matter. Reviews of Modern Physics 85, 1143-1189 (2013)

    work page 2013

  28. [28]

    Dyachenko, A

    S. Dyachenko, A. C. Newell, A. Pushkarev, V . E. Zakharov, Optical turbulence: weak turbulence, condensates and collapsing filaments in the nonlinear Schrödinger equation. Physica D: Nonlinear Phenomena 57, 96-160 (1992)

    work page 1992

  29. [29]

    Golestanian, Anomalous Diffusion in Driven Electrolytes due to Hydrodynamic Fluctuations

    R. Golestanian, Anomalous Diffusion in Driven Electrolytes due to Hydrodynamic Fluctuations. Physical Review Letters 136, 068301 (2026)

    work page 2026

  30. [30]

    V . I. Yukalov, E. P. Yukalova, D. Sornette, Self-Similar Bridge Between Regular and Critical Regions. physics 7, 9

    work page

  31. [31]

    Schwinger, On gauge invariance and vacuum polarization

    J. Schwinger, On gauge invariance and vacuum polarization. Physical Review 82, 664-679 (1951)

    work page 1951

  32. [32]

    Breit, J

    G. Breit, J. A. Wheeler, Collision of Two Light Quanta. Physical Review 46, 1087-1091 (1934)

    work page 1934

  33. [33]

    W. G. v. d. Wiel et al. , Electron transport through double quantum dots. Review of Modern Physics 75, 1-22 (2002)

    work page 2002

  34. [34]

    T. W. Hänsch, A. L. Schawlow, G. W. Series, The spectrum of atomic hydrogen. Scientific American 240, 94–110 (1979)

    work page 1979

  35. [35]

    Itzykson, J

    C. Itzykson, J. -B. Zuber, Quantum Field Theory . (Dover Publications, 2006)

    work page 2006
