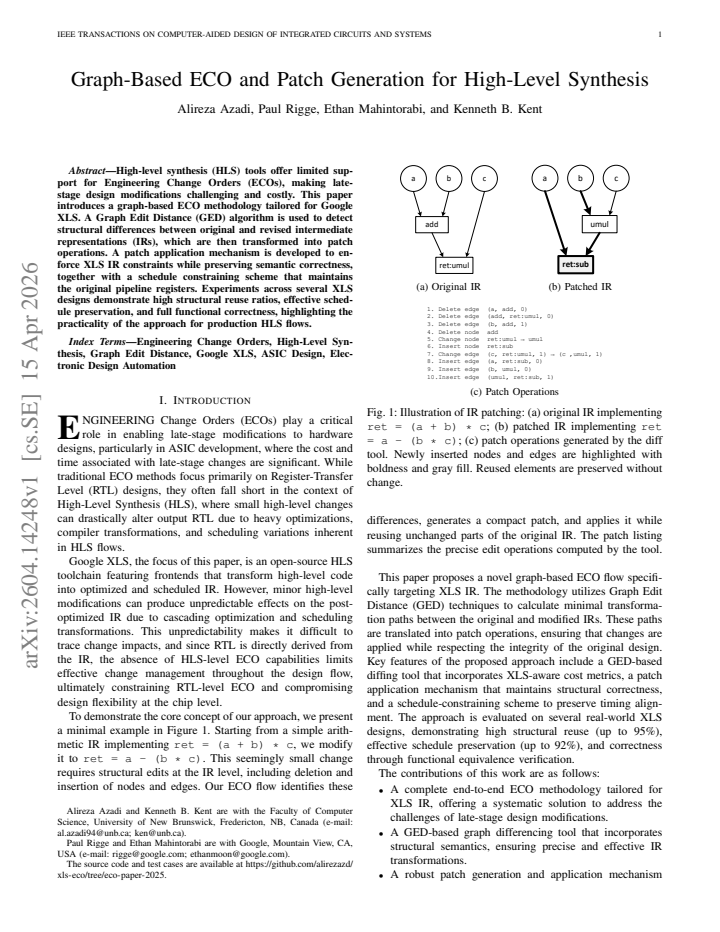

arxiv: 2604.14248 · v1 · submitted 2026-04-15 · 💻 cs.SE

Graph-Based ECO and Patch Generation for High-Level Synthesis

Alireza Azadi , Paul Rigge , Ethan Mahintorabi , Kenneth B. Kent This is my paper

Pith reviewed 2026-05-10 13:26 UTC · model grok-4.3

classification 💻 cs.SE
keywords high-level synthesisengineering change ordersgraph edit distancepatch generationintermediate representationschedule preservationstructural reuse
0
0 comments X

The pith

Graph edit distance on intermediate representations generates patches for late-stage changes in high-level synthesis that preserve original schedules and semantics.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper develops a graph-based method to support Engineering Change Orders in high-level synthesis using the XLS tool. It computes graph edit distance between the original and revised versions of a design's intermediate representation to locate structural differences. Those differences are mapped to a sequence of patch operations that can be applied while obeying XLS IR rules. The patches also incorporate a schedule constraining scheme to keep the original pipeline registers in place. This matters because current HLS flows make late modifications expensive, and a working approach would let designers revise designs incrementally without full resynthesis.

Core claim

Differences between an original and revised XLS intermediate representation are detected using a Graph Edit Distance algorithm. These differences are transformed into patch operations that enforce XLS IR constraints and preserve semantic correctness. A schedule constraining scheme maintains the original pipeline registers. Experiments across several XLS designs demonstrate high structural reuse ratios, effective schedule preservation, and full functional correctness.

What carries the argument

Graph Edit Distance algorithm applied to the IR graphs, which identifies structural differences that are then mapped to patch operations under a mechanism that enforces XLS IR constraints while a schedule constraining scheme preserves pipeline registers.

If this is right

  • Designers achieve high structural reuse when applying changes to existing HLS designs.
  • The original pipeline schedule and registers remain unchanged after patch application.
  • Full functional correctness is retained for the modified design.
  • The method supports arbitrary late-stage changes in production XLS flows.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Similar graph comparison and patching could be adapted to other compiler or synthesis IRs outside XLS.
  • The technique might shorten hardware design cycles by allowing more frequent incremental updates.
  • Combining the patches with timing analysis tools could help catch new violations early.
  • Automated ECO systems in HLS might incorporate this as a core step to reduce manual rework.

Load-bearing premise

That differences found by graph edit distance can always be turned into patches that satisfy XLS IR constraints and keep semantic correctness for any late-stage design change.

What would settle it

A concrete design modification where the generated patch either breaks an XLS IR constraint, changes the original schedule, or produces a functionally incorrect result on simulation.

Figures

Figures reproduced from arXiv: 2604.14248 by Alireza Azadi, Ethan Mahintorabi, Kenneth B. Kent, Paul Rigge.

Figure 1
Figure 1. Figure 1: Illustration of IR patching: (a) original IR implementing [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2

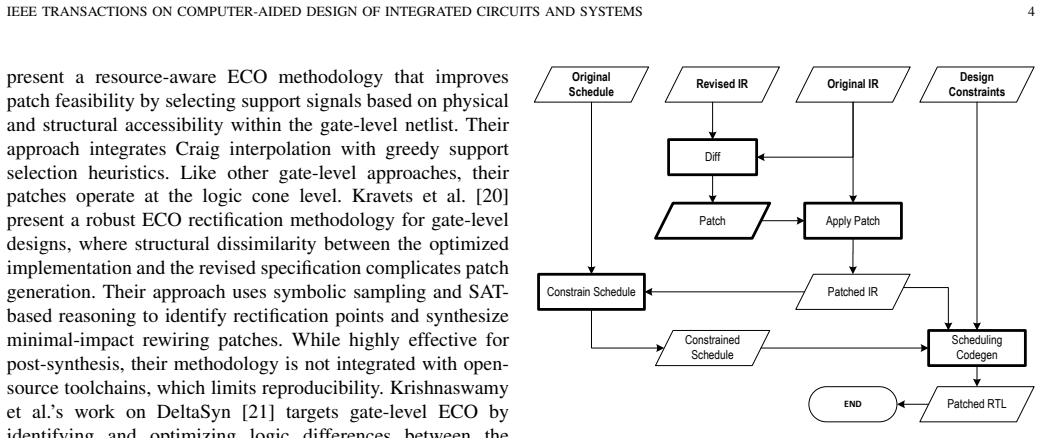

Figure 2. Figure 2: Overview of the XLS ECO Flow. Components with [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3

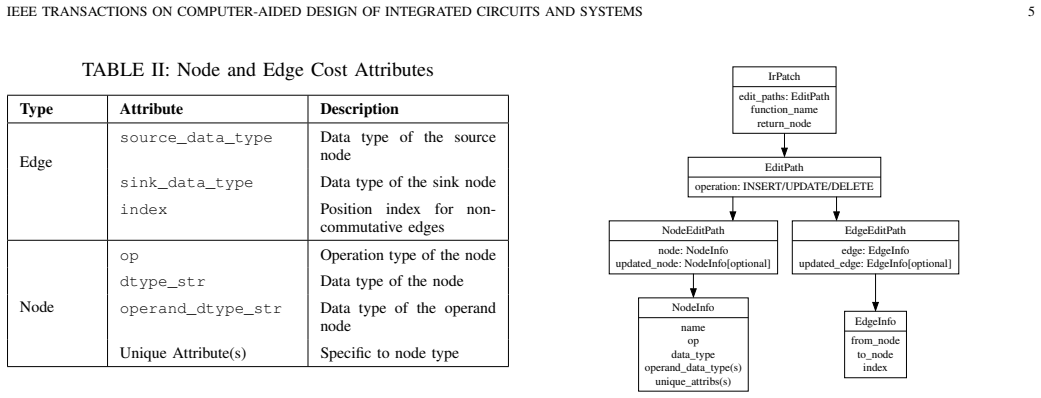

Figure 3. Figure 3: Hierarchical structure of the patch protobuf. [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 4

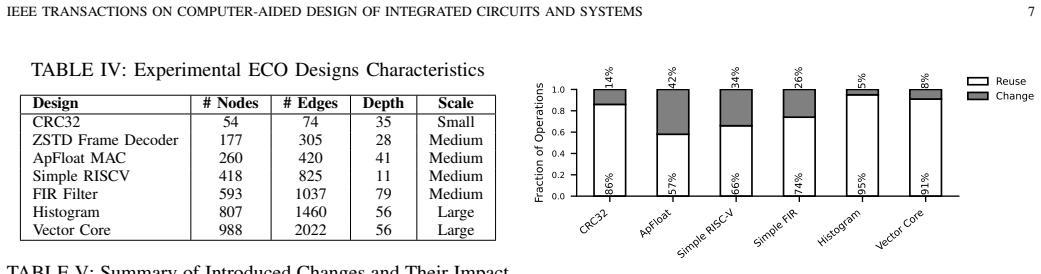

Figure 4. Figure 4: Fraction of reuse (substitutions and unchanged struc [PITH_FULL_IMAGE:figures/full_fig_p007_4.png] view at source ↗
Figure 5

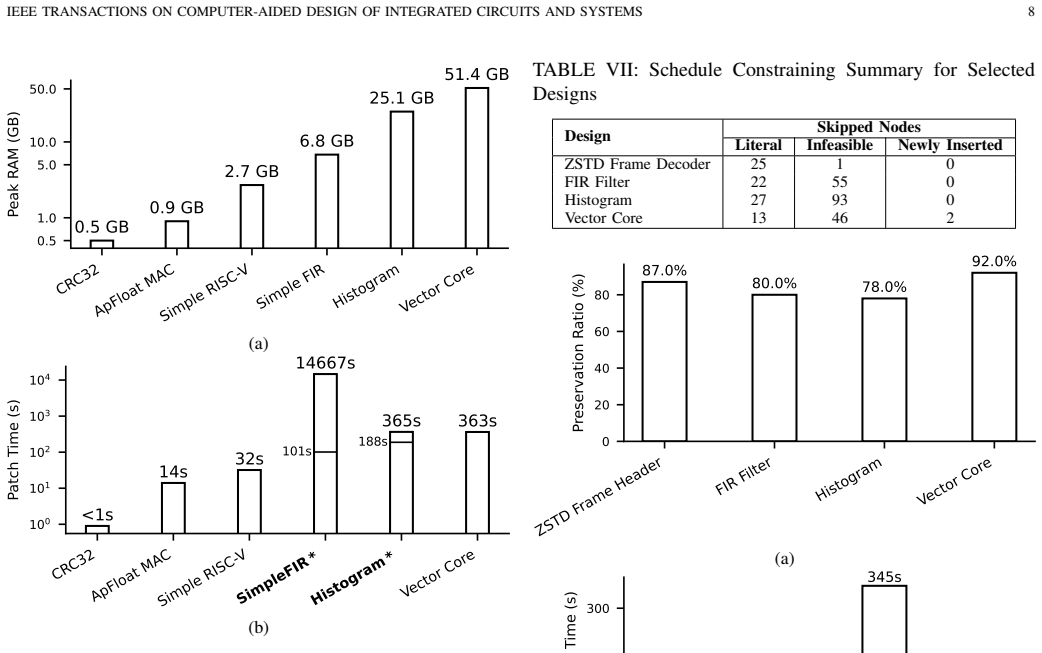

Figure 5. Figure 5: Resource usage during ECO patch generation across [PITH_FULL_IMAGE:figures/full_fig_p008_5.png] view at source ↗
Figure 6

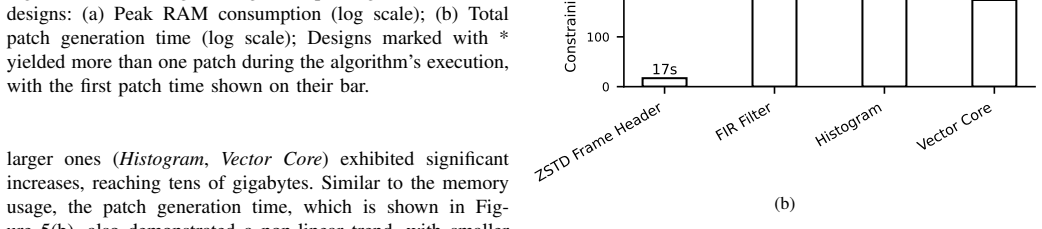

Figure 6. Figure 6: Schedule preservation across designs: (a) Percentage [PITH_FULL_IMAGE:figures/full_fig_p008_6.png] view at source ↗
read the original abstract

High-level synthesis (HLS) tools offer limited support for Engineering Change Orders (ECOs), making late-stage design modifications challenging and costly. This paper introduces a graph-based ECO methodology tailored for Google XLS. A Graph Edit Distance (GED) algorithm is used to detect structural differences between original and revised intermediate representations (IRs), which are then transformed into patch operations. A patch application mechanism is developed to enforce XLS IR constraints while preserving semantic correctness, together with a schedule constraining scheme that maintains the original pipeline registers. Experiments across several XLS designs demonstrate high structural reuse ratios, effective schedule preservation, and full functional correctness, highlighting the practicality of the approach for production HLS flows.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The paper introduces a graph-based ECO methodology for Google XLS in high-level synthesis. It uses Graph Edit Distance (GED) to detect differences between original and revised IRs, transforms them into patches, applies the patches enforcing IR constraints and preserving semantics, and uses a schedule constraining scheme to maintain pipeline registers. Experiments on several XLS designs are claimed to show high structural reuse, schedule preservation, and full functional correctness, demonstrating practicality for production HLS flows.

Significance. If the experimental claims hold, this could significantly impact HLS design flows by enabling efficient handling of late-stage changes, reducing costs associated with ECOs. The graph-based approach leveraging GED and custom patching with schedule preservation offers a structured solution to a practical problem. The reported full functional correctness and high reuse ratios, if quantitatively validated, would provide strong evidence for its utility in production settings.

major comments (2)
  1. The abstract reports positive results on reuse, schedule preservation, and correctness but supplies no quantitative metrics, baselines, design details, or discussion of failure cases. This makes it difficult to evaluate the soundness of the central claim that the approach is practical for production HLS flows.
  2. The description of transforming GED differences into patches that enforce XLS IR constraints and preserve semantic correctness for arbitrary changes lacks specifics on the mechanism's completeness, edge cases (e.g., pipeline stages or new dependencies), or guarantees against introducing bugs or timing violations. This is critical as the practicality rests on this transformation always succeeding.
minor comments (1)
  1. The abstract could be strengthened by including at least one key quantitative result to illustrate the 'high structural reuse ratios'.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the thoughtful and constructive review. The comments highlight important areas for improving clarity and completeness. We address each major comment below and have revised the manuscript to incorporate additional details and quantitative information where feasible.

read point-by-point responses

  1. Referee: The abstract reports positive results on reuse, schedule preservation, and correctness but supplies no quantitative metrics, baselines, design details, or discussion of failure cases. This makes it difficult to evaluate the soundness of the central claim that the approach is practical for production HLS flows.

    Authors: We agree that the abstract would be strengthened by including key quantitative results. In the revised manuscript, we have updated the abstract to report specific metrics from our experiments, including average structural reuse ratios exceeding 85% across designs, full schedule preservation in all tested cases, and 100% functional correctness verified via equivalence checking. We have also briefly noted the benchmark designs used (several representative XLS modules). Detailed baselines (comparison to full resynthesis), design characteristics, and discussion of any edge cases or failure modes are expanded in Section 5 (Experiments), as abstract length limits preclude full coverage there. revision: yes

  2. Referee: The description of transforming GED differences into patches that enforce XLS IR constraints and preserve semantic correctness for arbitrary changes lacks specifics on the mechanism's completeness, edge cases (e.g., pipeline stages or new dependencies), or guarantees against introducing bugs or timing violations. This is critical as the practicality rests on this transformation always succeeding.

    Authors: We acknowledge the need for greater specificity on the patch transformation process. In the revised manuscript, we have substantially expanded Section 4 to include: (1) a step-by-step description of mapping GED operations to XLS IR patches while enforcing constraints such as type consistency and dataflow validity; (2) explicit handling of edge cases including modifications to pipeline stages (via schedule constraining to avoid register insertion/deletion) and introduction of new dependencies (resolved by minimal rescheduling or fallback to targeted resynthesis); and (3) discussion of guarantees, noting that semantic correctness is preserved through post-application equivalence verification and that timing violations are prevented by the original schedule preservation scheme. We clarify that the method does not claim to succeed for arbitrary changes in all possible scenarios; instead, it reports full success on the evaluated benchmarks, with a new subsection on potential failure modes and mitigation strategies. revision: yes

Circularity Check

0 steps flagged

No significant circularity detected in the graph-based ECO derivation

full rationale

The paper's chain proceeds from standard Graph Edit Distance computation on XLS IRs to patch transformation and application, with added schedule constraints. These are algorithmic steps presented as novel engineering, backed by experimental results on multiple designs rather than any self-referential definition, fitted parameter renamed as prediction, or load-bearing self-citation. No equations or uniqueness theorems are shown that collapse the output to the input by construction. The methodology remains self-contained against external benchmarks and does not invoke prior author work to force its own premises.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The central claim rests on domain assumptions about graph representations of HLS IRs and the feasibility of constraint-preserving edits; no free parameters or new entities are introduced.

axioms (2)
  • domain assumption Graph Edit Distance accurately captures structural differences between original and revised HLS IRs
    Invoked as the detection mechanism in the methodology.
  • domain assumption Detected edits can be mapped to patches that enforce XLS IR constraints while preserving semantics
    Core premise of the patch application mechanism.
