pith. sign in

arxiv: 2604.14831 · v1 · submitted 2026-04-16 · ❄️ cond-mat.mtrl-sci

Discovering structural, electronic and excitonic properties of bulk, nanostructured and doped C3N4 in diamond- and graphitic-like phases

Da Chen , Pietro Andreozzi , Giulia Frigerio , Daniele Perilli , Paulo Siani , Cristiana Di Valentin This is my paper

Pith reviewed 2026-05-10 11:02 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci
keywords C3N4carbon nitridedensity functional theoryHSE06excitonsphotocatalysisnanostructuresdoping
0
0 comments X

The pith

HSE06-D3 functional accurately reproduces structural, electronic, and excitonic properties of C3N4 phases.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper compares standard and hybrid density functionals for modeling carbon nitride (C3N4) in bulk diamond-like and graphitic-like forms. It identifies the HSE06 hybrid functional with dispersion correction as the one that matches experimental structural data and advanced electronic calculations. The validated approach is applied to compute triplet exciton energy differences, self-trapping energies, and photoluminescence in these structures. The study further examines how exfoliation into few-layer or nanoparticle forms and sulfur doping change the atomic and electronic features relevant to visible-light photocatalysis.

Core claim

In this systematic density functional theory study, we compare a standard gradient corrected functional (PBE) with a long-range hybrid functional (HSE06), with and without correction for the dispersion forces, relatively to their ability to correctly reproduce structural and electronic properties of different bulk 3D C3N4 phases, encompassing diamond- and graphitic-like models. Corrugation is found to provide further stabilization to the layered structures with all methods. We observe that HSE06-D3 method provides results in good agreement with experimental data and with more sophisticated G0W0 calculations. Based on that, we exploited the method to investigate the nature of the bulk triplet

What carries the argument

The HSE06 long-range hybrid density functional combined with Grimme D3 dispersion correction, used to compute geometries, band structures, and S0-T1 exciton energy differences across bulk, nanostructured, and doped C3N4.

If this is right

  • Corrugation provides additional stabilization to graphitic-like layered C3N4 structures.
  • HSE06-D3 enables calculation of triplet exciton energies and photoluminescence relevant to visible-light photocatalysis.
  • Single- or multi-layer exfoliation and nanoparticle confinement alter atomic and electronic structure in quantifiable ways.
  • Sulfur doping modifies the atomic and electronic structure of the nanostructures.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Validated low-cost DFT protocols like this could allow systematic screening of additional dopants or defects to optimize photocatalyst performance.
  • The same functional choice may transfer to related layered carbon nitrides for consistent comparison of their exciton behavior.
  • If the computed emission energies align with measurement, they provide a direct guide for tuning nanostructure size or doping level to shift photoluminescence.

Load-bearing premise

That the chosen hybrid functional and dispersion correction capture excitonic properties, corrugation stabilization, and doping effects without systematic errors that would require higher-level methods for validation.

What would settle it

Experimental photoluminescence emission energies or measured triplet exciton self-trapping energies in C3N4 samples that differ substantially from the HSE06-D3 computed values.

Figures

Figures reproduced from arXiv: 2604.14831 by Cristiana Di Valentin, Da Chen, Daniele Perilli, Giulia Frigerio, Paulo Siani, Pietro Andreozzi.

Figure 1
Figure 1. Figure 1: Atomic structure of bulk C3N4 using HSE06+D3 method, (a) beta phase (-C3N4); (b) triazine-based g-C3N4 and (c) heptazine-based g-C3N4 after geometry optimization with (wc) crystal symmetry constraints; (d) triazine-based g-C3N4 and (e) heptazine-based g-C3N4 after geometry optimization without (nc) crystal symmetry constraints. The brown and grey spheres represent carbon and nitrogen atoms, respectively … view at source ↗
Figure 2

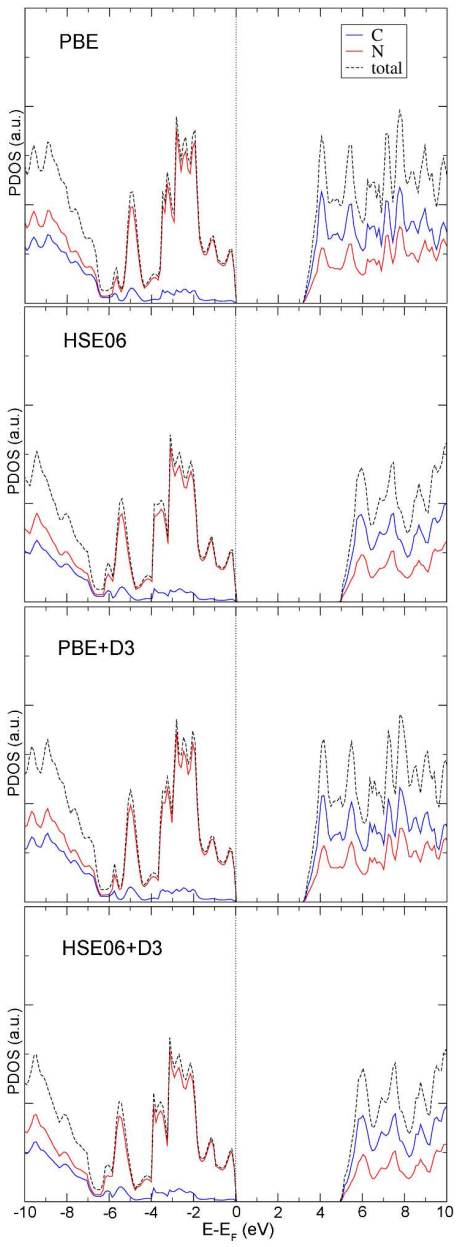

Figure 2. Figure 2: DOS of fully optimized -C3N4 by different methods [PITH_FULL_IMAGE:figures/full_fig_p009_2.png] view at source ↗
Figure 5
Figure 5. Figure 5: Spin plots of triplet exciton in bulk C3N4 calculated by HSE06+D3 method. The isovalue used for the contour plots is 0.03 e/Å3 . The brown and grey spheres represent carbon and nitrogen atoms, respectively. The spin density plot (yellow) for the triplet exciton in -C3N4 is characterized by a strong localization on a pair of specific C (spin = 0.74) and N (spin = 0.82) atoms whose chemical bond results to … view at source ↗
Figure 6

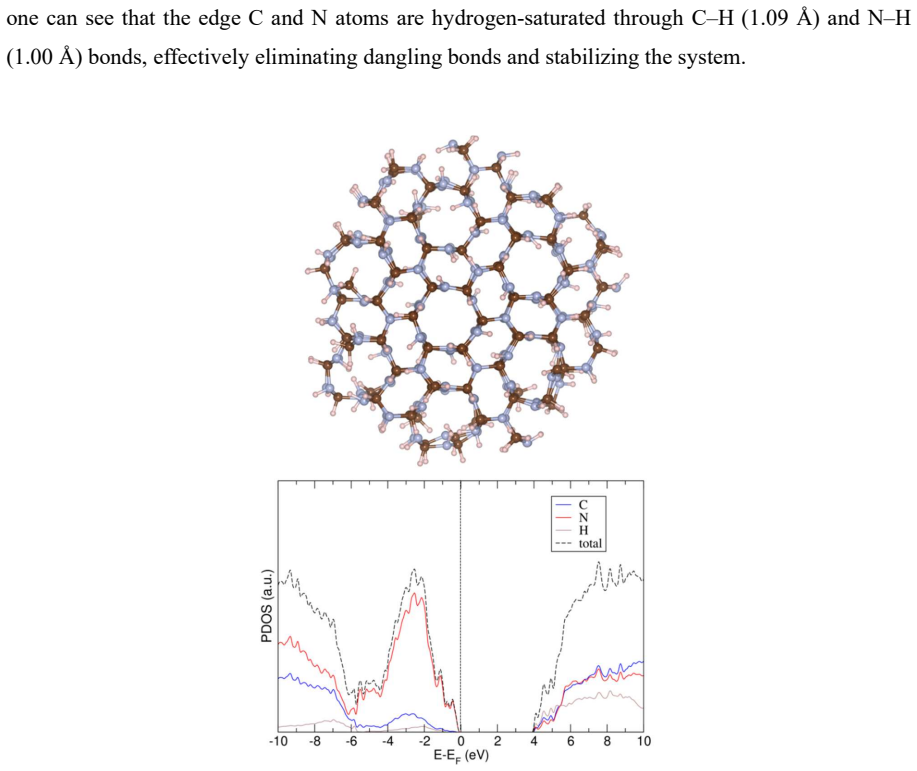

Figure 6. Figure 6: Atomic structure and DOS of hydrogen-saturated C [PITH_FULL_IMAGE:figures/full_fig_p022_6.png] view at source ↗
Figure 7

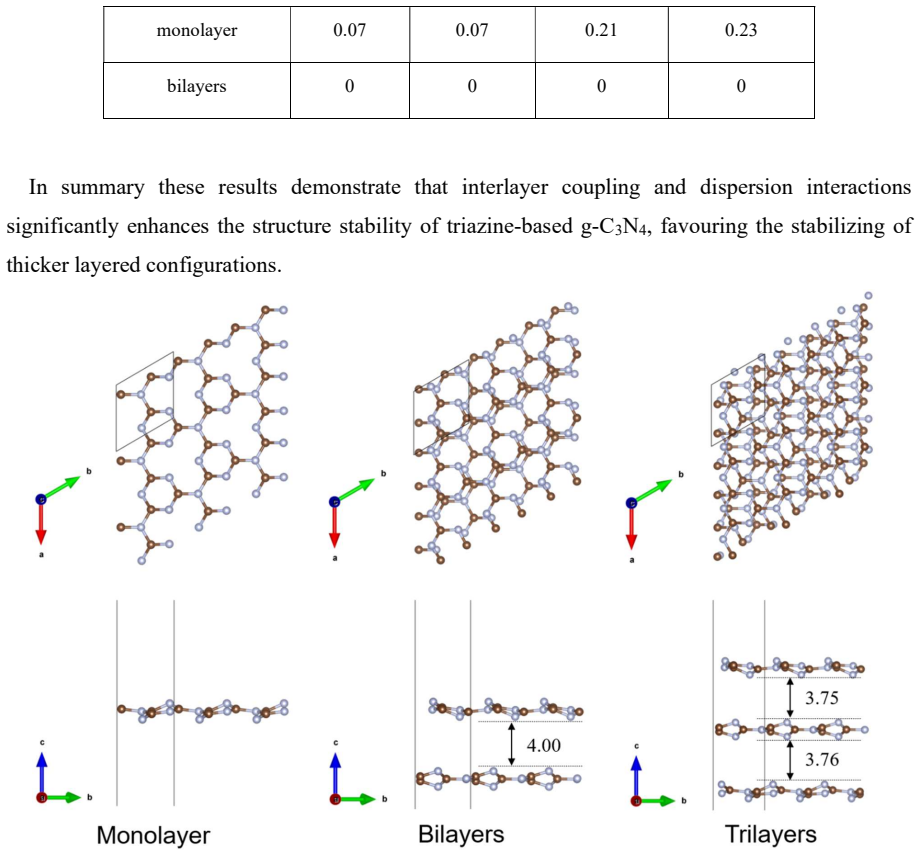

Figure 7. Figure 7: Atomic structure of 2D triazine-based g-C [PITH_FULL_IMAGE:figures/full_fig_p024_7.png] view at source ↗
Figure 9

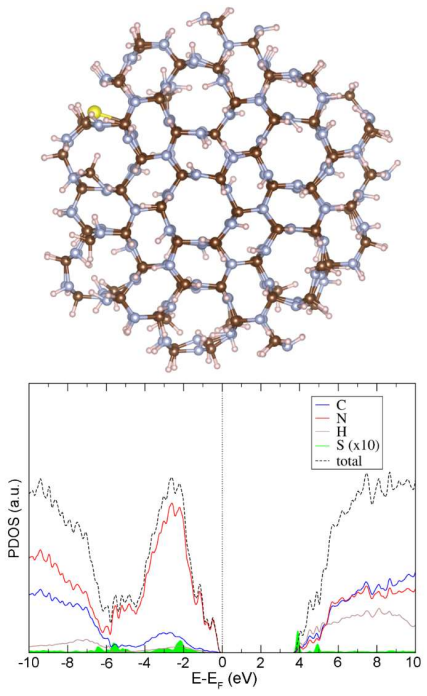

Figure 9. Figure 9: Atomic structure and DOS of hydrogen-saturated C [PITH_FULL_IMAGE:figures/full_fig_p028_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: Atomic structure and DOS of monolayer triazine-based g-C [PITH_FULL_IMAGE:figures/full_fig_p029_10.png] view at source ↗
Figure 11
Figure 11. Figure 11: Atomic structure and DOS of monolayer heptazine-based g-C [PITH_FULL_IMAGE:figures/full_fig_p031_11.png] view at source ↗
read the original abstract

In this systematic density functional theory study, we compare a standard gradient corrected functional (PBE) with a long-range hybrid functional (HSE06), with and without correction for the dispersion forces, relatively to their ability to correctly reproduce structural and electronic properties of different bulk 3D C3N4 phases, encompassing diamond- and graphitic-like models. Corrugation is found to provide further stabilization to the layered structures with all methods. We observe that HSE06-D3 method provides results in good agreement with experimental data and with more sophisticated G0W0 calculations. Based on that, we exploited the method to investigate the nature of the bulk triplet excitons in these C3N4 structures to evaluate the S0-T1 energy difference, the selftrapping triplet exciton energy and the photoluminescence emission energy, since this is a promising vis-light photocatalyst. Nanostructuring (0D and 2D) is another relevant aspect of these materials in practical applications, therefore we have considered the effect of single or multilayer exfoliation or space confinement in nanoparticles. Finally, we also discuss how the introduction of extrinsic dopants (e.g. S atoms) in the nanostructures modifies the atomic and electronic structure.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

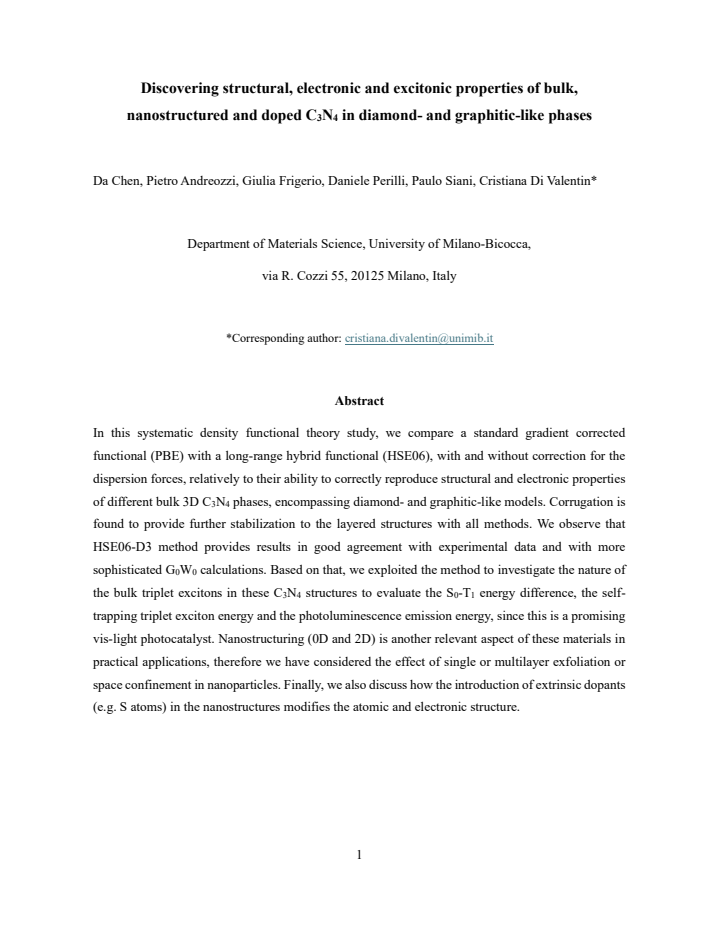

Summary. The manuscript reports a systematic DFT investigation of C3N4 in diamond-like and graphitic-like phases, comparing PBE and HSE06 functionals with and without D3 dispersion corrections for structural parameters, electronic band gaps, and corrugation effects. HSE06-D3 is identified as best matching experimental lattice constants and G0W0 band gaps; the same functional is then applied via delta-SCF/constrained-occupation methods to compute triplet exciton S0-T1 gaps, self-trapping energies, and photoluminescence emission energies in bulk, 0D/2D nanostructures, and S-doped variants.

Significance. If the transferability of HSE06-D3 from ground-state benchmarks to excited-state quantities is established, the results would provide useful guidance on how nanostructuring and doping modulate exciton self-trapping and visible-light emission in a promising photocatalyst, complementing existing G0W0 studies on bulk phases.

major comments (2)
  1. [sections on triplet excitons and nanostructuring] The validation of HSE06-D3 is restricted to ground-state quantities (lattice parameters, band gaps) against experiment and G0W0; no direct comparison is presented for the triplet exciton energies, self-trapping energies, or PL emission energies computed with the same functional in the bulk, nanostructured, or doped systems. This transferability assumption is load-bearing for the central excitonic claims.
  2. [methods and results sections] The manuscript does not report calculation parameters (k-point grids, plane-wave cutoffs, supercell sizes for nanostructures), convergence tests, or error estimates for the delta-SCF exciton calculations, making it impossible to assess the numerical reliability of the reported S0-T1 differences and self-trapping energies.
minor comments (2)
  1. [exciton section] Clarify the precise definition of the self-trapping energy and how it is extracted from the constrained-occupation calculations.
  2. [results] Add a table or figure directly comparing the HSE06-D3 exciton energies to any available experimental PL data or G0W0-BSE references, even if limited to bulk phases.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their thorough review and valuable comments on our manuscript. We appreciate the recognition of the potential significance of our findings. Below, we provide point-by-point responses to the major comments. We will make revisions to the manuscript to address the issues raised.

read point-by-point responses

  1. Referee: The validation of HSE06-D3 is restricted to ground-state quantities (lattice parameters, band gaps) against experiment and G0W0; no direct comparison is presented for the triplet exciton energies, self-trapping energies, or PL emission energies computed with the same functional in the bulk, nanostructured, or doped systems. This transferability assumption is load-bearing for the central excitonic claims.

    Authors: We acknowledge that our benchmarks for HSE06-D3 focus on ground-state structural and electronic properties. The extension to excited-state properties using the delta-SCF approach relies on the established performance of range-separated hybrid functionals for describing localized excitations and triplet states. We will revise the manuscript to include additional discussion on the suitability of HSE06 for computing triplet exciton energies, supported by references to prior studies where similar methodologies have been validated against experiment or higher-level theory in related materials. This will strengthen the justification for the transferability assumption. revision: yes

  2. Referee: The manuscript does not report calculation parameters (k-point grids, plane-wave cutoffs, supercell sizes for nanostructures), convergence tests, or error estimates for the delta-SCF exciton calculations, making it impossible to assess the numerical reliability of the reported S0-T1 differences and self-trapping energies.

    Authors: We agree that these computational details are essential. The revised manuscript will include a more comprehensive description of the technical parameters employed, such as the k-point meshes, energy cutoffs, and supercell sizes used for the various nanostructured models. We will also report the results of convergence tests performed for the delta-SCF calculations and provide error bars or estimates for the S0-T1 gaps and self-trapping energies to allow readers to evaluate the numerical accuracy. revision: yes

Circularity Check

0 steps flagged

No significant circularity; external benchmarks anchor the method choice

full rationale

The paper selects HSE06-D3 after direct comparison to experimental lattice parameters, band gaps, and independent G0W0 results for ground-state bulk phases, then applies the same functional (via delta-SCF) to triplet exciton energies, self-trapping, and PL emission. No equation defines the target excited-state quantities in terms of fitted parameters derived from those quantities, no self-citation chain is load-bearing for the central claims, and no ansatz or uniqueness theorem is smuggled in. The derivation remains self-contained against external data rather than reducing to its own inputs by construction.

Axiom & Free-Parameter Ledger

2 free parameters · 1 axioms · 0 invented entities

The work rests on standard DFT approximations whose accuracy for this system is tested against external data rather than derived from first principles within the paper.

free parameters (2)
  • HSE06 exact-exchange mixing parameter
    Standard value in the functional but chosen to fit broader datasets; affects electronic gaps and exciton energies.
  • D3 dispersion correction coefficients
    Fitted parameters in the Grimme D3 method used to stabilize layered structures.
axioms (1)
  • domain assumption Hybrid DFT functionals with dispersion corrections can reliably predict structural stability and electronic properties of layered carbon nitrides.
    Invoked when selecting HSE06-D3 as the method of choice based on agreement with experiment.

pith-pipeline@v0.9.0 · 5546 in / 1177 out tokens · 45519 ms · 2026-05-10T11:02:50.338222+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

70 extracted references · 70 canonical work pages

  1. [1]

    Moreover, it is also a promising visible-light- responsive photocatalytic material4-6

    Introduction Carbon nitride has attracted extensive attention due to its distinctive atomic and electronic structures, mechanical properties and chemical stability1-3. Moreover, it is also a promising visible-light- responsive photocatalytic material4-6. Theoretically, carbon nitride is predicted to exist in several potential phases, although not all of t...

    work page

  2. [2]

    For bulk (3D), two-dimensional (2D), and functionalized nanoparticle (0D) systems, the Gaussian-type localized m-6-311G(d)_Heyd_2005 basis set was employed

    Computational details All geometry optimizations and electronic property calculations were performed using DFT as implemented in CRYSTAL23 code28. For bulk (3D), two-dimensional (2D), and functionalized nanoparticle (0D) systems, the Gaussian-type localized m-6-311G(d)_Heyd_2005 basis set was employed. Cutoffs for Coulomb and exchange series in the SCF eq...

    work page

  3. [3]

    Results and Discussion 5 3.1 Bulk phases As we have mentioned in the Introduction, three different bulk phases will be considered in this work. In the top panels of Figure 1, we report the fully relaxed bulk unit cells for i) the beta phase of C3N4 (-C3N4), ii) the triazine-based (tri-C3N4-nc) and iii) the heptazine-based (hep-C3N4-nc) graphitic C3N4. Th...

    work page

  4. [4]

    We must notice that in previous computational studies bulk structures with flat layers have been mostly reported14-22 (see Table S1 in the S.I

    Due to the lack of well‑defined experimental lattice parameters, we will adopt the PBE+TS (PBE augmented with dispersion corrections of Tkatchenko and Scheffler41) results42 as the benchmark, since the similar PBE+D3 method has been shown to provide a highly reasonable description of the lattice constants and volume relative to experimental data for the β...

    work page

  5. [5]

    3.1.4 Photoexcited bulk phase As mentioned in the introduction carbon nitrides are promising photocatalytic materials that undergo photoexcitation upon vis-light irradiation45-48

    In summary, the corrugated structures of heptazine-based g-C3N4 are the most stable configurations and, as evaluated by the HSE06+D3 method, exhibit band gaps that closely align with experimental values. 3.1.4 Photoexcited bulk phase As mentioned in the introduction carbon nitrides are promising photocatalytic materials that undergo photoexcitation upon v...

    work page

  6. [6]

    This 27 change indicates that S doping alters the electronic properties of -C3N4 nanoparticle by modulating the orbital hybridization for CBM

    to a combination of contributions from multiple atomic orbitals of S-doped case (Figure 9). This 27 change indicates that S doping alters the electronic properties of -C3N4 nanoparticle by modulating the orbital hybridization for CBM. Overall, as illustrated in Figures 2, 6, and 9, hydrogen-saturated C3N4 nanoparticle exhibits a significantly narrower ba...

    work page

  7. [7]

    We found that, with all methods considered, layers corrugation enhances structural stability

    Conclusions In this systematic DFT study, we have compared the standard PBE functional with the hybrid HSE06, without and with the Grimme correction for dispersion forces (D3), to assess their ability in reproducing structural and electronic properties of different bulk phases of C3N4, ranging from diamond-like to graphitic layered structures. We found th...

    work page

  8. [8]

    Z.; Lieber, C

    Niu, C.; Lu, Y . Z.; Lieber, C. M., Experimental realization of the covalent solid carbon nitride. Science 1993, 261, 334-337

    work page 1993

  9. [9]

    M.; Domen, K.; Antonietti, M., A metal-free polymeric photocatalyst for hydrogen production from water under visible light

    Wang, X.; Maeda, K.; Thomas, A.; Takanabe, K.; Xin, G.; Carlsson, J. M.; Domen, K.; Antonietti, M., A metal-free polymeric photocatalyst for hydrogen production from water under visible light. Nat. Mater . 2009, 8, 76-80

    work page 2009

  10. [10]

    Ong, W.-J.; Tan, L.-L.; Ng, Y . H.; Yong, S.-T.; Chai, S.-P., Graphitic carbon nitride (g-C3N4)- based photocatalysts for artificial photosynthesis and environmental remediation: are we a step closer to achieving sustainability? Chem. Rev. 2016, 116, 7159-7329

    work page 2016

  11. [11]

    Nano Trends 2023, 4, 100028

    Grando, G.; Sportelli, G.; Filippini, G.; Melchionna, M.; Fornasiero, P., Graphitic carbon nitride meets molecular oxygen: New sustainable photocatalytic ways for the oxidation of organic molecules. Nano Trends 2023, 4, 100028

    work page 2023

  12. [12]

    K., Graphitic carbon nitride (g-C3N4) as an emerging photocatalyst for sustainable environmental applications: A comprehensive review

    Bhanderi, D.; Lakhani, P.; Modi, C. K., Graphitic carbon nitride (g-C3N4) as an emerging photocatalyst for sustainable environmental applications: A comprehensive review. RSC sustainability 2024, 2, 265-287

    work page 2024

  13. [13]

    D.; Arcudi, F., Selective Semi‐Hydrogenation of Acetylene using a Single‐Atom Cobalt on Carbon Nitride Photocatalyst with Water as a Proton Source

    Fortunato, A.; Perilli, D.; Dron, A.; Celorrio, V .; Dražić, G.; Ðorđević, L.; Calvillo, L.; Valentin, C. D.; Arcudi, F., Selective Semi‐Hydrogenation of Acetylene using a Single‐Atom Cobalt on Carbon Nitride Photocatalyst with Water as a Proton Source. Small Methods 2025, 2500527

    work page 2025

  14. [14]

    Zheng, Y .; Liang, X.; Qu, J.; Zhang, Y .; Liu, Y .; Li, Y .; Guo, X., Crystal Phase Engineering of Carbon Nitride: Advances in Regulation Strategies and Photocatalytic Applications. Chem. Eur . J. 2025, 31, e02011

    work page 2025

  15. [15]

    Yin, L.-W.; Li, M.-S.; Liu, Y .-X.; Sui, J.-L.; Wang, J.-M., Synthesis of beta carbon nitride nanosized crystal through mechanochemicalreaction. J. Condens. Matter Phys. 2003, 15, 309

    work page 2003

  16. [16]

    Solid State Commun

    Hughbanks, T.; Tian, Y ., On the structure and composition of carbon nitride. Solid State Commun. 1995, 96, 321-325

    work page 1995

  17. [17]

    Y ., Surface chemistry of graphitic carbon nitride: doping and plasmonic effect, and photocatalytic applications

    Babu, P.; Park, H.; Park, J. Y ., Surface chemistry of graphitic carbon nitride: doping and plasmonic effect, and photocatalytic applications. J. Surf. Sci. Technol. 2023, 1, 29

    work page 2023

  18. [18]

    Chen, D.; Wang, Y .; Dronskowski, R., Computational design and theoretical properties of WC3N6, an H-free melaminate and potential multifunctional material. J. Am. Chem. Soc. 2023, 145, 6986-6993

    work page 2023

  19. [19]

    A.; Li, M.; Qiu, X., Synthesis and modification strategies of g-C3N4 nanosheets for photocatalytic applications

    Chen, L.; Maigbay, M. A.; Li, M.; Qiu, X., Synthesis and modification strategies of g-C3N4 nanosheets for photocatalytic applications. Adv. Powder Mater. 2024, 3, 100150. 36

    work page 2024

  20. [20]

    Y .; Cohen, M

    Liu, A. Y .; Cohen, M. L., Prediction of new low compressibility solids. Science 1989, 245, 841- 842

    work page 1989

  21. [21]

    M.; Hemley, R

    Teter, D. M.; Hemley, R. J., Low-compressibility carbon nitrides. Science 1996, 271, 53-55

    work page 1996

  22. [22]

    D., Tri-s-triazine derivatives

    Kroke, E.; Schwarz, M.; Horath-Bordon, E.; Kroll, P.; Noll, B.; Norman, A. D., Tri-s-triazine derivatives. Part I. From trichloro-tri-s-triazine to graphitic C3N4 structures. New J. Chem. 2002, 26, 508-512

    work page 2002

  23. [23]

    Xu, Y .; Gao, S.-P., Band gap of C3N4 in the GW approximation. Int. J. Hydrog. Energy 2012, 37, 11072-11080

    work page 2012

  24. [24]

    Ma, X.; Lv, Y .; Xu, J.; Liu, Y .; Zhang, R.; Zhu, Y ., A strategy of enhancing the photoactivity of g- C3N4 via doping of nonmetal elements: a first-principles study. J. Phys. Chem. C 2012, 116, 23485-23493

    work page 2012

  25. [25]

    Liu, J., Effect of phosphorus doping on electronic structure and photocatalytic performance of g- C3N4: insights from hybrid density functional calculation. J. Alloys Compd. 2016, 672, 271-276

    work page 2016

  26. [26]

    Wirth, J.; Neumann, R.; Antonietti, M.; Saalfrank, P., Adsorption and photocatalytic splitting of water on graphitic carbon nitride: a combined first principles and semiempirical study. Phys. Chem. Chem. Phys. 2014, 16, 15917-15926

    work page 2014

  27. [27]

    M.; MacFarlane, D

    Azofra, L. M.; MacFarlane, D. R.; Sun, C., A DFT study of planar vs. corrugated graphene-like carbon nitride (gC3N4) and its role in the catalytic performance of CO2 conversion. Phys. Chem. Chem. Phys. 2016, 18, 18507-18514

    work page 2016

  28. [28]

    Nanomaterials 2021, 11, 1863

    Ugolotti, A.; Di Valentin, C., Ab-initio spectroscopic characterization of melem-based graphitic carbon nitride polymorphs. Nanomaterials 2021, 11, 1863

    work page 2021

  29. [29]

    Materials 2023, 16, 3644

    Negro, P.; Cesano, F.; Casassa, S.; Scarano, D., Combined DFT-D3 computational and experimental studies on g-C3N4: new insight into structure, optical, and vibrational properties. Materials 2023, 16, 3644

    work page 2023

  30. [30]

    Mauro, N.; Utzeri, M. A.; Sciortino, A.; Messina, F.; Cannas, M.; Popescu, R.; Gerthsen, D.; Buscarino, G.; Cavallaro, G.; Giammona, G., Decagram-scale synthesis of multicolor carbon nanodots: self-tracking nanoheaters with inherent and selective anticancer properties. ACS Appl. Mater. Interfaces. 2022, 14, 2551-2563

    work page 2022

  31. [31]

    Zhang, Z.; Song, C.; Fan, J.; Fang, Z.; Wang, H.; Zou, J., Morphology and doping engineering of sulfur-doped g-C3N4 hollow nanovesicles for boosting photocatalytic hydrogen production. J. Mater. Chem. A. 2025, 13, 6385-6396. 37

    work page 2025

  32. [32]

    E.; Choi, C.-H.; Yoon, T., Sulfur-doped graphitic carbon nitride: tailored nanostructures for photocatalytic, sensing, and energy storage applications

    Mohammad, A.; Chandra, P.; Khan, M. E.; Choi, C.-H.; Yoon, T., Sulfur-doped graphitic carbon nitride: tailored nanostructures for photocatalytic, sensing, and energy storage applications. Adv. Colloid Interface Sci. 2023, 322, 103048

    work page 2023

  33. [33]

    ACS Appl

    Li, L.; Yang, Z.; Xiong, H.; Ma, M.; Zhang, R.; Jiang, Z., High-concentration N vacancy of S- doped C3N4 regulates the electronic structure of Pd to promote the dehydrogenation of dodecahydro-N-ethylcarbazole. ACS Appl. Mater. Interfaces 2025, 17, 15287-15300

    work page 2025

  34. [34]

    Jourshabani, M.; Shariatinia, Z.; Badiei, A., In situ fabrication of SnO2/S-doped g-C3N4 nanocomposites and improved visible light driven photodegradation of methylene blue. J. Mol. Liq. 2017, 248, 688-702

    work page 2017

  35. [35]

    K.; Casassa, S.; Civalleri, B.; Donà, L.; Bush, I

    Erba, A.; Desmarais, J. K.; Casassa, S.; Civalleri, B.; Donà, L.; Bush, I. J.; Searle, B.; Maschio, L.; Edith-Daga, L.; Cossard, A., CRYSTAL23: A program for computational solid state physics and chemistry. J. Chem. Theory Comput. 2022, 19, 6891-6932

    work page 2022

  36. [36]

    P.; Burke, K.; Ernzerhof, M., Generalized gradient approximation made simple

    Perdew, J. P.; Burke, K.; Ernzerhof, M., Generalized gradient approximation made simple. Phys. Rev. Lett. 1996, 77, 3865

    work page 1996

  37. [37]

    V .; Vydrov, O

    Krukau, A. V .; Vydrov, O. A.; Izmaylov, A. F.; Scuseria, G. E., Influence of the exchange screening parameter on the performance of screened hybrid functionals. J. Chem. Phys. 2006, 125, 224106

    work page 2006

  38. [38]

    Grimme, S.; Antony, J.; Ehrlich, S.; Krieg, H., A consistent and accurate ab initio parametrization of density functional dispersion correction (DFT-D) for the 94 elements H-Pu. J. Chem. Phys. 2010, 132, 154104

    work page 2010

  39. [39]

    Grimme, S.; Ehrlich, S.; Goerigk, L., Effect of the damping function in dispersion corrected density functional theory. J. Comput. Chem. 2011, 32, 1456-1465

    work page 2011

  40. [40]

    P.; Hautier, G.; Chen, W.; Richards, W

    Jain, A.; Ong, S. P.; Hautier, G.; Chen, W.; Richards, W. D.; Dacek, S.; Cholia, S.; Gunter, D.; Skinner, D.; Ceder, G., Commentary: The Materials Project: A materials genome approach to accelerating materials innovation. APL Mater. 2013, 1

    work page 2013

  41. [41]

    J.; Pack, J

    Monkhorst, H. J.; Pack, J. D., Special points for Brillouin-zone integrations. Phys. Rev. B 1976, 13, 5188

    work page 1976

  42. [42]

    Stukowski, A., Visualization and analysis of atomistic simulation data with OVITO–the Open Visualization Tool. Model. Simul. Mater. Sci. Eng. 2009, 18, 015012

    work page 2009

  43. [43]

    Momma, K.; Izumi, F., VESTA 3 for three-dimensional visualization of crystal, volumetric and morphology data. J. Appl. Crystallogr. 2011, 44, 1272-1276

    work page 2011

  44. [44]

    He, D.; Zhang, F.; Zhang, X.; Qin, Z.; Zhang, M.; Liu, R.; Xu, Y .; Wang, W., Synthesis of carbon nitride crystals at high pressures and temperatures. J. Mater . Res. 1998, 13, 3458-3462. 38

    work page 1998

  45. [45]

    J.; Scuseria, G

    Garza, A. J.; Scuseria, G. E., Predicting band gaps with hybrid density functionals. J. Phys. Chem. Lett. 2016, 7, 4165-4170

    work page 2016

  46. [46]

    Muscat, J.; Wander, A.; Harrison, N., On the prediction of band gaps from hybrid functional theory. Chem. Phys. Lett. 2001, 342, 397-401

    work page 2001

  47. [47]

    N.; Zimmerman, J

    Khabashesku, V . N.; Zimmerman, J. L.; Margrave, J. L., Powder synthesis and characterization of amorphous carbon nitride. Chem. Mat. 2000, 12, 3264-3270

    work page 2000

  48. [48]

    A.; Car, R.; Scheffler, M., Accurate and efficient method for many- body van der Waals interactions

    Tkatchenko, A.; DiStasio Jr, R. A.; Car, R.; Scheffler, M., Accurate and efficient method for many- body van der Waals interactions. Phys. Rev. Lett. 2012, 108, 236402

    work page 2012

  49. [49]

    K.; van Sittert, C

    Opoku, F.; Govender, K. K.; van Sittert, C. G. C. E.; Govender, P. P., Insights into the photocatalytic mechanism of mediator-free direct Z-scheme g-C3N4/Bi2MoO6 (010) and g- C3N4/Bi2WO6 (010) heterostructures: a hybrid density functional theory study. Appl. Surf. Sci. 2018, 427, 487-498

    work page 2018

  50. [50]

    Materials 2016, 9, 427

    Fan, Q.; Chai, C.; Wei, Q.; Yang, Y ., Two novel C3N4 phases: structural, mechanical and electronic properties. Materials 2016, 9, 427

    work page 2016

  51. [51]

    M., Graphitic carbon nitride materials: variation of structure and morphology and their use as metal-free catalysts

    Thomas, A.; Fischer, A.; Goettmann, F.; Antonietti, M.; Müller, J.-O.; Schlögl, R.; Carlsson, J. M., Graphitic carbon nitride materials: variation of structure and morphology and their use as metal-free catalysts. J. Mater . Chem. 2008, 18, 4893-4908

    work page 2008

  52. [52]

    Lau, V . W. h.; Lotsch, B. V ., A tour‐guide through carbon nitride‐land: structure‐and dimensionality‐dependent properties for photo (electro) chemical energy conversion and storage. Adv. Energy Mater. 2022, 12, 2101078

    work page 2022

  53. [53]

    Lotsch, B. V .; Döblinger, M.; Sehnert, J.; Seyfarth, L.; Senker, J.; Oeckler, O.; Schnick, W., Unmasking melon by a complementary approach employing electron diffraction, solid‐state NMR spectroscopy, and theoretical calculations—structural characterization of a carbon nitride polymer. Chem. Eur. J. 2007, 13, 4969-4980

    work page 2007

  54. [54]

    Actis, A.; Ulivieri, N.; Poggini, L.; Chiesa, M.; Salvadori, E., Triplet Excitons in Carbon Nitride Materials: From Melem Monomers to Extended Polymers. J. Phys. Chem. Lett. 2025, 16, 10899- 10905

    work page 2025

  55. [55]

    Actis, A.; Melchionna, M.; Filippini, G.; Fornasiero, P.; Prato, M.; Chiesa, M.; Salvadori, E., Singlet‐Triplet Energy Inversion in Carbon Nitride Photocatalysts. Angew. Chem., Int. Ed. 2023, 62, e202313540

    work page 2023

  56. [56]

    ACS Appl

    Re Fiorentin, M.; Risplendi, F.; Palummo, M.; Cicero, G., First-principles calculations of exciton radiative lifetimes in monolayer graphitic carbon nitride nanosheets: implications for photocatalysis. ACS Appl. Nano Mater. 2021, 4, 1985-1993. 39

    work page 2021

  57. [57]

    Le Bahers, T.; Rerat, M.; Sautet, P., Semiconductors used in photovoltaic and photocatalytic devices: assessing fundamental properties from DFT. J. Phys. Chem. C 2014, 118, 5997-6008

    work page 2014

  58. [58]

    Wei, W.; Jacob, T., Strong excitonic effects in the optical properties of graphitic carbon nitride g- C3N4 from first principles. Phys. Rev. B-Condens. Matter Mater. Phys. 2013, 87, 085202

    work page 2013

  59. [59]

    N.; Sautet, P., Relationship between carbon nitride structure and exciton binding energies: a DFT perspective

    Melissen, S.; Le Bahers, T.; Steinmann, S. N.; Sautet, P., Relationship between carbon nitride structure and exciton binding energies: a DFT perspective. J. Phys. Chem. C 2015, 119, 25188- 25196

    work page 2015

  60. [60]

    T.; Le Bahers, T.; Sautet, P.; Masters, A

    Li, X.; Melissen, S. T.; Le Bahers, T.; Sautet, P.; Masters, A. F.; Steinmann, S. N.; Maschmeyer, T., Shining light on carbon nitrides: leveraging temperature to understand optical gap variations. Chem. Mat. 2018, 30, 4253-4262

    work page 2018

  61. [61]

    Di Valentin, C.; Selloni, A., Bulk and surface polarons in photoexcited anatase TiO2. J. Phys. Chem. Lett. 2011, 2, 2223-2228

    work page 2011

  62. [62]

    Ugolotti, A.; Di Valentin, C., Trends in excitonic, vibrational and polaronic properties of graphitic carbon nitride polymorphs. Appl. Surf. Sci. 2023, 608, 155164

    work page 2023

  63. [63]

    Zhang, Y .; Pan, Q.; Chai, G.; Liang, M.; Dong, G.; Zhang, Q.; Qiu, J., Synthesis and luminescence mechanism of multicolor-emitting g-C3N4 nanopowders by low temperature thermal condensation of melamine. Sci. Rep. 2013, 3, 1943

    work page 2013

  64. [64]

    ACS Appl

    Das, D.; Shinde, S.; Nanda, K., Temperature-dependent photoluminescence of g-C3N4: implication for temperature sensing. ACS Appl. Mater. Interfaces 2016, 8, 2181-2186

    work page 2016

  65. [65]

    R.; Abraham, T.; Korah, B

    Roy, R.; Chacko, A. R.; Abraham, T.; Korah, B. K.; John, B. K.; Punnoose, M. S.; Mohan, C.; Mathew, B., Recent Advances in Graphitic Carbon Nitrides (g‐C3N4) as Photoluminescence Sensing Probe: A Review. ChemistrySelect 2022, 7, e202200876

    work page 2022

  66. [66]

    Liu, X.; Kang, W.; Zeng, W.; Zhang, Y .; Qi, L.; Ling, F.; Fang, L.; Chen, Q.; Zhou, M., Structural, electronic and photocatalytic properties of g-C3N4 with intrinsic defects: A first-principles hybrid functional investigation. Appl. Surf. Sci. 2020, 499, 143994

    work page 2020

  67. [67]

    Stolbov, S.; Zuluaga, S., Sulfur doping effects on the electronic and geometric structures of graphitic carbon nitride photocatalyst: insights from first principles. J. Phys. Condens. Matter 2013, 25, 085507

    work page 2013

  68. [68]

    Wang, Z.; Labat, F., Sulfur-doped g-C3N4/TiO2 anatase (101) composites for photocatalytic applications: a DFT-based computational investigation. J. Mater . Chem. A. 2025, 13, 3115-3131

    work page 2025

  69. [69]

    Wang, Y .; Tian, Y .; Yan, L.; Su, Z., DFT study on sulfur-doped g-C3N4 nanosheets as a photocatalyst for CO2 reduction reaction. J. Phys. Chem. C 2018, 122, 7712-7719. 40

    work page 2018

  70. [70]

    Energy Environ

    Zhang, J.; Sun, J.; Maeda, K.; Domen, K.; Liu, P.; Antonietti, M.; Fu, X.; Wang, X., Sulfur- mediated synthesis of carbon nitride: band-gap engineering and improved functions for photocatalysis. Energy Environ. Sci. 2011, 4, 675-678. 41 TOC GRAPHICS This work studied the atomic and electronic structures of several bulk C3N4 candidates using different func...

    work page 2011
