Simplification Ad Absurdum? Revisiting Gas Flow Modeling for Integrated Energy System Planning

Thomas Klatzer , Yannick Werner , Sonja Wogrin This is my paper

Pith reviewed 2026-05-14 22:12 UTC · model grok-4.3

classification 📡 eess.SY cs.SYmath.OC
keywords gas flow modelingintegrated energy systemsexpansion planningmodel simplificationregret analysishydrogen networkspipeline dynamics
0
0 comments X

The pith

Simplified gas pipeline models produce energy expansion plans with regret exceeding thousands of percent under realistic dynamics.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper demonstrates that common simplifications in modeling gas flow through pipelines, such as basic transport equations or steady-state assumptions, lead to integrated power-hydrogen expansion plans that incur very high costs when tested against a full dynamic model. These plans result in suboptimal infrastructure choices, inefficient operations, and unmet hydrogen demand, with the performance gap growing sharply as demand varies. A case study comparison reveals that even steady-state modeling leaves substantial savings from linepack flexibility on the table. The work matters because many real-world planning studies still rely on these simplifications, risking costly misallocations in future energy infrastructure.

Core claim

Planning under the highly simplified transport and transport-linepack models can result in regret exceeding several thousand percent and yield expansion plans that lack robustness across demand levels. Planning under steady-state conditions partially mitigates these effects, but still leaves significant cost-reduction potential untapped compared to dynamic planning due to neglected linepack flexibility.

What carries the argument

The regret metric that re-evaluates costs of plans optimized under simplified gas flow models inside a full dynamic gas flow model for an integrated power-hydrogen network.

If this is right

  • Plans optimized under simplified models suffer large regret from suboptimal expansion and operation decisions.
  • Simplified plans show low robustness when demand levels change.
  • Steady-state models reduce some regret but forgo linepack flexibility benefits.
  • Efficient algorithms for the full dynamic model would improve planning quality.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Other multi-carrier energy systems involving pipelines may face similar planning errors from model choice.
  • Hybrid models that capture key dynamic effects approximately could reduce regret without full computational cost.
  • Real pipeline measurement campaigns could test whether the observed regret scales appear in practice.

Load-bearing premise

The specific power-hydrogen case study and the dynamic gas flow model chosen for evaluation are representative of other systems and real-world operating conditions.

What would settle it

Repeating the experiment on a different network topology or with measured pipeline data and obtaining regret below a few hundred percent would show the reported effects do not generalize.

Figures

Figures reproduced from arXiv: 2604.14842 by Sonja Wogrin, Thomas Klatzer, Yannick Werner.

Figure 1
Figure 1. Figure 1: Hydrogen system based on GasLib-11 network topology. [PITH_FULL_IMAGE:figures/full_fig_p004_1.png] view at source ↗
Figure 2

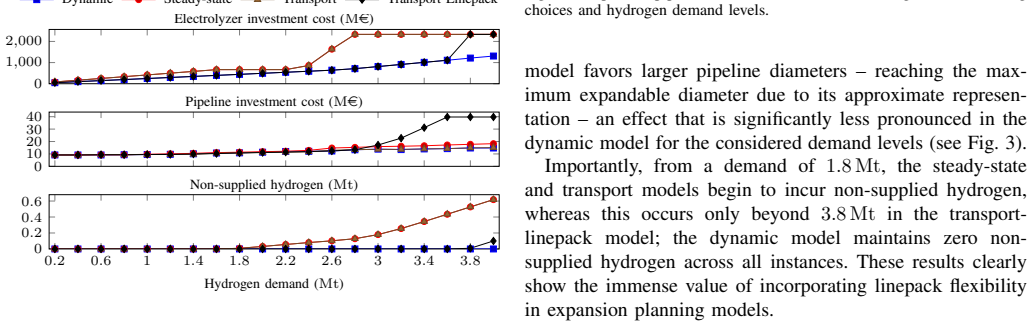

Figure 2. Figure 2: Electrolyzer and pipeline investment costs and non-supplied hydrogen [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 4

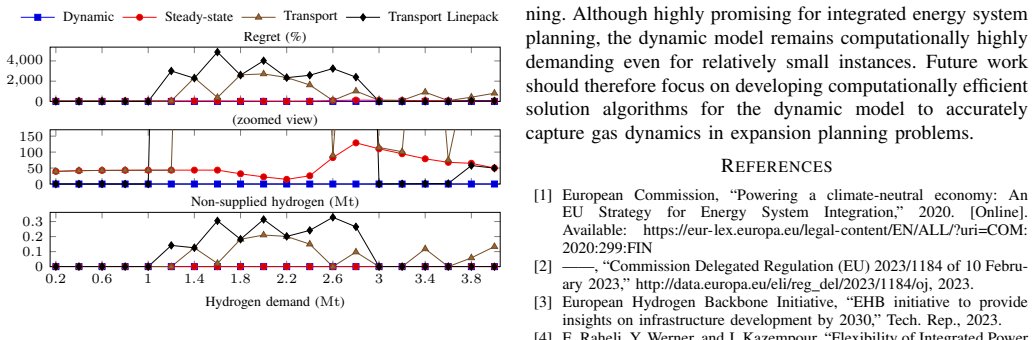

Figure 4. Figure 4: Regret from planning under simplified gas flow models under dynamic [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
read the original abstract

This paper analyzes the implications of simplified pipeline gas flow models for integrated energy system planning. A case study of an integrated power-hydrogen expansion planning problem shows that simplifying pressure-flow relationships and gas dynamics can lead to expansion plans that incur substantial regret when evaluated under a more realistic dynamic gas flow model -- due to suboptimal system expansion, operation, and non-supplied hydrogen. Numerical experiments show that planning under the highly simplified transport and transport-linepack models -- commonly used in expansion studies -- can result in regret exceeding several thousand percent and yield expansion plans that lack robustness across demand levels. Planning under steady-state conditions partially mitigates these effects, but still leaves significant cost-reduction potential untapped compared to dynamic planning due to neglected linepack flexibility. Developing efficient solution algorithms for the dynamic model is a promising direction for future research.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The paper analyzes the implications of simplified pipeline gas flow models (transport, transport-linepack, and steady-state) versus a dynamic model for integrated power-hydrogen expansion planning. Using a single case study, it shows that plans generated under the simplified models incur regret exceeding several thousand percent when evaluated under the dynamic model, due to suboptimal expansion, operation, and non-supplied hydrogen demand. Steady-state planning reduces some effects but still leaves linepack flexibility untapped.

Significance. If the observed regret magnitudes and lack of robustness hold under broader testing, the work provides a clear demonstration of how model simplifications common in energy-system expansion studies can produce severely suboptimal plans. It quantifies the value of dynamic linepack modeling and identifies algorithm development for the full dynamic formulation as a useful research direction.

major comments (2)
  1. [Numerical Experiments] The central numerical claim (regret exceeding several thousand percent under transport and transport-linepack models) rests on a single integrated power-hydrogen network. No additional topologies, demand scenarios, or parameter sweeps are reported to test whether the magnitude is robust rather than an artifact of the chosen instance (see Numerical Experiments section).
  2. [Abstract and §4] The abstract and results summary provide no details on data sources, exact parameter values, or statistical controls for the reported regret figures, preventing assessment of reproducibility and sensitivity (see Abstract and §4).
minor comments (1)
  1. [Introduction] Notation for the different gas-flow model classes could be introduced with a compact comparison table early in the manuscript to improve readability.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the detailed and constructive report. We agree that the current numerical experiments are limited to a single case study and that the abstract and results section lack sufficient detail on data and parameters. We will revise the manuscript to address both points as described below.

read point-by-point responses

  1. Referee: [Numerical Experiments] The central numerical claim (regret exceeding several thousand percent under transport and transport-linepack models) rests on a single integrated power-hydrogen network. No additional topologies, demand scenarios, or parameter sweeps are reported to test whether the magnitude is robust rather than an artifact of the chosen instance (see Numerical Experiments section).

    Authors: We acknowledge that the experiments rely on a single network instance. This network was selected as a representative test system for integrated power-hydrogen planning to enable in-depth examination of regret mechanisms. We agree that additional testing is needed to assess robustness. In the revision we will add results for multiple demand scenarios and a parameter sweep over key values (e.g., demand multipliers and pipeline capacities) to quantify sensitivity of the reported regret magnitudes. revision: yes

  2. Referee: [Abstract and §4] The abstract and results summary provide no details on data sources, exact parameter values, or statistical controls for the reported regret figures, preventing assessment of reproducibility and sensitivity (see Abstract and §4).

    Authors: We will expand the abstract to include a brief statement on data sources and key modeling parameters. In Section 4 we will add a new subsection that fully documents the network topology, demand data sources, exact parameter values for all gas-flow models, and any sensitivity checks performed. These changes will directly improve reproducibility and allow readers to evaluate the sensitivity of the regret results. revision: yes

Circularity Check

0 steps flagged

No significant circularity; results from cross-model simulation and regret evaluation

full rationale

The paper's core claims rest on a case study that generates expansion plans by solving optimization problems under simplified transport and transport-linepack gas flow models, then evaluates those plans under a separate dynamic gas flow model to compute regret. This forward simulation and comparison process does not reduce any derived quantity to its own inputs by construction, nor does it rely on fitted parameters renamed as predictions, self-definitional loops, or load-bearing self-citations. The numerical results (regret magnitudes) emerge directly from the difference in model fidelity applied to the same network instance, without any internal re-derivation that would make the output equivalent to the input assumptions.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

The abstract invokes standard assumptions from energy system optimization literature (steady-state vs. dynamic flow equations, linepack storage) without introducing new free parameters, axioms, or invented entities.
