Minimal Input Cardinality Disturbance Decoupling of Coupled Oscillators via Output Feedback with Application to Power Networks

Luca Claude Gino Lebon , Johan Lindberg , Claudio Altafini This is my paper

Pith reviewed 2026-05-10 10:46 UTC · model grok-4.3

classification 📡 eess.SY cs.SYmath.DSmath.OC
keywords disturbance decouplingcoupled oscillatorsoutput feedbackminimal input cardinalitypower networksswing dynamicssynchronizationactuator placement
0
0 comments X

The pith

The smallest set of input nodes and output feedback law achieves complete disturbance decoupling in coupled oscillator networks around synchronization.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper identifies the minimal number of control inputs needed, along with an output feedback strategy, to completely block disturbances from affecting specific parts of a network of coupled oscillators. The work focuses on systems linearized near a stable synchronized state, with direct application to power grid swing dynamics. In power networks, this means using the fewest batteries to prevent load disturbances from spreading and disrupting synchronization across the grid. Simulations on the IEEE New England 39-bus system demonstrate that this minimal placement rejects disturbances effectively without losing closed-loop stability.

Core claim

The paper identifies the smallest set of control input nodes and an associated output feedback law that achieves complete disturbance decoupling for a class of coupled oscillator networks. The focus is specifically on systems linearized around a stable phase-locked synchronized state. The proposed theoretical framework is applied to the linearized swing dynamics of power grids operating near synchronization, where the disturbance decoupling problem corresponds to isolating subsets of nodes from exogenous disturbances by means of batteries that can both add or withdraw active power.

What carries the argument

Minimal input cardinality selection combined with output feedback law for disturbance decoupling in linearized coupled oscillator networks.

If this is right

  • Minimal actuator placement ensures effective disturbance rejection in power networks.
  • The closed-loop system preserves internal stability.
  • Subsets of nodes can be isolated from exogenous disturbances using batteries for active power adjustment.
  • The method applies to coupled oscillator networks linearized around phase-locked states.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • This approach might extend to testing minimal placements in other synchronization networks beyond power systems.
  • Real-time implementation on physical grids could check if the linearization holds under varying conditions.
  • Combining with other control objectives like frequency regulation could yield multi-objective minimal sets.

Load-bearing premise

The systems can be linearized around a stable phase-locked synchronized state and that complete disturbance decoupling is achievable via the proposed output feedback for the class of coupled oscillator networks considered.

What would settle it

A counterexample where a smaller set of input nodes fails to achieve decoupling or where the feedback law causes instability in the 39-bus system simulation.

Figures

Figures reproduced from arXiv: 2604.14977 by Claudio Altafini, Johan Lindberg, Luca Claude Gino Lebon.

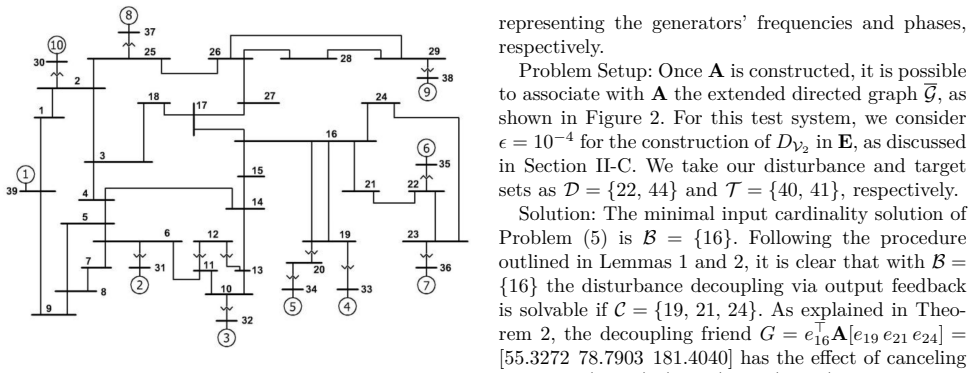

Figure 1
Figure 1. Figure 1: IEEE New England 39 Bus test system single-line [PITH_FULL_IMAGE:figures/full_fig_p006_1.png] view at source ↗

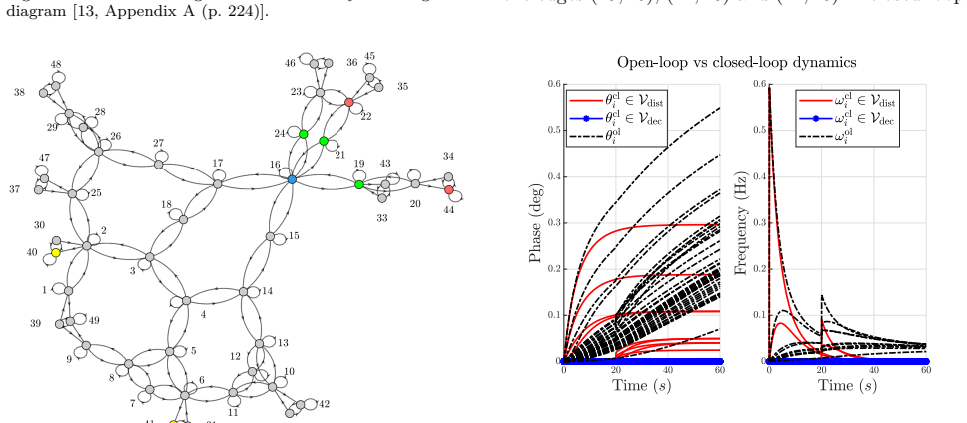

Figure 3
Figure 3. Figure 3: Decoupling effect in closed-loop of the output feedback [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗

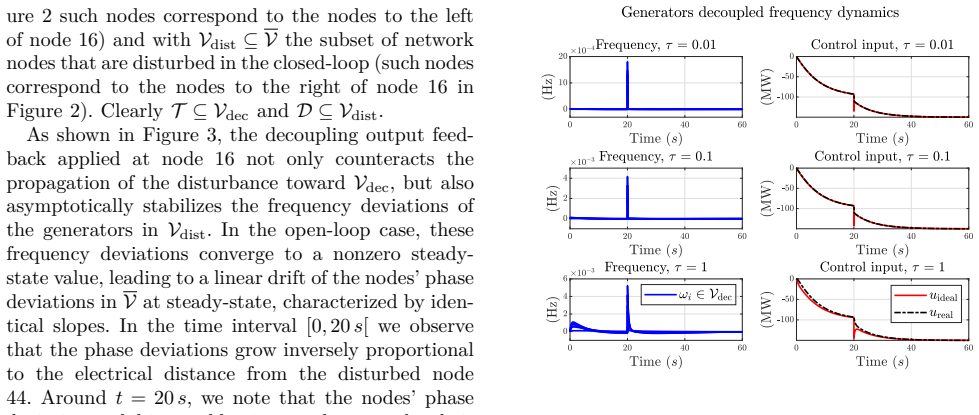

Figure 4
Figure 4. Figure 4: Decoupling of generators’ frequency deviations in closed [PITH_FULL_IMAGE:figures/full_fig_p007_4.png] view at source ↗
read the original abstract

In this paper, we identify the smallest set of control input nodes and an associated output feedback law that achieves complete disturbance decoupling for a class of coupled oscillator networks. The focus is specifically on systems linearized around a stable phase-locked synchronized state. The proposed theoretical framework is applied to the linearized swing dynamics of power grids operating near synchronization. In this context, the disturbance decoupling problem corresponds to isolating subsets of nodes from exogenous disturbances by means of batteries that can both add or withdraw active power. Numerical simulations carried out on the IEEE New England 39-bus system show that the proposed methodology not only yields a minimal actuator placement ensuring effective disturbance rejection, but also preserves the internal stability of the closed-loop system.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 2 minor

Summary. The manuscript develops a geometric-control framework to select the smallest set of input nodes and synthesize an output-feedback law that achieves exact disturbance decoupling for networks of coupled oscillators linearized around a stable phase-locked equilibrium. The construction is specialized to the swing dynamics of power grids, where batteries serve as actuators that can inject or absorb active power; the IEEE New England 39-bus system is used to illustrate that the resulting minimal placement rejects disturbances while preserving internal stability of the closed-loop system.

Significance. If the central claims hold, the work supplies a systematic, non-heuristic procedure for minimal actuator placement in power networks that guarantees disturbance decoupling under the standard small-signal linearization. By relying on the classical supremal (A,B)-invariant subspace contained in ker C, the method inherits the computational tractability and geometric transparency of geometric control theory. The numerical confirmation on a standard benchmark, together with explicit verification of closed-loop stability, strengthens the practical relevance for battery-based frequency control.

minor comments (2)
  1. [Problem Formulation] The precise definition of the output matrix C (measured states) and its relation to the oscillator network topology should be stated explicitly in the problem formulation section to avoid ambiguity when applying the invariance conditions.
  2. [Numerical Simulations] Figure captions for the IEEE 39-bus simulations would benefit from additional detail on the disturbance waveforms, the chosen output measurements, and the quantitative metric used to confirm decoupling (e.g., steady-state error norms).

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for the constructive summary and for recognizing the significance of our geometric-control approach to minimal actuator placement for disturbance decoupling in linearized oscillator networks, with application to power grids. The recommendation for minor revision is noted. No specific major comments appear in the report, so we have no individual points requiring point-by-point rebuttal or revision at this stage. We are prepared to address any additional minor suggestions from the editor.

Circularity Check

0 steps flagged

No significant circularity; derivation is self-contained

full rationale

The paper's central result applies standard geometric control conditions (supremal (A,B)-invariant subspace contained in ker C, invariance of the disturbance subspace) to the linearized swing equations of coupled oscillators. These conditions are stated explicitly, drawn from external literature, and applied without reduction to fitted parameters, self-definitions, or load-bearing self-citations. The minimal input selection and output feedback law follow directly from the geometric framework for the given linear system; the IEEE 39-bus simulation serves only as validation, not as an input to the derivation. No step equates a claimed prediction or uniqueness result to its own inputs by construction.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract provides no explicit free parameters, axioms, or invented entities. The work relies on standard assumptions in linear control theory and oscillator network models.
