arxiv: 2604.15156 · v1 · submitted 2026-04-16 · ❄️ cond-mat.mtrl-sci

Lattice dynamics and complete polarization analysis of Raman-active modes in LaInO₃

Jonas Rose , Hai Nguyen , Moritz Mei{\ss}ner , Zbigniew Galazka , Roland Gillen , Georg Hoffmann , Oliver Brandt , Manfred Ramsteiner
show 2 more authors
Markus R. Wagner Hans Tornatzky
This is my paper

Pith reviewed 2026-05-10 10:27 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci
keywords LaInO3Raman spectroscopyphonon modespolarized Ramanlattice dynamicsDFT calculationsorthorhombic perovskiteRaman tensors
0
0 comments X

The pith

Polarization-resolved Raman spectroscopy on multiple crystal faces assigns most phonon modes in LaInO3 to D2h symmetries while extracting relative tensor elements.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The authors combine angle-dependent polarized Raman measurements taken in backscattering from several different crystallographic surfaces of orthorhombic LaInO3 with density-functional-theory calculations. They apply a symmetry analysis to match observed peaks to the allowed irreducible representations of the D2h point group and use a hyperspectral fitting routine to pull out the relative Raman tensor components even when peaks overlap. A sympathetic reader would care because a complete, experimentally anchored list of which vibrations belong to which symmetries supplies the concrete data needed to interpret thermal, optical, and transport properties that depend on specific lattice motions.

Core claim

By using backscattering from multiple crystallographic surface orientations and employing a full symmetry analysis, most of the Raman-active Gamma-point phonons are identified and assigned to their irreducible representations of the D2h point group. A multidimensional hyperspectral fitting procedure extracts the relative Raman tensor elements from the angular dependence of the scattering intensities even for strongly overlapping modes. First-principles calculations of phonon dispersion, densities of states, and atomic displacement patterns agree with the experimental frequencies.

What carries the argument

The multidimensional hyperspectral fitting procedure applied to angular-dependent Raman intensities collected from multiple surface orientations, which separates overlapping contributions and supplies the relative Raman tensor elements used for symmetry assignment.

If this is right

  • The assigned modes and tensor elements provide a reference dataset for predicting Raman spectra in any polarization geometry.
  • The agreement between measured frequencies and DFT results supports the computational description of lattice dynamics in this material.
  • The full set of symmetry-labeled modes supplies the input needed to model phonon contributions to thermal conductivity and electron-phonon coupling.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same multi-orientation plus hyperspectral-fitting approach could be used on other orthorhombic perovskites whose Raman spectra contain many overlapping peaks.
  • Once the tensor elements are known, one can design polarization configurations that selectively enhance or suppress individual modes for further study.
  • The extracted experimental tensors offer a benchmark against which future calculations of Raman intensities can be tested beyond frequency matching alone.

Load-bearing premise

The hyperspectral fitting procedure correctly disentangles and quantifies Raman tensor elements for overlapping modes without significant systematic errors.

What would settle it

A direct comparison showing that the experimentally extracted relative Raman tensor elements disagree with those computed from the DFT displacement patterns for the assigned modes would indicate that the assignments or the fitting are incorrect.

Figures

Figures reproduced from arXiv: 2604.15156 by Georg Hoffmann, Hai Nguyen, Hans Tornatzky, Jonas Rose, Manfred Ramsteiner, Markus R. Wagner, Moritz Mei{\ss}ner, Oliver Brandt, Roland Gillen, Zbigniew Galazka.

Figure 1
Figure 1. Figure 1: FIG. 1. Polarization-dependent Raman spectra of LIO, [PITH_FULL_IMAGE:figures/full_fig_p004_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: FIG. 2. Polarization-angle resolved Raman spectra of the [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗
Figure 3

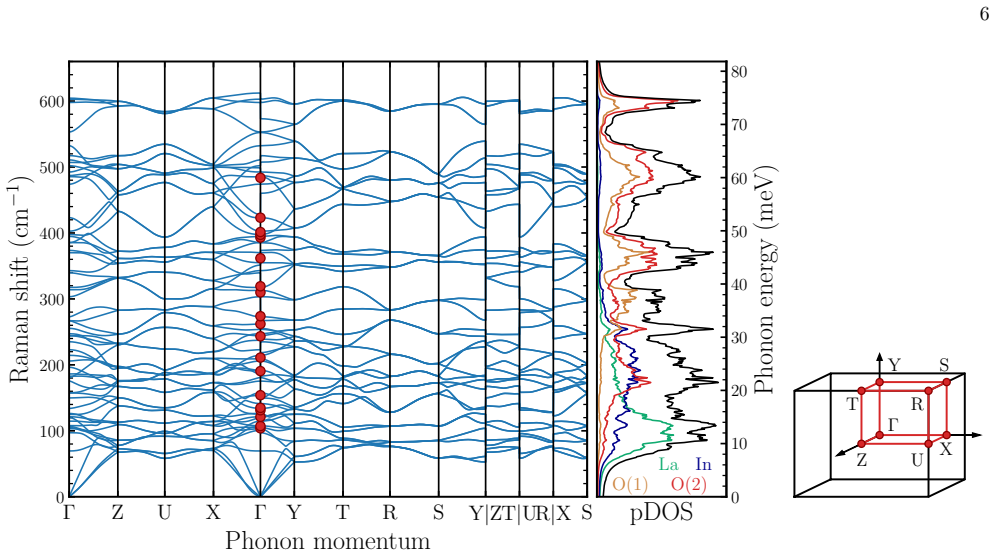

Figure 3. Figure 3: FIG. 3. Phonon dispersion of LIO along the high symmetry path displayed in the first Brillouin zone on the right side. Lines [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: FIG. 4. Phonon displacement patterns of the [PITH_FULL_IMAGE:figures/full_fig_p007_4.png] view at source ↗
read the original abstract

In this study, we present a comprehensive analysis of the Raman active phonon modes in orthorhombic LaInO$_3$ based on a combination of polarization-angle resolved Raman spectroscopy and density functional theory calculations. By using backscattering from multiple crystallographic surface orientations and employing a full symmetry analysis, we identify and assign most of the Raman-active $\Gamma$-point phonons to their irreducible representations of the D$_{\rm{2h}}$ point group. A multidimensional hyperspectral fitting procedure allows us to extract the relative Raman tensor elements from the angular dependence of the scattering intensities, even for strongly overlapping modes. First-principles calculations yield the phonon dispersion along high-symmetry directions, the phonon densities of states, and atomic displacement patterns, which are found to be in good agreement with the experimental mode frequencies.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript presents a combined experimental and theoretical investigation of the Raman-active Γ-point phonon modes in orthorhombic LaInO₃. Using backscattering Raman spectroscopy from multiple crystallographic orientations together with full symmetry analysis under the D₂h point group, the authors assign most Raman-active modes and employ a multidimensional hyperspectral fitting procedure to extract relative Raman tensor elements from angular-dependent intensities, including for strongly overlapping modes. First-principles DFT calculations supply phonon dispersions, densities of states, and displacement patterns that are reported to agree well with the measured frequencies.

Significance. If the hyperspectral fitting is shown to be robust, the work would deliver a rare complete experimental polarization analysis and tensor-element extraction for a perovskite oxide, providing a useful benchmark for lattice-dynamics studies and for interpreting Raman spectra in related materials. The multi-orientation approach and explicit symmetry analysis are strengths that go beyond typical single-crystal Raman reports.

major comments (2)
  1. [hyperspectral fitting procedure] The multidimensional hyperspectral fitting procedure (described in the polarization-analysis section) is central to the claim that relative Raman tensor elements can be extracted even for strongly overlapping modes. However, the manuscript provides no cross-validation of the fitted tensor elements against the DFT-computed Raman intensities or polarizabilities, nor does it demonstrate that the angular data uniquely constrain the tensor ratios when linewidths, frequencies, and tensor components are allowed to vary simultaneously. This leaves open the possibility of multiple acceptable solutions.
  2. [results on mode frequencies and assignment] The abstract and results sections state 'good agreement' between experimental and DFT mode frequencies but supply no quantitative metrics (e.g., RMS deviation, individual frequency uncertainties, or table of fitted vs. calculated values with error bars). Without these, it is difficult to assess how well the assignment holds once overlapping-mode deconvolution uncertainties are propagated.
minor comments (2)
  1. [DFT results figure] The phonon-dispersion figure would be clearer if the high-symmetry points along the path were explicitly labeled in the plot itself rather than only in the caption.
  2. [computational methods] A brief statement on the convergence criteria used for the DFT phonon calculations (k-point mesh, plane-wave cutoff, and force tolerance) would help readers reproduce the frequency values.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the positive summary and constructive major comments. We address each point below and have revised the manuscript to strengthen the presentation of the fitting procedure and quantitative comparison with theory.

read point-by-point responses

  1. Referee: [hyperspectral fitting procedure] The multidimensional hyperspectral fitting procedure (described in the polarization-analysis section) is central to the claim that relative Raman tensor elements can be extracted even for strongly overlapping modes. However, the manuscript provides no cross-validation of the fitted tensor elements against the DFT-computed Raman intensities or polarizabilities, nor does it demonstrate that the angular data uniquely constrain the tensor ratios when linewidths, frequencies, and tensor components are allowed to vary simultaneously. This leaves open the possibility of multiple acceptable solutions.

    Authors: We appreciate the referee's emphasis on robustness. The original manuscript details the hyperspectral procedure and its use of multi-orientation constraints, but we agree that explicit cross-validation and uniqueness checks were not provided. In the revised manuscript we add a direct comparison of the fitted relative tensor elements to DFT-computed Raman polarizabilities for all assigned modes. We also include a sensitivity analysis: multiple fits with randomized initial parameters (linewidths, frequencies, and tensor ratios) converge to the same ratios within experimental uncertainty, demonstrating that the angular data from several surfaces overconstrain the system and suppress alternative solutions. revision: yes

  2. Referee: [results on mode frequencies and assignment] The abstract and results sections state 'good agreement' between experimental and DFT mode frequencies but supply no quantitative metrics (e.g., RMS deviation, individual frequency uncertainties, or table of fitted vs. calculated values with error bars). Without these, it is difficult to assess how well the assignment holds once overlapping-mode deconvolution uncertainties are propagated.

    Authors: We concur that quantitative metrics would allow readers to evaluate the agreement more rigorously, especially given the deconvolution uncertainties. In the revised version we have added a table (main text or SI) that lists all experimental frequencies with their fit uncertainties, the corresponding DFT values, and the per-mode deviations. We also report the root-mean-square deviation between experiment and theory, which quantifies the overall agreement while incorporating the propagated uncertainties from the hyperspectral fits. revision: yes

Circularity Check

0 steps flagged

No significant circularity: experimental fitting and DFT comparison are independent

full rationale

The paper derives mode assignments and Raman tensor elements directly from polarization-resolved backscattering experiments across multiple surface orientations, using symmetry analysis of the D2h group and a hyperspectral fit to angular intensity data. DFT supplies independent first-principles phonon frequencies, dispersion, DOS, and displacement patterns that are compared post-hoc for agreement; the text does not feed experimental fits back into DFT parameters or vice versa, nor does it rename fitted quantities as predictions. No load-bearing self-citations, self-definitional steps, or ansatz smuggling appear in the abstract or described chain. The central claims remain externally falsifiable via the raw spectra and symmetry tables.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

The work rests on standard assumptions of Raman selection rules for the D2h point group and the accuracy of DFT for phonon frequencies in oxides; no ad hoc free parameters or new entities are introduced in the abstract.

pith-pipeline@v0.9.0 · 5468 in / 1124 out tokens · 55642 ms · 2026-05-10T10:27:19.388583+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

28 extracted references

  1. [1]

    Reyren, S

    N. Reyren, S. Thiel, A. D. Caviglia, L. F. Kourkoutis, G. Hammerl, C. Richter, C. W. Schneider, T. Kopp, A.- S. Rüetschi, D. Jaccard, M. Gabay, D. A. Muller, J.-M. Triscone, and J. Mannhart, Science317, 1196 (2007)

    2007

  2. [2]

    Brinkman, M

    A. Brinkman, M. Huijben, M. Van Zalk, J. Huijben, U. Zeitler, J. C. Maan, W. G. Van Der Wiel, G. Rijnders, D. H. A. Blank, and H. Hilgenkamp, Nature Materials 6, 493 (2007)

    2007

  3. [3]

    Ohtomo and H

    A. Ohtomo and H. Y. Hwang, Nature427, 423 (2004)

    2004

  4. [4]

    H. J. Kim, U. Kim, H. M. Kim, T. H. Kim, H. S. Mun, B.-G. Jeon, K. T. Hong, W.-J. Lee, C. Ju, K. H. Kim, and K. Char, Appl. Phys. Express5, 061102 (2012)

    2012

  5. [5]

    H. J. Kim, U. Kim, T. H. Kim, J. Kim, H. M. Kim, B.-G. Jeon, W.-J. Lee, H. S. Mun, K. T. Hong, J. Yu, K. Char, and K. H. Kim, Phys. Rev. B86, 165205 (2012)

    2012

  6. [6]

    K. S. Belthle, U. N. Gries, M. P. Mueller, D. Kemp, A. Prakash, M. Rose, J. M. Börgers, B. Jalan, F. Gunkel, and R. A. De Souza, Adv Funct Materials32, 2113023 (2022)

    2022

  7. [7]

    U. Kim, C. Park, T. Ha, Y. M. Kim, N. Kim, C. Ju, J. Park, J. Yu, J. H. Kim, and K. Char, APL Materials 3, 036101 (2015)

    2015

  8. [8]

    Y.Kim, Y.M.Kim, J.Shin,andK.Char,APLMaterials 6, 096104 (2018)

    2018

  9. [9]

    H. Paik, Z. Chen, E. Lochocki, A. Seidner H., A. Verma, N. Tanen, J. Park, M. Uchida, S. Shang, B.-C. Zhou, M. Brützam, R. Uecker, Z.-K. Liu, D. Jena, K. M. Shen, D. A. Muller, and D. G. Schlom, APL Materials5, 116107 (2017)

    2017

  10. [10]

    Hoffmann, M

    G. Hoffmann, M. Zupancic, A. A. Riaz, C. Kalha, C. Schlueter, A. Gloskovskii, A. Regoutz, M. Albrecht, J. Nordlander, and O. Bierwagen, Adv. Mater.36, 2409076 (2024)

    2024

  11. [11]

    Pfützenreuter, M

    D. Pfützenreuter, M. Zupancic, Z. Galazka, R. Schewski, A. Dittmar, K. Irmscher, M. Al- brecht, and J. Schwarzkopf, Nanotechnology32, 505609 (2021)

    2021

  12. [12]

    Galazka, K

    Z. Galazka, K. Irmscher, S. Ganschow, M. Zupan- cic, W. Aggoune, C. Draxl, M. Albrecht, D. Klimm, A. Kwasniewski, T. Schulz, M. Pietsch, A. Dittmar, R. Grueneberg, U. Juda, R. Schewski, S. Bergmann, H. Cho, K. Char, T. Schroeder, and M. Bickermann, Phys. Status Solidi (a)218, 2100016 (2021)

    2021

  13. [13]

    Aggoune and C

    W. Aggoune and C. Draxl, npj Comput. Mater.7, 174 (2021)

    2021

  14. [14]

    H. He, X. Huang, and L. Chen, Electrochim. Acta46, 2871 (2001)

    2001

  15. [15]

    Kumar, G

    S. Kumar, G. Dwivedi, A. G. Joshi, S. Chatterjee, and A. Ghosh, Mater. Charact.131, 108 (2017)

    2017

  16. [16]

    M. I. Aroyo, J. M. Perez-Mato, C. Capillas, E. Kroumova, S. Ivantchev, G. Madariaga, A. Kirov, and H. Wondratschek, Z. Kristallogr. – Cryst. Mater. 221, 15 (2006). 8

    2006

  17. [17]

    Kroumova, M

    E. Kroumova, M. Aroyo, J. Perez-Mato, A. Kirov, C. Capillas, S. Ivantchev, and H. Wondratschek, Ph. Transit.76, 155 (2003)

    2003

  18. [18]

    Kranert, C

    C. Kranert, C. Sturm, R. Schmidt-Grund, and M. Grundmann, Phys. Rev. Lett.116, 127401 (2016)

    2016

  19. [19]

    Kranert, C

    C. Kranert, C. Sturm, R. Schmidt-Grund, and M. Grundmann, Sci. Rep.6, 35964 (2016)

    2016

  20. [20]

    Hayes and R

    W. Hayes and R. Loudon, Scattering of light by crystals, A Wiley-Interscience publication (Wiley, New York, 1978) p. 31

    1978

  21. [21]

    Zupancic, W

    M. Zupancic, W. Aggoune, T. Markurt, Y. Kim, Y. M. Kim, K. Char, C. Draxl, and M. Albrecht, Phys. Rev. Mater.4, 123605 (2020)

    2020

  22. [22]

    Giannozzi, S

    P. Giannozzi, S. Baroni, N. Bonini, M. Calandra, R. Car, C. Cavazzoni, D. Ceresoli, G. L. Chiarotti, M. Cococ- cioni, I. Dabo, A. Dal Corso, S. De Gironcoli, S. Fabris, G. Fratesi, R. Gebauer, U. Gerstmann, C. Gougoussis, A. Kokalj, M. Lazzeri, L. Martin-Samos, N. Marzari, F. Mauri, R. Mazzarello, S. Paolini, A. Pasquarello, L. Paulatto, C. Sbraccia, S. S...

    2009

  23. [23]

    Prandini, A

    G. Prandini, A. Marrazzo, I. E. Castelli, N. Mounet, and N. Marzari, npj Comput. Mater.4, 72 (2018), http://materialscloud.org/sssp

    2018

  24. [24]

    Hartley, R

    P. Hartley, R. G. Egdell, K. H. L. Zhang, M. V. Hohmann, L. F. J. Piper, D. J. Morgan, D. O. Scanlon, B. A. D. Williamson, and A. Regoutz, J. Phys. Chem. C125, 6387 (2021)

    2021

  25. [25]

    J. M. Skelton, D. Tiana, S. C. Parker, A. Togo, I. Tanaka, and A. Walsh, J. Chem. Phys.143, 064710 (2015)

    2015

  26. [26]

    Tornatzky, M

    H. Tornatzky, M. Meißner, B. M. Janzen, Z. Galazka, J. S. Reparaz, M. Ramsteiner, and M. R. Wagner, (un- published)

  27. [27]

    Martín-Carrón, A

    L. Martín-Carrón, A. De Andrés, M. J. Martínez-Lope, M. T. Casais, and J. A. Alonso, Phys. Rev. B66, 174303 (2002)

    2002

  28. [28]

    M. N. Iliev, M. V. Abrashev, H.-G. Lee, V. N. Popov, Y. Y. Sun, C. Thomsen, R. L. Meng, and C. W. Chu, Phys. Rev. B57, 2872 (1998). 9 Supplementary information for: Lattice dynamics and complete polarization analysis of Raman-active modes in LaInO 3 A1 g ZX Y A2 g A3 g A4 g A5 g A6 g A7 g B1 1g B2 1g B3 1g B4 1g B5 1g 10 B1 2g B2 2g B3 2g B4 2g B5 2g B6 2...

    1998
