arxiv: 2604.15212 · v1 · submitted 2026-04-16 · ❄️ cond-mat.soft

Orientational bistability and field-controlled switching of a superparamagnetic dimer

James R. N. Tett , Finlay Johnston , Brennan Sprinkle , Alice L. Thorneywork This is my paper

Pith reviewed 2026-05-10 09:45 UTC · model grok-4.3

classification ❄️ cond-mat.soft
keywords superparamagnetic dimersorientational bistabilitymagnetic switchinginduced momentpermanent momentcolloidal particlesenergy landscape
0
0 comments X

The pith

Superparamagnetic colloidal dimers show orientational bistability and field-controlled switching due to combined induced and permanent moments.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper demonstrates that superparamagnetic colloidal dimers carrying both a strong induced magnetic moment and a weak body-fixed permanent moment exhibit bistable orientations in a static uniform field, hopping between two preferred in-plane angles and forming a bimodal distribution. Under periodic field reversal, their motion undergoes a sharp bifurcation from small-angle hops to full rotations at a critical field strength. The authors explain these behaviors through a complex energy landscape created by the misaligned moments, which couples the dimer's roll and yaw rotations. A reader would find this relevant for understanding how to control and characterize the internal magnetic structure of such particles using microscopy and external fields.

Core claim

In a static, uniform magnetic field, superparamagnetic colloidal dimers hop between two preferred in-plane angles with a bimodal steady-state orientation distribution. When the field is periodically reversed, the dynamical response changes sharply from small hops with Δθ ≪ π to full Δθ ≈ π rotations on each flip. Both the bistability and the switching bifurcation arise from a magnetic response consisting of a strong induced moment and a weak body-fixed component, producing a complex orientational energy landscape where coupled roll-yaw rotations drive the dynamics. Combining measurements of misorientation, bifurcation field strength, and short-time orientational variance allows determination

What carries the argument

The dual magnetic response of strong induced moment and weak body-fixed permanent moment, generating an orientational potential with coupled roll-yaw rotations.

Load-bearing premise

That the observed hopping and switching arise exclusively from the strong induced moment combined with a weak body-fixed permanent moment and their coupled roll-yaw rotations, excluding contributions from hydrodynamics, particle interactions, or other internal freedoms.

What would settle it

Direct observation of dimer orientations failing to show bimodality in static fields or lacking the predicted sharp transition to full rotations under periodic reversal at the expected field value would falsify the model.

Figures

Figures reproduced from arXiv: 2604.15212 by Alice L. Thorneywork, Brennan Sprinkle, Finlay Johnston, James R. N. Tett.

Figure 1

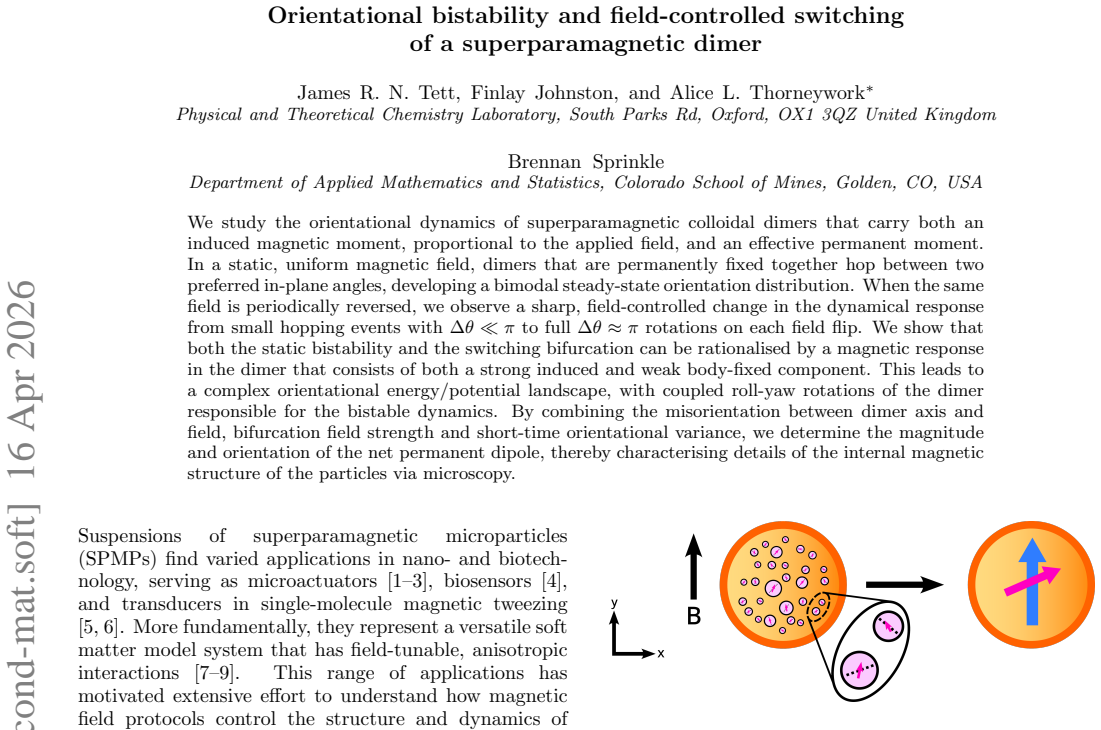

Figure 1. Figure 1: FIG. 1 [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2

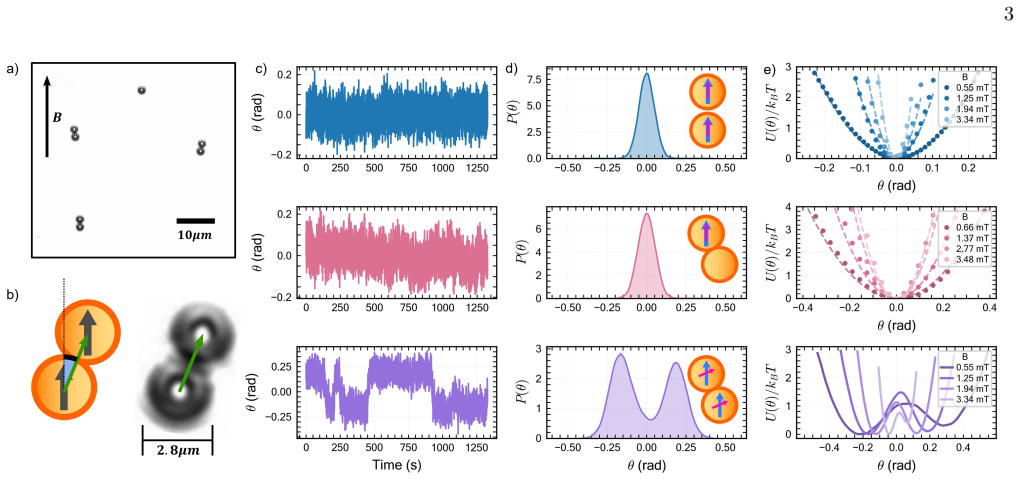

Figure 2. Figure 2: FIG. 2. (a) Section of a typical experimental image showing magnetic dimers in an external field. The dimers shown are [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3

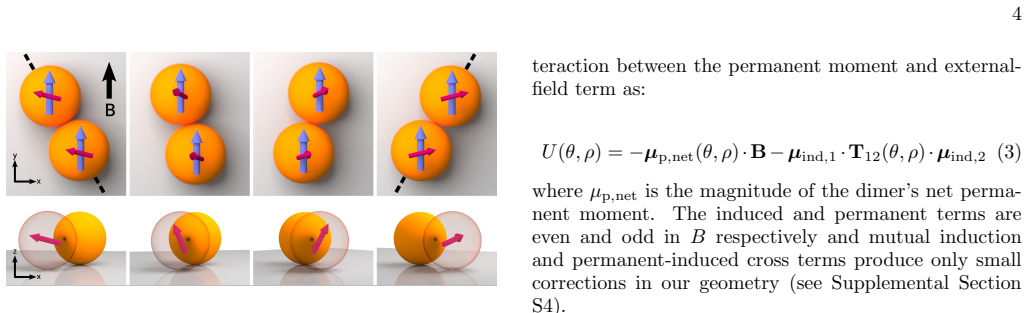

Figure 3. Figure 3: FIG. 3. Schematic sequence (left to right) showing the contin [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: FIG. 4. (a) Example 2D roll-yaw energy landscape [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
Figure 5

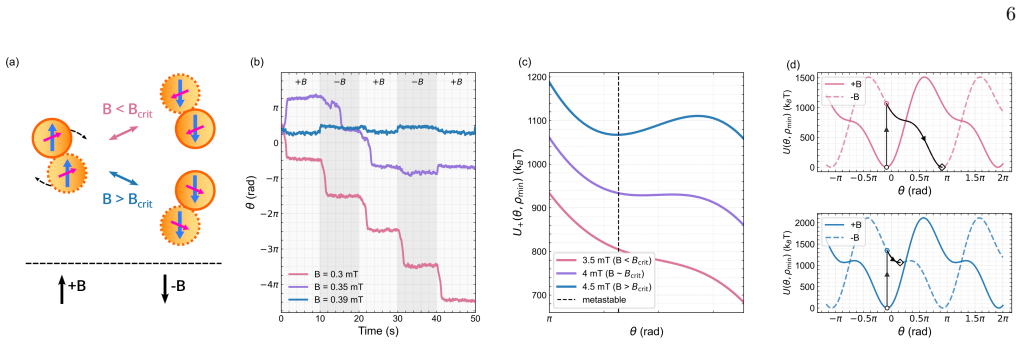

Figure 5. Figure 5: FIG. 5. (a) Schematic showing the two dimer responses to field flips. Below the bifurcation field, the dimer undergoes full [PITH_FULL_IMAGE:figures/full_fig_p006_5.png] view at source ↗
read the original abstract

We study the orientational dynamics of superparamagnetic colloidal dimers that carry both an induced magnetic moment, proportional to the applied field, and an effective permanent moment. In a static, uniform magnetic field, dimers that are permanently fixed together hop between two preferred in-plane angles, developing a bimodal steady-state orientation distribution. When the same field is periodically reversed, we observe a sharp, field-controlled change in the dynamical response from small hopping events with $\Delta \theta\ll \pi$ to full $\Delta\theta \approx \pi$ rotations on each field flip. We show that both the static bistability and the switching bifurcation can be rationalised by a magnetic response in the dimer that consists of both a strong induced and weak body-fixed component. This leads to a complex orientational energy/potential landscape, with coupled roll-yaw rotations of the dimer responsible for the bistable dynamics. By combining the misorientation between dimer axis and field, bifurcation field strength and short-time orientational variance, we determine the magnitude and orientation of the net permanent dipole, thereby characterising details of the internal magnetic structure of the particles via microscopy.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 3 minor

Summary. The manuscript describes experimental observations of bistable orientational dynamics in superparamagnetic colloidal dimers under static and periodically reversed magnetic fields. The bistability manifests as hopping between two preferred in-plane angles, leading to a bimodal steady-state distribution. Under periodic reversal, a sharp bifurcation occurs from small-angle hops to full ~π rotations. The authors rationalize these phenomena using a model of strong induced moment plus weak permanent body-fixed moment, with coupled roll-yaw rotations creating the bistable landscape. They determine the net permanent dipole magnitude and orientation by combining data on misorientation, bifurcation field, and short-time orientational variance.

Significance. If the central claim holds, the work provides a practical method to characterize the internal magnetic structure of superparamagnetic particles through optical microscopy and demonstrates precise field control over colloidal orientational switching. The multi-observable approach to extracting the permanent dipole is a positive aspect, as it reduces circularity. This could have implications for designing responsive colloidal materials.

major comments (3)
  1. [Theoretical model] The claim that bistability and switching arise solely from the induced + permanent magnetic moments with roll-yaw coupling requires explicit justification that hydrodynamic torques and inter-particle interactions are negligible. In colloidal systems, rotational diffusion times are comparable to magnetic timescales, so an estimate of the magnetic energy relative to k_B T and viscous drag coefficients should be provided to support the model (this is load-bearing for the central claim).
  2. [Results and analysis] The extraction of the permanent dipole from misorientation, bifurcation field strength, and short-time variance lacks detailed error analysis and consistency checks. Without access to the full data or derivation, it is unclear if the three independent observables yield consistent values for the dipole magnitude and orientation within experimental uncertainty.
  3. [Bifurcation analysis] The sharp field-controlled change in dynamical response needs to be quantitatively compared to the model's predicted critical field where the potential barrier for full rotations disappears. The paper should show the calculated energy landscape at the bifurcation point.
minor comments (3)
  1. Figure captions could more clearly indicate the direction of the applied field and the definition of the dimer axis angle.
  2. Some notation for the roll and yaw angles is introduced without prior definition in the text.
  3. The manuscript would benefit from a brief discussion of related work on magnetic colloidal dimers.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for their careful reading, positive assessment of the work's significance, and constructive comments. We address each major point below and will incorporate revisions to strengthen the manuscript.

read point-by-point responses

  1. Referee: [Theoretical model] The claim that bistability and switching arise solely from the induced + permanent magnetic moments with roll-yaw coupling requires explicit justification that hydrodynamic torques and inter-particle interactions are negligible. In colloidal systems, rotational diffusion times are comparable to magnetic timescales, so an estimate of the magnetic energy relative to k_B T and viscous drag coefficients should be provided to support the model (this is load-bearing for the central claim).

    Authors: We agree that explicit estimates are essential to justify the model assumptions. In the revised manuscript, we will add a dedicated paragraph (with supporting calculations) estimating the magnetic torque energy relative to k_B T (typically 5-10 k_B T in the relevant field range), the rotational diffusion time of the dimer, and the viscous drag coefficients. These will show that magnetic torques dominate thermal fluctuations and that the response timescale is much faster than diffusion, validating the deterministic magnetic model. We will also emphasize the low particle density used to suppress inter-particle interactions, with a brief note on the absence of clustering in the data. revision: yes

  2. Referee: [Results and analysis] The extraction of the permanent dipole from misorientation, bifurcation field strength, and short-time variance lacks detailed error analysis and consistency checks. Without access to the full data or derivation, it is unclear if the three independent observables yield consistent values for the dipole magnitude and orientation within experimental uncertainty.

    Authors: We appreciate this observation. While the three observables were selected to be independent, the original text did not include full error propagation or a direct consistency comparison. In revision, we will expand the supplementary information with detailed derivations and error estimates for each method (accounting for imaging resolution, field calibration, and statistical sampling). A new table will compare the extracted dipole magnitude and orientation from all three, demonstrating agreement within experimental uncertainties (typically 15-25%). This will be cross-referenced in the main text. revision: yes

  3. Referee: [Bifurcation analysis] The sharp field-controlled change in dynamical response needs to be quantitatively compared to the model's predicted critical field where the potential barrier for full rotations disappears. The paper should show the calculated energy landscape at the bifurcation point.

    Authors: We thank the referee for this suggestion to make the analysis more quantitative. The revised manuscript will include a new figure (or panel) explicitly plotting the calculated orientational energy landscape (potential vs. roll and yaw angles) at the experimental bifurcation field, showing the disappearance of the barrier for full rotations. We will also directly compare the model's predicted critical field to the observed transition point in the data, including a brief discussion of any small discrepancies attributable to particle polydispersity. revision: yes

Circularity Check

0 steps flagged

No circularity: permanent dipole extracted from three independent observables without self-referential definition or forced prediction

full rationale

The paper's central derivation extracts the magnitude and orientation of the weak body-fixed permanent dipole by combining three distinct experimental quantities (misorientation angle, bifurcation field strength, and short-time orientational variance) into a model of the magnetic energy landscape that includes both induced and permanent moments. This extraction is not circular because the model uses the fitted dipole to predict the observed bistable distribution and field-dependent switching bifurcation, rather than defining the dipole in terms of those same predictions. No self-citations, uniqueness theorems, or ansatzes are invoked to force the result by construction, and the derivation remains self-contained against the reported microscopy data without reducing to a renaming or tautological fit.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The central claim rests on the modeling assumption of a weak body-fixed permanent moment whose magnitude is extracted from experimental signatures; no other free parameters or invented entities are stated in the abstract.

free parameters (1)
  • magnitude and orientation of net permanent dipole
    Determined from misorientation, bifurcation field strength, and short-time orientational variance; treated as an output rather than an input.
axioms (1)
  • domain assumption Magnetic response consists of strong induced moment plus weak body-fixed permanent moment
    Invoked to produce the complex orientational energy landscape and coupled roll-yaw rotations that rationalize both bistability and the switching bifurcation.
