arxiv: 2604.15454 · v1 · submitted 2026-04-16 · ❄️ cond-mat.mes-hall

Simulating altermagnets using mumax+

Lars Moreels , Nicolai Bechler , Bartel Van Waeyenberge , Jonathan Leliaert , Jan Masell This is my paper

Pith reviewed 2026-05-10 09:37 UTC · model grok-4.3

classification ❄️ cond-mat.mes-hall
keywords altermagnetsd-wave altermagnetsmicromagnetic simulationsBloch domain wallsNéel vectormagnon dispersionNéel skyrmionsspin transfer torque
0
0 comments X

The pith

A micromagnetic simulation package now includes a d-wave altermagnet class that matches analytical Bloch domain wall profiles.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper shows that altermagnets can be modeled accurately by extending an existing micromagnetic tool with a dedicated class for d-wave altermagnets. This addition produces line profiles of the Néel vector and net magnetization that align with analytical solutions for Bloch domain walls. It also supports calculations of magnon dispersion relations that vary according to the anisotropic exchange interaction and tracks the motion of Néel skyrmions under spin transfer torque. A reader would care because altermagnets form a distinct magnetic class whose properties suit spintronic applications, and reliable simulations let researchers test behaviors before experiments.

Core claim

We added a new magnet class for d-wave altermagnets by extending the pre-existing antiferromagnetic code base. This class reproduces analytical solutions for line profiles of the Néel vector and net magnetization for a Bloch domain wall. Simulation results are shown for the magnon dispersion relation and its dependence on anisotropic exchange, as well as for the motion of a Néel skyrmion driven by spin transfer torque. The object-oriented design supports correct magnetostatic field calculations in multi-sublattice systems.

What carries the argument

The d-wave altermagnet magnet class, implemented by extending the antiferromagnetic framework to incorporate anisotropic exchange while preserving accurate multi-sublattice magnetostatic fields.

If this is right

  • Line profiles of the Néel vector and net magnetization in Bloch domain walls match known analytical results.
  • Magnon dispersion relations can be computed and show clear dependence on the anisotropic exchange interaction.
  • Néel skyrmion motion can be tracked when driven by spin transfer torque.
  • Magnetostatic fields are calculated correctly for multi-sublattice magnetic systems.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • This simulation support could let researchers test altermagnetic device designs in various geometries before fabrication.
  • The same extension method might apply to other altermagnetic symmetries to reveal further distinctive dynamics.
  • Correct multi-sublattice handling opens the possibility of simulating hybrid structures that combine altermagnets with conventional magnets.
  • Validated skyrmion and domain wall results could guide experiments by predicting observable thresholds for motion or stability.

Load-bearing premise

The extension of the antiferromagnetic code base correctly captures the anisotropic exchange interaction without introducing errors in the multi-sublattice magnetostatic field calculation.

What would settle it

A mismatch between the simulated line profiles of the Néel vector and net magnetization for a Bloch domain wall and the corresponding analytical solutions would show the implementation is incorrect.

Figures

Figures reproduced from arXiv: 2604.15454 by Bartel Van Waeyenberge, Jan Masell, Jonathan Leliaert, Lars Moreels, Nicolai Bechler.

Figure 1
Figure 1. Figure 1: FIG. 1: Domain wall profiles of the [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: FIG. 2: Profiles of the Néel vector (top) and the net [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗

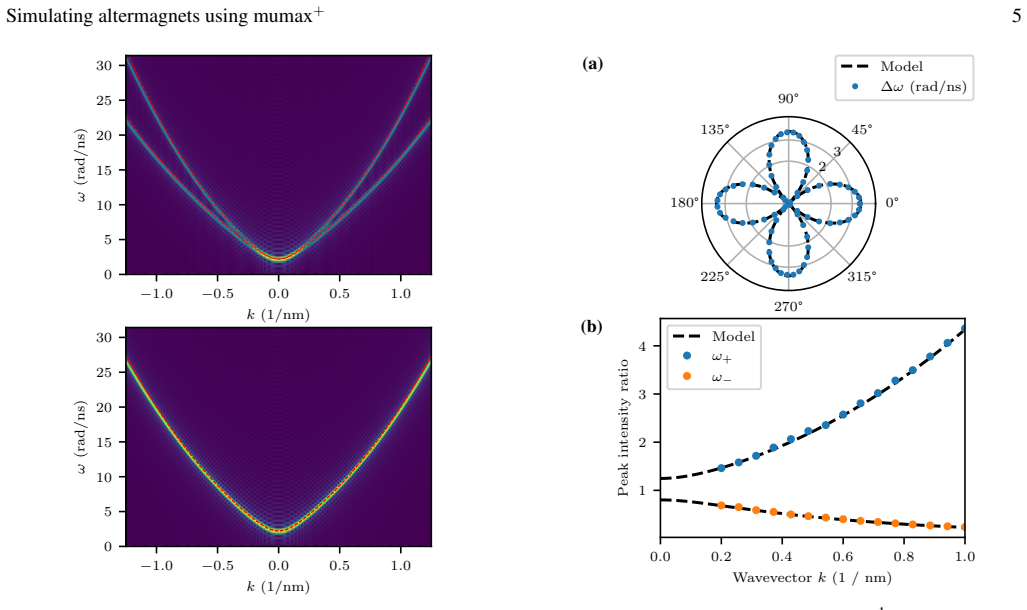

Figure 4
Figure 4. Figure 4: FIG. 4: Frequency gap [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: FIG. 5: Skyrmion velocity components in function of the [PITH_FULL_IMAGE:figures/full_fig_p006_5.png] view at source ↗
read the original abstract

In this paper, we demonstrate how altermagnets can be simulated in the recently released micromagnetic simulation package mumax+. We have added a new magnet class for d-wave altermagnets and demonstrate how mumax+ is able to reproduce the analytical solutions for line profiles of the N\'eel vector and net magnetization for a Bloch domain wall. Next, we show simulation results of the magnon dispersion relation and its dependence on the anisotropic nature of the exchange interaction. Finally, we study the motion of a N\'eel skyrmion by applying a spin transfer torque. This new feature was implemented by extending the pre-existing code base for antiferromagnetic simulations. The object-oriented design of mumax+ allows for a correct calculation of the magnetostatic field in multi-sublattice systems, a feature that many other micromagnetic simulators lack.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 4 minor

Summary. The manuscript describes the addition of a d-wave altermagnet magnet class to the mumax+ micromagnetic package by extending its existing antiferromagnetic code base. It validates the implementation by reproducing analytical solutions for the line profiles of the Néel vector and net magnetization across a Bloch domain wall. The work then presents simulation results for the magnon dispersion relation and its dependence on the anisotropic exchange interaction, followed by the dynamics of a Néel skyrmion under spin-transfer torque. The object-oriented design is emphasized for enabling accurate multi-sublattice magnetostatic field calculations.

Significance. If the implementation is correct, this provides a useful open tool for simulating altermagnets, an emerging class of materials with anisotropic exchange but zero net magnetization. The direct validation against closed-form analytical solutions for domain-wall profiles, together with demonstrations of magnon spectra and skyrmion motion, lowers the barrier for theoretical and device-oriented studies in altermagnetic spintronics. The correct handling of multi-sublattice demagnetizing fields is a concrete advantage over many other micromagnetic codes.

minor comments (4)
  1. The domain-wall section should overlay the analytical curves directly on the simulated profiles (or report quantitative error measures such as RMS deviation) rather than stating qualitative agreement; this would make the central validation more convincing.
  2. The explicit form of the d-wave anisotropic exchange term implemented in the new class should be written out (or referenced to a specific equation in the supplementary material) so that readers can confirm it matches the Hamiltonian underlying the analytical solutions.
  3. Figure captions for the magnon dispersion and skyrmion trajectories should list the precise values of the anisotropic exchange strength, damping, and current density used, allowing independent reproduction.
  4. A short paragraph or table comparing mumax+ results with at least one other altermagnet-capable code (or an independent finite-difference implementation) would strengthen the claim that the multi-sublattice magnetostatic treatment is accurate.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for their positive and accurate summary of our work, as well as for recognizing the significance of an open-source tool for altermagnetic simulations with correct multi-sublattice magnetostatics. The recommendation for minor revision is noted; however, no specific major comments were provided in the report.

Circularity Check

0 steps flagged

No significant circularity detected

full rationale

The paper implements a d-wave altermagnet class in mumax+ by extending its existing antiferromagnetic code base and validates the extension through direct numerical reproduction of closed-form analytical solutions for Néel-vector and net-magnetization line profiles in a Bloch domain wall, plus magnon dispersion and skyrmion motion. These analytical benchmarks are derived independently from the model Hamiltonian and serve as external tests rather than self-defined inputs. No load-bearing step reduces to a fitted parameter renamed as prediction, a self-citation chain, or an ansatz smuggled via prior work; the object-oriented magnetostatic handling is asserted and then checked by the profile match. The derivation chain is therefore self-contained against external analytical benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Based on the abstract, the paper does not introduce new free parameters, axioms, or invented entities; it extends existing micromagnetic simulation framework for a new material class.
