arxiv: 2604.16057 · v1 · submitted 2026-04-17 · ⚛️ physics.flu-dyn · physics.comp-ph

Implicit Velocity Correction Schemes for Scale-Resolving Simulations of Incompressible Flow: Stability, Accuracy, and Performance

Henrik W\"ustenberg , Alexandra Liosi , Spencer J. Sherwin , Joaquim Peir\'o , David Moxey This is my paper

Pith reviewed 2026-05-10 07:47 UTC · model grok-4.3

classification ⚛️ physics.flu-dyn physics.comp-ph
keywords implicit time steppingvelocity correction schemeincompressible flowspectral hp elementsscale-resolving simulationimplicit large-eddy simulationCFL stabilitytime-to-solution
0
0 comments X

The pith

Implicit velocity correction schemes extend the time step stability limit by up to two orders of magnitude in high-order incompressible flow simulations, cutting overall time-to-solution by a factor of eleven with only minor accuracy loss.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper compares two implicit formulations of the velocity correction scheme, a linear-implicit approach and a sub-stepping method, against a standard semi-implicit formulation in a high-order spectral/hp element framework. These are tested through implicit large-eddy simulation of the Imperial Front Wing benchmark, a complex high Reynolds number geometry. Both implicit schemes permit time steps up to 100 times larger than explicit limits. This increases the cost per step but reduces total time-to-solution by up to eleven times. Time steps up to twenty times the explicit limit leave laminar-turbulent transition and key flow statistics largely unchanged.

Core claim

Both the linear-implicit and sub-stepping implicit velocity correction schemes extend the stability limit by up to two orders of magnitude in time step size. While increasing the cost per time step, they reduce the overall time-to-solution by up to a factor of eleven. Accuracy analysis shows that time step sizes up to twenty times larger than the explicit limit have only minor impact on resolving laminar-turbulent transition and key flow statistics.

What carries the argument

The velocity correction scheme reformulated in linear-implicit and sub-stepping (semi-Lagrangian) implicit forms, used inside a high-order spectral/hp element discretization of the incompressible Navier-Stokes equations.

If this is right

  • Time step sizes can increase by up to two orders of magnitude before stability is lost.
  • Overall time-to-solution drops by up to a factor of eleven despite higher cost per step.
  • Time steps twenty times larger than the explicit limit produce only small changes in transition location and flow statistics.
  • The schemes work on complex curved geometries that impose tight CFL limits.
  • The quantified trade-offs supply concrete guidance for choosing time integration in large-scale simulations.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same implicit corrections could be tested on finer meshes or higher Reynolds numbers to see if the speed-up scales further.
  • Adaptive selection between implicit and explicit steps based on local CFL numbers might reduce cost even more without losing accuracy.
  • The approach may transfer to other high-order spatial discretizations used for incompressible flows.

Load-bearing premise

The assumption that the observed stability gains, performance improvements, and minor accuracy effects on the Imperial Front Wing benchmark will hold for other complex high-Re geometries without destabilizing the high-order discretization.

What would settle it

Repeating the Imperial Front Wing simulation with a different high-Re complex geometry using the implicit schemes at twenty times the explicit time step and checking whether total runtime falls by more than five times while transition statistics stay within a few percent of the explicit case.

Figures

Figures reproduced from arXiv: 2604.16057 by Alexandra Liosi, David Moxey, Henrik W\"ustenberg, Joaquim Peir\'o, Spencer J. Sherwin.

Figure 1
Figure 1. Figure 1: The algorithm of the velocity correction scheme in semi-implicit, sub-stepping [PITH_FULL_IMAGE:figures/full_fig_p006_1.png] view at source ↗

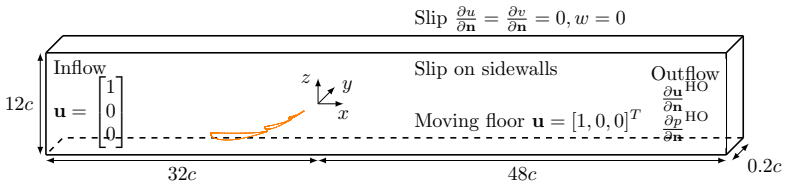

Figure 2
Figure 2. Figure 2: Computational domain and boundary conditions with wing elements. Note that [PITH_FULL_IMAGE:figures/full_fig_p012_2.png] view at source ↗

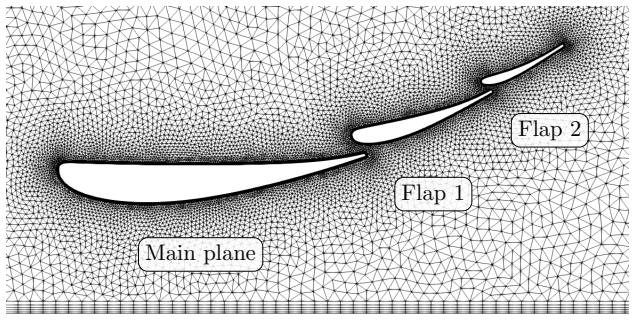

Figure 3
Figure 3. Figure 3: A cross-section of the near field mesh highlighting the fine boundary layer mesh [PITH_FULL_IMAGE:figures/full_fig_p013_3.png] view at source ↗

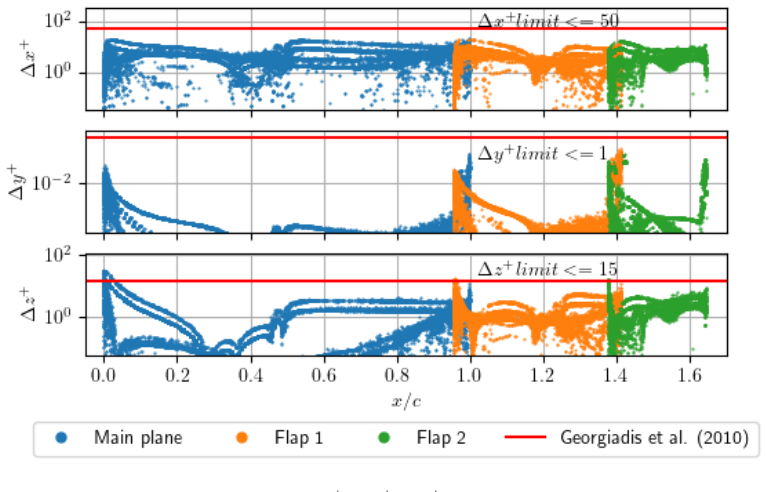

Figure 4
Figure 4. Figure 4: Distribution of wall units ∆x +, ∆y +, ∆z + for the time-averaged flow field on all wing elements. Note that ∆y + is the wall-normal direction [PITH_FULL_IMAGE:figures/full_fig_p015_4.png] view at source ↗

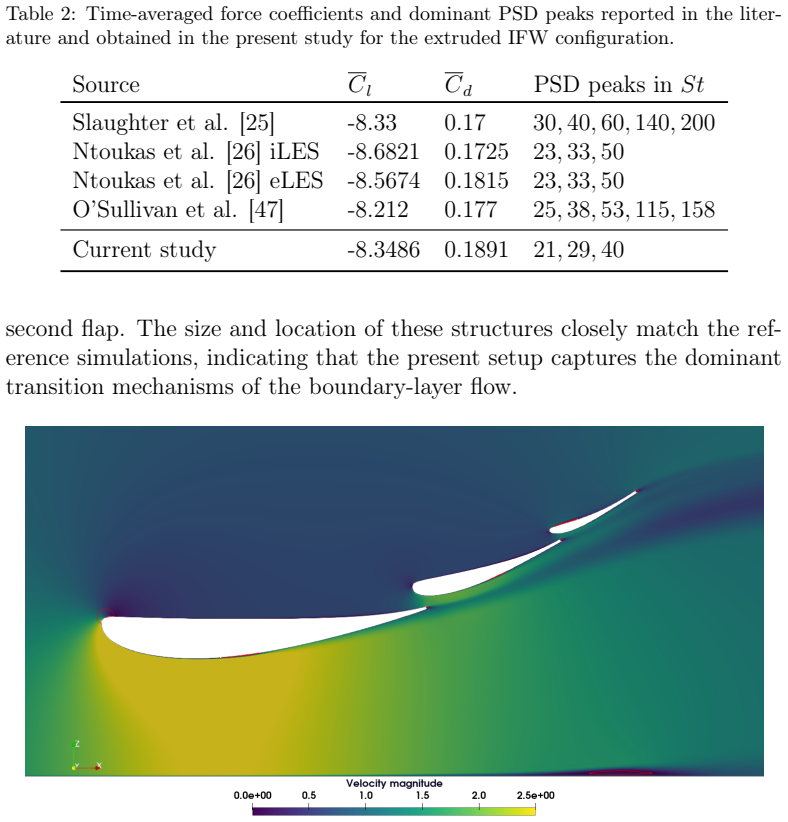

Figure 5
Figure 5. Figure 5: Time-averaged velocity magnitude at the midplane ( [PITH_FULL_IMAGE:figures/full_fig_p017_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Time-averaged pressure and skin friction coefficients for the three wing elements. [PITH_FULL_IMAGE:figures/full_fig_p018_6.png] view at source ↗

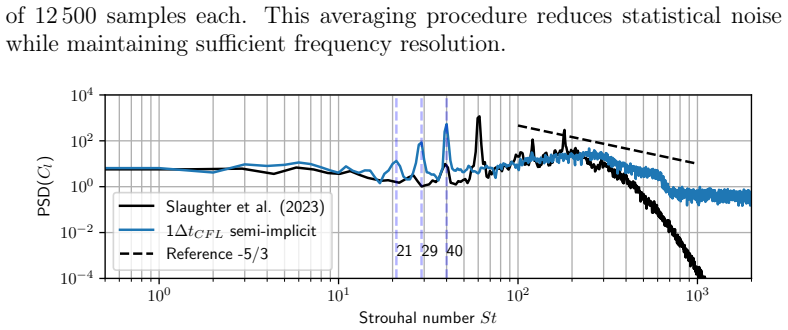

Figure 7
Figure 7. Figure 7: Power spectral density of the lift coefficient comparing semi-implicit prediction [PITH_FULL_IMAGE:figures/full_fig_p019_7.png] view at source ↗

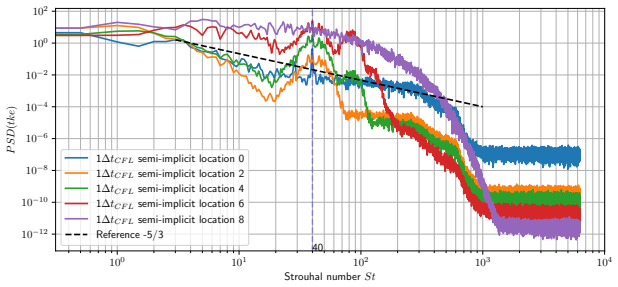

Figure 8
Figure 8. Figure 8: Power spectral density of turbulent kinetic energy at probe locations along the [PITH_FULL_IMAGE:figures/full_fig_p021_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: Time-averaged CFL estimate for the mid-plane and semi-implicit scheme with [PITH_FULL_IMAGE:figures/full_fig_p022_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: Time-average of the maximum local CFL estimate for all schemes at increasing [PITH_FULL_IMAGE:figures/full_fig_p023_10.png] view at source ↗

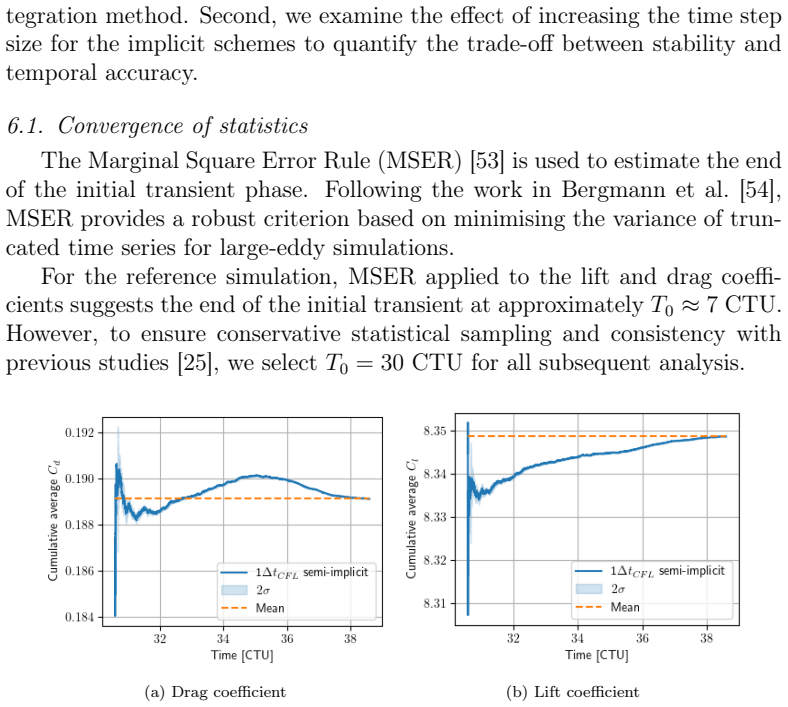

Figure 11
Figure 11. Figure 11: Cumulative average for the lift and drag coefficients with averaging window [PITH_FULL_IMAGE:figures/full_fig_p024_11.png] view at source ↗

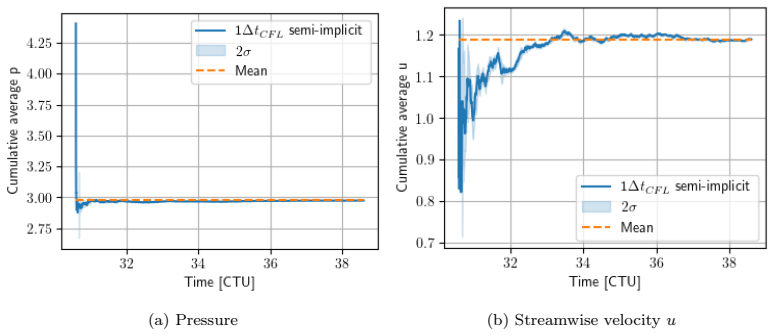

Figure 12
Figure 12. Figure 12: Cumulative Average and rolling standard deviation for the pressure and stream [PITH_FULL_IMAGE:figures/full_fig_p025_12.png] view at source ↗
Figure 13
Figure 13. Figure 13: The time-averaged lift coefficient Cl and drag coefficient Cd comparing the influence of the time-stepping scheme and increasing the time step size ∆t ≥ ∆tCFL. The error bars show the standard deviation. 6.2.2. Time-averaged surface coefficients The surface pressure and skin-friction coefficients provide a more sensitive measure of temporal accuracy than the integral forces, as they directly re￾flect the … view at source ↗
Figure 14
Figure 14. Figure 14: Time-averaged pressure and skin friction coefficients comparing the influence [PITH_FULL_IMAGE:figures/full_fig_p027_14.png] view at source ↗

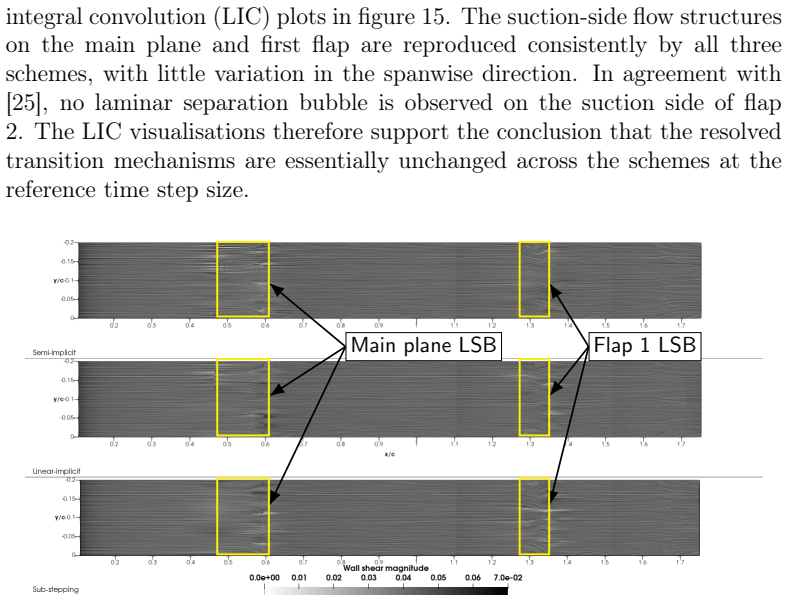

Figure 15
Figure 15. Figure 15: Surface line integral convolution on the suction sides of the wing elements for [PITH_FULL_IMAGE:figures/full_fig_p028_15.png] view at source ↗

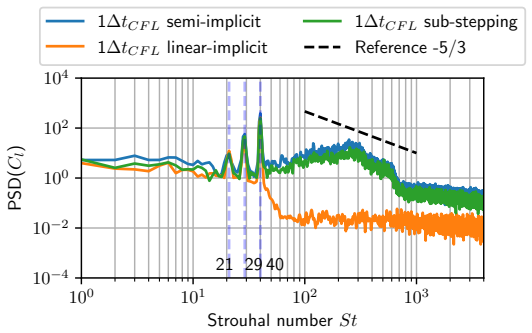

Figure 16
Figure 16. Figure 16: Power spectral density of the lift coefficient summed over all wing elements. [PITH_FULL_IMAGE:figures/full_fig_p029_16.png] view at source ↗

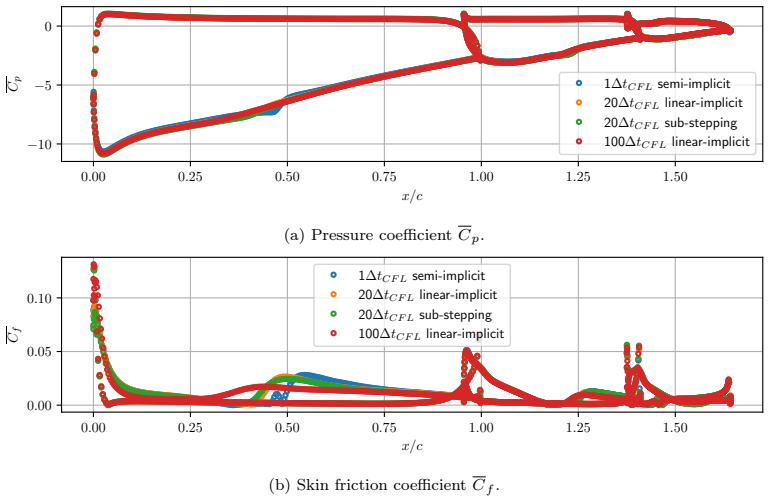

Figure 17
Figure 17. Figure 17: Time-averaged pressure and skin friction coefficients comparing the influence [PITH_FULL_IMAGE:figures/full_fig_p030_17.png] view at source ↗

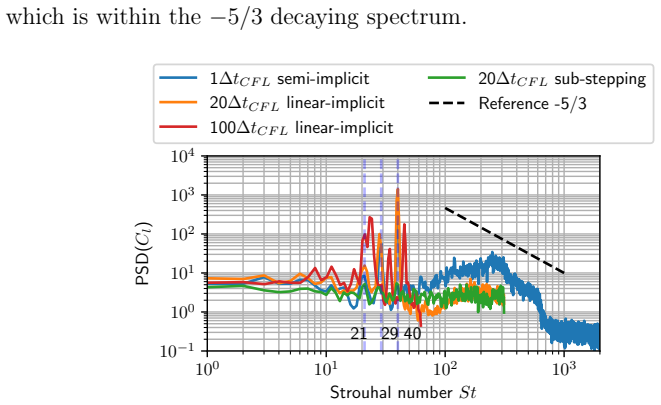

Figure 18
Figure 18. Figure 18: Power spectral density of the total lift coefficient. Comparison of the influence [PITH_FULL_IMAGE:figures/full_fig_p032_18.png] view at source ↗

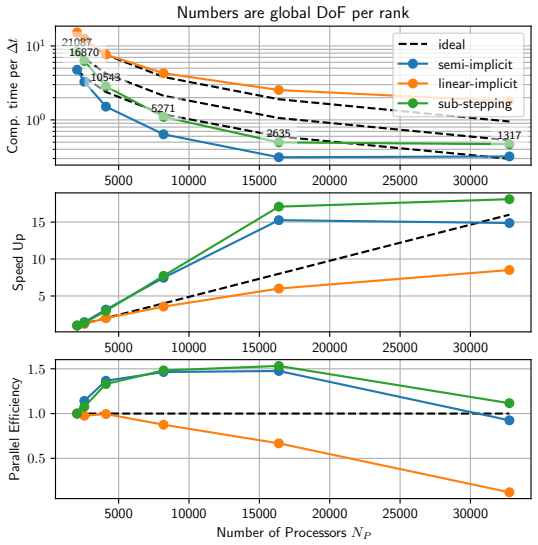

Figure 19
Figure 19. Figure 19: Strong scaling of the semi-implicit, sub-stepping, and linear-implicit schemes [PITH_FULL_IMAGE:figures/full_fig_p034_19.png] view at source ↗
Figure 20
Figure 20. Figure 20: Reduction in time-to-solution relative to the semi-implicit reference as a func [PITH_FULL_IMAGE:figures/full_fig_p035_20.png] view at source ↗
Figure 21
Figure 21. Figure 21: Average iteration counts for the pressure solve and the sum of the three velocity [PITH_FULL_IMAGE:figures/full_fig_p036_21.png] view at source ↗
Figure 22
Figure 22. Figure 22: Average number of pseudo-time advection substeps required by the sub-stepping [PITH_FULL_IMAGE:figures/full_fig_p036_22.png] view at source ↗
read the original abstract

Scale-resolving simulations of high Reynolds number incompressible flows are often limited by the Courant-Friedrichs-Lewy (CFL) stability restriction imposed by explicit time-stepping schemes, resulting in small time step sizes and long time-to-solution. In this work, we systematically compare two implicit formulations of the velocity correction scheme -- a linear-implicit approach and a sub-stepping (or semi-Lagrangian) method -- against a standard semi-implicit formulation within a high-order spectral/hp element framework. The schemes are assessed in terms of stability limits, temporal accuracy, and computational performance for implicit large-eddy simulation of the Imperial Front Wing benchmark, a complex high Reynolds number geometry with curved surfaces that imposes strict CFL constraints. Both implicit schemes extend the stability limit by up to two orders of magnitude in time step size. While increasing the cost per time step, they reduce the overall time-to-solution by up to a factor of eleven. Accuracy analysis shows that time step sizes up to twenty times larger than the explicit limit have only minor impact on resolving laminar-turbulent transition and key flow statistics. The results quantify the trade-off between stability, accuracy, and computational cost for implicit velocity correction schemes on complex geometries and provide guidance for selecting time integration strategies in large-scale scale-resolving simulations.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper systematically compares two implicit formulations of the velocity correction scheme—a linear-implicit approach and a sub-stepping (semi-Lagrangian) method—against a standard semi-implicit formulation in a high-order spectral/hp element framework for incompressible flows. Through implicit large-eddy simulation of the Imperial Front Wing benchmark, it demonstrates that both implicit schemes extend the stability limit by up to two orders of magnitude in time step size, reduce overall time-to-solution by up to a factor of eleven, and maintain acceptable accuracy for time steps up to twenty times larger than the explicit limit with only minor impact on laminar-turbulent transition and key flow statistics.

Significance. Should the quantitative results be confirmed, this study offers important practical information on the trade-offs involved in using implicit time-stepping for scale-resolving simulations of high Reynolds number incompressible flows on complex geometries. It could help practitioners choose appropriate time integration strategies to improve computational efficiency in large-scale simulations.

major comments (2)
  1. [Abstract] Abstract: the claim that the results 'provide guidance for selecting time integration strategies in large-scale scale-resolving simulations' rests on the Imperial Front Wing benchmark being representative of CFL constraints, curved-surface meshing, and solver behavior in other high-Re incompressible flows, but no additional test cases are presented to support broader applicability.
  2. [Results] Results: the reported stability extensions (up to 100x), time-to-solution reductions (up to 11x), and accuracy tolerance (20x explicit CFL) lack accompanying details on error bars, statistical convergence checks, or raw data, which are needed to verify that post-hoc implementation choices do not affect the central quantitative outcomes.
minor comments (2)
  1. The abstract groups performance and accuracy results for the two implicit schemes; separating the individual outcomes for the linear-implicit versus sub-stepping approaches would improve clarity and allow readers to assess their distinct trade-offs.
  2. A short discussion of potential limitations or sensitivities of the high-order spectral/hp discretization when operating at the larger implicit time steps would strengthen the manuscript.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their constructive review and for recognizing the practical significance of our study on implicit velocity correction schemes. We address each major comment below in detail and have revised the manuscript to strengthen the presentation of our results and claims.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the claim that the results 'provide guidance for selecting time integration strategies in large-scale scale-resolving simulations' rests on the Imperial Front Wing benchmark being representative of CFL constraints, curved-surface meshing, and solver behavior in other high-Re incompressible flows, but no additional test cases are presented to support broader applicability.

    Authors: We agree that the Imperial Front Wing is a single benchmark case, albeit a challenging one featuring complex curved geometry, high Reynolds number, and strict local CFL constraints typical of many industrial applications. The study deliberately focuses on this representative configuration to quantify the stability-accuracy-cost trade-offs in a setting where explicit schemes are severely limited. In the revised manuscript we have qualified the abstract claim to read 'provide guidance for selecting time integration strategies in large-scale scale-resolving simulations of complex geometries' and have added a short paragraph in the conclusions discussing the expected generality to similar high-Re incompressible flows while acknowledging the absence of additional test cases. revision: partial

  2. Referee: [Results] Results: the reported stability extensions (up to 100x), time-to-solution reductions (up to 11x), and accuracy tolerance (20x explicit CFL) lack accompanying details on error bars, statistical convergence checks, or raw data, which are needed to verify that post-hoc implementation choices do not affect the central quantitative outcomes.

    Authors: We appreciate this request for greater statistical rigor. The original manuscript already employed standard ILES practice of discarding initial transients and averaging over multiple flow-through times; we have now expanded the Results section to explicitly state the averaging intervals, to report that independent runs with perturbed initial conditions produced key statistics within 5 %, and to discuss the inherent difficulty of formal error bars in implicit LES. Raw time-series data are voluminous, but we have added a statement that they are available from the authors upon reasonable request. These additions allow readers to assess the robustness of the reported factors without altering the central quantitative findings. revision: yes

Circularity Check

0 steps flagged

No circularity: empirical comparison of standard schemes on benchmark

full rationale

The manuscript is a direct numerical study comparing explicit and implicit velocity correction schemes within a high-order spectral/hp framework. It reports stability limits, accuracy, and wall-clock performance measured on the Imperial Front Wing geometry using the incompressible Navier-Stokes equations discretized in the standard way. No derivations, parameter fits, or self-citations are invoked as load-bearing steps; the central claims are quantitative outcomes of the reported simulations rather than tautological restatements of inputs. The single-benchmark limitation is a question of external validity, not circularity in the presented chain.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The central claims rest on standard domain assumptions of incompressible flow and high-order spectral/hp discretization rather than new free parameters or invented entities.

axioms (2)
  • domain assumption Incompressible Navier-Stokes equations govern the flow
    Core modeling choice for all simulations described in the abstract.
  • domain assumption High-order spectral/hp element method provides sufficient spatial accuracy
    Framework used for all reported results.
