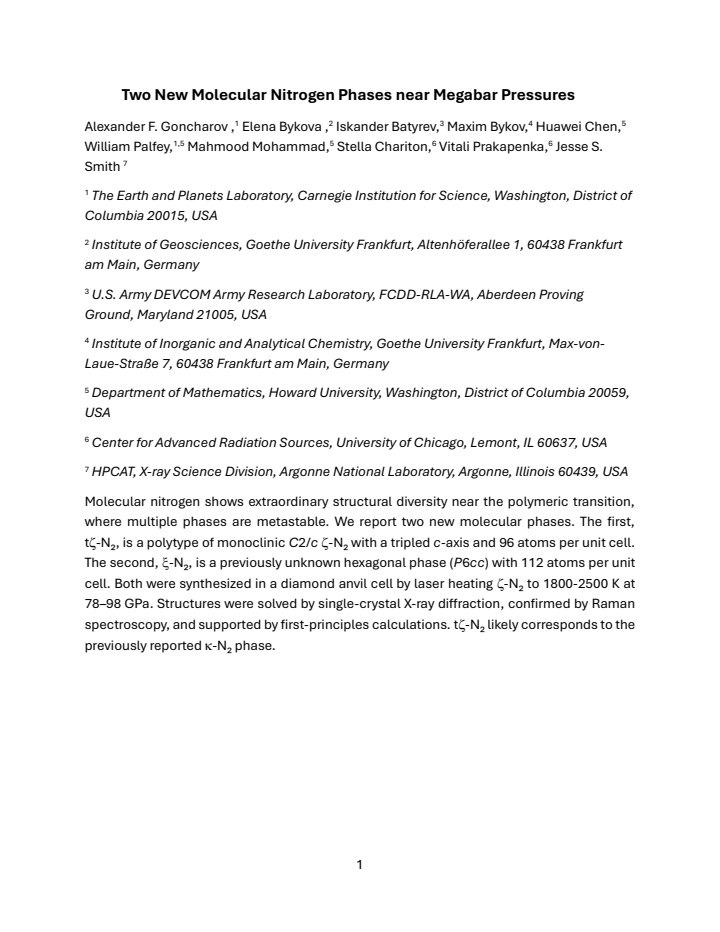

Two New Molecular Nitrogen Phases near Megabar Pressures

Alexander F. Goncharov , Elena Bykova , Iskander Batyrev , Maxim Bykov , Huawei Chen , William Palfey , Mahmood Mohammad , Stella Chariton

show 2 more authors

Vitali Prakapenka Jesse S. Smith

This is my paper

Pith reviewed 2026-05-10 07:49 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci

keywords molecular nitrogenhigh-pressure phasesdiamond anvil cellX-ray diffractionnitrogen allotropesphase transitionspolytypesmetastable phases

0 comments

The pith

Two new molecular nitrogen phases, a polytype of zeta-N2 and a hexagonal structure, form at 78-98 GPa.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes that laser heating the known zeta-N2 phase in a diamond anvil cell produces two additional molecular nitrogen structures at pressures approaching the polymeric transition. One is t zeta-N2, a polytype with a tripled c-axis and 96 atoms in the unit cell based on the monoclinic C2/c arrangement. The other is xi-N2, a new hexagonal phase in space group P6cc with 112 atoms per cell. Structures were solved directly from single-crystal X-ray diffraction, backed by Raman spectra and first-principles calculations. The t zeta-N2 phase is proposed to match earlier reports of kappa-N2. This work maps previously unseen metastable arrangements in the narrow pressure window before nitrogen molecules dissociate.

Core claim

We report two new molecular phases. The first, tζ-N₂, is a polytype of monoclinic C2/c ζ-N₂, characterized by a tripled c axis and 96 atoms per unit cell. The second, ξ-N₂, is a previously unreported hexagonal phase (P6cc) containing 112 atoms per unit cell. Both phases were synthesized in a diamond anvil cell by laser heating ζ-N₂ to 1800--2500 K at pressures of 78--98 GPa. Their crystal structures were determined using single-crystal X-ray diffraction, corroborated by Raman spectroscopy, and supported by first-principles calculations. The tζ-N₂ phase likely corresponds to the previously reported κ-N₂ phase.

What carries the argument

Single-crystal X-ray diffraction on laser-heated samples in a diamond anvil cell, used to index reflections and solve the atomic positions and space groups of the new phases.

If this is right

The tζ-N₂ phase explains the earlier uncharacterized κ-N₂ observations.
The molecular nitrogen phase diagram near the polymeric transition contains more metastable phases with large unit cells than previously known.
These phases are reachable by heating at fixed pressure, revealing kinetic pathways to complex molecular packings.
The same synthesis and diffraction approach can identify similar polytypes in other compressed diatomic solids.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

Planetary interior models for nitrogen-rich ices or atmospheres may require inclusion of these additional molecular phases at 80-100 GPa.
The large atom counts per cell indicate that high-pressure nitrogen favors intricate molecular arrangements that simple pair-potential models may miss.
Further compression or varied thermal histories from these phases could pinpoint the exact onset of polymerization or yield recoverable high-density nitrogen forms.
Single-crystal methods at these conditions open the door to resolving similarly complex structures in other elemental solids like oxygen or phosphorus.

Load-bearing premise

The single-crystal X-ray diffraction patterns can be indexed unambiguously to the proposed space groups and large unit cells without significant overlap from impurities, twinning, or pressure gradients.

What would settle it

New single-crystal X-ray diffraction measurements on nitrogen samples at 78-98 GPa after identical laser heating would show whether the observed reflection positions and intensities match the calculated patterns for the tζ-N₂ (tripled c-axis C2/c) and ξ-N₂ (P6cc) models.
