arxiv: 2604.16837 · v1 · submitted 2026-04-18 · ❄️ cond-mat.mes-hall

Charge-Density Waves of Single and Double NbS₃ Chains

S. Tanda , S. Kashimoto , H. Yamamoto , K. Inagaki , H. Nobukane , Y. Fukuda This is my paper

Pith reviewed 2026-05-10 07:21 UTC · model grok-4.3

classification ❄️ cond-mat.mes-hall
keywords charge density wavesNbS3one-dimensional systemssingle chaindouble chaincarbon nanotube sheathCDW wavevector
0
0 comments X

The pith

Isolated single NbS3 chains exhibit a (1/4)b* charge-density wave unlike the (1/3)b* in bulk samples.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper examines isolated single and double chains of NbS3 created with a carbon-nanotube-sheath method to realize genuine one-dimensional electron systems free of interchain coupling. It reports the first observation of charge-density waves in these isolated structures, finding that single chains display a (1/4)b* modulation while bulk quasi-one-dimensional crystals show (1/3)b*. Double chains instead show coexistence of a (1/2)b* dimer and the (1/3)b* CDW. A reader would care because prior CDW studies were limited to anisotropic bulk samples, leaving the behavior of true one-dimensional systems untested.

Core claim

Using the carbon-nanotube-sheath method we produced isolated single and double NbS3 chains for the first time and observed charge-density waves in both. Single chains display a (1/4)b* CDW, in contrast to the (1/3)b* CDW long known in bulk samples. Double chains show simultaneous (1/2)b* dimerization and (1/3)b* CDW order. These results demonstrate that CDW wavevector selection changes when interchain interactions are removed.

What carries the argument

The carbon-nanotube-sheath method that isolates single and double NbS3 chains, allowing direct measurement of CDW wavevectors such as (1/4)b* and (1/2)b* that differ from bulk values.

If this is right

  • Genuine one-dimensional NbS3 chains support CDW states whose wavevector is selected by different nesting conditions than those in bulk crystals.
  • The (1/4)b* modulation in single chains implies that removal of interchain coupling alters the Fermi-surface nesting vector or electron-phonon coupling.
  • Double-chain samples retain both dimerization and CDW order, showing that limited interchain coupling within a pair is still sufficient to stabilize the bulk-like (1/3)b* state.
  • These isolated-chain results provide a benchmark for theoretical models that must now reproduce CDW wavevectors without assuming quasi-one-dimensional geometry.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Bulk (1/3)b* order is likely stabilized by interchain interactions that are absent in the isolated single-chain limit.
  • The sheath technique could be extended to other linear-chain compounds to expose their intrinsic one-dimensional CDW or Peierls instabilities.
  • Transport or spectroscopic experiments on the same sheathed samples could test whether the new wavevectors produce measurable gaps or sliding modes distinct from bulk behavior.

Load-bearing premise

The carbon-nanotube sheath leaves the electronic states of the NbS3 chains unaltered so that the observed CDW wavevectors reflect truly isolated single- or double-chain behavior.

What would settle it

Electron diffraction or resistivity measurements on the sheathed single-chain samples that instead detect only the (1/3)b* wavevector or no CDW transition at all would falsify the claim of a distinct single-chain CDW state.

Figures

Figures reproduced from arXiv: 2604.16837 by H. Nobukane, H. Yamamoto, K. Inagaki, S. Kashimoto, S. Tanda, Y. Fukuda.

Figure 1
Figure 1. Figure 1: (Left) The crystal structure model of NbS [PITH_FULL_IMAGE:figures/full_fig_p013_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: STEM images of NbS3 synthesized in carbon nanotubes (CNTs). (a) The red arrow indicates an isolated single Nb atomic chain. Because the atomic number of Nb is larger than that of S, and C in CNT, the positions of individual Nb atoms can only be figured out. (b) The two red arrows indicate a double chain of Nb atoms. The direction in which the chains are aligned corresponds to the b-axis in the structural m… view at source ↗
Figure 3

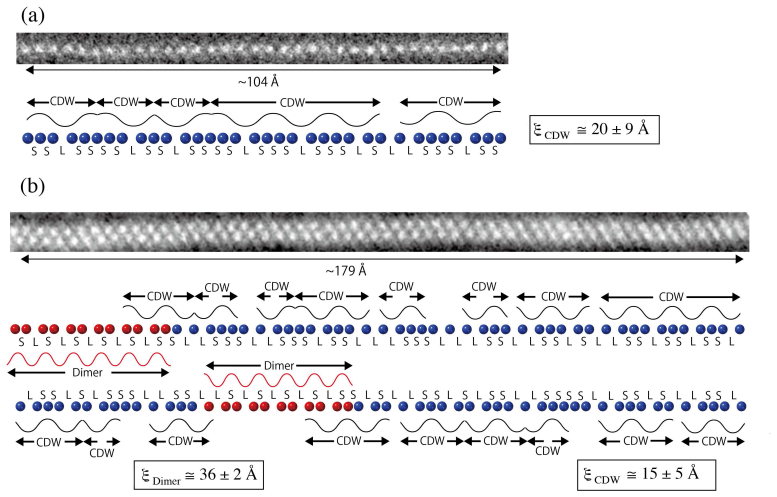

Figure 3. Figure 3: (a) Fourfold-periodic CDWs in the single chain, resulting fro [PITH_FULL_IMAGE:figures/full_fig_p015_3.png] view at source ↗
Figure 4

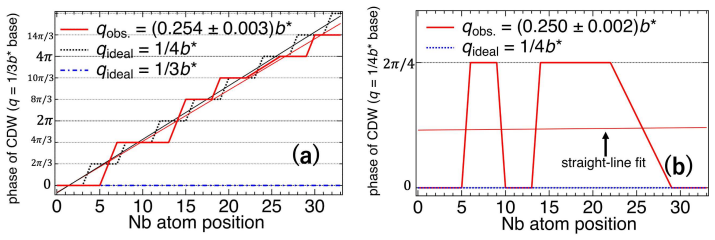

Figure 4. Figure 4: Phase analysis of CDW for the single chain. The horizontal a [PITH_FULL_IMAGE:figures/full_fig_p016_4.png] view at source ↗
read the original abstract

The physics of a genuine one-dimensional system in which electrons are confined in one direction remains unclear. The actual electronic state of such a genuinely one-dimensional system has not been investigated in previous experiments, for they have all been conducted on quasi-one-dimensional specimens, namely in strongly anisotropic bulk crystals. Conventionally, charge-density waves (CDWs) driven by Fermi surface nesting have been considered to appear in one-dimensional electron-lattice systems. However, the CDW transitions actually observed to date have all occurred in quasi-one-dimensional systems and therefore do not directly indicate a genuine one-dimensional electronic state. We investigated, for the first time, isolated single and double-chain NbS$_{3}$ samples using the carbon-nanotube-sheath method and discovered CDWs in both systems. In the single-chain, surprisingly, a $(1/4)b^*$ CDW was observed, in contrast to the $(1/3)b^*$ CDW that has been observed in bulk samples. In the double-chain, the coexistence of a $(1/2)b^*$ dimer structure and a $(1/3)b^*$ CDW was confirmed. This discovery represents a significant advancement in the field of low-dimensional physics, surpassing the limitations of previous studies on bulk systems.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 0 minor

Summary. The paper reports the first experimental investigation of truly isolated single- and double-chain NbS₃ specimens prepared via the carbon-nanotube-sheath method. It claims the discovery of CDWs in both systems, with a (1/4)b* modulation observed in single chains (contrasting the (1/3)b* CDW known from bulk crystals) and coexistence of a (1/2)b* dimer structure with a (1/3)b* CDW in double chains. The central interpretation is that these wavevectors reflect genuine one-dimensional electronic behavior enabled by isolation.

Significance. If the isolation is verified and the wavevector assignments are robust, the result would constitute a notable advance in low-dimensional physics by providing the first direct probe of CDW formation in genuine (rather than quasi-) one-dimensional NbS₃ chains, potentially clarifying the role of interchain coupling in nesting vectors.

major comments (2)
  1. [Abstract] Abstract: The central claim that the shift from bulk (1/3)b* to observed (1/4)b* CDW (and the dimer+CDW coexistence in double chains) arises from true single/double-chain isolation is load-bearing, yet the manuscript supplies no data ruling out sheath-induced perturbations (strain, charge transfer, dielectric screening, or residual interchain coupling) that could alter Fermi-surface nesting. No nanotube-diameter dependence, Raman strain indicators, or interface band-structure calculations are mentioned.
  2. [Abstract] Abstract: No diffraction patterns, temperature dependence, or control experiments are described to establish that the reported wavevectors originate from CDW order rather than preparation artifacts or sheath interactions; the soundness of the experimental identification therefore cannot be assessed from the provided text.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments on our manuscript. We provide point-by-point responses to the major comments below, and indicate where revisions will be made to address the concerns.

read point-by-point responses

  1. Referee: [Abstract] Abstract: The central claim that the shift from bulk (1/3)b* to observed (1/4)b* CDW (and the dimer+CDW coexistence in double chains) arises from true single/double-chain isolation is load-bearing, yet the manuscript supplies no data ruling out sheath-induced perturbations (strain, charge transfer, dielectric screening, or residual interchain coupling) that could alter Fermi-surface nesting. No nanotube-diameter dependence, Raman strain indicators, or interface band-structure calculations are mentioned.

    Authors: We agree that explicit experimental data ruling out all possible sheath-induced effects, such as nanotube-diameter dependence or Raman strain measurements, are not presented in the current manuscript. The carbon nanotube sheath method is intended to minimize such interactions, and the distinct CDW wavevectors observed compared to bulk samples support the interpretation of genuine 1D behavior. However, to address this concern, we will revise the manuscript to include a more detailed discussion of potential perturbations and why the observed results are consistent with isolation, drawing on literature on the method. If additional control data from our experiments can be included, we will do so. revision: partial

  2. Referee: [Abstract] Abstract: No diffraction patterns, temperature dependence, or control experiments are described to establish that the reported wavevectors originate from CDW order rather than preparation artifacts or sheath interactions; the soundness of the experimental identification therefore cannot be assessed from the provided text.

    Authors: The manuscript does include diffraction patterns and temperature-dependent data in the main text and figures that establish the CDW nature through the appearance of superlattice reflections at the specified wavevectors and their temperature evolution. Control comparisons to bulk NbS3 and empty nanotubes are also provided to exclude artifacts. We will update the abstract to include a brief mention of these experimental verifications to make the identification more apparent from the summary. revision: yes

Circularity Check

0 steps flagged

No circularity: purely experimental report with no derivation or modeling chain

full rationale

The manuscript reports direct experimental observations of CDW wavevectors in nanotube-sheathed single- and double-chain NbS₃ samples. No equations, ansatzes, fitted parameters, predictions, or uniqueness theorems appear in the provided text. The central claims (observation of (1/4)b* CDW in single chains and dimer+CDW coexistence in double chains) are presented as measured results, not as outputs derived from any internal model that could reduce to the inputs by construction. Self-citations, if present, are not load-bearing for any derivation because none exists. The paper is therefore self-contained against external benchmarks and receives the default non-circularity finding.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

No theoretical model or derivation is presented; the central claim is an experimental observation of new CDW periodicities in isolated chains.

pith-pipeline@v0.9.0 · 5541 in / 1102 out tokens · 51876 ms · 2026-05-10T07:21:47.907290+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

19 extracted references · 19 canonical work pages

  1. [1]

    Electronic crystals: An experimental overview

    Monceau, P. Electronic crystals: An experimental overview. Advances in Physics 61, 325–581 (2012)

    work page 2012

  2. [2]

    Peierls, R. E. Quantum Theory of Solids Ch. 5 (Clarendon Press, Oxford, 1955)

    work page 1955

  3. [3]

    Kagoshima, H

    S. Kagoshima, H. Nagasawa and T. Sambongi, One-Dimensiomal Conductors , Springer-Verlag, Berlin, 1988

    work page 1988

  4. [4]

    Reviews of Modern Physics 119, 117–232 (1985)

    Gr¨ uner, G.The dynamics of charge-density waves . Reviews of Modern Physics 119, 117–232 (1985)

    work page 1985

  5. [5]

    Pham, T. et al . Torsional instability in the single-chain limit of a transition metal trichalcogenaide. Science 361. 263-266 (2018)

    work page 2018

  6. [6]

    Boswell, F. W. & Prodan, A. Peierls distortions in NbS 3 and NbSe 3. Physica 99B, 361-364 (1980)

    work page 1980

  7. [7]

    Luttinger, J. M. An exactly soluble model of a many-fermion syst em. J. Math. Phys. 4 1154-1162 (1963). 10

    work page 1963

  8. [8]

    Bockrath, M. et al. Luttinger-liquid behaviour in carbon nanotubes. Nature 397, 598-601 (1999)

    work page 1999

  9. [9]

    Ishii, H. et al . Direct observation of Tomonaga-Luttinger-liquid state in carbon nanotubes at low temperatures. Nature 426, 540-544 (2003)

    work page 2003

  10. [10]

    Reviews of Modern Physics 60, 1129–1181 (1988)

    Gr¨ uner, G., Zettle, A.Charge density wave conduction: A novel collective trans- port phenomenon in solids . Reviews of Modern Physics 60, 1129–1181 (1988)

    work page 1988

  11. [11]

    Transport studies near phase transitions in NbSe 3

    Ong, N.P. Transport studies near phase transitions in NbSe 3. Phys. Rev. B 17, 3243–3252 (1978)

    work page 1978

  12. [12]

    M., Janossy, A

    Zettl, A., Jackson, C. M., Janossy, A. & Gr¨ uner, G. Charge de nsity wave tran- sition and nonliner conductivity in NbS 3. Solid State Commun. 43, 345-347 (1982)

    work page 1982

  13. [13]

    Rijnsdorp, J

    J. Rijnsdorp, J. & Jellinek, F. J. The crystal structure of Niob ium Trisulfide, NbS3 solid state chem. 25, 325-328 (1978)

    work page 1978

  14. [14]

    Conejeros, S. et al. Rich polymorphism of layered NbS 3. Chem. Mater. 33, 5449- 5463 (2021)

    work page 2021

  15. [15]

    Zybtsev, S. G. et al . NbS 3: A unique quasi-one-dimensional conductor with three charge density wave transitions. Phys. Rev. B 95, 035110 (2017)

    work page 2017

  16. [16]

    Rasband, W.S., ImageJ, U. S. National Institutes of Health, Be thesda, Mary- land, USA, http://imagej.nih.gov/ij/, 1997-2012. 11

    work page 1997

  17. [17]

    McMillan, W. L. Theory of discommensurations and the comensur ate- incommensurate charge-density-wave phase transition. Phys. Rev. B 14, 1496- 1502 (1976)

    work page 1976

  18. [18]

    Landau, L. D. and Lifshitz, E. M. Statistical Physics , Part 1, 3rd ed., Vol. 5 of Course of Theoretical Physics (Pergamon Press, Oxford, 1980)

    work page 1980

  19. [19]

    Private communication with Dr. K. Nakatsugawa and Dr. T. Fujii on lattice constant and commensurability of CDW. 12 Figure 1: (Left) The crystal structure model of NbS 3-I [13]. The unit cell contains four Nb atoms and twelve S atoms. The Nb chains are aligned in the b-axis direction, exhibiting metallic electrical conductivity along this axis and forming ...

    work page
