arxiv: 2604.16912 · v1 · submitted 2026-04-18 · ❄️ cond-mat.mtrl-sci

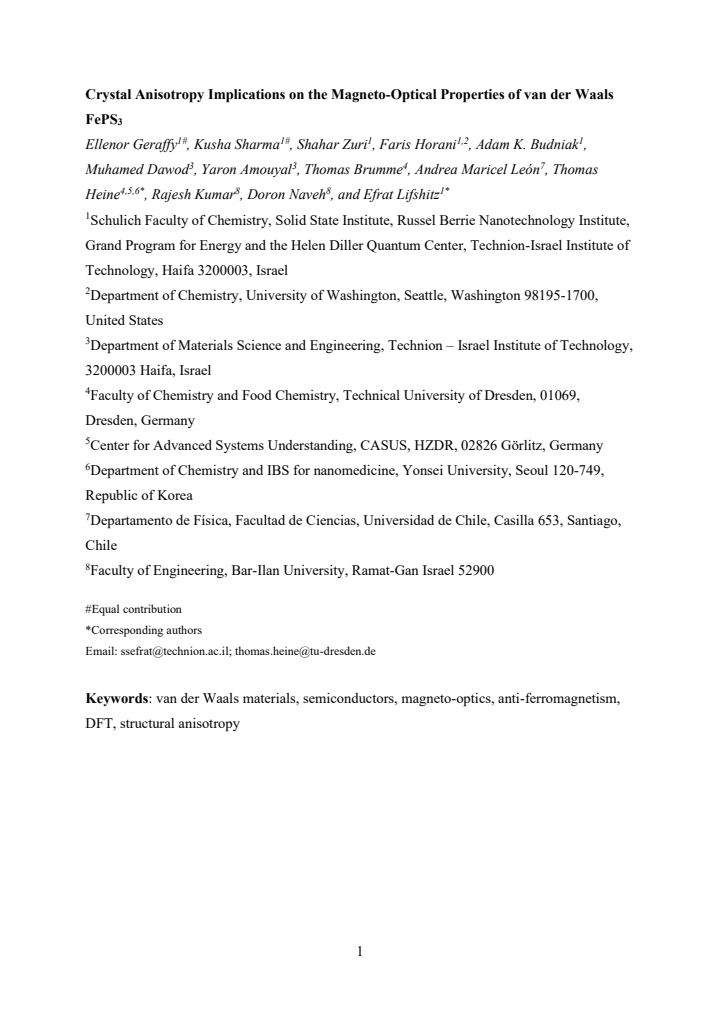

Crystal Anisotropy Implications on the Magneto-Optical Properties of van der Waals FePS3

Ellenor Geraffy , Kusha Sharma , Shahar Zuri , Faris Horani , Adam K. Budniak , Muhamed Dawod , Yaron Amouyal , Thomas Brumme

show 5 more authors

Andrea Maricel Le\'on Thomas Heine Rajesh Kumar Doron Naveh Efrat Lifshitz

This is my paper

Pith reviewed 2026-05-10 07:01 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci

keywords FePS3structural anisotropyvan der WaalsphotoluminescencepolarizationantiferromagnetDFT calculationsmonolayer

0 comments

The pith

In FePS3, in-plane structural anisotropy dictates the polarization behaviors of optical emissions from bulk crystals down to the monolayer.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes that a distorted crystal structure in FePS3 produces unequal iron-iron distances along different directions, which in turn controls how the material emits light under linear versus circular polarization. These effects appear consistently across thicknesses from thick flakes to single atomic layers. A reader would care because the work directly ties the physical arrangement of atoms to the material's interaction with light, offering a concrete way to predict and use optical properties in antiferromagnetic layered materials.

Core claim

X-ray diffraction on bulk FePS3 confirms a distorted FeS6 octahedron that produces inequivalent Fe-Fe distances and a higher a/b lattice parameter ratio. Micro-photoluminescence measurements on bulk and monolayer samples identify four emission bands, one intra-atomic d-d transition and three p-d charge-transfer transitions, each showing distinct linear and circular polarization responses that remain unchanged down to the monolayer. Density functional theory calculations assign the bands to specific transitions and show that the anisotropy enforces symmetry selection rules responsible for the contrasting polarization behaviors.

What carries the argument

The in-plane structural anisotropy arising from the distorted FeS6 octahedra, which creates inequivalent Fe-Fe distances and imposes symmetry selection rules on the electronic transitions.

If this is right

Polarization behaviors of the emission bands are fixed by the lattice anisotropy and do not change with sample thickness down to the monolayer.
Symmetry selection rules derived from the distorted structure explain why certain bands respond differently to linear versus circular light.
Optical responses remain predictable and consistent in the 2D limit, supporting use in thin-film spintronic or magneto-optical devices.
Any design of light-based applications for FePS3 must incorporate the measured a/b ratio and its effect on transition symmetries.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

Comparable lattice distortions in other van der Waals antiferromagnets may produce similar polarization selectivity in their optical spectra.
External strain that alters the a/b ratio could provide a route to actively tune the polarization contrast of specific emission bands.
The monolayer persistence suggests FePS3 could function as a symmetry-controlled light emitter or detector in atomically thin heterostructures.

Load-bearing premise

The contrasting linear and circular polarization responses of the emission bands are produced by the structural anisotropy together with the symmetry selection rules extracted from the DFT calculations.

What would settle it

Polarization-resolved photoluminescence measurements on an FePS3 crystal forced to have equal a and b lattice parameters would show identical polarization responses for all bands, or DFT calculations performed without the measured lattice distortion would fail to reproduce the observed polarization contrasts.

Figures

Figures reproduced from arXiv: 2604.16912 by Adam K. Budniak, Andrea Maricel Le\'on, Doron Naveh, Efrat Lifshitz, Ellenor Geraffy, Faris Horani, Kusha Sharma, Muhamed Dawod, Rajesh Kumar, Shahar Zuri, Thomas Brumme, Thomas Heine, Yaron Amouyal.

**Figure 8.** Figure 8: Seven magnetic supercell configurations. Black and white atoms refer to Fe in either a spin up or down state. To validate our results, we tested our calculations against an isotropic FePS3 structure. For this case, the correct Heisenberg Hamiltonian collapses into tri-degenerate exchange interactions as described by Equation 3: 𝐽1 = 𝐸𝐹𝑀 − 𝐸𝑁𝑒𝑒´ 𝑙 − 𝐸𝑠𝑡𝑟𝑖𝑝𝑒 + 𝐸𝑧𝑖𝑔𝑧𝑎𝑔 8𝑆 2 (3) 𝐽2 = 𝐸𝐹𝑀 + 𝐸𝑁𝑒𝑒´ 𝑙 − 𝐸𝑠𝑡𝑟𝑖𝑝𝑒 − … view at source ↗

read the original abstract

Antiferromagnetic FePS3 has recently gained significant interest in its potential applications in spin-related devices. Here, we show that in-plane structural anisotropy has a major impact in shaping the optical responses of FePS3 single-crystals from the bulk form down to the monolayer limit. X-ray diffraction on a bulk FePS3 crystal confirms a distorted FeS6 octahedron causing inequivalent Fe-Fe distances and consequently resulting in a higher a/b lattice parameter ratio. Micro-photoluminescence observations on bulk and monolayer FePS3 reveal four emissions: one intra-atomic d-d transition (band A, centered at ~1.24 eV) and three p-d charge transfer transitions (bands B, C, and D, centered around ~1.79 eV, ~2.3 eV, and ~2.56 eV, respectively). These bands exhibit different polarization behaviors, which persist down to the monolayer limit. Density functional theory calculations from bulk to monolayer FePS3 reveal the underlying electronic structure, assign the observed emissions, and indicate why these peaks have contrasting linear and circular polarization responses. These results establish a direct structure-optics relation in FePS3, highlighting the strong coupling between lattice anisotropy, electronic transitions, and symmetry-selective optical selection rules.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

FePS3 shows clear in-plane anisotropy effects on PL polarization that hold to the monolayer, backed by XRD and basic DFT assignments, though the optical link stays qualitative.

read the letter

The paper's core result is that the distorted FeS6 octahedra and resulting a/b lattice stretch in FePS3 produce different linear versus circular polarization responses across four emission bands, and this pattern survives down to the monolayer. They back the structural part with XRD on bulk crystals and the optical part with micro-PL on both bulk and exfoliated monolayer flakes, then use DFT to label band A as d-d and B/C/D as p-d charge transfer transitions while noting symmetry reasons for the polarization contrast. That combination of thickness-dependent data and transition assignments is the concrete addition here. The experiments look straightforward and reproducible enough for the subfield, and tying the anisotropy directly to the observed polarization split gives a useful structure-optics map for this specific antiferromagnet. The DFT side is the softer element. It relies on orbital-projected bands and symmetry labels to explain why the peaks behave differently under linear and circular light, but the text does not appear to include explicit calculations of polarized dipole matrix elements or the imaginary dielectric function for x/y or sigma-plus/minus polarizations. Without those, the causal step from lattice distortion to selection rules remains interpretive rather than predictive. Magnetic domain or ordering effects could in principle contribute to the contrast as well, though the paper focuses on the structural channel. Overall the measurements are the stronger half of the work. This is the kind of targeted follow-up that researchers already studying FePS3 or related MPX3 compounds will want to read for the thickness-dependent polarization data and the band assignments. It is not a broad methodological advance, but the evidence is solid enough on the experimental side to merit referee time. I would send it for peer review with the expectation that the authors tighten the DFT explanation or add the missing optical matrix element checks.

Referee Report

1 major / 2 minor

Summary. The manuscript claims that in-plane structural anisotropy in antiferromagnetic van der Waals FePS3, arising from a distorted FeS6 octahedron and a/b lattice parameter ratio >1 (confirmed by XRD on bulk crystals), strongly shapes the optical responses from bulk down to the monolayer limit. Micro-photoluminescence identifies four emission bands—an intra-atomic d-d transition (band A at ~1.24 eV) and three p-d charge-transfer transitions (bands B, C, D at ~1.79, 2.3, 2.56 eV)—that exhibit distinct linear versus circular polarization behaviors persisting to the monolayer. DFT calculations assign the bands via orbital character and symmetry and are stated to indicate the origin of the contrasting polarization responses through selection rules.

Significance. If the central interpretation holds, the work establishes a direct structure-optics connection in a 2D antiferromagnet, with the persistence of anisotropy-driven polarization effects to the monolayer limit being a notable experimental result. The multi-technique approach (XRD confirmation of lattice distortion, polarization-resolved PL across dimensionalities, and DFT band assignments) provides a coherent dataset. This could inform magneto-optical and spintronic device design in van der Waals materials. The significance is reduced by the qualitative nature of the polarization explanation.

major comments (1)

[DFT Calculations] DFT Calculations section (band assignment and polarization discussion): The claim that DFT 'indicate why these peaks have contrasting linear and circular polarization responses' rests on orbital-projected DOS, band structures, and qualitative symmetry labels. No computation of dipole matrix elements <i|r|f> for x/y linear or σ± circular polarizations, nor of the imaginary dielectric function ε₂(ω) for different light helicities, is presented. This leaves the causal attribution of polarization contrasts to structural anisotropy (via distorted FeS6 and a/b ratio) as interpretive rather than quantitative, which is load-bearing for the abstract's central claim.

minor comments (2)

[Results (PL measurements)] PL spectra figures: Polarization-resolved data would benefit from explicit reporting of the degree of polarization calculation method, number of measured spots, and any correction for setup birefringence or sample orientation effects.
[Methods] Methods: Expand details on DFT parameters (functional, Hubbard U value if used, k-mesh, vacuum spacing for monolayer) and on XRD refinement procedure to improve reproducibility.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the detailed and constructive review of our manuscript. The feedback highlights an important aspect of our DFT analysis, and we address it directly below.

read point-by-point responses

Referee: [DFT Calculations] DFT Calculations section (band assignment and polarization discussion): The claim that DFT 'indicate why these peaks have contrasting linear and circular polarization responses' rests on orbital-projected DOS, band structures, and qualitative symmetry labels. No computation of dipole matrix elements <i|r|f> for x/y linear or σ± circular polarizations, nor of the imaginary dielectric function ε₂(ω) for different light helicities, is presented. This leaves the causal attribution of polarization contrasts to structural anisotropy (via distorted FeS6 and a/b ratio) as interpretive rather than quantitative, which is load-bearing for the abstract's central claim.

Authors: We agree that explicit computation of the dipole matrix elements and the polarization-resolved imaginary dielectric function would constitute a more quantitative demonstration. In the present work, the DFT results supply the orbital-projected densities of states, the band dispersions, and the symmetry labels of the initial and final states. These quantities are sufficient to apply the optical selection rules that follow from the lowered point-group symmetry of the distorted FeS6 octahedra and the a/b lattice anisotropy; the rules themselves dictate which linear and circular polarizations are allowed for each assigned transition. Nevertheless, we recognize that this remains a symmetry-based argument rather than a direct numerical evaluation of transition intensities. We will revise the DFT section to (i) state the selection-rule analysis more explicitly, (ii) clarify that the polarization contrasts are inferred from symmetry rather than from computed matrix elements, and (iii) note the absence of full ε₂(ω) calculations as a limitation that future work could address. These textual changes will make the evidential basis of the central claim transparent without altering the experimental or computational results already presented. revision: partial

Circularity Check

0 steps flagged

No significant circularity detected; claims rest on independent experiments and standard DFT

full rationale

The paper derives its structure-optics relation from external inputs: XRD data confirming distorted FeS6 octahedra and a/b ratio, micro-PL spectra identifying four emission bands with measured linear/circular polarization contrasts (persisting to monolayer), and DFT band-structure calculations that assign d-d vs. p-d transitions and label symmetries. No step reduces a claimed prediction to a fitted parameter or self-defined quantity by construction, nor does any load-bearing premise collapse to a self-citation chain. The DFT serves to interpret observed polarization differences via symmetry selection rules, but the optical data themselves are independently measured and not regenerated from the same model. The chain is therefore self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on standard experimental techniques and DFT calculations without introducing new free parameters or invented entities beyond conventional models for electronic structure.

axioms (1)

standard math Standard approximations in density functional theory for electronic band structure and transition assignments
Invoked to assign the observed emission bands and explain polarization selection rules.

pith-pipeline@v0.9.0 · 5587 in / 1242 out tokens · 39321 ms · 2026-05-10T07:01:58.097365+00:00 · methodology

discussion (0)

Reference graph

Works this paper leans on

2 extracted references

[1]

Y.; Park, C.H

(1) Kim, T. Y.; Park, C.H. Magnetic Anisotropy and Magnetic Ordering of Transition -Metal Phosphorus Trisulfides. Nano Lett. 2021, 21, 10114–10121. (2) Kurosawa, K.; Saito, S.; Yamaguchi, Y. Neutron Diffraction Study on MnPS 3 and FePS3. J. Physical Soc. Japan 1983, 52, 3919–3926. (3) Lançon, D.; Walker, H. C.; Ressouche, E.; Ouladdiaf , B.; Rule, K. C.; ...

2021
[2]

A.; Lozano‐Sanchez, L

Siebenaller, R.; Rowe, E.; Narayanan, S.; Susner, M. A.; Lozano‐Sanchez, L. M.; Suchocki, A.; Palma, J. L.; Boriskina, S. V. Thermal and Dimensional Stability of Photocatalytic Material ZnPS3 Under Extreme Environmental Conditions. Adv. Electron. Mater. 2025, 11. Monolayer B C B1 B2 C2 C1

2025
