arxiv: 2604.16985 · v1 · submitted 2026-04-18 · 🪐 quant-ph

Heteronuclear Polarization Transfers Between Spin-locked and Anti-Longitudinal Spin States in the NMR of Liquids and Spinning Solids

Sundaresan Jayanthi , Adonis Lupulescu , Julia Grinshtein , Lucio Frydman This is my paper

Pith reviewed 2026-05-10 06:38 UTC · model grok-4.3

classification 🪐 quant-ph
keywords NMR polarization transfersecond-order average Hamiltoniancross effectMAS NMRsolution NMRheteronuclear transferspin-locked magnetizationanti-longitudinal states
0
0 comments X p. Extension

The pith

A second-order average Hamiltonian transfers polarization between anti-longitudinal abundant spins and spin-locked rare spins in both solution and MAS NMR.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper extends a rotating-frame cross-effect polarization transfer from single crystals to powder samples under magic-angle spinning and to liquids. It demonstrates that when an RF field on the rare spin matches the chemical-shift difference of two coupled abundant spins, a second-order average Hamiltonian moves magnetization from anti-longitudinal states of the abundant spins to the spin-locked state of the rare spin. The transfer reaches a theoretical maximum equal to the ratio of gyromagnetic ratios, with roughly half that value realized for 13C in powders and multi-spin solutions. The process is oscillatory, allowing the reverse transfer without any pulses on the abundant spins. Experiments and simulations confirm the average Hamiltonian description while examining effects from many-body couplings and RF inhomogeneity.

Core claim

In three-spin systems a second-order average Hamiltonian under matched RF irradiation enables heteronuclear polarization transfer between the anti-longitudinal magnetization of two non-equivalent abundant spins and the spin-locked magnetization of a rare spin; the same mechanism operates in both liquids and in powders under magic-angle spinning, with the derived Hamiltonian agreeing quantitatively with simulations and experiments.

What carries the argument

Second-order average Hamiltonian for the (S1-S2) to I polarization transfer in the rotating frame, active when the I-spin RF field strength equals the S1-S2 chemical-shift difference.

Load-bearing premise

The second-order average Hamiltonian approximation remains accurate under magic-angle spinning and in solution despite many-body interactions, RF inhomogeneities, and interfering coherences.

What would settle it

Absence of the predicted oscillatory polarization transfer when the I-spin RF field is deliberately detuned from the S1-S2 chemical-shift difference in a calibrated three-spin sample.

Figures

Figures reproduced from arXiv: 2604.16985 by Adonis Lupulescu, Julia Grinshtein, Lucio Frydman, Sundaresan Jayanthi.

Figure 3
Figure 3. Figure 3: Creation of anti-longitudinal S-spin polarization from an initial I-spin transverse magnetization, subject to spin-locking irradiation close to the 𝜔1 ≈ Δ matching condition. A three-spin (H1, H2, C) system was here considered, with the following parameters: Δ/2π = 350 Hz,𝐽𝐻1𝐶 = 172 Hz,𝐽𝐻2𝐶 = 4 Hz,𝐽𝐻1𝐻2 = 8 Hz, 𝜔1⁄2𝜋 = 340 Hz. (a) Simulated pulse sequence. (b) Time buildup terminated at the maximum of 〈𝑆1𝑧… view at source ↗
Figure 5
Figure 5. Figure 5: SIMPSON[26] powder simulations depicting polarization transfer to 13C for three spinning rates, 20 kHz, 40 kHz and 80 kHz and five protons dipolar coupled to a 13C. (a) RF dependence of transfer (left) for ∆/2𝜋 = 2.5 𝑘𝐻𝑧; time buildup (middle) for 𝜔1 𝑜𝑝𝑡/2𝜋 = 2.5 𝑘𝐻𝑧 and three MAS rates; 13C offset dependence of transfer (right) for 𝜈𝑅 = 40 𝑘𝐻𝑧 and 𝜈𝑜 1𝐻 = 600 𝑀𝐻𝑧. (b) Similar to (a) but with ∆/2𝜋 = 1.25 𝑘… view at source ↗
Figure 7
Figure 7. Figure 7: Summary of results obtained upon repeating the [PITH_FULL_IMAGE:figures/full_fig_p018_7.png] view at source ↗

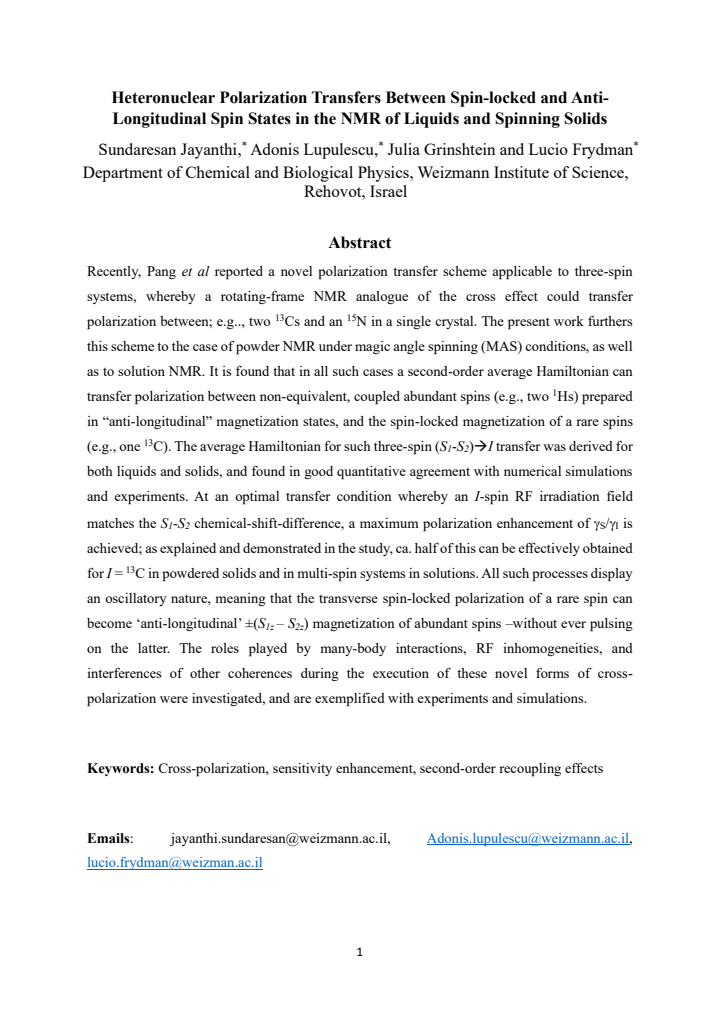

read the original abstract

Recently, Pang et al reported a novel polarization transfer scheme applicable to three-spin systems, whereby a rotating-frame NMR analogue of the cross effect could transfer polarization between; e.g., two 13Cs and an 15N in a single crystal. The present work furthers this scheme to the case of powder NMR under magic angle spinning (MAS) conditions, as well as to solution NMR. It is found that in all such cases a second-order average Hamiltonian can transfer polarization between non-equivalent, coupled abundant spins (e.g., two 1Hs) prepared in anti-longitudinal magnetization states, and the spin-locked magnetization of a rare spins (e.g., one 13C). The average Hamiltonian for such three-spin (S1-S2) to I transfer was derived for both liquids and solids, and found in good quantitative agreement with numerical simulations and experiments. At an optimal transfer condition whereby an I-spin RF irradiation field matches the S1-S2 chemical-shift-difference, a maximum polarization enhancement equal to the ratio of gyromagnetic ratios is achieved; as explained and demonstrated in the study, ca. half of this can be effectively obtained for I = 13C in powdered solids and in multi-spin systems in solutions. All such processes display an oscillatory nature, meaning that the transverse spin-locked polarization of a rare spin can become anti-longitudinal magnetization of abundant spins -without ever pulsing on the latter. The roles played by many-body interactions, RF inhomogeneities, and interferences of other coherences during the execution of these novel forms of cross-polarization were investigated, and are exemplified with experiments and simulations.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript extends a three-spin polarization transfer scheme (previously demonstrated in single crystals) to powder samples under magic-angle spinning and to solution NMR. It derives a second-order average Hamiltonian that enables transfer between anti-longitudinal magnetization states of two coupled abundant spins (e.g., 1H) and the spin-locked state of a rare spin (e.g., 13C) when the I-spin RF field strength matches the S1–S2 isotropic chemical-shift difference. The theoretical maximum enhancement equals the gyromagnetic-ratio ratio; experiments and simulations show that approximately half this value is realized in powders and multi-spin systems. The process is oscillatory, allowing back-transfer without abundant-spin irradiation, and the roles of many-body dipolar couplings, RF inhomogeneity, and coherence interferences are examined.

Significance. If the central claim holds, the work supplies a new, largely parameter-free route to heteronuclear polarization transfer that avoids direct irradiation of the abundant spins. This could simplify CP-type experiments in both liquids and solids while providing a concrete example of second-order AHT engineering. The reported quantitative agreement between the derived Hamiltonian, numerical simulations, and experiments is a clear strength, as is the explicit treatment of many-body and inhomogeneity effects.

major comments (2)
  1. [Theory section (average-Hamiltonian derivation)] The validity of the second-order average-Hamiltonian truncation under MAS is load-bearing for the quantitative predictions. The manuscript states good agreement with simulations, yet the time-dependent Hamiltonian contains orientation-dependent dipolar terms whose higher-order contributions are not bounded explicitly (e.g., no comparison of second- versus fourth-order terms as a function of spinning rate or RF strength).
  2. [Results and discussion (enhancement factor)] The claim that the maximum enhancement equals the gyromagnetic-ratio ratio, with only half realized in practice, requires a clearer accounting. The text attributes the reduction to powder averaging and multi-spin effects, but does not show whether this factor of two is a general consequence of the derived Hamiltonian or an empirical observation (e.g., no explicit integration over orientations or cluster-size scaling is presented).
minor comments (2)
  1. Notation for the anti-longitudinal states and the matching condition (I RF = S1–S2 shift difference) should be defined once in a dedicated equation or table to avoid repeated verbal descriptions.
  2. Figure captions should state the exact spinning frequency, RF amplitudes, and sample (powder vs. solution) for each panel so that the reported agreement with the AHT can be reproduced from the data alone.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive review and positive assessment of the work. The comments identify important points for clarification in the average-Hamiltonian analysis and the enhancement factor. We address each major comment below and outline the planned revisions.

read point-by-point responses

  1. Referee: [Theory section (average-Hamiltonian derivation)] The validity of the second-order average-Hamiltonian truncation under MAS is load-bearing for the quantitative predictions. The manuscript states good agreement with simulations, yet the time-dependent Hamiltonian contains orientation-dependent dipolar terms whose higher-order contributions are not bounded explicitly (e.g., no comparison of second- versus fourth-order terms as a function of spinning rate or RF strength).

    Authors: We agree that explicit bounds on higher-order terms would further strengthen the truncation argument. The quantitative agreement between the second-order AHT, full-order numerical simulations, and experiments across spinning rates and RF strengths already supports the approximation in the regimes studied. In the revised manuscript we will add a brief discussion of the expected scaling of fourth-order (and higher) contributions with spinning frequency and RF amplitude, drawing on the Magnus expansion and referencing the orientation dependence of the dipolar terms. Full fourth-order analytic bounds remain computationally demanding for multi-spin systems, but the added scaling analysis will address the referee's concern. revision: partial

  2. Referee: [Results and discussion (enhancement factor)] The claim that the maximum enhancement equals the gyromagnetic-ratio ratio, with only half realized in practice, requires a clearer accounting. The text attributes the reduction to powder averaging and multi-spin effects, but does not show whether this factor of two is a general consequence of the derived Hamiltonian or an empirical observation (e.g., no explicit integration over orientations or cluster-size scaling is presented).

    Authors: The theoretical maximum enhancement of γ_I/γ_S is a direct consequence of the derived second-order average Hamiltonian, which produces an effective coupling whose strength scales with the gyromagnetic-ratio ratio and permits complete transfer in the ideal three-spin, single-orientation limit. The observed reduction to approximately half arises from powder averaging of the orientation-dependent dipolar couplings and from additional many-body interactions in larger spin clusters. We will revise the manuscript to include (i) an explicit powder-average integration for the three-spin case demonstrating the factor-of-two reduction and (ii) a cluster-size scaling analysis from simulations showing that the same factor persists in multi-spin systems. These additions will make the origin of the reduction explicit rather than empirical. revision: yes

Circularity Check

0 steps flagged

No significant circularity in derivation chain

full rationale

The paper derives a second-order average Hamiltonian for the three-spin polarization transfer (anti-longitudinal S1-S2 to spin-locked I) by direct application of standard AHT to the time-dependent Hamiltonian under MAS or solution conditions, with the optimal matching condition (I RF = S1-S2 shift difference) emerging from the commutator algebra rather than by construction or fit. No self-definitional steps, fitted inputs renamed as predictions, or load-bearing self-citations are present; the central result is compared against independent numerical simulations and experiments for validation. The reader's assessment of 2.0 reflects possible minor prior-work citation (Pang et al.) but does not indicate reduction of the new claim to inputs. The skeptic concern addresses approximation validity, not circularity.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The central claim rests on the application of average Hamiltonian theory to the specific spin states and conditions described, with no new free parameters or entities introduced in the abstract.

axioms (2)
  • standard math Standard average Hamiltonian theory applies to the RF irradiation and chemical shift terms in the rotating frame.
    Invoked for deriving the second-order Hamiltonian in liquids and solids.
  • domain assumption The three-spin system approximation is valid for the described transfers.
    Used for S1-S2 to I transfer.
