On the Unification of Optimal Current Reference Theory for Wound Rotor Synchronous Machines

Maxfield Parson-Scherban , Kasra Fallah , Navid Rahbariasr , Bernard Steyaert , James Anderson , Matthias Preindl This is my paper

Pith reviewed 2026-05-10 06:00 UTC · model grok-4.3

classification 📡 eess.SY cs.SYmath.OC
keywords wound rotor synchronous machineoptimal current referencepiecewise-affine approximationmagnetic saturationcross-couplingquadratically constrained quadratic programfinite element analysistorque-speed envelope
0
0 comments X

The pith

Wound rotor synchronous machines can use a unified optimal current reference framework that treats the rotor current as an additional degree of freedom.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper generalizes existing current reference theory, previously limited to permanent-magnet machines, to wound rotor synchronous machines by incorporating the controllable rotor field current. It approximates the nonlinear flux linkages and losses with piecewise-affine models fitted to finite-element analysis data, allowing the search for currents that meet a torque command while respecting voltage and current limits to be posed as a quadratically constrained quadratic program in each region. Solutions are either closed-form expressions or low-dimensional polynomials in most regimes, with a small semidefinite program needed only when voltage constraints are active. This keeps the computation practical for real-time control while accounting for saturation, cross-coupling, and speed-dependent core losses. Prototype tests on a physical machine confirm that the method works across the torque-speed envelope.

Core claim

The authors show that the optimal current reference problem for a three-degree-of-freedom WRSM, which must deliver a requested torque subject to system constraints while including magnetic saturation, cross-coupling, and speed-dependent core losses, can be formulated as a quadratically constrained quadratic program within affine flux regions defined by a piecewise-affine approximation from finite-element data. This yields closed-form or low-dimensional polynomial solutions according to the active constraint regime in several cases and a small semidefinite program in the voltage constrained regime, thereby extending unified optimal current reference theory to WRSMs in a computationally tracta

What carries the argument

A piecewise-affine approximation of the flux linkages derived from finite-element data that divides the current operating space into regions where the machine model is affine, allowing the torque and loss optimization to be expressed as a QCQP whose solution type depends on the binding constraints.

If this is right

  • The additional rotor current variable provides an extra degree of freedom that can be optimized alongside the stator currents.
  • Accounting for saturation and cross-coupling improves accuracy over linear models in high-torque regions.
  • Speed-dependent core losses are included without making the problem intractable.
  • Closed-form solutions in many regimes enable fast embedded implementation.
  • Small semidefinite programs suffice for the remaining voltage-limited cases.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Similar piecewise-affine techniques could be applied to other electric machines with nonlinear characteristics to obtain optimal references.
  • Precomputing the affine regions offline from finite-element data reduces the online computational burden for drive controllers.
  • Extending the framework to include thermal constraints or aging effects would be a natural next step for long-term operation.
  • The analytical characterization of solution regimes may allow simplified lookup tables or switching logic in practical implementations.

Load-bearing premise

The piecewise-affine approximation from finite-element data remains accurate enough across the full torque-speed range even in the presence of magnetic saturation, cross-coupling, and speed-dependent core losses.

What would settle it

A set of torque-step or speed-ramp tests on the physical WRSM prototype in which the measured torque or efficiency deviates substantially from the values predicted by the optimal current references computed via the QCQP would falsify the claim of sufficient accuracy.

Figures

Figures reproduced from arXiv: 2604.17165 by Bernard Steyaert, James Anderson, Kasra Fallah, Matthias Preindl, Maxfield Parson-Scherban, Navid Rahbariasr.

Figure 1
Figure 1. Figure 1: Example synchronous machine (WRSM) control block diagram and schematic. [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

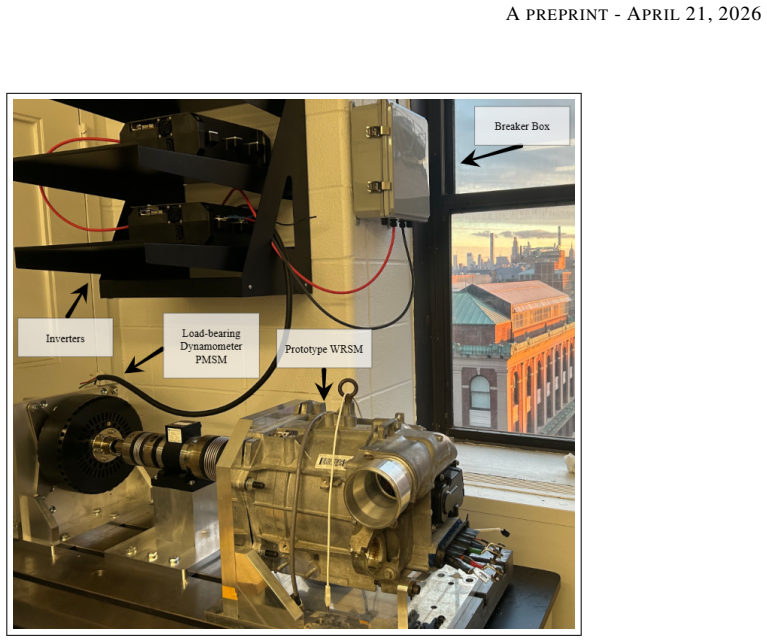

Figure 2. Figure 2: Prototype WRSM. The feasible set is the intersection of three quadric surfaces in R 3 — generically a finite set of points — so the problem reduces from constrained optimization to algebraic root-finding. Parametrizing the stator circle as id = is,r cos θ, iq = is,r sin θ, for fixed θ both constraints are quadratic in ir: a1(θ)i 2 r + b1(θ)ir + c1(θ) = 0, (torque) a2(θ)i 2 r + b2(θ)ir + c2(θ) = 0, (voltage… view at source ↗
Figure 3

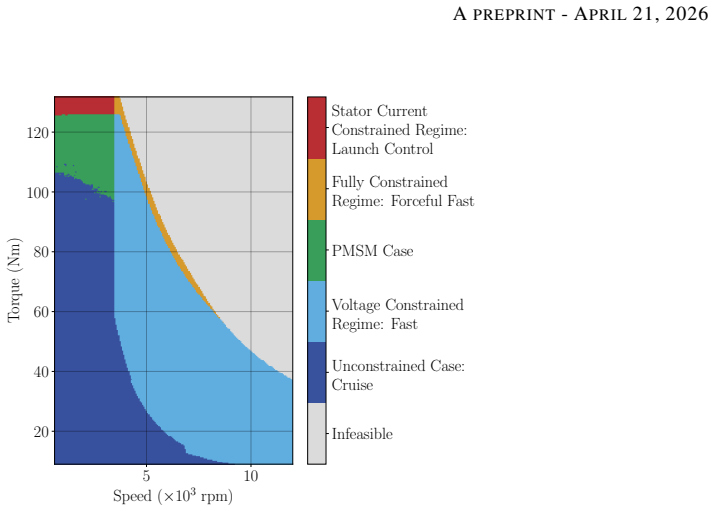

Figure 3. Figure 3: Constraint regimes across the torque-speed envelope of the prototype WRSM. The torque-dependent cruise [PITH_FULL_IMAGE:figures/full_fig_p009_3.png] view at source ↗
Figure 4

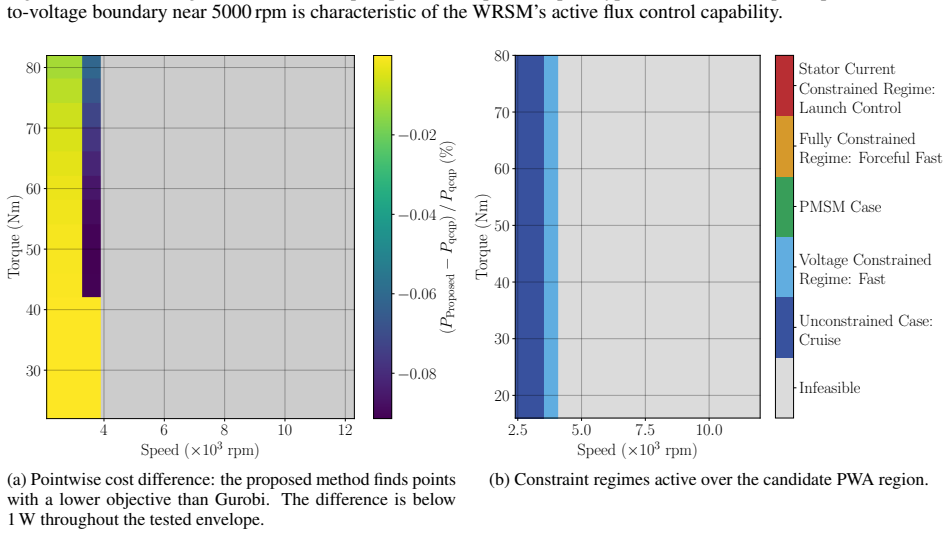

Figure 4. Figure 4: Per-tile optimality validation and regime classification. [PITH_FULL_IMAGE:figures/full_fig_p009_4.png] view at source ↗
Figure 5

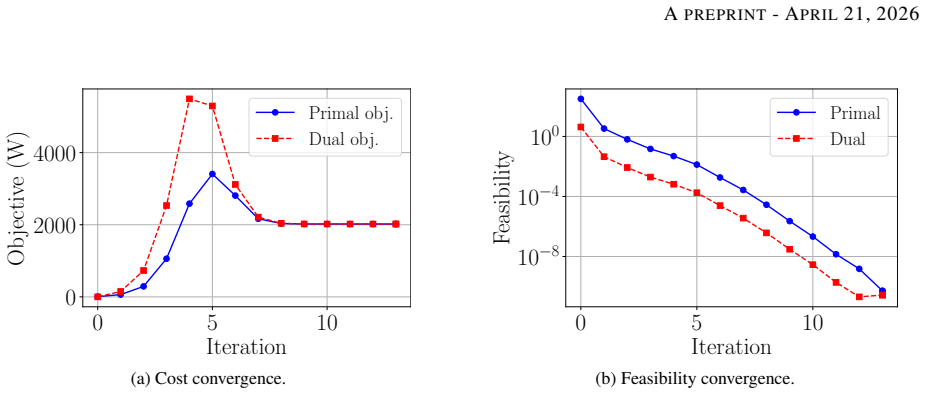

Figure 5. Figure 5: MOSEK convergence for a representative fast-driving operating point ( [PITH_FULL_IMAGE:figures/full_fig_p010_5.png] view at source ↗
Figure 6

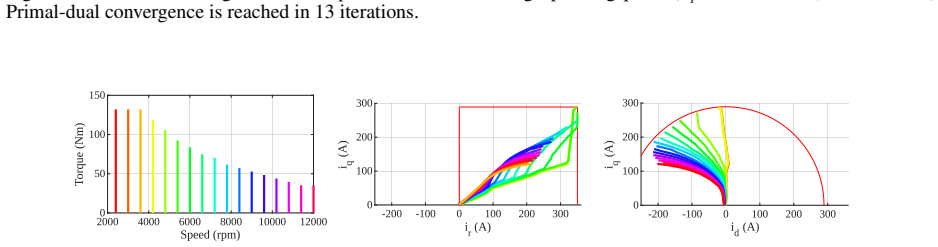

Figure 6. Figure 6: Optimal current trajectories across the operating range of the prototype WRSM. Color encodes electrical [PITH_FULL_IMAGE:figures/full_fig_p010_6.png] view at source ↗
