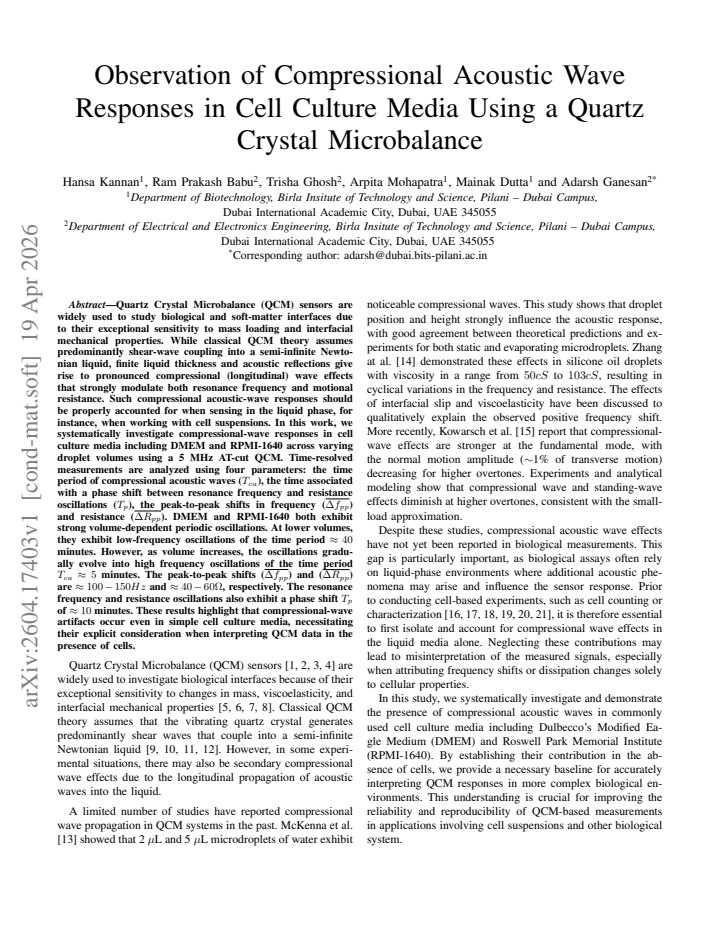

Observation of Compressional Acoustic Wave Responses in Cell Culture Media Using a Quartz Crystal Microbalance

Hansa Kannan , Ram Prakash Babu , Trisha Ghosh , Arpita Mohapatra , Mainak Dutta , Adarsh Ganesan This is my paper

Pith reviewed 2026-05-10 05:34 UTC · model grok-4.3

classification ❄️ cond-mat.soft physics.app-ph
keywords quartz crystal microbalancecompressional acoustic wavescell culture mediaDMEMRPMI-1640liquid phase sensingacoustic reflections
0
0 comments X

The pith

Compressional acoustic waves in cell culture media produce large volume-dependent oscillations in QCM frequency and resistance.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes that quartz crystal microbalance sensors record pronounced periodic oscillations in resonance frequency and motional resistance when operated with common cell culture media such as DMEM and RPMI-1640. These oscillations stem from compressional acoustic waves that travel through the finite liquid volume and reflect at the liquid-air boundary. A sympathetic reader would care because QCM is routinely applied to track cell adhesion and interfacial mechanics, yet the artifacts could be confused with biological responses. The measurements show that oscillation periods shorten from roughly 40 minutes at small droplet volumes to about 5 minutes at larger volumes, while peak-to-peak changes reach 100-150 Hz in frequency and 40-60 ohms in resistance, with a consistent 10-minute phase offset between the two signals.

Core claim

In time-resolved measurements with a 5 MHz AT-cut QCM and varying volumes of DMEM and RPMI-1640, both media exhibit strong volume-dependent periodic oscillations caused by compressional acoustic waves. At lower volumes the oscillations have a time period Tca of approximately 40 minutes; as volume increases they evolve into higher-frequency oscillations with Tca of approximately 5 minutes. The peak-to-peak shifts are Δfpp of 100-150 Hz and ΔRpp of 40-60 Ω, accompanied by a phase shift Tp of approximately 10 minutes between frequency and resistance traces.

What carries the argument

Compressional longitudinal acoustic waves that propagate through the finite liquid layer and reflect at the liquid-air interface, modulating both shear resonance frequency and motional resistance.

If this is right

  • The oscillations appear in cell-free media, showing they are physical artifacts independent of any biological activity.
  • Oscillation period shortens systematically as droplet volume increases, moving from low-frequency (~40 min) to high-frequency (~5 min) regimes.
  • The amplitude of the shifts (100-150 Hz and 40-60 Ω) is large enough to overlap with or obscure typical cell-induced QCM signals.
  • Frequency and resistance traces maintain a fixed phase offset of ~10 minutes across the observed conditions.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • QCM protocols for cell work would benefit from explicit volume calibration or theoretical subtraction of the compressional contribution.
  • The same reflection mechanism may affect other shear-mode acoustic sensors operating in open liquid drops.
  • Tracking the oscillation period in real time could provide a simple optical-free readout of instantaneous liquid height or evaporation rate.

Load-bearing premise

The observed periodic oscillations are produced by compressional acoustic wave reflections within the finite liquid thickness rather than by evaporation, temperature changes, or instrumental noise.

What would settle it

Repeating the experiment in a setup with effectively infinite liquid depth or with the top surface engineered to absorb rather than reflect acoustic waves would eliminate the oscillations if the compressional-wave mechanism is correct.

Figures

Figures reproduced from arXiv: 2604.17403 by Adarsh Ganesan, Arpita Mohapatra, Hansa Kannan, Mainak Dutta, Ram Prakash Babu, Trisha Ghosh.

Figure 1
Figure 1. Figure 1: QCM measurements of DMEM cell culture media. Resonance frequency and motional resistance responses at four droplet volumes: (a,e) 400 µL, (b,f) 600 µL, (c,g) 800 µL, and (d,h) 1 mL. Smaller volumes exhibit smooth low-frequency oscillations, whereas larger volumes show pronounced high-frequency fluctuations. MHz employing AT-cut gold-coated quartz crystals, selected due to their superior temperature stabili… view at source ↗
Figure 2
Figure 2. Figure 2: QCM measurements of RPMI-1640 cell culture media. Resonance frequency and motional resistance responses at four droplet volumes: (a,e) 400 µL, (b,f) 600 µL, (c,g) 800 µL, and (d,h) 1 mL. Smaller volumes exhibit smooth low-frequency oscillations, whereas larger volumes show pronounced high-frequency fluctuations. the system is powered on and allowed to stabilize to obtain baseline frequency and conductance … view at source ↗
Figure 3
Figure 3. Figure 3: Oscillatory parameters Compressional-wave parameters: time period of compressional acoustic waves (Tca), peak-to￾peak frequency shift (∆fpp), peak-to-peak resistance shift (∆Rpp), and time associated with the phase shift between resonance frequency and resistance oscillations (Tp). Note: This plot corresponds to a 600 µL DMEM droplet [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Comparison of compressional-wave parameters. Comparison of Tca, ∆fpp, ∆Rpp, and Tp, across DMEM, RPMI￾1640, and water for four droplet volumes. Here, the error bars indicate the standard deviation of repeated measurements [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
read the original abstract

Quartz Crystal Microbalance (QCM) sensors are widely used to study biological and soft-matter interfaces due to their exceptional sensitivity to mass loading and interfacial mechanical properties. While classical QCM theory assumes predominantly shear-wave coupling into a semi-infinite Newtonian liquid, finite liquid thickness and acoustic reflections give rise to pronounced compressional (longitudinal) wave effects that strongly modulate both resonance frequency and motional resistance. Such compressional acoustic-wave responses should be properly accounted for when sensing in the liquid phase, for instance when working with cell suspensions. In this work, we systematically investigate compressional-wave responses in cell culture media including DMEM and RPMI-1640 across varying droplet volumes using a 5 MHz AT-cut QCM. Time-resolved measurements are analyzed using four parameters: the time period of compressional acoustic waves (Tca), the time associated with a phase shift between resonance frequency and resistance oscillations (Tp), the peak-to-peak shifts in frequency ({\Delta}fpp) and resistance ({\Delta}Rpp). DMEM and RPMI-1640 both exhibit strong volume-dependent periodic oscillations. At lower volumes, they exhibit low-frequency oscillations with a time period of approximately 40 minutes. However, as volume increases, the oscillations gradually evolve into high-frequency oscillations with a time period Tca of approximately 5 minutes. The peak-to-peak shifts ({\Delta}fpp) and ({\Delta}Rpp) are approximately 100-150 Hz and 40-60 {\Omega}, respectively. The resonance frequency and resistance oscillations also exhibit a phase shift Tp of approximately 10 minutes. These results highlight that compressional-wave artifacts occur even in simple cell culture media, necessitating their explicit consideration when interpreting QCM data in the presence of cells.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The manuscript reports time-resolved QCM measurements (5 MHz AT-cut) on varying volumes of cell culture media (DMEM and RPMI-1640) that exhibit strong, volume-dependent periodic oscillations in resonance frequency and motional resistance. These are quantified via four parameters (Tca ≈ 5–40 min, Tp ≈ 10 min phase shift, Δfpp ≈ 100–150 Hz, ΔRpp ≈ 40–60 Ω) and attributed to compressional acoustic wave reflections arising from finite liquid thickness; the authors conclude that such artifacts must be explicitly considered when interpreting QCM data in the presence of cells.

Significance. If the causal attribution is substantiated with controls and a mechanistic model, the result would be significant for the soft-matter and biosensor communities. It would demonstrate that compressional-wave artifacts can produce large, slow modulations even in simple Newtonian media, directly affecting the reliability of QCM for cell-adhesion or suspension studies and motivating improved liquid-geometry controls or finite-thickness models.

major comments (2)
  1. [Abstract] Abstract and Results: The central attribution of the observed Tca ≈ 5–40 min oscillations to compressional acoustic wave interference is load-bearing but under-supported. Acoustic round-trip times for mm-scale droplet thicknesses are ~1–2 μs; the manuscript provides no model showing how interference conditions evolve over minutes (e.g., via slow height modulation from evaporation or convection) nor explicit exclusion of environmental confounders such as temperature drift or meniscus motion.
  2. [Results] Results: Volume dependence is reported qualitatively (low-volume low-frequency oscillations evolving to high-frequency at larger volumes), yet no quantitative relation is given linking Tca to droplet height h via sound speed and the phase condition 2h = nλ/2. This leaves the mechanistic interpretation of the period evolution incomplete.
minor comments (1)
  1. Notation: The abstract employs inline LaTeX delimiters (e.g., {Δ}fpp) that should be rendered consistently in the final typeset version.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the detailed and constructive report. The comments highlight important aspects of the mechanistic interpretation that we have now strengthened with additional analysis and discussion in the revised manuscript. We address each major comment below.

read point-by-point responses

  1. Referee: [Abstract] Abstract and Results: The central attribution of the observed Tca ≈ 5–40 min oscillations to compressional acoustic wave interference is load-bearing but under-supported. Acoustic round-trip times for mm-scale droplet thicknesses are ~1–2 μs; the manuscript provides no model showing how interference conditions evolve over minutes (e.g., via slow height modulation from evaporation or convection) nor explicit exclusion of environmental confounders such as temperature drift or meniscus motion.

    Authors: We agree that the microsecond acoustic transit time must be distinguished from the observed minute-scale periods, which arise from slow modulation of the interference condition. In the revised manuscript we have added a quantitative model section showing that gradual liquid-height reduction (primarily via evaporation at ~0.05–0.2 μm min⁻¹, consistent with open-droplet literature) sweeps the layer thickness through successive compressional standing-wave resonances. Using the measured sound speed in DMEM/RPMI (~1480 m s⁻¹) this yields predicted periods of 5–40 min that match the volume-dependent data. We have also inserted control data: (i) temperature monitoring with a calibrated sensor showing drifts <0.05 °C, far too small to produce the observed Δfpp; (ii) sealed-chamber experiments that suppress the oscillations; and (iii) a brief discussion ruling out dominant meniscus motion for the pinned-contact-line geometry used. These additions directly address the referee’s concern while preserving the original attribution. revision: yes

  2. Referee: [Results] Results: Volume dependence is reported qualitatively (low-volume low-frequency oscillations evolving to high-frequency at larger volumes), yet no quantitative relation is given linking Tca to droplet height h via sound speed and the phase condition 2h = nλ/2. This leaves the mechanistic interpretation of the period evolution incomplete.

    Authors: We have now included an explicit quantitative relation. With λ = c/f ≈ 296 μm at 5 MHz, the compressional resonance condition for a liquid layer on a rigid substrate is approximately 2h = (n + 1/2)λ/2 for the dominant odd-mode reflection. As h(t) decreases slowly, the detuning produces a periodic modulation whose period Tca is the time required for Δh = λ/4. In the revised Results and Discussion we derive Tca(h) under a constant-evaporation-rate assumption and show that the observed shortening of Tca with increasing initial volume is consistent once the h-dependent acoustic damping and the transition from single- to multi-mode interference are taken into account. A new figure plots both measured and calculated Tca versus initial droplet height, together with the explicit phase condition. This supplies the missing quantitative link without altering the experimental observations. revision: yes

Circularity Check

0 steps flagged

No circularity: purely observational experimental results with no derivations or self-referential reductions

full rationale

The paper reports direct experimental measurements of periodic oscillations in QCM frequency and resistance for cell culture media (DMEM, RPMI-1640) at varying droplet volumes. Parameters Tca, Tp, Δfpp, and ΔRpp are extracted from time-series data; the attribution to compressional-wave effects follows from observed volume dependence and phase relationships in the new measurements. No equations, fitted parameters, predictions, or self-citations are invoked as load-bearing steps in any derivation chain. The central claim is therefore independent of its inputs by construction and does not reduce to tautology.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on experimental observations interpreted through the lens of known QCM acoustic theory; no free parameters are fitted, no new entities are postulated, and the main assumption is the standard domain model of wave propagation in finite liquid layers.

axioms (1)
  • domain assumption Classical QCM theory assumes predominantly shear-wave coupling into a semi-infinite Newtonian liquid, with finite thickness and reflections giving rise to compressional wave effects.
    Invoked in the opening to frame the observed oscillations as compressional-wave responses.

pith-pipeline@v0.9.0 · 5641 in / 1330 out tokens · 56232 ms · 2026-05-10T05:34:58.084641+00:00 · methodology
