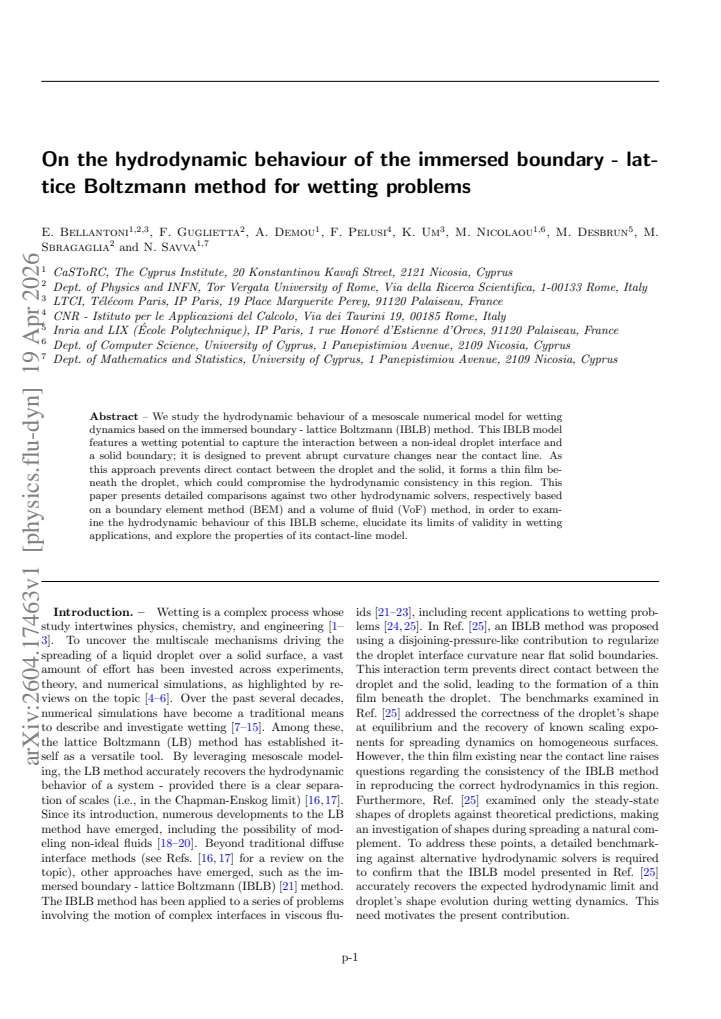

On the hydrodynamic behaviour of the immersed boundary -- lattice Boltzmann method for wetting problems

Pith reviewed 2026-05-10 05:46 UTC · model grok-4.3

classification ⚛️ physics.flu-dyn physics.comp-ph
keywords lattice Boltzmann methodimmersed boundary methodwettingcontact linethin filmdroplet dynamicshydrodynamics
0
0 comments X

The pith

The immersed boundary lattice Boltzmann method with wetting potential forms a thin film to avoid abrupt contact-line curvature.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper examines the flow behavior of a lattice Boltzmann scheme that uses an immersed boundary and a wetting potential to model droplets on solid surfaces. This combination is meant to keep the interface from making a sharp turn at the point where it meets the wall. Instead of direct contact, a thin film of fluid stays between the droplet and the solid. To check if this film disrupts the expected fluid motion, the authors compare the results against two other standard ways of solving the same wetting problems.

Core claim

The IBLB scheme with wetting potential prevents abrupt curvature changes near the contact line but forms a thin film that could compromise hydrodynamic consistency; detailed comparisons against BEM and VoF elucidate its limits of validity in wetting applications.

What carries the argument

Wetting potential in the immersed boundary lattice Boltzmann method that maintains a thin film separating the fluid interface from the solid wall to smooth the contact line.

If this is right

  • The model avoids unphysical sharp bends in the droplet interface at the contact line.
  • Hydrodynamic quantities in the thin film region may deviate from classical expectations.
  • Agreement with reference methods holds for bulk droplet properties but needs verification near the wall.
  • The scheme remains applicable to wetting problems as long as the film effect is accounted for or negligible.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • This thin film approach might be combined with adaptive grid techniques to reduce its impact on accuracy.
  • Similar issues could arise in other interface-capturing methods that use potential-based wetting conditions.
  • Further tests at higher resolutions could determine how to minimize the film thickness while retaining the curvature-smoothing benefit.

Load-bearing premise

The thin film formed beneath the droplet does not introduce hydrodynamic inconsistencies that invalidate the model's predictions for contact-line dynamics and overall flow behavior.

What would settle it

A calculation or observation demonstrating that the flow inside the thin film deviates from the results of boundary element method simulations for identical wetting conditions would show that the hydrodynamic consistency does not hold.

Figures

Figures reproduced from arXiv: 2604.17463 by Andreas Demou, Elisa Bellantoni, Fabio Guglietta, Francesca Pelusi, Kiwon Um, Mathieu Desbrun, Mauro Sbragaglia, Mihalis Nicolaou, Nikos Savva.

Figure 1
Figure 1. Figure 1: Split view of the hydrodynamic fields around a droplet wetting a solid, simulated with the IBLB method [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

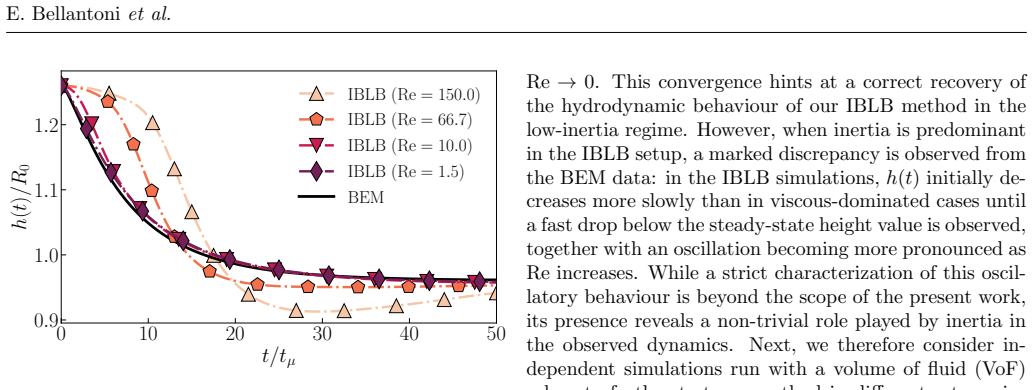

Figure 2. Figure 2: Droplet’s height evolution during spreading with [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 4

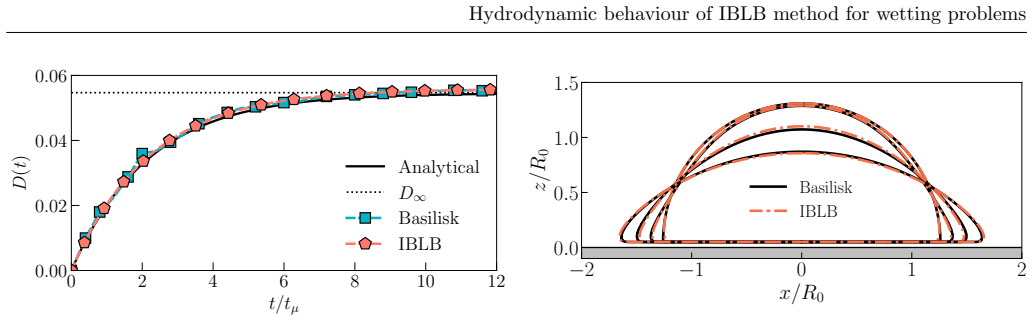

Figure 4. Figure 4: Comparison of the droplet profiles for a spreading [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
Figure 5

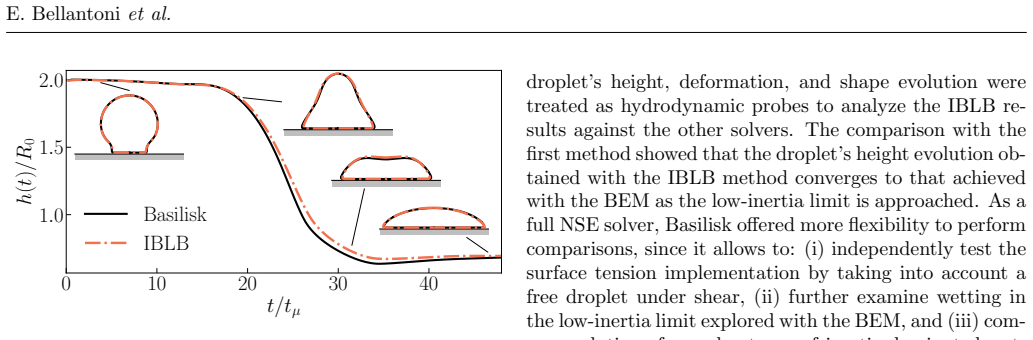

Figure 5. Figure 5: Comparison of height evolution of a spherical [PITH_FULL_IMAGE:figures/full_fig_p006_5.png] view at source ↗
