arxiv: 2604.17863 · v1 · submitted 2026-04-20 · 💻 cs.RO · cs.AI

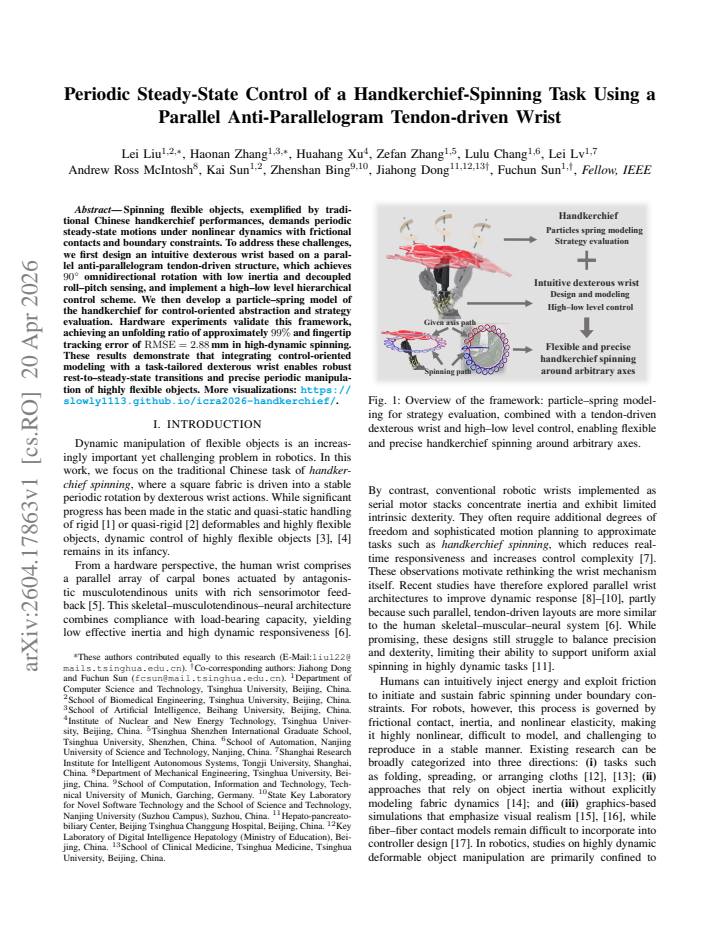

Periodic Steady-State Control of a Handkerchief-Spinning Task Using a Parallel Anti-Parallelogram Tendon-driven Wrist

Lei Liu , Haonan Zhang , Huahang Xu , Zefan Zhang , Lulu Chang , Lei Lv , Andrew Ross McIntosh , Kai Sun

show 3 more authors

Zhenshan Bing Jiahong Dong Fuchun Sun

This is my paper

Pith reviewed 2026-05-10 04:51 UTC · model grok-4.3

classification 💻 cs.RO cs.AI

keywords dexterous wristtendon-driven mechanismflexible object manipulationparticle-spring modelperiodic steady-state controlhierarchical controlhandkerchief spinningrobotics

0 comments

The pith

A parallel anti-parallelogram tendon-driven wrist paired with a particle-spring handkerchief model enables precise periodic spinning from rest to steady state.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper designs a dexterous wrist using a parallel anti-parallelogram tendon-driven structure that provides 90-degree omnidirectional rotation with low inertia and decoupled sensing. It combines this hardware with a particle-spring model of the handkerchief to create a hierarchical control scheme that handles nonlinear dynamics, friction, and boundary constraints during spinning. Hardware tests confirm the system reaches an unfolding ratio of about 99 percent and fingertip tracking error of 2.88 mm RMSE in high-dynamic conditions. A sympathetic reader would care because flexible-object tasks like cloth manipulation remain difficult for robots, and this shows a concrete path to periodic steady-state control without relying on overly complex sensing or actuation.

Core claim

The authors design an intuitive dexterous wrist based on a parallel anti-parallelogram tendon-driven structure, which achieves 90 degrees omnidirectional rotation with low inertia and decoupled roll-pitch sensing, and implement a high-low level hierarchical control scheme. They then develop a particle-spring model of the handkerchief for control-oriented abstraction and strategy evaluation. Hardware experiments validate this framework, achieving an unfolding ratio of approximately 99% and fingertip tracking error of RMSE = 2.88 mm in high-dynamic spinning. These results demonstrate that integrating control-oriented modeling with a task-tailored dexterous wrist enables robust rest-to-steady-

What carries the argument

The parallel anti-parallelogram tendon-driven wrist, which supplies omnidirectional rotation and low inertia while paired with a hierarchical controller and a particle-spring model that abstracts the handkerchief's dynamics for control design.

If this is right

The framework supports robust rest-to-steady-state transitions for highly flexible objects under nonlinear dynamics.
It achieves precise periodic manipulation with fingertip tracking errors of 2.88 mm RMSE.
Hardware validation confirms unfolding ratios near 99 percent during high-dynamic spinning.
The hierarchical control scheme manages frictional contacts and boundary constraints through the particle-spring abstraction.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The low-inertia wrist design could reduce actuator effort in other continuous periodic tasks involving soft materials.
Similar particle-based modeling might help control tasks with ropes or fabric in unstructured environments.
The combination of task-specific hardware and simplified dynamics modeling could guide development of controllers for other deformable objects with strong nonlinearities.

Load-bearing premise

The particle-spring model of the handkerchief sufficiently captures the nonlinear dynamics, frictional contacts, and boundary constraints to support effective control design and strategy evaluation.

What would settle it

Repeated hardware trials in which the measured handkerchief unfolding ratio falls substantially below 99 percent or the fingertip RMSE exceeds 2.88 mm when the proposed wrist and controller are used would falsify the claim that the integrated modeling and hardware enable the reported steady-state performance.

Figures

Figures reproduced from arXiv: 2604.17863 by Andrew Ross McIntosh, Fuchun Sun, Haonan Zhang, Huahang Xu, Jiahong Dong, Kai Sun, Lei Liu, Lei Lv, Lulu Chang, Zefan Zhang, Zhenshan Bing.

**Figure 2.** Figure 2: Overview of the dexterous wrist and its kinematics. [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗

**Figure 3.** Figure 3: High–low level hierarchical control for the handker [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗

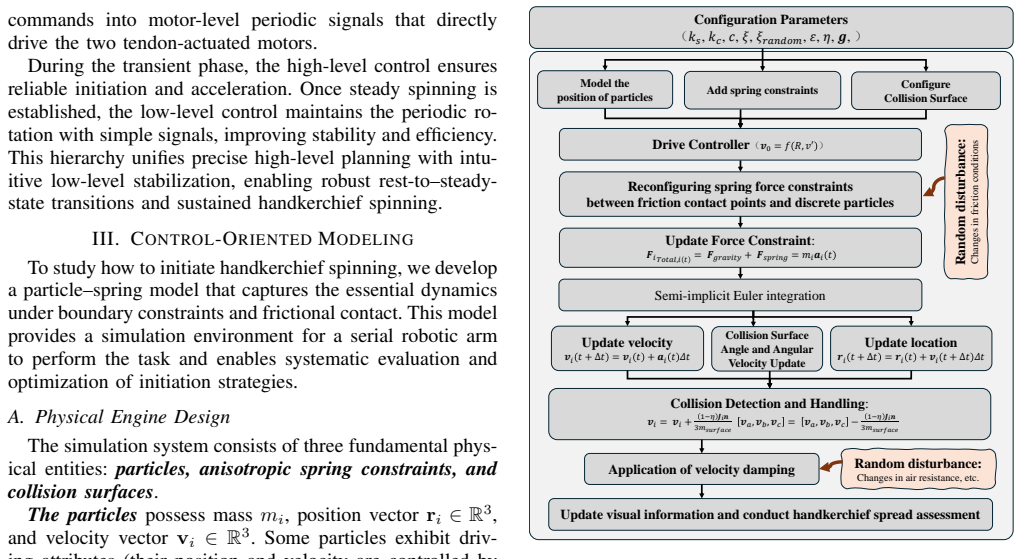

**Figure 4.** Figure 4: Overview of the physical simulation framework for [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗

**Figure 5.** Figure 5: Modeling the handkerchief and constructing the [PITH_FULL_IMAGE:figures/full_fig_p005_5.png] view at source ↗

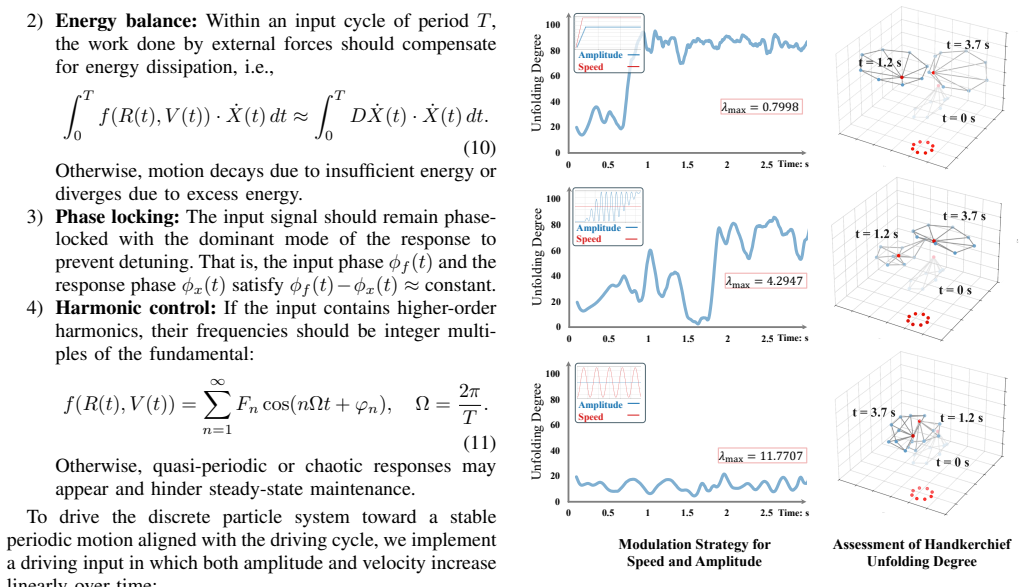

**Figure 6.** Figure 6: Evaluate the unfolding extent of the handkerchief over [PITH_FULL_IMAGE:figures/full_fig_p006_6.png] view at source ↗

**Figure 7.** Figure 7: Evaluate the unfolding extent of the handkerchief over time under different strategies within the model, with partial [PITH_FULL_IMAGE:figures/full_fig_p007_7.png] view at source ↗

**Figure 8.** Figure 8: Comparison of modeled and experimental trajecto [PITH_FULL_IMAGE:figures/full_fig_p008_8.png] view at source ↗

read the original abstract

Spinning flexible objects, exemplified by traditional Chinese handkerchief performances, demands periodic steady-state motions under nonlinear dynamics with frictional contacts and boundary constraints. To address these challenges, we first design an intuitive dexterous wrist based on a parallel anti-parallelogram tendon-driven structure, which achieves 90 degrees omnidirectional rotation with low inertia and decoupled roll-pitch sensing, and implement a high-low level hierarchical control scheme. We then develop a particle-spring model of the handkerchief for control-oriented abstraction and strategy evaluation. Hardware experiments validate this framework, achieving an unfolding ratio of approximately 99% and fingertip tracking error of RMSE = 2.88 mm in high-dynamic spinning. These results demonstrate that integrating control-oriented modeling with a task-tailored dexterous wrist enables robust rest-to-steady-state transitions and precise periodic manipulation of highly flexible objects. More visualizations: https://slowly1113.github.io/icra2026-handkerchief/

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

New wrist hardware succeeds at handkerchief spinning with clear experiments, but the particle-spring model has no reported validation against the real data.

read the letter

This paper shows a new tendon-driven wrist that can spin a handkerchief in periodic steady state, backed by hardware tests that hit 99% unfolding and low tracking error. The modeling part, though, does not get the same level of support. They designed a parallel anti-parallelogram structure for the wrist. It delivers omnidirectional 90-degree rotation, keeps inertia low, and separates roll and pitch measurements. A two-level control scheme sits on top of that. To handle the cloth, they built a particle-spring model that simplifies the nonlinear dynamics, contacts, and boundaries for planning the motion from rest to spinning. The experiments are the clear win. The system transitions to steady spinning and keeps the cloth open with good accuracy. This is concrete evidence that the wrist works for this flexible-object task. The soft spot sits with the particle-spring model. The paper uses it for strategy evaluation, but the text gives no direct comparison between model outputs and recorded hardware data on cloth shape or forces. Without those metrics, it is difficult to tell how much the model actually guided the results versus the hardware and low-level loops carrying the load. The weakest assumption is that this abstraction captures enough of the real behavior to justify the control-oriented claims. This kind of work fits robotics groups focused on dexterous hands or soft manipulation. Someone building similar periodic tasks with fabric or ropes could pick up the wrist idea or the hierarchical control. It is not a broad theory paper, but the practical demonstration has value. The thinking is straightforward and the hardware data is reported plainly. I would send it for peer review. Referees can ask for the missing model checks and see if the claims hold after that.

Referee Report

2 major / 1 minor

Summary. The manuscript claims that a parallel anti-parallelogram tendon-driven wrist mechanism, paired with a particle-spring model of the handkerchief and a high-low hierarchical control scheme, enables robust rest-to-steady-state transitions and precise periodic spinning of highly flexible objects. Hardware experiments are reported to achieve an unfolding ratio of approximately 99% and fingertip tracking RMSE of 2.88 mm, supporting the integration of task-tailored hardware with control-oriented modeling for nonlinear dynamics with frictional contacts.

Significance. If the result holds, the work offers a concrete demonstration of dexterous periodic manipulation of deformable objects, an area with limited prior hardware success. The reported experimental metrics (99% unfolding, 2.88 mm RMSE) provide tangible evidence of practical feasibility for high-dynamic tasks and credit the authors for closing the loop from modeling to hardware validation in a challenging setting.

major comments (2)

[Particle-spring model section] Particle-spring model section: The model is developed for control-oriented abstraction and strategy evaluation, yet the manuscript reports no quantitative validation metrics (e.g., trajectory prediction error, unfolding dynamics match, or contact force comparison) against the hardware recordings. This leaves open whether the observed performance stems from the model-guided strategy or primarily from the wrist hardware and low-level controller.
[Hardware experiments section] Hardware experiments section: While concrete success metrics are given (99% unfolding ratio, 2.88 mm RMSE), the text does not specify the number of trials, variance across runs, or any direct model-experiment comparison. This weakens the evidential link between the particle-spring abstraction and the claimed robust transitions under nonlinear dynamics and boundary constraints.

minor comments (1)

[Abstract] Abstract: omits any mention of trial count, statistical measures, or model validation approach, which would better contextualize the reported metrics for readers.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments and the positive evaluation of the work's significance. We address the major comments point by point below, and revisions have been made to the manuscript to provide the requested quantitative validations and experimental details.

read point-by-point responses

Referee: [Particle-spring model section] Particle-spring model section: The model is developed for control-oriented abstraction and strategy evaluation, yet the manuscript reports no quantitative validation metrics (e.g., trajectory prediction error, unfolding dynamics match, or contact force comparison) against the hardware recordings. This leaves open whether the observed performance stems from the model-guided strategy or primarily from the wrist hardware and low-level controller.

Authors: We appreciate this feedback. The particle-spring model is intended as a simplified abstraction to facilitate the design and evaluation of the high-level control strategy for periodic spinning. While the current manuscript does not include direct quantitative validation metrics comparing the model to hardware, the successful hardware implementation of the model-derived strategy provides supporting evidence. In the revised manuscript, we will add a new subsection with quantitative metrics, including trajectory prediction error and unfolding dynamics comparison between model simulations and experimental data, to better establish the model's contribution. revision: yes
Referee: [Hardware experiments section] Hardware experiments section: While concrete success metrics are given (99% unfolding ratio, 2.88 mm RMSE), the text does not specify the number of trials, variance across runs, or any direct model-experiment comparison. This weakens the evidential link between the particle-spring abstraction and the claimed robust transitions under nonlinear dynamics and boundary constraints.

Authors: We agree that additional details on experimental repeatability and model-experiment comparisons would strengthen the paper. The revised manuscript will specify the number of trials conducted, report the variance (standard deviation) across runs for the unfolding ratio and RMSE, and include direct comparisons between the particle-spring model predictions and hardware measurements. These additions will clarify the link between the modeling approach and the observed robust performance. revision: yes

Circularity Check

0 steps flagged

No significant circularity in derivation chain

full rationale

The paper develops a particle-spring model of the handkerchief from physical first principles for control-oriented abstraction, designs a parallel anti-parallelogram tendon-driven wrist mechanism with explicit kinematic and dynamic derivations, and implements a hierarchical control scheme. These components are presented as independent constructions, with hardware experiments (99% unfolding, 2.88 mm RMSE) serving as external validation rather than internal fitting. No equations or claims reduce by construction to fitted parameters renamed as predictions, self-definitional loops, or load-bearing self-citations; the central claims rest on task-specific modeling and empirical outcomes that remain falsifiable outside the paper's own inputs.

Axiom & Free-Parameter Ledger

1 free parameters · 2 axioms · 0 invented entities

Central claim rests on the particle-spring model being adequate for control and the wrist providing the stated kinematic properties; no explicit free parameters or invented entities listed in abstract, but model parameters are implicitly required.

free parameters (1)

particle-spring model parameters
Spring constants, particle masses, and friction coefficients must be chosen or fitted to match handkerchief behavior for the model to support control design.

axioms (2)

domain assumption The parallel anti-parallelogram tendon-driven structure achieves 90-degree omnidirectional rotation with low inertia and decoupled roll-pitch sensing.
Invoked in the wrist design description as the basis for the hardware platform.
domain assumption The particle-spring abstraction is sufficient to evaluate control strategies for nonlinear dynamics with frictional contacts.
Used to justify the modeling step for control-oriented abstraction.
