arxiv: 2604.17895 · v1 · submitted 2026-04-20 · 💻 cs.RO

Locomotion of an Elastic Snake Robot via Natural Dynamics

Tristan Ehlert , Arne Sachtler , Annika Schmidt , Davide Calzolari , Alin Albu-Sch\"affer This is my paper

Pith reviewed 2026-05-10 04:28 UTC · model grok-4.3

classification 💻 cs.RO
keywords elastic snake robotnatural dynamicsnon-brake orbitsnonlinear normal modeslocomotion efficiencygait designenergy conservation
0
0 comments X

The pith

Gaits based on non-brake periodic trajectories allow elastic snake robots to achieve perfect energy efficiency without friction and higher efficiency with friction than rigid baselines.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper investigates whether the nonlinear natural dynamics of a kinematic elastic snake robot can be exploited to design more efficient locomotion gaits. It introduces and simulates two approaches: one that switches between two nonlinear normal modes and another that follows non-brake periodic trajectories called non-brake orbits. Simulations show that mode-switching brings no efficiency gain, while non-brake orbit gaits dissipate zero energy in the conservative case and outperform the rigid-system baseline once friction is added. A reader would care because this points to a concrete way to reduce actuator energy use by letting elasticity and natural motion handle propulsion.

Core claim

Gaits generated by switching between two nonlinear normal modes do not improve locomotion efficiency. In contrast, gaits based on non-brake periodic trajectories (non-brake orbits) are perfectly efficient in the energy-conservative case. Further simulations with friction reveal that, in a more realistic scenario, non-brake orbit gaits achieve higher efficiency compared to the baseline gait on the rigid system.

What carries the argument

Non-brake periodic trajectories, or non-brake orbits: periodic motions that follow the elastic system's natural dynamics without braking inputs, conserving energy during locomotion.

If this is right

  • Non-brake orbit gaits can produce locomotion with zero net energy input beyond initial conditions in the absence of friction.
  • The same gaits retain an efficiency advantage over rigid-body designs once friction is introduced in simulation.
  • Eigenmanifold theory can be used to identify usable natural trajectories for gait synthesis in nonlinear elastic systems.
  • Switching between nonlinear normal modes does not deliver efficiency improvements for this robot.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same orbit-based design principle could transfer to other elastic or soft robots that exhibit periodic natural motions.
  • Hardware realization would require control laws precise enough to stay on the identified orbits despite sensor noise and unmodeled compliance.
  • Adopting these gaits might allow smaller actuators or longer battery life in field-deployed snake robots.

Load-bearing premise

The kinematic elastic model together with the frictionless-to-frictional simulation setup accurately reflects the dominant dynamics and energy losses of a real physical elastic snake robot.

What would settle it

A physical test on a hardware elastic snake robot in which non-brake orbit gaits show measurable energy dissipation even in low-friction conditions or fail to exceed the rigid baseline efficiency when friction is present.

Figures

Figures reproduced from arXiv: 2604.17895 by Alin Albu-Sch\"affer, Annika Schmidt, Arne Sachtler, Davide Calzolari, Tristan Ehlert.

Figure 1
Figure 1. Figure 1: The model diagram of the elastic KS with the body attached [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Panel (a) shows the generators from a range of equilibrium configurations of the eKS along the diagonal [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Examples for NNM and NBO gaits. On the left, panels (a) and (b) show a gait constructed by transitioning between two NNMs. At points 1 and 3, [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: An example of NBOs from a natural motion manifold (NMM) [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: CoT of the NNM, NBO and baseline gaits, assuming no friction [PITH_FULL_IMAGE:figures/full_fig_p005_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Panel (a): Comparing the CoT of the NBOs and the baseline with rolling resistance and joint damping as in [20]. Panel (c): Plotting the total arc [PITH_FULL_IMAGE:figures/full_fig_p006_6.png] view at source ↗
read the original abstract

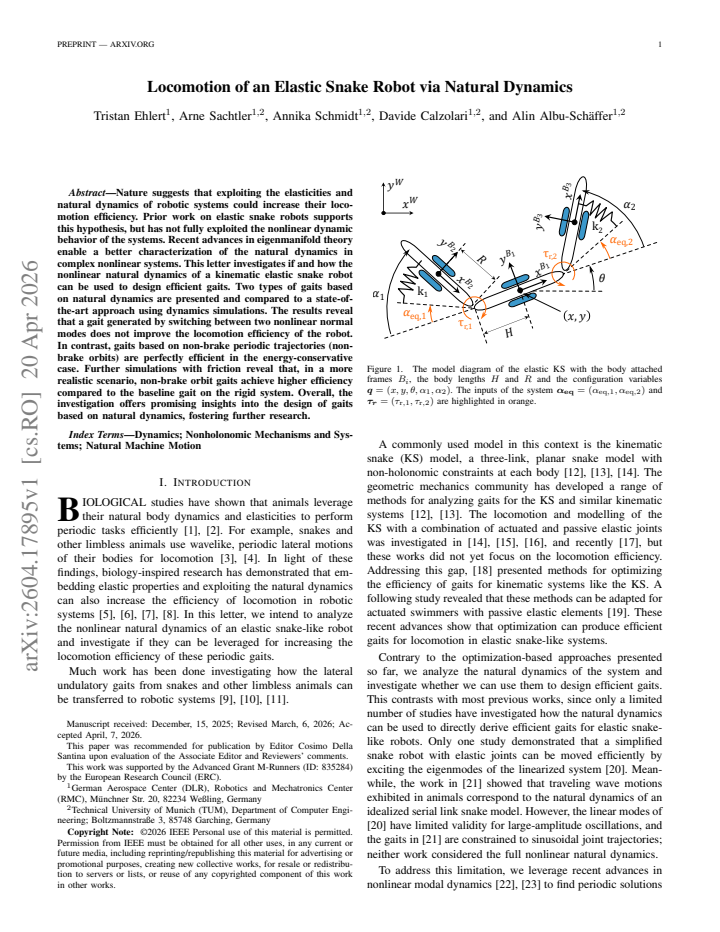

Nature suggests that exploiting the elasticities and natural dynamics of robotic systems could increase their locomotion efficiency. Prior work on elastic snake robots supports this hypothesis, but has not fully exploited the nonlinear dynamic behavior of the systems. Recent advances in eigenmanifold theory enable a better characterization of the natural dynamics in complex nonlinear systems. This letter investigates if and how the nonlinear natural dynamics of a kinematic elastic snake robot can be used to design efficient gaits. Two types of gaits based on natural dynamics are presented and compared to a state-of-the-art approach using dynamics simulations. The results reveal that a gait generated by switching between two nonlinear normal modes does not improve the locomotion efficiency of the robot. In contrast, gaits based on non-brake periodic trajectories (non-brake orbits) are perfectly efficient in the energy-conservative case. Further simulations with friction reveal that, in a more realistic scenario, non-brake orbit gaits achieve higher efficiency compared to the baseline gait on the rigid system. Overall, the investigation offers promising insights into the design of gaits based on natural dynamics, fostering further research.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript investigates the application of eigenmanifold theory to characterize and exploit the nonlinear natural dynamics of a kinematic elastic snake robot for gait design. It proposes and simulates two gait families: switching between nonlinear normal modes (which does not improve efficiency) and gaits based on non-brake periodic trajectories (non-brake orbits). In energy-conservative simulations the non-brake orbits achieve perfect efficiency; with added friction they outperform a rigid-system baseline gait.

Significance. If the simulation results are reproducible and the model assumptions hold, the work provides a concrete demonstration that non-brake orbits can yield ideal efficiency by aligning actuation with the system's natural dynamics, extending prior elastic-snake-robot literature through systematic use of eigenmanifold methods. This is a strength for the field, as it supplies falsifiable predictions about efficiency gains that could guide future hardware implementations.

major comments (2)
  1. [Simulation Results] Simulation protocol (abstract and results section): the claims of 'perfect efficiency' in the conservative case and 'higher efficiency' with friction rest on dynamics simulations, yet the manuscript provides insufficient detail on the kinematic elastic model parameters, numerical integration scheme, exact energy-balance definition, and friction implementation. This gap directly affects verifiability of the central quantitative claims.
  2. [Results] Baseline comparison (results section): efficiency is reported relative to an external 'state-of-the-art' rigid gait, but the paper does not demonstrate that the baseline is optimized under identical conditions or that the elastic parameters are chosen independently of the target orbits. This comparison is load-bearing for the claim of superiority in realistic scenarios.
minor comments (2)
  1. [Abstract] The abstract refers to 'a state-of-the-art approach' without citation; adding the specific reference would improve clarity.
  2. [Gait Design] Notation for non-brake orbits and nonlinear normal modes would benefit from a short table or explicit cross-reference to the eigenmanifold definitions used.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback on our manuscript. We address each major comment below and will revise the paper accordingly to improve reproducibility and the strength of the comparisons.

read point-by-point responses

  1. Referee: Simulation protocol (abstract and results section): the claims of 'perfect efficiency' in the conservative case and 'higher efficiency' with friction rest on dynamics simulations, yet the manuscript provides insufficient detail on the kinematic elastic model parameters, numerical integration scheme, exact energy-balance definition, and friction implementation. This gap directly affects verifiability of the central quantitative claims.

    Authors: We agree that additional details are required for full reproducibility. In the revised manuscript, we will add a dedicated simulation protocol subsection specifying all kinematic and elastic model parameters with numerical values, the numerical integration scheme (solver type, tolerances, and step size), the exact mathematical definition of the energy balance and efficiency metric (including how input energy and output work are computed), and the friction model implementation (type and coefficients). These changes will enable independent verification of the reported efficiency results. revision: yes

  2. Referee: Baseline comparison (results section): efficiency is reported relative to an external 'state-of-the-art' rigid gait, but the paper does not demonstrate that the baseline is optimized under identical conditions or that the elastic parameters are chosen independently of the target orbits. This comparison is load-bearing for the claim of superiority in realistic scenarios.

    Authors: The baseline gait is taken directly from established state-of-the-art literature on rigid snake robots. In revision, we will expand the results section to clarify the parameter selection process for the baseline, confirm that overall system scale and simulation conditions are matched, and explicitly state that the elastic parameters were derived from eigenmanifold analysis of the natural dynamics rather than tuned to the specific orbits. We will also add a brief discussion of limitations regarding full optimization equivalence under identical conditions. This strengthens the comparison while preserving the focus on natural-dynamics-based gait design. revision: partial

Circularity Check

0 steps flagged

No significant circularity

full rationale

The paper derives gaits from eigenmanifold theory applied to a kinematic elastic snake model and evaluates them via forward dynamics simulations under conservative and frictional conditions. Efficiency claims (perfect efficiency for non-brake orbits in the energy-conserving case, superior performance versus rigid baseline with friction) follow directly from integrating the model equations and comparing net energy or cost metrics; no parameter is fitted to the target efficiency quantity and then renamed as a prediction. The baseline gait is an external state-of-the-art reference, not an internal fit. Any prior eigenmanifold citations supply the modeling framework but do not reduce the reported simulation outcomes to self-referential definitions or load-bearing self-citations.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The investigation rests on standard domain assumptions in nonlinear dynamics and robotics modeling; no free parameters, new entities, or ad-hoc axioms are introduced in the abstract.

axioms (1)
  • domain assumption The elastic snake robot admits a kinematic model whose nonlinear dynamics are characterizable via eigenmanifolds and nonlinear normal modes.
    This premise enables the extraction of natural gaits from the system's passive dynamics.

pith-pipeline@v0.9.0 · 5502 in / 1309 out tokens · 57675 ms · 2026-05-10T04:28:38.820679+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

33 extracted references · 33 canonical work pages

  1. [1]

    Flexible mechanisms: The diverse roles of biological springs in vertebrate movement

    T. J. Roberts and E. Azizi, “Flexible mechanisms: The diverse roles of biological springs in vertebrate movement”,The Journal of experi- mental biology, vol. 214, pp. 353–361, Pt 3 2011

    work page 2011

  2. [2]

    Compliant leg behaviour explains basic dynamics of walking and running

    H. Geyer, A. Seyfarth, and R. Blickhan, “Compliant leg behaviour explains basic dynamics of walking and running”,Proceedings. Bio- logical sciences, vol. 273, no. 1603, pp. 2861–2867, 2006

    work page 2006

  3. [3]

    The mechanism of locomotion in snakes

    J. Gray, “The mechanism of locomotion in snakes”,J Exp Biol, vol. 23, no. 2, pp. 101–120, Dec. 1946

    work page 1946

  4. [4]

    What Defines Different Modes of Snake Locomotion?

    B. C. Jayne, “What Defines Different Modes of Snake Locomotion?”, Integrative and Comparative Biology, vol. 60, no. 1, pp. 156–170, Jul. 1, 2020

    work page 2020

  5. [5]

    An Overview on Principles for Energy Efficient Robot Locomotion

    N. Kashiri et al., “An Overview on Principles for Energy Efficient Robot Locomotion”,Front. Robot. AI, vol. 5, p. 129, Dec. 11, 2018

    work page 2018

  6. [6]

    Efficient Bipedal Robots Based on Passive-Dynamic Walkers

    S. Collins, A. Ruina, R. Tedrake, and M. Wisse, “Efficient Bipedal Robots Based on Passive-Dynamic Walkers”,Science, vol. 307, no. 5712, pp. 1082–1085, Feb. 18, 2005

    work page 2005

  7. [7]

    Three Uses for Springs in Legged Locomotion

    R. McN. Alexander, “Three Uses for Springs in Legged Locomotion”, IJRR, vol. 9, no. 2, pp. 53–61, Apr. 1990

    work page 1990

  8. [8]

    Legged Elastic Multibody Systems: Adjusting Limit Cycles to Close- to-Optimal Energy Efficiency

    P. Stratmann, D. Lakatos, M. C. ¨Ozparpucu, and A. Albu-Sch ¨affer, “Legged Elastic Multibody Systems: Adjusting Limit Cycles to Close- to-Optimal Energy Efficiency”,IEEE RAL, vol. 2, no. 2, pp. 436–443, Apr. 2017

    work page 2017

  9. [9]

    The Geometric Mechanics of Undulatory Robotic Locomotion

    J. Ostrowski and J. Burdick, “The Geometric Mechanics of Undulatory Robotic Locomotion”,IJRR, vol. 17, no. 7, pp. 683–701, Jul. 1998

    work page 1998

  10. [10]

    A review on modelling, implementation, and control of snake robots
