arxiv: 2604.18019 · v1 · submitted 2026-04-20 · 💻 cs.CV

Multi-View Hierarchical Graph Neural Network for Sketch-Based 3D Shape Retrieval

Hang Cheng , Muyan He , Mingyu Fan , Chengfeng Xie , Xi Cheng , Long Zeng This is my paper

Pith reviewed 2026-05-10 04:56 UTC · model grok-4.3

classification 💻 cs.CV
keywords sketch-based 3D retrievalmulti-view graphsgraph neural networkshierarchical coarseningzero-shot retrievalCLIP alignment3D shape matching
0
0 comments X

The pith

MV-HGNN captures geometric relationships across 3D views with hierarchical graph coarsening and CLIP alignment to improve sketch-based shape retrieval in both standard and zero-shot settings.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper aims to show that treating multi-view 3D features as graphs, rather than independent encodings, produces stronger representations for matching hand-drawn sketches to 3D models. It builds view-level graphs to model local geometric dependencies and global cross-view relations, then applies a view selector for progressive coarsening that enlarges receptive fields while discarding redundant information. Projecting both sketch and shape features into CLIP text embedding space further allows the same architecture to operate without category-specific overfitting. A reader would care because prior aggregation methods lose inter-view structure and fail when sketches depict objects outside the training set. If the claim holds, retrieval systems could handle richer 3D detail and generalize to novel categories using one model.

Core claim

The Multi-View Hierarchical Graph Neural Network constructs a view-level graph and applies local graph convolution plus global attention to capture adjacent geometric dependencies and cross-view message passing; a view selector then performs hierarchical graph coarsening to produce progressively larger receptive fields and more discriminative multi-level 3D representations; finally, both sketch and 3D features are projected into a shared CLIP semantic space using text embeddings as prototypes, enabling a two-stage training strategy for category-level retrieval and a one-stage strategy for zero-shot retrieval under the same architecture, which the experiments show outperforms prior methods on

What carries the argument

View-level graph processed by local graph convolution combined with global attention, followed by hierarchical coarsening via a view selector and projection into CLIP semantic space.

If this is right

  • Improved retrieval accuracy for sketches against 3D shapes when categories are known in advance.
  • Effective retrieval when sketches belong to object categories absent from training data.
  • Hierarchical representations that preserve both fine local details and broader structural context from multiple views.
  • Reduced impact of uninformative or redundant viewpoints on the final 3D descriptor.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same view-graph plus selector pattern could be tested on other multi-observation 3D tasks such as video-based object classification.
  • CLIP alignment opens the possibility of mixing sketch queries with text descriptions in a single retrieval index.
  • The learned view-selection weights may indicate which camera angles are most informative for sketch-to-shape matching, offering a diagnostic for viewpoint importance.

Load-bearing premise

That modeling view relationships through graph convolution and attention, selecting important views hierarchically, and aligning to CLIP prototypes will produce 3D features discriminative enough to beat simpler aggregation methods without overfitting to seen categories.

What would settle it

Direct head-to-head retrieval metrics on the two public benchmarks showing that MV-HGNN does not exceed the accuracy of prior multi-view aggregation methods under either the category-level or zero-shot protocol.

Figures

Figures reproduced from arXiv: 2604.18019 by Chengfeng Xie, Hang Cheng, Long Zeng, Mingyu Fan, Muyan He, Xi Cheng.

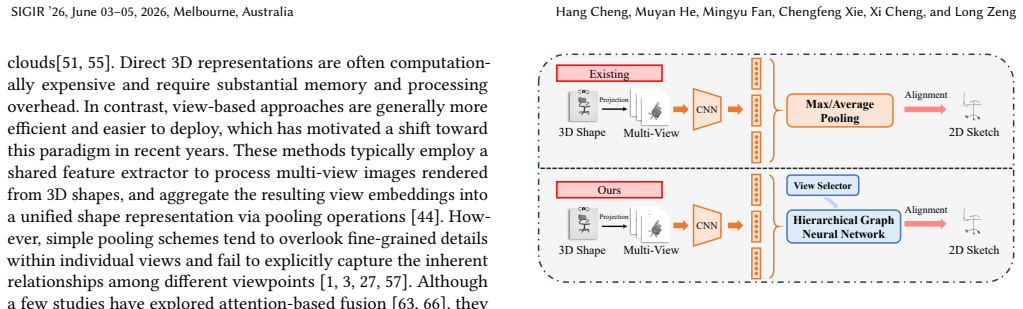

Figure 1
Figure 1. Figure 1: Existing method and our method. modality followed by the sketch modality. For zero-shot SBSR tasks, we adopt a joint training strategy for both modalities. This strat￾egy enables the transition from designing for individual tasks to a more generalized retrieval framework managing various specialized scenarios. The main contributions of this paper are as follows: • We propose a novel Multi-View Hierarchical… view at source ↗

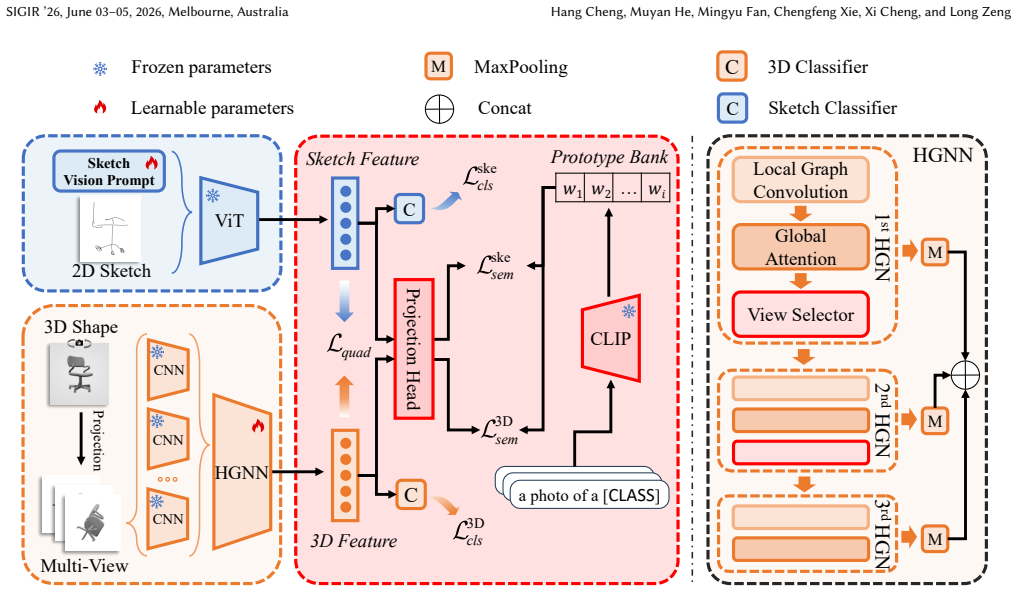

Figure 2
Figure 2. Figure 2: Overview of the proposed MV-HGNN framework. Left: Cross-modal alignment for 3D shape retrieval based on sketches. [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗

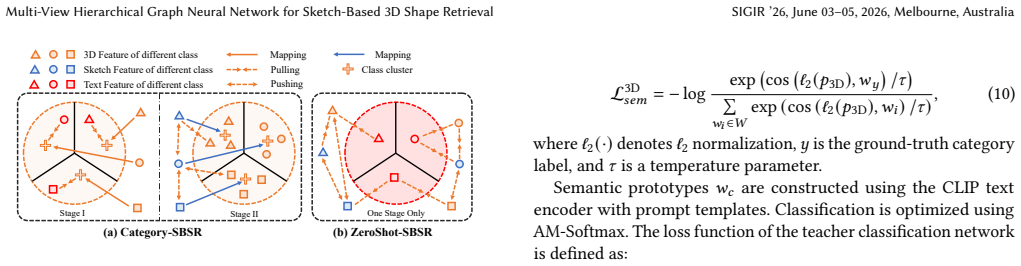

Figure 3
Figure 3. Figure 3: Illustration of the training strategies under [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗

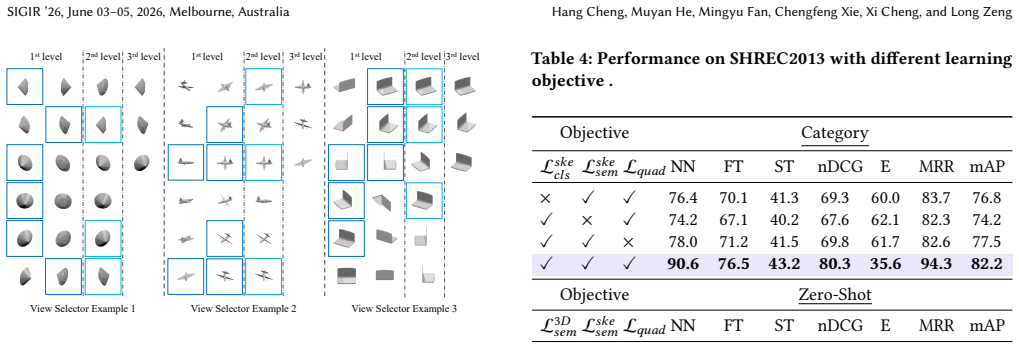

Figure 4
Figure 4. Figure 4: Examples of view selection results on 3D shapes [PITH_FULL_IMAGE:figures/full_fig_p008_4.png] view at source ↗

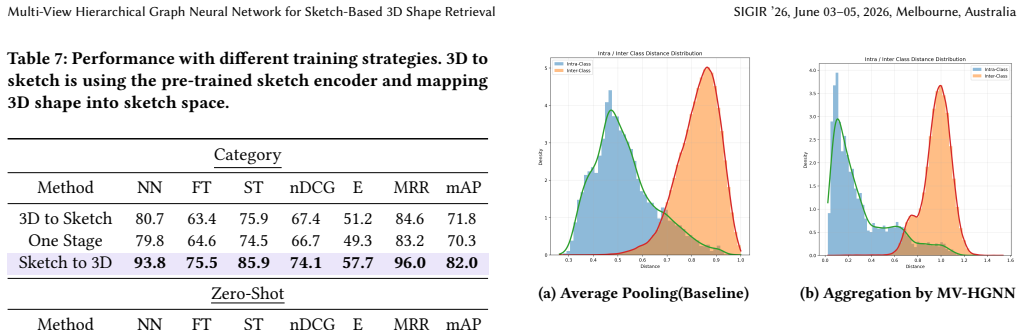

Figure 5
Figure 5. Figure 5: The frequency of intra-class and inter-class dis [PITH_FULL_IMAGE:figures/full_fig_p009_5.png] view at source ↗

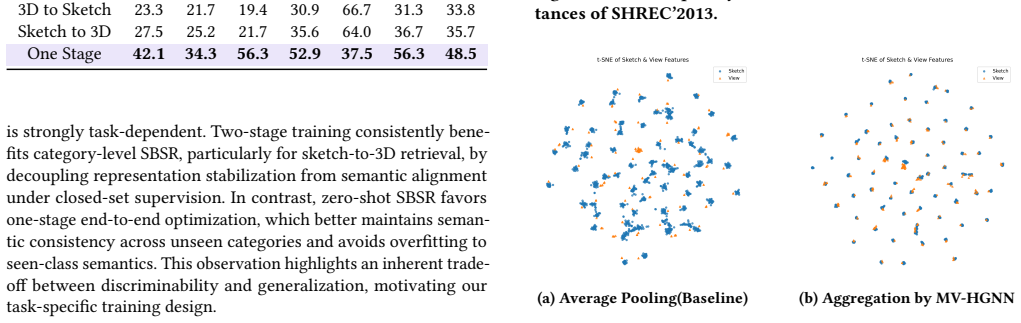

Figure 6
Figure 6. Figure 6: t-SNE Visualization of test samples on the [PITH_FULL_IMAGE:figures/full_fig_p009_6.png] view at source ↗

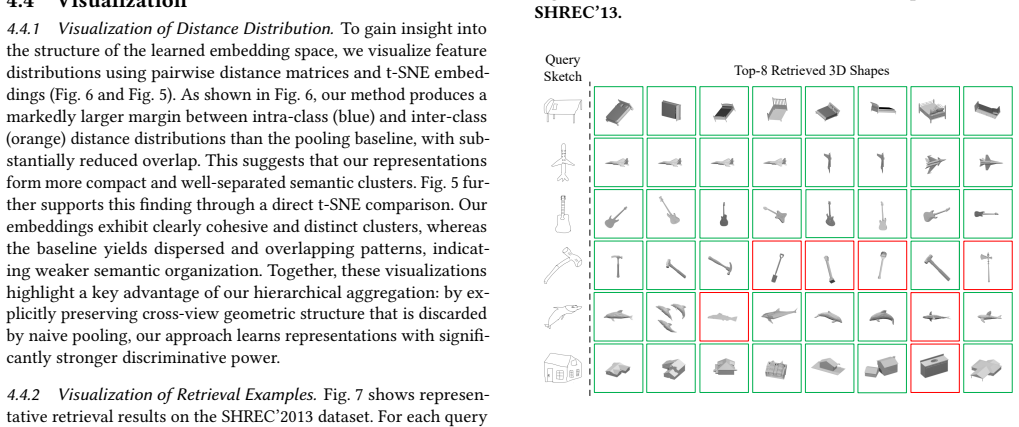

Figure 7
Figure 7. Figure 7: Retrieval examples for sketch-based 3D shape re [PITH_FULL_IMAGE:figures/full_fig_p009_7.png] view at source ↗
read the original abstract

Sketch-based 3D shape retrieval (SBSR) aims to retrieve 3D shapes that are consistent with the category of the input hand-drawn sketch. The core challenge of this task lies in two aspects: existing methods typically employ simplified aggregation strategies for independently encoded 3D multi-view features, which ignore the geometric relationships between views and multi-level details, resulting in weak 3D representation. Simultaneously, traditional SBSR methods are constrained by visible category limitations, leading to poor performance in zero-shot scenarios. To address these challenges, we propose Multi-View Hierarchical Graph Neural Network (MV-HGNN), a novel framework for SBSR. Specifically, we construct a view-level graph and capture adjacent geometric dependencies and cross-view message passing via local graph convolution and global attention. A view selector is further introduced to perform hierarchical graph coarsening, enabling a progressively larger receptive field for graph convolution and mitigating the interference of redundant views, which leads to more discriminate discriminative hierarchical 3D representation. To enable category agnostic alignment and mitigate overfitting to seen classes, we leverage CLIP text embeddings as semantic prototypes and project both sketch and 3D features into a shared semantic space. We use a two-stage training strategy for category-level retrieval and a one-stage strategy for zero-shot retrieval under the same model architecture. Under both category-level and zero-shot settings, extensive experiments on two public benchmarks demonstrate that MV-HGNN outperforms state-of-the-art methods.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 3 minor

Summary. The paper proposes MV-HGNN, a multi-view hierarchical graph neural network for sketch-based 3D shape retrieval. It builds a view-level graph to model geometric relationships among multi-view 3D features via local graph convolution and global attention, applies a view selector for hierarchical coarsening to enlarge receptive fields while reducing redundant views, and projects both sketch and 3D features into a shared CLIP semantic space for category-agnostic alignment. Separate training protocols (two-stage for category-level, one-stage for zero-shot) are used under the same architecture, with claims of outperformance over state-of-the-art methods on two public benchmarks under both settings.

Significance. If the reported gains hold under rigorous evaluation, the work would advance SBSR by replacing simplified multi-view aggregation with explicit graph-based modeling of view dependencies and hierarchical coarsening, while the CLIP-based projection offers a practical route to zero-shot generalization. The architecture's combination of local/global message passing and progressive coarsening provides a concrete, reproducible template for learning multi-level 3D representations from sketches that could transfer to related cross-modal retrieval tasks.

major comments (2)
  1. [§4] §4 (Experiments): The central claim of consistent outperformance in both category-level and zero-shot regimes rests on benchmark results, yet the manuscript supplies no statistical significance tests (e.g., paired t-tests or Wilcoxon ranks) across multiple runs, nor does it report variance or confidence intervals for the reported metrics; without these, it is impossible to determine whether the observed margins over baselines are reliable or could arise from random seed variation.
  2. [§3.3] §3.3 (View Selector): The hierarchical coarsening step is load-bearing for the claim of 'more discriminative hierarchical 3D representation,' but the description does not specify whether the view selector is trained end-to-end with a dedicated loss or via a separate pre-training stage; if the selector parameters are not jointly optimized with the downstream retrieval objective, the progressive receptive-field benefit may not materialize and the architecture reduces to standard multi-view pooling.
minor comments (3)
  1. [Abstract] Abstract: The phrase 'more discriminate discriminative hierarchical 3D representation' contains a repeated word; replace with 'more discriminative hierarchical 3D representation'.
  2. [§2] §2 (Related Work): The discussion of prior multi-view aggregation methods would benefit from an explicit comparison table listing the aggregation strategy (mean/max/attention) and whether geometric view relationships are modeled; this would clarify the precise novelty of the local-convolution-plus-global-attention design.
  3. [Figure 2] Figure 2: The diagram of the view-level graph construction and coarsening stages is difficult to follow because edge weights and the coarsening ratio are not annotated on the figure; adding these labels would improve readability.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the positive assessment and constructive comments. We address each major comment below and will revise the manuscript to incorporate the suggested clarifications and additions.

read point-by-point responses

  1. Referee: [§4] §4 (Experiments): The central claim of consistent outperformance in both category-level and zero-shot regimes rests on benchmark results, yet the manuscript supplies no statistical significance tests (e.g., paired t-tests or Wilcoxon ranks) across multiple runs, nor does it report variance or confidence intervals for the reported metrics; without these, it is impossible to determine whether the observed margins over baselines are reliable or could arise from random seed variation.

    Authors: We agree that statistical analysis would further strengthen the claims. The original submission reported single-run results, but the performance margins were observed to be stable across preliminary checks with different seeds. In the revised manuscript we will rerun all experiments with at least five random seeds, report mean and standard deviation for every metric, and include paired t-tests (or Wilcoxon signed-rank tests where appropriate) against the strongest baselines to confirm statistical significance of the improvements. revision: yes

  2. Referee: [§3.3] §3.3 (View Selector): The hierarchical coarsening step is load-bearing for the claim of 'more discriminative hierarchical 3D representation,' but the description does not specify whether the view selector is trained end-to-end with a dedicated loss or via a separate pre-training stage; if the selector parameters are not jointly optimized with the downstream retrieval objective, the progressive receptive-field benefit may not materialize and the architecture reduces to standard multi-view pooling.

    Authors: We apologize for the ambiguity in the original description. The view selector is trained end-to-end jointly with the rest of the MV-HGNN (graph convolutions, attention, and projection layers) using the same retrieval objective; no separate pre-training stage or dedicated loss is employed. This joint optimization ensures the coarsening decisions directly improve the final cross-modal alignment. We will insert an explicit statement in §3.3 of the revised manuscript clarifying the end-to-end training procedure. revision: yes

Circularity Check

0 steps flagged

No significant circularity

full rationale

The paper proposes an empirical neural architecture (view-level graph with local convolution plus global attention, hierarchical coarsening via view selector, and CLIP semantic projection) and reports its performance on external benchmarks under category-level and zero-shot protocols. No mathematical derivation, first-principles prediction, or parameter-fitting step is described that reduces to its own inputs by construction. Claims rest on experimental evaluation rather than self-definitional equations, fitted-input predictions, or load-bearing self-citations. The architecture is presented as a design choice evaluated externally, with no internal reduction of results to inputs.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

No explicit free parameters, mathematical axioms, or postulated physical entities appear in the abstract; the framework relies on standard graph convolution operations and pre-trained CLIP embeddings.
