arxiv: 2604.18295 · v1 · submitted 2026-04-20 · 🪐 quant-ph

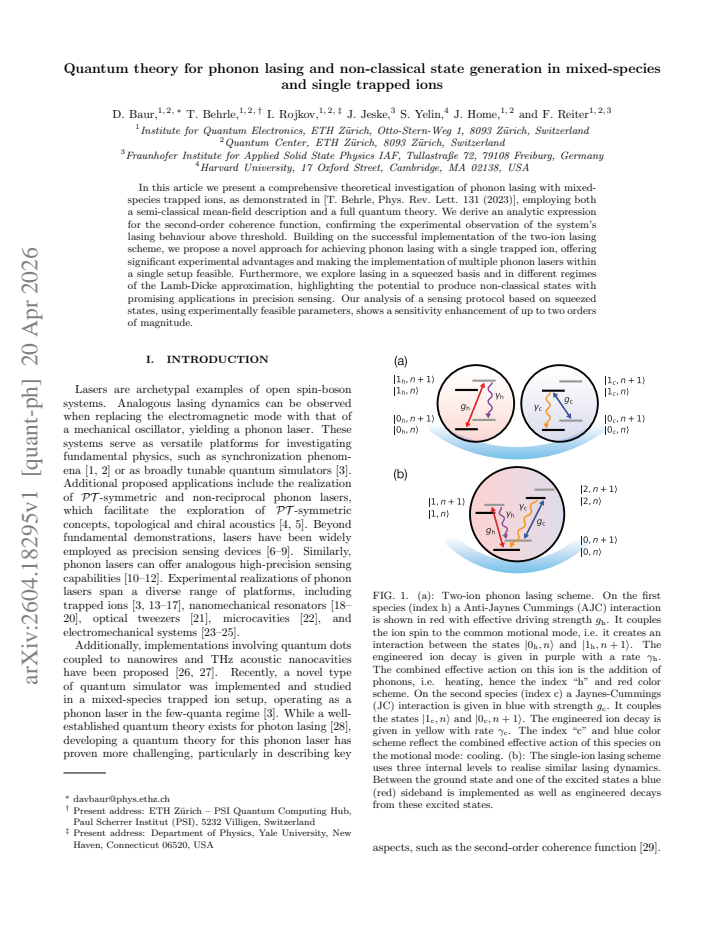

Quantum theory for phonon lasing and non-classical state generation in mixed-species and single trapped ions

David Baur , Tanja Behrle , Ivan Rojkov , Jan Jeske , Susanne Yelin , Jonathan Home , Florentin Reiter This is my paper

Pith reviewed 2026-05-10 04:32 UTC · model grok-4.3

classification 🪐 quant-ph
keywords phonon lasingtrapped ionsnon-classical statessqueezed statesquantum sensingsecond-order coherenceLamb-Dicke regime
0
0 comments X

The pith

Quantum theory confirms phonon lasing in mixed-species ions and extends it to single ions for non-classical states that enhance sensing by up to 100 times.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops both a semi-classical mean-field description and a full quantum theory for phonon lasing in mixed-species trapped ions. It derives an analytic expression for the second-order coherence function that confirms the system's lasing behavior above threshold, matching experimental observations. Building on the two-ion scheme, the work proposes a single-ion approach that simplifies implementation and allows multiple phonon lasers in one setup. The analysis further considers lasing in a squeezed basis across different Lamb-Dicke regimes to generate non-classical phonon states. A sensing protocol using these states is shown to deliver sensitivity improvements reaching two orders of magnitude with experimentally realistic parameters.

Core claim

The authors derive an analytic expression for the second-order coherence function of the phonon field in the mixed-species two-ion system, confirming lasing above threshold. They propose extending the model to achieve phonon lasing with a single trapped ion and explore operation in squeezed bases under varying Lamb-Dicke conditions, which produces non-classical states. Analysis of a sensing protocol based on these states, using feasible parameters, indicates sensitivity enhancements of up to two orders of magnitude.

What carries the argument

The master equation for the coupled ion-phonon dynamics, solved in mean-field approximation and fully quantum mechanically to yield the second-order coherence function, then extended to single-ion and squeezed representations.

If this is right

  • The second-order coherence function acts as a direct experimental signature of the lasing transition in these ion systems.
  • Phonon lasing becomes feasible in a single trapped ion without requiring mixed ion species.
  • Multiple independent phonon lasers can be realized within one experimental apparatus.
  • Non-classical phonon states arise from lasing in squeezed bases across different Lamb-Dicke regimes.
  • Sensing protocols achieve sensitivity gains of up to two orders of magnitude using the generated states and realistic parameters.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The single-ion scheme would integrate more readily with existing single-species ion trap hardware and control techniques.
  • The coherence function formula offers a practical diagnostic tool that experiments could apply immediately to verify lasing.
  • Similar squeezed-basis methods could be tested in other bosonic systems, such as cavity optomechanics, for comparable non-classical state generation.

Load-bearing premise

Additional decoherence channels and experimental imperfections remain negligible under the Lamb-Dicke and driving conditions assumed in the single-ion and squeezed-basis extensions.

What would settle it

An experiment implementing the proposed single-ion lasing scheme that fails to measure a second-order coherence function below one above the predicted threshold, or that shows no sensitivity gain in the squeezed-state sensing protocol, would disprove the central claims.

Figures

Figures reproduced from arXiv: 2604.18295 by David Baur, Florentin Reiter, Ivan Rojkov, Jan Jeske, Jonathan Home, Susanne Yelin, Tanja Behrle.

Figure 1
Figure 1. Figure 1: FIG. 1. (a): Two-ion phonon lasing scheme. On the first [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: The axes are given by the ratio of the two coherent [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 2
Figure 2. Figure 2: FIG. 2. Phase diagram as obtained from mean-field equations. [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 4

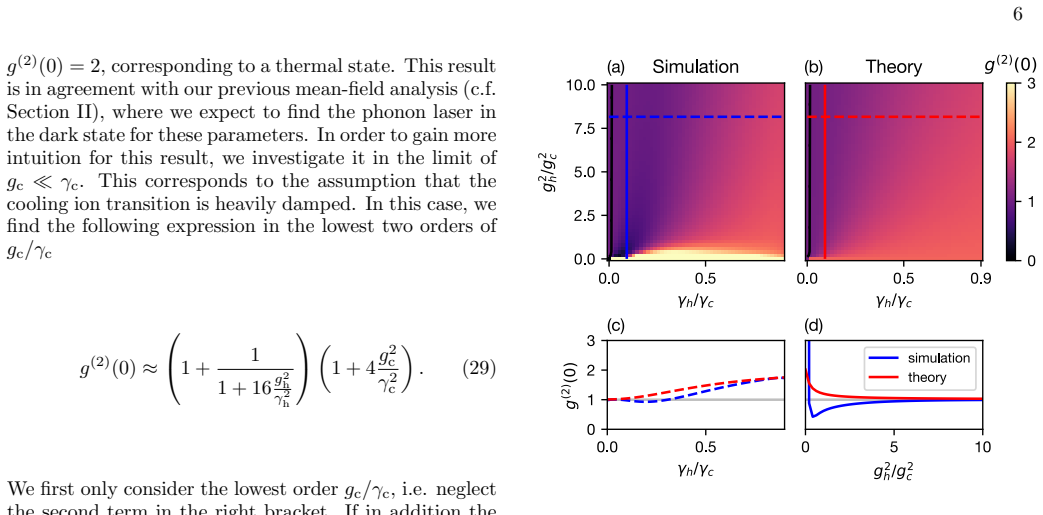

Figure 4. Figure 4: FIG. 4. Comparison of the second-order coherence function [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗
Figure 5

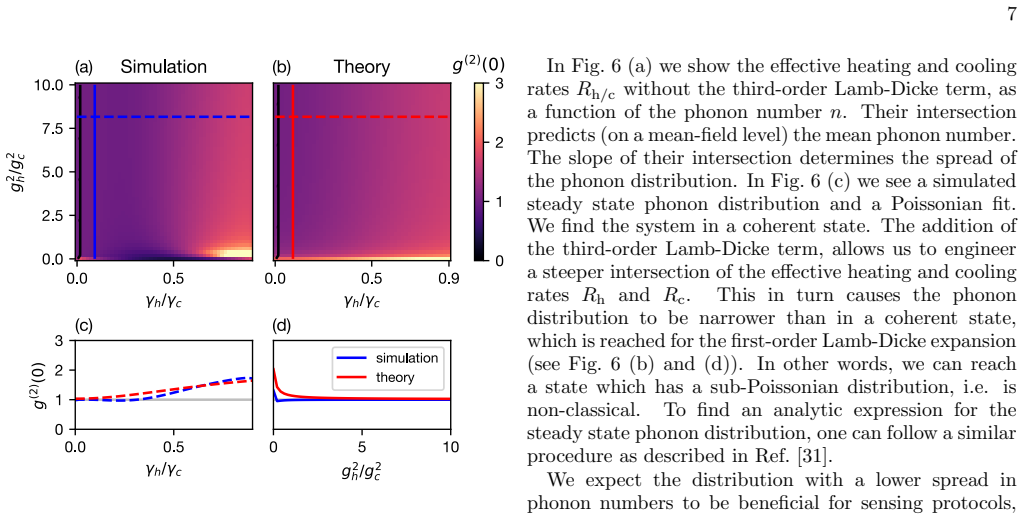

Figure 5. Figure 5: FIG. 5. Comparison between the second-order coherence [PITH_FULL_IMAGE:figures/full_fig_p007_5.png] view at source ↗
Figure 7
Figure 7. Figure 7: FIG. 7. Simulated Wigner function [PITH_FULL_IMAGE:figures/full_fig_p008_7.png] view at source ↗
Figure 6

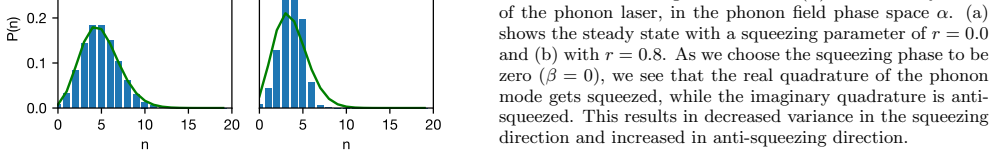

Figure 6. Figure 6: FIG. 6. (a) and (b): Comparison of the effective heating [PITH_FULL_IMAGE:figures/full_fig_p008_6.png] view at source ↗
Figure 8

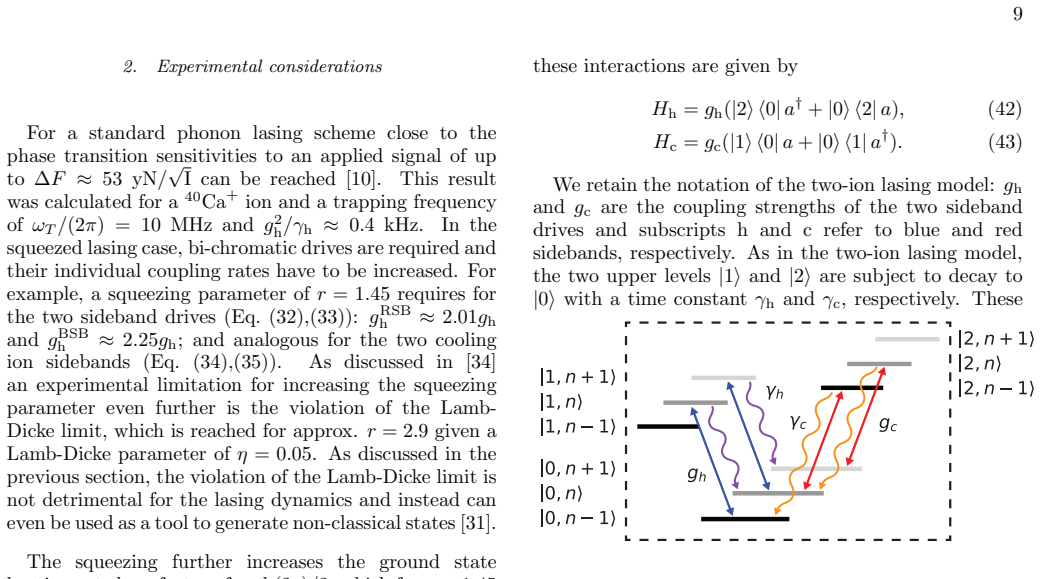

Figure 8. Figure 8: FIG. 8. The single-ion lasing scheme is based on three internal [PITH_FULL_IMAGE:figures/full_fig_p009_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: FIG. 9. Phase diagram as predicted by the mean-field result [PITH_FULL_IMAGE:figures/full_fig_p011_9.png] view at source ↗
Figure 11
Figure 11. Figure 11: FIG. 11. Comparison of the second-order coherence function [PITH_FULL_IMAGE:figures/full_fig_p012_11.png] view at source ↗
Figure 12
Figure 12. Figure 12: FIG. 12. Comparison of the second-order coherence function [PITH_FULL_IMAGE:figures/full_fig_p013_12.png] view at source ↗
Figure 14
Figure 14. Figure 14: FIG. 14. The steady-state phonon distribution (blue bars) simulated with up to third-order Lamb-Dicke terms. The green line [PITH_FULL_IMAGE:figures/full_fig_p025_14.png] view at source ↗
Figure 15
Figure 15. Figure 15: FIG. 15. Simulated Wigner function [PITH_FULL_IMAGE:figures/full_fig_p025_15.png] view at source ↗
read the original abstract

In this article we present a comprehensive theoretical investigation of phonon lasing with mixed-species trapped ions, as demonstrated in [T. Behrle, Phys. Rev. Lett. 131 (2023)], employing both a semi-classical mean-field description and a full quantum theory. We derive an analytic expression for the second-order coherence function, confirming the experimental observation of the system's lasing behaviour above threshold. Building on the successful implementation of the two-ion lasing scheme, we propose a novel approach for achieving phonon lasing with a single trapped ion, offering significant experimental advantages and making the implementation of multiple phonon lasers within a single setup feasible. Furthermore, we explore lasing in a squeezed basis and in different regimes of the Lamb-Dicke approximation, highlighting the potential to produce non-classical states with promising applications in precision sensing. Our analysis of a sensing protocol based on squeezed states, using experimentally feasible parameters, shows a sensitivity enhancement of up to two orders of magnitude.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper develops a semi-classical mean-field and full quantum theory for phonon lasing in mixed-species trapped ions, deriving an analytic expression for the second-order coherence function g^{(2)} that confirms lasing above threshold as observed in Behrle et al. (2023). It proposes a single-ion phonon lasing scheme, extends the model to lasing in a squeezed basis and varying Lamb-Dicke regimes, and analyzes a sensing protocol claiming up to 100-fold sensitivity enhancement using experimentally feasible parameters for non-classical phonon states.

Significance. If the analytic g^{(2)} derivation and the single-ion extension hold with the stated assumptions, the work offers a clear path to multiple phonon lasers in one apparatus and to metrological gains via squeezed motional states. The parameter-free aspects of the coherence function and the explicit mapping to feasible ion-trap parameters are strengths that could directly inform experiments.

major comments (2)
  1. [Abstract / sensing protocol analysis] Abstract and sensing-protocol section: the claimed sensitivity enhancement of up to two orders of magnitude is quadratic in the squeezing parameter, yet the extension from the two-ion model to single-ion squeezed lasing treats additional motional heating, phase noise, and off-resonant scattering as negligible without providing an explicit bound on the allowable rates before the squeezing (and thus the metrological gain) collapses. This assumption is load-bearing for the central claim.
  2. [Single-ion phonon lasing section] Single-ion scheme proposal: the analytic expressions and new protocol are presented as independent of the original two-ion fit, but no explicit comparison or reduction to the Behrle et al. parameters is given to confirm that the single-ion threshold and coherence predictions remain robust under realistic trap frequencies and laser intensities.
minor comments (2)
  1. The manuscript would benefit from an explicit table of all parameters used in the sensing-protocol numerics (Lamb-Dicke parameters, driving strengths, decoherence rates) to allow direct reproduction.
  2. Notation for the squeezed basis and the transition between Lamb-Dicke regimes should be defined once at first use to improve readability.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their careful reading and constructive feedback. We address the major comments point by point below, agreeing that additional explicit analysis will strengthen the manuscript.

read point-by-point responses

  1. Referee: Abstract / sensing protocol analysis: the claimed sensitivity enhancement of up to two orders of magnitude is quadratic in the squeezing parameter, yet the extension from the two-ion model to single-ion squeezed lasing treats additional motional heating, phase noise, and off-resonant scattering as negligible without providing an explicit bound on the allowable rates before the squeezing (and thus the metrological gain) collapses. This assumption is load-bearing for the central claim.

    Authors: We agree that the absence of explicit bounds on these noise sources weakens the support for the metrological claims. In the revised manuscript we will add a dedicated subsection to the sensing-protocol analysis deriving quantitative upper bounds on motional heating, phase noise, and off-resonant scattering rates that keep the squeezing parameter (and thus the quadratic sensitivity gain) intact. These bounds will be expressed in terms of experimentally accessible ion-trap parameters and will be cross-checked against typical values reported in the literature. revision: yes

  2. Referee: Single-ion phonon lasing section: the analytic expressions and new protocol are presented as independent of the original two-ion fit, but no explicit comparison or reduction to the Behrle et al. parameters is given to confirm that the single-ion threshold and coherence predictions remain robust under realistic trap frequencies and laser intensities.

    Authors: The single-ion scheme is obtained by direct specialization of the same master-equation and mean-field framework used for the two-ion case. To make the connection explicit, the revised version will include a short subsection that substitutes the trap frequencies, laser intensities, and Lamb-Dicke parameters from Behrle et al. (2023) into the single-ion threshold condition and analytic g^{(2)} expression, demonstrating that both the lasing threshold and the coherence predictions remain consistent and robust under those realistic values. revision: yes

Circularity Check

0 steps flagged

No significant circularity; derivations are independent analytic results anchored to external experiment

full rationale

The paper constructs a semi-classical mean-field model and full quantum treatment for the two-ion phonon lasing system, deriving an explicit analytic form for the second-order coherence g^{(2)} that is shown to match the threshold behavior observed in the cited prior experiment. This derivation proceeds from standard master-equation and mean-field approximations under stated Lamb-Dicke and driving conditions, without fitting parameters to the target observables and then relabeling them as predictions. The subsequent single-ion protocol, squeezed-basis extension, and sensing-protocol analysis are presented as new proposals using feasible parameters; they rely on the same model assumptions but introduce independent expressions and numerical estimates rather than reducing to self-citations or input fits by construction. The cited 2023 experiment serves only as external validation, not as a load-bearing premise that forces the new results.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Only the abstract is available, so the ledger cannot be populated with specific free parameters, axioms, or invented entities; the central claims rest on standard quantum-optics assumptions (Lamb-Dicke regime, Markovian baths) whose details are not supplied.

pith-pipeline@v0.9.0 · 5484 in / 1236 out tokens · 27052 ms · 2026-05-10T04:32:20.738406+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

43 extracted references · 1 canonical work pages

  1. [1]

    In this way, the in- formation of the operator order is retained when manipulating the equations

    Phonon distribution and coherence To find an expression for the phonon number statistics of the state, we calculate the expectation value of the dynamical equations in terms of the Fock levels⟨n|and|n ′⟩. In this way, the in- formation of the operator order is retained when manipulating the equations. For this derivation, we adopt the following notation b...

  2. [2]

    Applications in sensing We can use the symmetry breaking of the U(1) symmetric steady state of the phonon laser when subjected to an external periodic drive as an amplitude sensing scheme, as demonstrated in Ref. [3]. The highest susceptibility of the system is obtained near the lasing phase transition [10]. In order to quantify the sensitivity enhancemen...

  3. [3]

    This result was calculated for a 40Ca+ ion and a trapping frequency ofω T /(2π) = 10 MHz andg 2 h/γh ≈0.4 kHz

    Experimental considerations For a standard phonon lasing scheme close to the phase transition sensitivities to an applied signal of up to ∆F≈53 yN/ √ I can be reached [10]. This result was calculated for a 40Ca+ ion and a trapping frequency ofω T /(2π) = 10 MHz andg 2 h/γh ≈0.4 kHz. In the squeezed lasing case, bi-chromatic drives are required and their i...

  4. [4]

    Special caseγ h =γ c As described in the Appendix D we find the following evolution equation for the occupation probabilityp(n) ˙p(n) = κhn 1 + 8g2c γ2 (n−1) + 8 g2 h γ2 n p(n−1) − (κcn+κ h(n+ 1)) 1 + 8g2c γ2 n+ 8 g2 h γ2 (n+ 1) p(n) + κc(n+ 1) 1 + 8g2c γ2 (n+ 1) + 8 g2 h γ2 (n+ 2) p(n+ 1),(56) FIG. 10. Comparison of the simulated mean phonon number (a) a...

  5. [5]

    However, this result is only valid for a special hypersurface of the parameter space

    General case The above derivation is insightful, as we got a compact formula forg (2)(0). However, this result is only valid for a special hypersurface of the parameter space. To derive an analytic expression forg (2)(0) we assume γh ≈γ c. The resulting expression agrees well even when moving further away fromγ h =γ c into the lasing phase, whereγ h < γ c...

    2018

  6. [6]

    Sheng, X

    J. Sheng, X. Wei, C. Yang, and H. Wu, Phys. Rev. Lett. 124, 053604 (2020)

    2020

  7. [7]

    M. R. Hush, W. Li, S. Genway, I. Lesanovsky, and A. D. Armour, Phys. Rev. A91, 061401 (2015)

    2015

  8. [8]

    Behrle, T

    T. Behrle, T. L. Nguyen, F. Reiter, D. Baur, B. de Neeve, M. Stadler, M. Marinelli, F. Lancellotti, S. F. Yelin, and J. P. Home, Phys. Rev. Lett.131, 043605 (2023)

    2023

  9. [9]

    Jiang, S

    Y. Jiang, S. Maayani, T. Carmon, F. Nori, and H. Jing, Phys. Rev. Appl.10, 064037 (2018)

    2018

  10. [10]

    H. Jing, S. K. ¨Ozdemir, X.-Y. L¨ u, J. Zhang, L. Yang, and F. Nori, Phys. Rev. Lett.113, 053604 (2014)

    2014

  11. [11]

    Jeske, J

    J. Jeske, J. H. Cole, and A. D. Greentree, New J. Phys. 18, 013015 (2016)

    2016

  12. [12]

    Raman Nair, L

    S. Raman Nair, L. J. Rogers, D. J. Spence, R. P. Mildren, F. Jelezko, A. D. Greentree, T. Volz, and J. Jeske, Materials for Quantum Technology1, 025003 (2021)

    2021

  13. [13]

    Dumeige, J.-F

    Y. Dumeige, J.-F. Roch, F. Bretenaker, T. Debuisschert, V. Acosta, C. Becher, G. Chatzidrosos, A. Wickenbrock, L. Bougas, A. Wilzewski, and D. Budker, Opt. Express 27, 1706 (2019)

    2019

  14. [14]

    J. L. Webb, A. F. L. Poulsen, R. Staacke, J. Meijer, K. Berg-Sørensen, U. L. Andersen, and A. Huck, Phys. Rev. A103, 062603 (2021)

    2021

  15. [15]

    Fern´ andez-Lorenzo and D

    S. Fern´ andez-Lorenzo and D. Porras, Phys. Rev. A96, 013817 (2017)

    2017

  16. [16]

    Z. Liu, Y. Wei, L. Chen, J. Li, S. Dai, F. Zhou, and M. Feng, Phys. Rev. Applied16, 044007 (2021)

    2021

  17. [17]

    Wei, Y.-Z

    Y.-Q. Wei, Y.-Z. Wang, Z.-C. Liu, T.-H. Cui, L. Chen, J. Li, S.-Q. Dai, F. Zhou, and M. Feng, Science China Physics, Mechanics & Astronomy65, 110313 (2022)

    2022

  18. [18]

    Vahala, M

    K. Vahala, M. Herrmann, S. Kn¨ unz, V. Batteiger, G. Saathoff, T. W. H¨ ansch, and T. Udem, Nat. Phys.5, 682 (2009)

    2009

  19. [19]

    Kn¨ unz, M

    S. Kn¨ unz, M. Herrmann, V. Batteiger, G. Saathoff, T. W. H¨ ansch, K. Vahala, and T. Udem, Phys. Rev. Lett.105, 013004 (2010)

    2010

  20. [20]

    M. Ip, A. Ransford, A. M. Jayich, X. Long, C. Roman, and W. C. Campbell, Phys. Rev. Lett.121, 043201 (2018)

    2018

  21. [21]

    Lee, K.-T

    C.-Y. Lee, K.-T. Lin, and G.-D. Lin, Phys. Rev. Res.5, 023082 (2023)

    2023

  22. [22]

    Y. Xie, W. Wan, H. Y. Wu, F. Zhou, L. Chen, and M. Feng, Phys. Rev. A87, 053402 (2013)

    2013

  23. [23]

    Zhang, C

    Q. Zhang, C. Yang, J. Sheng, and H. Wu, Proceedings of the National Academy of Sciences119, e2207543119 (2022)

    2022

  24. [24]

    Kemiktarak, M

    U. Kemiktarak, M. Durand, M. Metcalfe, and J. Lawall, Phys. Rev. Lett.113, 030802 (2014)

    2014

  25. [25]

    J. D. Cohen, S. M. Meenehan, G. S. MacCabe, S. Gr¨ oblacher, A. H. Safavi-Naeini, F. Marsili, M. D. Shaw, and O. Painter, Nature520, 522 (2015)

    2015

  26. [26]

    R. M. Pettit, W. Ge, P. Kumar, D. R. Luntz-Martin, J. T. Schultz, L. P. Neukirch, M. Bhattacharya, and A. N. Vamivakas, Nat. Photonics13, 402 (2019)

    2019

  27. [27]

    I. S. Grudinin, H. Lee, O. Painter, and K. J. Vahala, Phys. Rev. Lett.104, 083901 (2010)

    2010

  28. [28]

    Y. Wen, N. Ares, F. J. Schupp, T. Pei, G. A. D. Briggs, and E. A. Laird, Nat. Phys.16, 75 (2020)

    2020

  29. [29]

    Mahboob, K

    I. Mahboob, K. Nishiguchi, A. Fujiwara, and H. Yamaguchi, Phys. Rev. Lett.110, 127202 (2013)

    2013

  30. [30]

    R. P. Beardsley, A. V. Akimov, M. Henini, and A. J. Kent, Phys. Rev. Lett.104, 085501 (2010)

    2010

  31. [31]

    Khaetskii, V

    A. Khaetskii, V. N. Golovach, X. Hu, and I. ˇZuti´ c, Phys. Rev. Lett.111, 186601 (2013)

    2013

  32. [32]

    Kabuss, A

    J. Kabuss, A. Carmele, T. Brandes, and A. Knorr, Phys. Rev. Lett.109, 054301 (2012)

    2012

  33. [33]

    M. O. Scully and W. E. Lamb, Phys. Rev.159, 208 (1967)

    1967

  34. [34]

    R. J. Glauber, Phys. Rev.130, 2529 (1963)

    1963

  35. [35]

    M. O. Scully and M. S. Zubairy,Quantum Optics (Cambridge University Press, 1997)

    1997

  36. [36]

    Rojkov, M

    I. Rojkov, M. Simoni, E. Zapusek, F. Reiter, and J. Home, Phys. Rev. X16, 011056 (2026)

    2026

  37. [37]

    Simoni, I

    M. Simoni, I. Rojkov, M. Mazzanti, W. Adam- czyk, A. Ferk, P. Hrmo, S. Jain, T. S¨ agesser, D. Kienzler, and J. Home, arXiv:2509.05734 (2025), 10.48550/arXiv.2509.05734

    work page doi:10.48550/arxiv.2509.05734 2025

  38. [38]

    Kienzler, H.-Y

    D. Kienzler, H.-Y. Lo, V. Negnevitsky, C. Fl¨ uhmann, M. Marinelli, and J. P. Home, Phys. Rev. Lett.119, 033602 (2017)

    2017

  39. [39]

    Kienzler, H.-Y

    D. Kienzler, H.-Y. Lo, B. Keitch, L. de Clercq, F. Le- upold, F. Lindenfelser, M. Marinelli, V. Negnevitsky, and J. P. Home, Science347, 53 (2015). 16 Appendix A: Derivation of mean-field equations In this section, we derive the time evolution equation for operator expectation values as it was used in the main text in equation Eq. (5). The time evolution ...

    2015

  40. [40]

    The stateρdescribes the motional state as well as the two spins which are given by heating and cooling ion

    Derivation of the heating spin expressions We start by defining the used notation. The stateρdescribes the motional state as well as the two spins which are given by heating and cooling ion. Specific levels of the heating and cooling spin at different Fock levels are denoted asρ xy,kl;nn′ :=⟨x| h ⟨k|c ⟨n|m ρ|n ′⟩m |l⟩c |y⟩h, wherex, y, k, l∈0,1. If we wan...

  41. [41]

    To find an expression for the cooling spins we use the solution of the heating ions derived before

    Derivation of the cooling spin expressions For the cooling spin, we have to take the coherent action of the heating ion into account, asg h ≫g c. To find an expression for the cooling spins we use the solution of the heating ions derived before. However, for this a further approximation is necessary. We assume that the cooling ion predominantly occupies i...

  42. [42]

    Higher-order Lamb-Dicke approximation We present in Fig. 14 the simulation results for an exemplary steady state of the single-ion phonon laser in the Lamb-Dicke regime, where higher order terms of the LD expansion have to be taken into account. The steady state shows similar sub-Poissonian statistics as in the two-ion case

  43. [43]

    15 we show an exemplary steady state of the single-ion phonon laser if the squeezing scheme as discussed in the main text is applied

    Squeezing In Fig. 15 we show an exemplary steady state of the single-ion phonon laser if the squeezing scheme as discussed in the main text is applied. We again find a qualitatively similar Wigner function, as in the two-ion lasing scheme. 20 0 20 Re( ) 20 0 20 Im( ) ( ) r = 0.5 0.000 0.005 0.010 FIG. 15. Simulated Wigner functionW(α) for the steady state...
