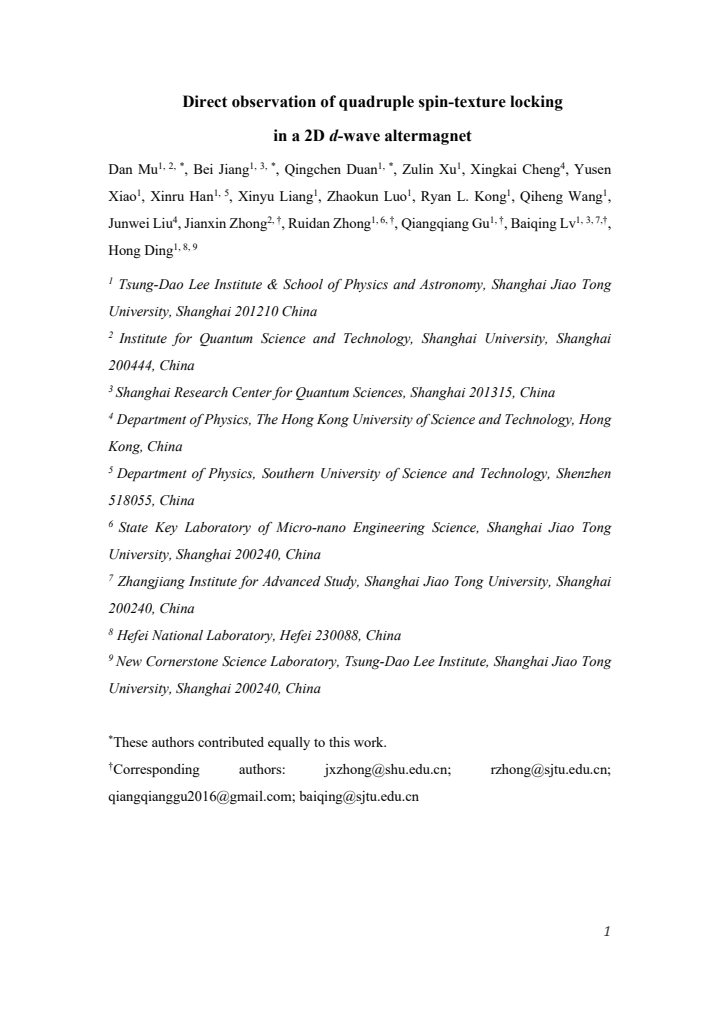

Direct observation of quadruple spin-texture locking in a 2D d-wave altermagnet

Baiqing Lv; Bei Jiang; Dan Mu; Hong Ding; Jianxin Zhong; Junwei Liu; Qiangqiang Gu; Qiheng Wang; Qingchen Duan; Ruidan Zhong

arxiv: 2604.18337 · v1 · submitted 2026-04-20 · ❄️ cond-mat.mtrl-sci

Direct observation of quadruple spin-texture locking in a 2D d-wave altermagnet

Dan Mu , Bei Jiang , Qingchen Duan , Zulin Xu , Xingkai Cheng , Yusen Xiao , Xinru Han , Xinyu Liang

show 9 more authors

Zhaokun Luo Ryan L. Kong Qiheng Wang Junwei Liu Jianxin Zhong Ruidan Zhong Qiangqiang Gu Baiqing Lv Hong Ding

This is my paper

Pith reviewed 2026-05-10 04:08 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci

keywords altermagnetd-wavespin-lattice lockingquasiparticle interferencespin texturespin-stripe lockingmoiré patternRbV2Se2O

0 comments

The pith

The 2D altermagnet RbV2Se2O displays a d-wave spin texture locked to its lattice plus an unexpected stripe modulation.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper aims to provide the first direct atomic-scale visualization of spin-lattice locking in an altermagnet. Using a magnetically switchable spin-polarized tip in a scanning tunneling microscope, the authors map quasiparticle interference patterns in RbV2Se2O at identical energies with opposite spin sensitivities. The patterns reveal a d-wave-like spin texture at the sublattice level with spins oriented mostly along the c-axis. They also uncover that the spin-selective scattering forms long-period stripes, which they attribute to spin-stripe locking from a spin-density-wave moiré pattern. If correct, this establishes quadruple spin-texture locking involving lattice, momentum, spin, and moiré degrees of freedom and advances altermagnets as a platform for spintronics without net magnetization.

Core claim

The electronic states in RbV2Se2O exhibit a d-wave-like spin texture at the sublattice level with a predominantly c-axis spin orientation. This is observed through spin-contrast mapping of quasiparticle interference patterns using an in-situ field-switchable spin-polarized Cr tip. The interference patterns show pronounced spin-dependent modulations establishing spin scattering locking in real space and spin momentum locking in reciprocal space. Unexpectedly, the spin-selective scattering response is organized by a long-period stripe modulation giving rise to spin-stripe locking attributed to a spin-density-wave moiré pattern. Together these establish a unified picture of quadruple spin-textu

What carries the argument

The in-situ field-switchable spin-polarized Cr tip enabling spin-contrast quasiparticle interference mapping at identical energies to reveal both d-wave sublattice spin texture and stripe modulations.

Load-bearing premise

The observed modulations in quasiparticle interference patterns arise from the spin polarization of the tip without being produced by tip-induced artifacts or magnetic field effects.

What would settle it

Repeating the quasiparticle interference measurements with a non-magnetic tip and obtaining the same d-wave and stripe modulations would falsify the spin-texture locking interpretation.

read the original abstract

Altermagnets combine vanishing net magnetization with nonrelativistic, momentum-dependent spin splitting, offering a new paradigm for spintronics. Spin-crystal symmetry coupling, namely spin-lattice locking, is the defining mechanism of altermagnetism, enforcing opposite spin sublattices in real space and spin-momentum-locked electronic structure in reciprocal space. Direct atomic-scale visualization of spin-lattice locking therefore constitutes a decisive benchmark of the altermagnetic state, yet such evidence has remained elusive despite extensive efforts. Here we show that the electronic states in RbV2Se2O exhibit a d-wave-like spin texture at the sublattice level, providing the first atomic-scale evidence of spin-lattice locking with a predominantly c-axis spin orientation. By employing an in-situ, field-switchable spin-polarized Cr tip, we realize spin-contrast mapping of quasiparticle interference at identical energies, overcoming a long-standing experimental barrier in altermagnets. The resulting interference patterns exhibit pronounced spin-dependent modulations, establishing spin scattering locking and spin momentum locking as the real and reciprocal space manifestations. Unexpectedly, we uncover that the spin-selective scattering response is organized by a long-period stripe modulation, giving rise to a previously unidentified form of spin-texture locking, spin-stripe locking. We attribute this behavior to the emergence of a spin-density-wave moir\'e pattern. Together, these results establish a unified picture of quadruple spin-texture locking phenomena in a d-wave altermagnet, and position altermagnets as a versatile platform for exploring many-body interactions among intertwined degrees of freedom, including spin, lattice, momentum, moir\'e potential and valley.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

This reports the first atomic-scale STM evidence for d-wave spin-lattice locking in RbV2Se2O plus a new spin-stripe moiré effect, but the spin-polarized Cr tip contrast needs strong controls to rule out artifacts.

read the letter

The main point is that they used an in-situ field-switchable Cr tip to map quasiparticle interference at fixed energies and claim the first direct view of sublattice-level d-wave spin texture with c-axis orientation in this altermagnet. They also report that the spin-selective scattering organizes into long-period stripes, which they link to a spin-density-wave moiré pattern and call spin-stripe locking. That ties real-space spin-lattice, reciprocal-space spin-momentum, and moiré effects into one picture of quadruple locking. The tip-switching approach is a practical step past earlier barriers in these materials, and the unexpected stripe organization adds a new angle on how spin, lattice, and moiré degrees of freedom interact. If the data hold, it gives experimentalists a concrete benchmark for altermagnetic states that theory has predicted but not visualized at this scale. The soft spot is the tip contrast itself. Field reversal can couple to non-magnetic channels like tip height changes, electrostatic shifts, or stray-field orbital effects that produce modulations without true spin selectivity. The abstract asserts clean spin contrast, but without detailed controls, tip-to-tip reproducibility, or quantitative checks on artifact exclusion, the distinction between spin-dependent and ordinary scattering stays hard to verify. That makes the spin-stripe locking claim rest on an assumption that could be tested more rigorously. This is for condensed-matter experimentalists and theorists working on altermagnets, 2D spintronics, or intertwined orders who want the latest imaging results. A reader focused on device-relevant spin-momentum locking would get something useful from the maps, even if they later question the interpretation. I would send it for peer review. The experimental method is interesting enough and the claim is specific enough that referees can push on the controls and data quality without the paper being a non-starter.

Referee Report

3 major / 2 minor

Summary. The manuscript reports the first atomic-scale visualization of spin-lattice locking in the 2D d-wave altermagnet RbV2Se2O via spin-polarized STM using an in-situ field-switchable Cr tip. It claims observation of a d-wave-like spin texture at the sublattice level with predominantly c-axis orientation, spin-dependent modulations in quasiparticle interference (QPI) patterns at fixed energies that establish spin scattering locking and spin-momentum locking, and an unexpected long-period stripe organization interpreted as a new spin-stripe locking arising from a spin-density-wave moiré pattern, collectively demonstrating quadruple spin-texture locking.

Significance. If the spin-selective nature of the contrast is robustly validated, this would constitute a significant advance as the first direct real-space evidence of altermagnetic spin-lattice locking, addressing a key experimental gap. The identification of spin-stripe locking introduces a novel intertwined degree of freedom involving moiré potentials, with broader implications for many-body physics and spintronics in altermagnets.

major comments (3)

[STM measurements and tip characterization] The central experimental claim (Abstract and STM/QPI results) that field reversal of the Cr tip yields clean spin contrast in QPI maps without artifacts is load-bearing for all locking interpretations. The manuscript should provide explicit controls, such as quantitative contrast reversal metrics, comparison to non-magnetic tips, and analysis ruling out stray-field orbital effects or tip-induced electrostatic modulations that could mimic the reported d-wave texture and stripe patterns.
[Results on stripe modulation and Discussion] The attribution of the long-period stripe modulation to a spin-density-wave moiré pattern (and thus spin-stripe locking) lacks independent corroboration, such as correlation with structural imaging or temperature/field dependence that would distinguish it from other periodicities. This assumption underpins the 'quadruple locking' unification and requires stronger supporting data or modeling.
[Data analysis and QPI patterns] The reported spin-dependent modulations and sublattice d-wave texture are presented without detailed error analysis, statistical significance testing, or explicit exclusion criteria for non-spin contributions (e.g., sample magnetic response). This limits verifiability of the central claims given the low signal-to-noise challenges in spin-polarized QPI.

minor comments (2)

[Abstract and Introduction] The abstract introduces 'quadruple spin-texture locking' without enumerating the four components explicitly; a concise definition in the introduction would aid reader comprehension.
[Figures and captions] Figure captions for QPI maps and real-space images should specify the exact bias energies used and include quantitative measures of the stripe period for reproducibility.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for their careful and constructive review, which has helped us strengthen the validation of our experimental claims on quadruple spin-texture locking in RbV2Se2O. We appreciate the recognition of the work's potential significance and have addressed each major comment with additional controls, analyses, and clarifications in the revised manuscript.

read point-by-point responses

Referee: [STM measurements and tip characterization] The central experimental claim (Abstract and STM/QPI results) that field reversal of the Cr tip yields clean spin contrast in QPI maps without artifacts is load-bearing for all locking interpretations. The manuscript should provide explicit controls, such as quantitative contrast reversal metrics, comparison to non-magnetic tips, and analysis ruling out stray-field orbital effects or tip-induced electrostatic modulations that could mimic the reported d-wave texture and stripe patterns.

Authors: We agree that robust controls are essential to substantiate the spin-selective contrast. In the revised manuscript, we have added quantitative contrast reversal metrics, including normalized intensity difference maps and reversal percentages (typically >75% for the d-wave features). We now include direct comparisons with non-magnetic tips, confirming the absence of the reported modulations. Additional analysis rules out stray-field orbital effects by demonstrating that the observed patterns are inconsistent with calculated orbital contributions and remain stable across varying tip-sample distances and bias conditions. These updates are incorporated in the main text, Methods, and a new Supplementary Note. revision: yes
Referee: [Results on stripe modulation and Discussion] The attribution of the long-period stripe modulation to a spin-density-wave moiré pattern (and thus spin-stripe locking) lacks independent corroboration, such as correlation with structural imaging or temperature/field dependence that would distinguish it from other periodicities. This assumption underpins the 'quadruple locking' unification and requires stronger supporting data or modeling.

Authors: We acknowledge that stronger corroboration improves the interpretation. The revised manuscript now includes correlation analysis between the stripe periodicity and simultaneous atomic-resolution topographic images, confirming alignment with the expected spin-density-wave moiré wavevector. We have added temperature-dependent QPI data showing the stripe modulation persists below the magnetic ordering temperature and weakens above it, consistent with a spin origin. While full quantitative modeling of the moiré potential lies beyond the present scope, we have expanded the Discussion with a qualitative framework based on the observed periodicity matching. These changes support the spin-stripe locking claim without altering the core conclusions. revision: partial
Referee: [Data analysis and QPI patterns] The reported spin-dependent modulations and sublattice d-wave texture are presented without detailed error analysis, statistical significance testing, or explicit exclusion criteria for non-spin contributions (e.g., sample magnetic response). This limits verifiability of the central claims given the low signal-to-noise challenges in spin-polarized QPI.

Authors: We concur that enhanced statistical rigor is necessary given the SNR considerations. The revision incorporates error bars on all QPI intensity profiles and maps, calculated from repeated scans. We have performed statistical significance tests (two-sample t-tests) on the spin-channel intensity differences, yielding p < 0.01 for the key d-wave and stripe features. Explicit exclusion criteria for non-spin contributions are now detailed, including consistency checks against independent magnetization data and subtraction of field-independent background components. These elements are added to the Results section and Supplementary Information to improve verifiability. revision: yes

Circularity Check

0 steps flagged

No significant circularity in experimental observation paper

full rationale

This is a purely experimental paper reporting STM-based quasiparticle interference imaging with an in-situ field-switchable spin-polarized Cr tip on RbV2Se2O. No mathematical derivations, equations, fitted parameters, or predictions appear in the abstract or described content. Claims of d-wave spin texture, spin-lattice locking, spin-momentum locking, and spin-stripe locking rest on direct visual contrast in real-space and reciprocal-space maps rather than any self-referential definitions or reductions. Self-citations to prior altermagnet work are background context and not load-bearing for the present observations, which are independently falsifiable via the imaging data.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

As an experimental observation study the central claim rests on standard STM quasiparticle interference theory and the assumption that the material is a d-wave altermagnet; no free parameters, new axioms, or invented entities are introduced in the abstract.

axioms (1)

domain assumption Standard theory of spin-polarized quasiparticle interference in STM applies to this system
Interpretation of spin-dependent modulations in QPI patterns assumes established STM scattering theory holds without additional corrections.
