arxiv: 2604.18817 · v1 · submitted 2026-04-20 · ⚛️ physics.comp-ph · cs.NA· math.NA

Nonuniform Iterative Phasing Framework and Sampling Requirements for 3D Dynamical Inversion from Coherent Surface Scattering Imaging

Jeffrey J. Donatelli , Miaoqi Chu , Zixi Hu , Zhang Jiang , Nicholas Schwarz , Jin Wang , James A. Sethian This is my paper

Pith reviewed 2026-05-10 02:41 UTC · model grok-4.3

classification ⚛️ physics.comp-ph cs.NAmath.NA
keywords coherent surface scattering imaging3D reconstructioniterative phasingdynamical scatteringnonuniform Fourier transformphase retrievalX-ray diffractionnanostructure imaging
0
0 comments X

The pith

A nonuniform iterative phasing method reconstructs high-resolution 3D nanostructures from CSSI data at only one or two incident angles despite dynamical scattering.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces a reconstruction framework that merges iterative projection phasing with fast nonuniform Fourier inversion techniques to recover 3D density from grazing-incidence X-ray rotation series. This addresses the nonuniform sampling and dynamical scattering inherent to CSSI experiments on thin specimens. A sympathetic reader would care because the approach enables detailed 3D imaging of nanostructures with far fewer measurements than conventional methods demand. The work also derives theoretical sampling requirements and uniqueness conditions for such data. Validation on simulated conical Siemens star and porous medium structures shows accurate recovery even when dynamical effects are significant.

Core claim

The central claim is that an iterative-projection phasing framework combined with fast nonuniform Fourier inversion methods can efficiently reconstruct isolated 3D structures from CSSI rotation-series data involving nonuniformly sampled Fourier values and dynamical scattering, with data from as few as one or two incident angles sufficing for high-resolution results.

What carries the argument

The nonuniform iterative phasing framework, which integrates iterative-projection-based phasing techniques with fast nonuniform Fourier inversion methods to handle nonuniform sampling and dynamical scattering in the data.

If this is right

  • High-resolution 3D structures can be recovered from CSSI data collected at only one or two incident angles even with significant dynamical scattering present.
  • Theoretical analysis yields specific requirements on experimental parameters such as angular sampling and characterizes conditions for unique solutions.
  • The same nonuniform reconstruction approach supplies a foundation for other phase-retrieval problems that involve nonlinear combinations of nonuniformly sampled Fourier values.
  • The method works for both isolated nanostructures and porous media when the dynamical scattering is accounted for inside the iterative projections.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Reducing the number of required angles could shorten beamtime at synchrotron facilities for 3D nanostructure imaging.
  • The uniqueness conditions derived here may guide experimental design choices in related coherent scattering geometries beyond CSSI.
  • The framework's handling of nonuniform Fourier data opens a path to generalizations that incorporate additional physical effects such as partial coherence without new parameters.
  • Application to experimental rather than simulated CSSI datasets would test whether the isolated-specimen assumption holds under realistic substrate interactions.

Load-bearing premise

The specimen is isolated and dynamical scattering effects can be incorporated or mitigated inside the iterative projection framework without introducing extra unknown parameters.

What would settle it

A reconstruction from real one-angle CSSI data on a known test structure such as a conical Siemens star that fails to match the true 3D density or produces persistent artifacts inconsistent with the input model would falsify the central claim.

Figures

Figures reproduced from arXiv: 2604.18817 by James A. Sethian, Jeffrey J. Donatelli, Jin Wang, Miaoqi Chu, Nicholas Schwarz, Zhang Jiang, Zixi Hu.

Figure 1
Figure 1. Figure 1: FIG. 1. Experimental CSSI geometry [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 3
Figure 3. Figure 3: FIG. 3. Example of the Fresnel reflection coefficient magnitude [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 2
Figure 2. Figure 2: FIG. 2. Four scattering events (Top) modeled by DWBA, [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 4
Figure 4. Figure 4: FIG. 4. High-level illustration of the proposed CSSI reconstruction framework, with computational representations shown beneath [PITH_FULL_IMAGE:figures/full_fig_p009_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: FIG. 5. Illustration of the staggered CSSI intensity grid. The [PITH_FULL_IMAGE:figures/full_fig_p013_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: FIG. 6. Illustration of the DWBA grid (defined in Eq. 55) and comparison to its associated staggered CSSI intensity grid [PITH_FULL_IMAGE:figures/full_fig_p017_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: FIG. 7. Flow diagram for the nonuniform iterative phasing [PITH_FULL_IMAGE:figures/full_fig_p020_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: FIG. 8. Illustrations of how the CSSI rotation series samples [PITH_FULL_IMAGE:figures/full_fig_p023_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: FIG. 9. Illustration of the missing candlestick region. The [PITH_FULL_IMAGE:figures/full_fig_p024_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: FIG. 10. 2D slices of the calculated weights [PITH_FULL_IMAGE:figures/full_fig_p027_10.png] view at source ↗

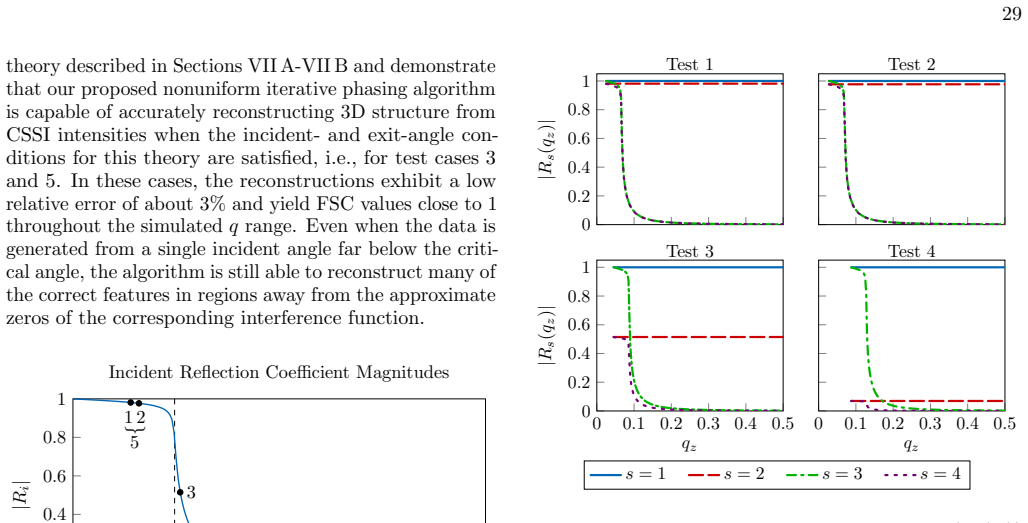

Figure 13
Figure 13. Figure 13: FIG. 13. DWBA reflection coefficient magnitudes [PITH_FULL_IMAGE:figures/full_fig_p029_13.png] view at source ↗

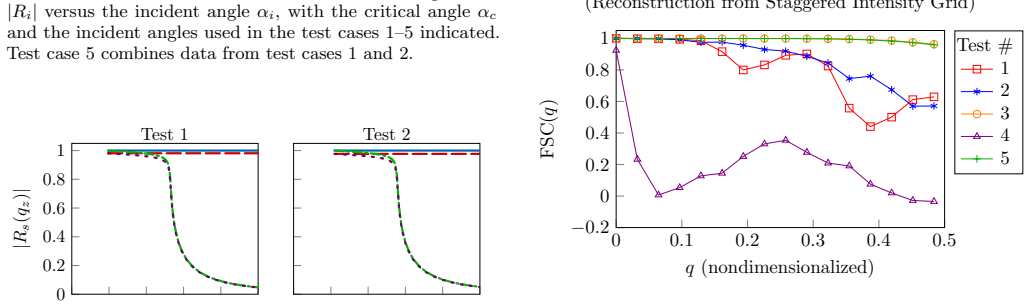

Figure 14
Figure 14. Figure 14: FIG. 14. Fourier shell correlation (FSC) for the reconstructions [PITH_FULL_IMAGE:figures/full_fig_p029_14.png] view at source ↗

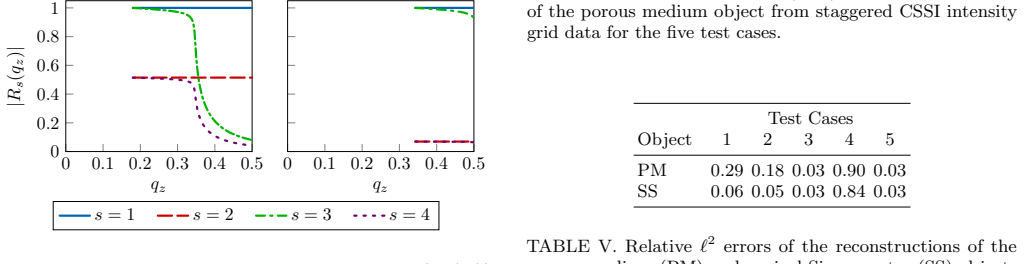

Figure 12
Figure 12. Figure 12: FIG. 12. DWBA reflection coefficient magnitudes [PITH_FULL_IMAGE:figures/full_fig_p029_12.png] view at source ↗
Figure 15
Figure 15. Figure 15: FIG. 15. Fourier shell correlation (FSC) for the reconstruc [PITH_FULL_IMAGE:figures/full_fig_p030_15.png] view at source ↗
Figure 16
Figure 16. Figure 16: FIG. 16. Fourier shell correlation (FSC) for the reconstructions [PITH_FULL_IMAGE:figures/full_fig_p031_16.png] view at source ↗
Figure 17
Figure 17. Figure 17: FIG. 17. Fourier shell correlation (FSC) for the reconstructions [PITH_FULL_IMAGE:figures/full_fig_p031_17.png] view at source ↗
Figure 19
Figure 19. Figure 19: FIG. 19. Fourier shell correlation (FSC) for the reconstructions [PITH_FULL_IMAGE:figures/full_fig_p032_19.png] view at source ↗
Figure 18
Figure 18. Figure 18: FIG. 18. Fourier shell correlation (FSC) for the reconstructions [PITH_FULL_IMAGE:figures/full_fig_p032_18.png] view at source ↗
Figure 20
Figure 20. Figure 20: FIG. 20. Ground truth and reconstructions of the porous medium from staggered CSSI intensity grid data. For each example, [PITH_FULL_IMAGE:figures/full_fig_p036_20.png] view at source ↗
Figure 21
Figure 21. Figure 21: FIG. 21. Ground truth and reconstructions of the conical Siemens star from staggered CSSI intensity grid data. For each [PITH_FULL_IMAGE:figures/full_fig_p037_21.png] view at source ↗
Figure 22
Figure 22. Figure 22: FIG. 22. Examples of the simulated CSSI diffraction images generated from the porous medium (PM) and conical Siemens star [PITH_FULL_IMAGE:figures/full_fig_p038_22.png] view at source ↗
Figure 23
Figure 23. Figure 23: FIG. 23. 2D slices of the ground-truth porous-medium diffraction volumes compared with the diffraction volumes recovered [PITH_FULL_IMAGE:figures/full_fig_p039_23.png] view at source ↗
Figure 24
Figure 24. Figure 24: FIG. 24. 2D slices of the ground-truth conical-Siemens-star diffraction volumes compared with the diffraction volumes recovered [PITH_FULL_IMAGE:figures/full_fig_p040_24.png] view at source ↗
Figure 25
Figure 25. Figure 25: FIG. 25. Reconstructions of the porous medium and conical Siemens star from the reduced rotation-series data. For each object, [PITH_FULL_IMAGE:figures/full_fig_p041_25.png] view at source ↗
Figure 26
Figure 26. Figure 26: FIG. 26. Examples of noisy CSSI diffraction images simulated from the porous medium with [PITH_FULL_IMAGE:figures/full_fig_p042_26.png] view at source ↗
Figure 27
Figure 27. Figure 27: FIG. 27. Examples of noisy CSSI diffraction images simulated from the conical Siemens star with [PITH_FULL_IMAGE:figures/full_fig_p043_27.png] view at source ↗
Figure 28
Figure 28. Figure 28: FIG. 28. 2D slices of the CSSI diffraction volumes recovered from the porous-medium rotation-series data simulated with [PITH_FULL_IMAGE:figures/full_fig_p044_28.png] view at source ↗
Figure 29
Figure 29. Figure 29: FIG. 29. 2D slices of the CSSI diffraction volumes recovered from the conical-Siemens-star rotation-series data simulated with [PITH_FULL_IMAGE:figures/full_fig_p045_29.png] view at source ↗
Figure 30
Figure 30. Figure 30: FIG. 30. Reconstructions of the porous medium from its rotation-series data simulated with [PITH_FULL_IMAGE:figures/full_fig_p046_30.png] view at source ↗
Figure 31
Figure 31. Figure 31: FIG. 31. Reconstructions of the conical Siemens star from its rotation-series data simulated with [PITH_FULL_IMAGE:figures/full_fig_p047_31.png] view at source ↗
read the original abstract

Coherent surface scattering imaging (CSSI) is an emerging experimental technique uniquely suited to probing the structure of thin nanostructures. In these experiments, a specimen is placed on a substrate, and a series of X-ray diffraction patterns is collected at grazing incidence angles as the specimen is rotated. However, reconstructing the specimen's 3D structure from the data is challenging due to dynamical scattering effects induced by the experimental geometry and the lack of direct phase measurements. Specifically, the data involves nonuniformly sampled Fourier-transform values of the specimen density, and failure to effectively address this nonuniformity can lead to errors or degraded performance. Here we introduce a mathematical inversion framework that combines iterative-projection-based phasing techniques with new fast nonuniform Fourier inversion methods to efficiently reconstruct isolated 3D structures from their CSSI rotation-series data. We also analyze the theoretical properties of CSSI reconstruction to derive requirements on experimental parameters and characterize solution uniqueness. We validate our approach using CSSI data simulated from a conical Siemens star and a porous medium, demonstrating that high-resolution 3D structures can be reconstructed even in the presence of significant dynamical scattering, from data collected at as few as one or two incident angles. More broadly, the presented nonuniform reconstruction framework provides a foundation for solving challenging generalizations of the phase problem in which measurements involve nonlinear combinations of nonuniformly sampled Fourier values.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 3 minor

Summary. The paper introduces a nonuniform iterative phasing framework for 3D reconstruction of isolated structures from Coherent Surface Scattering Imaging (CSSI) rotation-series data. It combines established iterative projection phasing methods with fast nonuniform Fourier transform techniques to handle nonuniformly sampled Fourier values and dynamical scattering effects. The authors derive theoretical sampling requirements and solution uniqueness conditions under the isolated-specimen model, then validate the approach via simulations on a conical Siemens star and a porous medium, claiming that high-resolution 3D reconstructions remain feasible from as few as one or two incident angles despite significant dynamical scattering.

Significance. If the central claim holds, the work would provide a useful computational foundation for CSSI-based 3D imaging of thin nanostructures, reducing the experimental burden of multi-angle data collection. The application of standard phasing and NUFFT tools to this specific nonuniform geometry, together with the explicit sampling/uniqueness analysis, represents a clear incremental advance. The simulated validations on two distinct test objects lend concrete support, though the absence of real experimental data and quantitative error metrics in the reported results limits the immediate strength of the robustness claims.

major comments (2)
  1. [Validation section] Validation section: The simulated reconstructions on the conical Siemens star and porous medium are presented as evidence that high-resolution 3D recovery is possible from one or two angles even with dynamical scattering, but no quantitative error metrics (e.g., R-factor, MSE, or Fourier shell correlation values) or resolution estimates are reported. This omission is load-bearing for the central claim of robustness, as visual inspection alone does not substantiate the 'high-resolution' or 'significant dynamical scattering' assertions.
  2. [Theoretical analysis] Theoretical analysis: The uniqueness and sampling requirements are derived under the isolated-specimen model with dynamical scattering incorporated into the forward operator. The paper should explicitly test or bound the sensitivity of the reconstruction to violations of isolation (e.g., extended substrate effects or model mismatch), as this assumption underpins the claim that no additional free parameters are needed.
minor comments (3)
  1. [Abstract] Abstract: The claim of successful reconstruction 'even in the presence of significant dynamical scattering' would be strengthened by including at least one quantitative performance metric from the simulations.
  2. [Discussion] The manuscript would benefit from a brief discussion of how the framework behaves under realistic noise levels or partial coherence, even if only as a forward-looking remark.
  3. [Methods] Notation for the nonuniform sampling operator and the projection operators could be introduced with a small table or explicit equation reference to improve readability for readers unfamiliar with CSSI geometry.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive review and recommendation of minor revision. We address each major comment below and will revise the manuscript accordingly.

read point-by-point responses

  1. Referee: [Validation section] Validation section: The simulated reconstructions on the conical Siemens star and porous medium are presented as evidence that high-resolution 3D recovery is possible from one or two angles even with dynamical scattering, but no quantitative error metrics (e.g., R-factor, MSE, or Fourier shell correlation values) or resolution estimates are reported. This omission is load-bearing for the central claim of robustness, as visual inspection alone does not substantiate the 'high-resolution' or 'significant dynamical scattering' assertions.

    Authors: We agree that quantitative metrics would strengthen the validation. In the revised manuscript we will add R-factor, MSE, and Fourier shell correlation (FSC) curves comparing the reconstructions to ground truth for both test objects, computed across the one- and two-angle cases with varying dynamical scattering strengths. These additions will quantify resolution and reconstruction fidelity beyond visual inspection. revision: yes

  2. Referee: [Theoretical analysis] Theoretical analysis: The uniqueness and sampling requirements are derived under the isolated-specimen model with dynamical scattering incorporated into the forward operator. The paper should explicitly test or bound the sensitivity of the reconstruction to violations of isolation (e.g., extended substrate effects or model mismatch), as this assumption underpins the claim that no additional free parameters are needed.

    Authors: The isolated-specimen model is essential to our derivation of sampling requirements and uniqueness conditions. We will revise the theoretical analysis section to include an explicit discussion bounding the sensitivity to small violations of isolation, such as weak substrate scattering terms, and note that the approximation holds for the thin nanostructures targeted by CSSI. A full numerical sensitivity study lies outside the present scope, but the added bounds will clarify the robustness of the no-extra-parameter claim. revision: partial

Circularity Check

0 steps flagged

Established phasing and NUFFT methods applied to CSSI geometry; no equations reduce output to fitted inputs or self-citations

full rationale

The derivation combines standard iterative projection phasing with nonuniform FFT inversion for the CSSI rotation series under an isolated-specimen model. Uniqueness and sampling requirements are derived directly from the nonuniform Fourier sampling geometry without reducing to fitted parameters or prior self-citations as load-bearing premises. Simulations use forward models consistent with the inverse but do not force the reconstruction result by construction. No self-definitional loops, fitted inputs renamed as predictions, or ansatz smuggling appear in the framework description.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The approach rests on standard Fourier analysis and phase retrieval assumptions plus domain-specific modeling of grazing-incidence geometry; no new physical entities are postulated.

axioms (2)
  • domain assumption Measurements correspond to nonuniformly sampled Fourier transforms of an isolated specimen density.
    Invoked to justify the need for nonuniform inversion methods.
  • standard math Iterative projections can enforce consistency with the measured magnitudes and support constraints.
    Core of the phasing technique.
