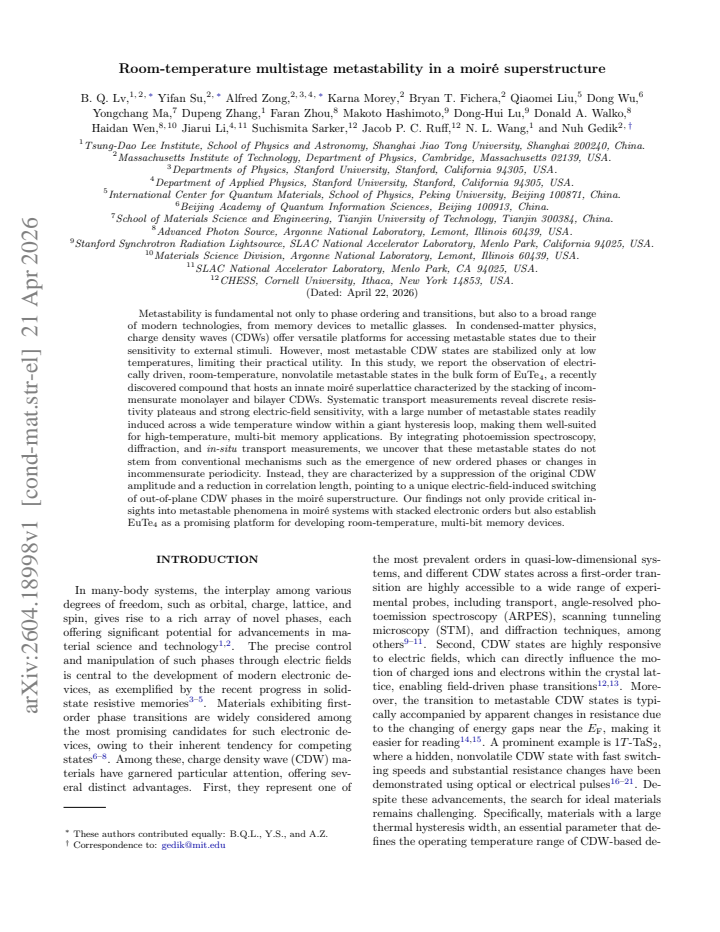

Room-temperature multistage metastability in a moir\'e superstructure

Authors on Pith no claims yet

Pith reviewed 2026-05-10 02:22 UTC · model grok-4.3

classification ❄️ cond-mat.str-el cond-mat.mtrl-sci
keywords charge density wavemoiré superlatticemetastable statesEuTe4room temperatureelectric fieldnonvolatile memoryCDW amplitude
0
0 comments X

The pith

Electric fields create multiple nonvolatile room-temperature metastable states in EuTe4 by switching out-of-plane CDW phases in its moiré superstructure.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper shows that bulk EuTe4, which naturally forms a moiré superlattice from stacked incommensurate monolayer and bilayer charge density waves, supports electrically driven multistage metastable states that remain stable at room temperature. Transport measurements reveal these states as discrete resistivity plateaus inside a giant hysteresis loop, with strong sensitivity to electric fields across a broad temperature range. Photoemission, diffraction, and in-situ transport data indicate that the states arise from a suppression of the original CDW amplitude together with a shorter correlation length, rather than from new ordered phases or shifts in incommensurate periodicity. This points to electric-field-induced switching between different out-of-plane CDW configurations within the moiré pattern, offering a mechanism for high-temperature multi-bit memory.

Core claim

In EuTe4, electric fields induce multiple nonvolatile metastable states at room temperature. These states appear as discrete resistivity plateaus and are marked by reduced CDW amplitude and correlation length. The changes result from electric-field-induced switching of out-of-plane CDW phases inside the moiré superstructure formed by incommensurate monolayer and bilayer CDWs, rather than from conventional routes such as new ordered phases or altered incommensurate periodicity.

What carries the argument

The moiré superstructure formed by stacking incommensurate monolayer and bilayer CDWs, which permits electric-field-induced switching of out-of-plane CDW phases and thereby produces metastable states with suppressed amplitude and reduced correlation length.

If this is right

  • Discrete resistivity plateaus and nonvolatility inside a giant hysteresis loop enable multi-bit memory operation at room temperature.
  • Metastable states form readily across a wide temperature window under electric-field control.
  • The states arise without emergence of new ordered phases or changes in incommensurate periodicity.
  • The mechanism supplies insights into metastable behavior in moiré systems that contain stacked electronic orders.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Layered compounds with similar stacked incommensurate CDW moiré patterns may display comparable room-temperature multistage metastability under electric fields.
  • Control of CDW amplitude through out-of-plane phase switching offers a general route to create multiple stable resistance states in moiré materials.
  • The combination of transport hysteresis with amplitude and correlation-length changes could be used to map phase stability in related bulk moiré systems.

Load-bearing premise

The observed metastable states are produced specifically by electric-field-induced switching of out-of-plane CDW phases in the moiré superstructure rather than by defect dynamics, local heating, or undetected new phases.

What would settle it

Diffraction or photoemission measurements performed after electric-field application that show no reduction in CDW amplitude or correlation length would rule out the proposed switching mechanism.

read the original abstract

Metastability is fundamental not only to phase ordering and transitions, but also to a broad range of modern technologies, from memory devices to metallic glasses. In condensed-matter physics, charge density waves (CDWs) offer versatile platforms for accessing metastable states due to their sensitivity to external stimuli. However, most metastable CDW states are stabilized only at low temperatures, limiting their practical utility. In this study, we report the observation of electrically driven, room-temperature, nonvolatile metastable states in the bulk form of EuTe$_4$, a recently discovered compound that hosts an innate moir\'e superlattice characterized by the stacking of incommensurate monolayer and bilayer CDWs. Systematic transport measurements reveal discrete resistivity plateaus and strong electric-field sensitivity, with a large number of metastable states readily induced across a wide temperature window within a giant hysteresis loop, making them well-suited for high-temperature, multi-bit memory applications. By integrating photoemission spectroscopy, diffraction, and in-situ transport measurements, we uncover that these metastable states do not stem from conventional mechanisms such as the emergence of new ordered phases or changes in incommensurate periodicity. Instead, they are characterized by a suppression of the original CDW amplitude and a reduction in correlation length, pointing to a unique electric-field-induced switching of out-of-plane CDW phases in the moir\'e superstructure. Our findings not only provide critical insights into metastable phenomena in moir\'e systems with stacked electronic orders but also establish EuTe$_4$ as a promising platform for developing room-temperature, multi-bit memory devices.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper reports the observation of electrically driven, room-temperature, nonvolatile multistage metastable states in bulk EuTe4, which hosts an innate moiré superlattice from stacked incommensurate monolayer and bilayer CDWs. Transport measurements reveal discrete resistivity plateaus and giant hysteresis loops with many accessible states; combined PES, diffraction, and in-situ transport data indicate these states arise from suppression of the original CDW amplitude and reduced correlation length, attributed to electric-field-induced switching between out-of-plane CDW phases in the moiré structure rather than new ordered phases or changes in incommensurate periodicity. The work positions EuTe4 as a platform for high-temperature multi-bit memory applications.

Significance. If the central mechanism attribution holds, the result would be significant for demonstrating room-temperature multistability in a CDW moiré system and for potential memory-device applications. The integration of transport, photoemission, and diffraction measurements on the same samples is a positive feature, as is the focus on a bulk material with an innate moiré superstructure. However, the current lack of quantitative details limits the immediate impact.

major comments (2)
  1. [Abstract and mechanism discussion] Abstract and mechanism discussion: The positive identification of the metastable states as arising specifically from electric-field-induced switching of out-of-plane CDW phases rests on the observed suppression of CDW amplitude and reduction in correlation length. These signatures are also expected for alternative processes such as field-induced domain reconfiguration, depinning, or partial in-plane disorder without any change in interlayer stacking order. No data on out-of-plane superlattice reflections or stacking-sensitive intensities are presented to distinguish the proposed mechanism from these alternatives.
  2. [Transport measurements section] Transport results: The description of discrete resistivity plateaus and the giant hysteresis loop lacks quantitative details such as error bars, the number of devices or samples measured, statistics on plateau reproducibility, and the criteria used to define 'discrete' states. This information is necessary to assess whether the multistage behavior is robust and load-bearing for the central claim of electrically driven metastability.
minor comments (2)
  1. [Abstract] The abstract states that new ordered phases and periodicity changes are ruled out, but does not specify the quantitative thresholds or fitting procedures used in the PES and diffraction analysis to reach this conclusion.
  2. [Figures and captions] Figure captions and text should clarify the temperature range over which the metastable states remain nonvolatile and the maximum number of distinct states accessed.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the careful reading of our manuscript and the constructive comments, which help clarify the presentation of our results. We address each major comment below and describe the revisions we will implement.

read point-by-point responses
  1. Referee: [Abstract and mechanism discussion] Abstract and mechanism discussion: The positive identification of the metastable states as arising specifically from electric-field-induced switching of out-of-plane CDW phases rests on the observed suppression of CDW amplitude and reduction in correlation length. These signatures are also expected for alternative processes such as field-induced domain reconfiguration, depinning, or partial in-plane disorder without any change in interlayer stacking order. No data on out-of-plane superlattice reflections or stacking-sensitive intensities are presented to distinguish the proposed mechanism from these alternatives.

    Authors: We appreciate the referee's observation that suppression of CDW amplitude and reduced correlation length are not unique to out-of-plane phase switching and could arise from domain reconfiguration, depinning, or partial in-plane disorder. Our PES and diffraction data, together with the in-situ transport measurements, explicitly exclude the formation of new ordered phases or modifications to the incommensurate periodicity. The nonvolatile, multistage character of the hysteresis at room temperature, combined with the temperature range over which the states persist, is most consistent with switching between out-of-plane CDW phases enabled by the innate moiré stacking. Nevertheless, we agree that a more explicit discussion of the alternative scenarios is warranted. In the revised manuscript we will expand the mechanism section to compare the expected signatures of each alternative against our full dataset and to state the limitations of the current evidence. We note that direct out-of-plane superlattice or stacking-sensitive intensity measurements are experimentally challenging in bulk crystals under the applied in-situ conditions, but the existing multi-probe dataset supports the proposed interpretation. revision: partial

  2. Referee: [Transport measurements section] Transport results: The description of discrete resistivity plateaus and the giant hysteresis loop lacks quantitative details such as error bars, the number of devices or samples measured, statistics on plateau reproducibility, and the criteria used to define 'discrete' states. This information is necessary to assess whether the multistage behavior is robust and load-bearing for the central claim of electrically driven metastability.

    Authors: We agree that quantitative details are required to substantiate the robustness of the multistage metastability. In the revised manuscript we will add error bars to all resistivity-versus-voltage traces, report the number of devices and independent samples measured (typically five to ten devices from multiple batches), include statistics on plateau reproducibility (e.g., the fraction of devices exhibiting at least N distinct plateaus), and explicitly define the criterion for a 'discrete' state (plateau width exceeding the rms noise level by a factor of three). These additions will be placed in the transport section and the associated figure captions. revision: yes

Circularity Check

0 steps flagged

No circularity: experimental claims rest on independent measurements

full rationale

The paper presents direct experimental results from transport, photoemission spectroscopy, and diffraction on EuTe4. The metastable states are characterized by observed resistivity plateaus, suppressed CDW amplitude, and reduced correlation length. The interpretation linking these to out-of-plane CDW phase switching in the moiré superstructure is an inference from the data combination, not a self-definitional reduction, fitted parameter renamed as prediction, or load-bearing self-citation chain. No equations, ansatzes, or uniqueness theorems are invoked that collapse back to the inputs by construction. The derivation chain is self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

As an experimental study, the central claim relies on standard interpretations of condensed matter measurement techniques rather than new theoretical constructs or fitted parameters.

axioms (2)
  • domain assumption Resistivity plateaus and hysteresis directly indicate changes in CDW order parameters
    Used to link transport data to CDW amplitude suppression and phase switching.
  • domain assumption Photoemission spectroscopy and diffraction can rule out new phases or periodicity changes
    Basis for attributing metastability to out-of-plane phase switching rather than conventional mechanisms.
