arxiv: 2604.19135 · v1 · submitted 2026-04-21 · 💻 cs.CV

Diff-SBSR: Learning Multimodal Feature-Enhanced Diffusion Models for Zero-Shot Sketch-Based 3D Shape Retrieval

Hang Cheng , Fanhe Dong , Long Zeng This is my paper

Pith reviewed 2026-05-10 03:12 UTC · model grok-4.3

classification 💻 cs.CV
keywords zero-shot sketch-based retrieval3D shape retrievaldiffusion modelsmultimodal feature enhancementCLIP visual featuresBLIP text guidanceCircle-T lossfrozen backbone
0
0 comments X

The pith

A frozen Stable Diffusion model enhanced with CLIP and BLIP features retrieves 3D shapes from sketches without any category supervision.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper explores using pretrained text-to-image diffusion models for retrieving 3D shapes from sketches in a zero-shot setting where no category labels are available. Existing methods struggle here because sketches are extremely abstract and sparse while lacking supervision prevents learning alignments between 2D inputs and 3D objects. The authors demonstrate that a frozen Stable Diffusion backbone can supply useful shape-biased features when its intermediate U-Net layers are conditioned on global and local visual cues from CLIP plus textual guidance from BLIP-generated descriptions combined with soft prompts. A Circle-T loss further helps by pulling positive sketch-3D pairs closer once negatives are separated. If this works, retrieval systems could operate on entirely new object categories without collecting labeled training data for each one.

Core claim

Large-scale pretrained diffusion models exhibit open-vocabulary capability and strong shape bias that suit zero-shot visual retrieval. A frozen Stable Diffusion backbone extracts and aggregates discriminative representations from intermediate U-Net layers for both sketches and rendered 3D views. To bridge the domain gap without retraining, a multimodal feature-enhanced strategy injects global and local visual features from a pretrained CLIP encoder and incorporates enriched textual guidance from learnable soft prompts plus hard textual descriptions generated by BLIP. The Circle-T loss dynamically strengthens positive-pair attraction once negative samples are separated. Experiments on two公共基准

What carries the argument

Multimodal feature-enhanced conditioning of a frozen Stable Diffusion U-Net that aggregates intermediate layer representations for sketches and 3D views while injecting CLIP visual features and BLIP text cues.

If this is right

  • 3D shape retrieval becomes feasible for object categories never seen during any training phase.
  • The system focuses on sketch contours and semantic context despite high abstraction by using injected multimodal cues.
  • Dynamic adjustment of positive-pair attraction adapts alignment to the noise present in hand-drawn sketches.
  • Consistent gains appear across multiple standard benchmarks without task-specific fine-tuning of the backbone.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same frozen-backbone strategy with multimodal injections could extend to other zero-shot cross-modal tasks such as text queries to 3D shapes.
  • If the enhancements prove stable, similar conditioning might reduce the need for full retraining when applying diffusion models to sparse or abstract inputs in related vision problems.
  • Direct processing of 3D data instead of rendered views could be tested as a next step if suitable encoders are paired with the same loss and conditioning approach.

Load-bearing premise

That adding CLIP visual features and BLIP text to a frozen diffusion backbone is enough to overcome the extreme domain gap and sparsity of sketches without any retraining of the model.

What would settle it

Running the method on the same two public benchmarks and finding that it fails to outperform existing zero-shot sketch-based 3D retrieval approaches on retrieval metrics for unseen categories.

Figures

Figures reproduced from arXiv: 2604.19135 by Fanhe Dong, Hang Cheng, Long Zeng.

Figure 1
Figure 1. Figure 1: Existing method and our method. zero-shot generalization to unseen categories [7, 28]. In particu￾lar, text-to-image diffusion models have been shown to effectively bridge the modality gap between sketches and photos, benefiting from strong cross-modal alignment and an inherent shape bias, as also observed in recent work [32, 33]. Although Stable Diffusion (SD) has demonstrated impressive feature extractio… view at source ↗

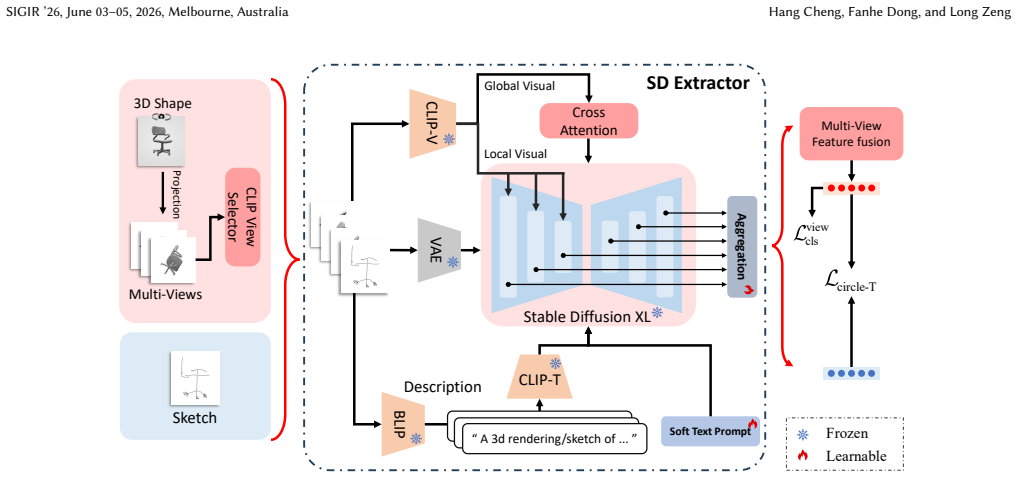

Figure 2
Figure 2. Figure 2: Our method extracts multi-scale features from a frozen Stable Diffusion model for sketches and rendered 3D views, [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗

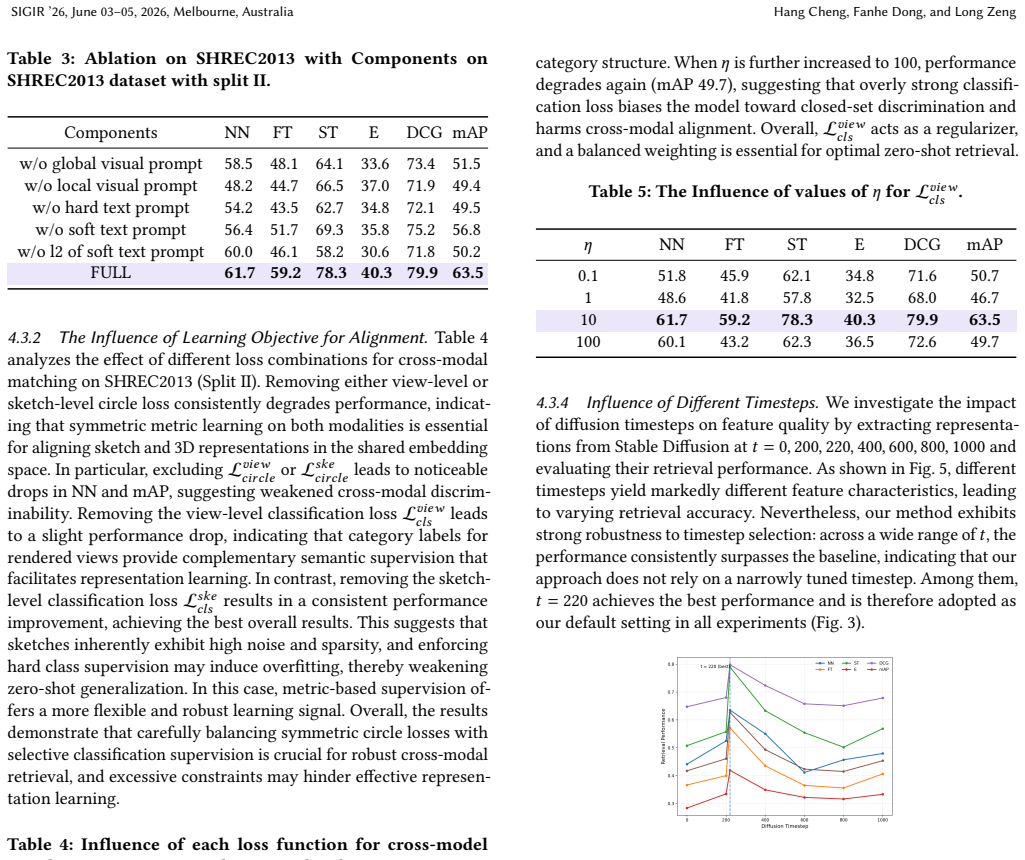

Figure 3
Figure 3. Figure 3: Effect of timesteps choice of diffusion model on the [PITH_FULL_IMAGE:figures/full_fig_p008_3.png] view at source ↗

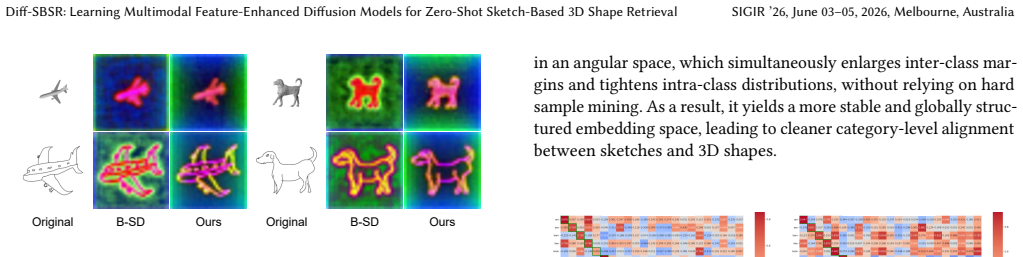

Figure 4
Figure 4. Figure 4: PCA representation of SD’s intermediate UNet fea [PITH_FULL_IMAGE:figures/full_fig_p009_4.png] view at source ↗

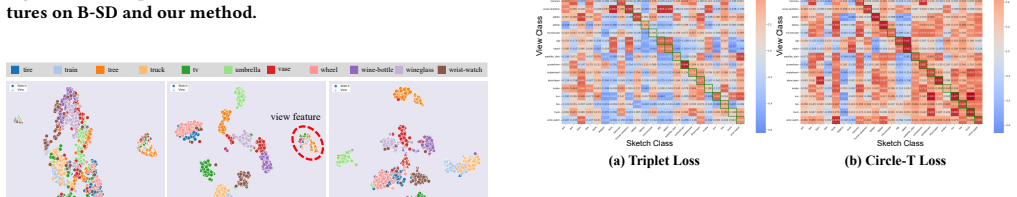

Figure 6
Figure 6. Figure 6: Confusion matrix of retrieval results under circle-T [PITH_FULL_IMAGE:figures/full_fig_p009_6.png] view at source ↗

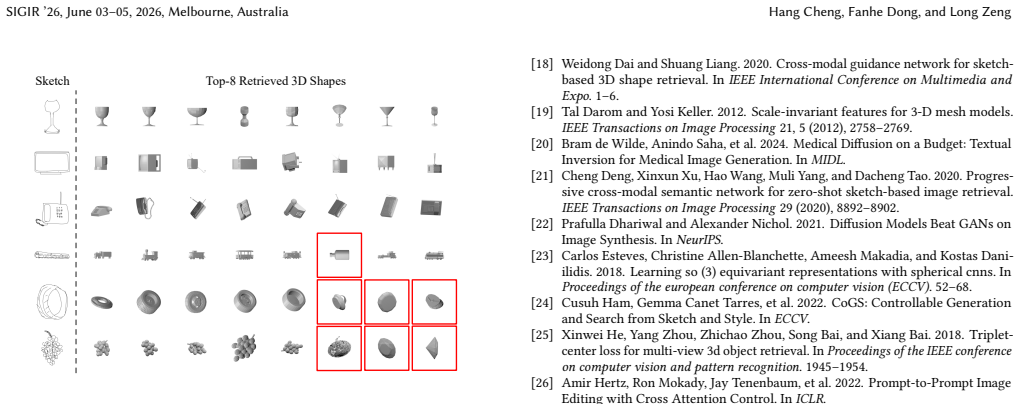

Figure 7
Figure 7. Figure 7: Visualization of retrieval examplesl on SHREC2013 [PITH_FULL_IMAGE:figures/full_fig_p010_7.png] view at source ↗

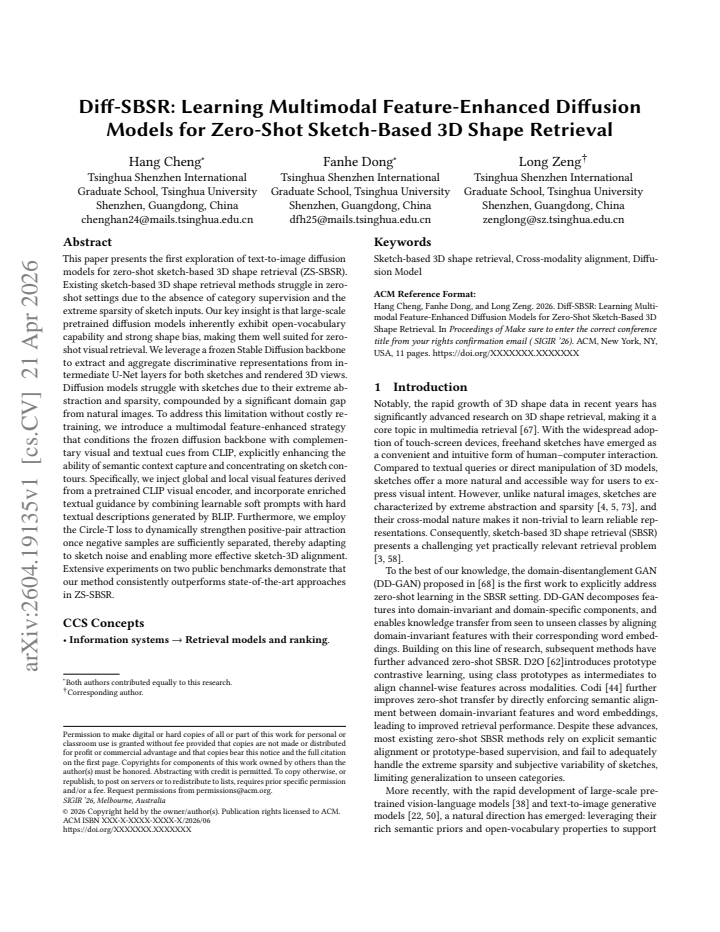

read the original abstract

This paper presents the first exploration of text-to-image diffusion models for zero-shot sketch-based 3D shape retrieval (ZS-SBSR). Existing sketch-based 3D shape retrieval methods struggle in zero-shot settings due to the absence of category supervision and the extreme sparsity of sketch inputs. Our key insight is that large-scale pretrained diffusion models inherently exhibit open-vocabulary capability and strong shape bias, making them well suited for zero-shot visual retrieval. We leverage a frozen Stable Diffusion backbone to extract and aggregate discriminative representations from intermediate U-Net layers for both sketches and rendered 3D views. Diffusion models struggle with sketches due to their extreme abstraction and sparsity, compounded by a significant domain gap from natural images. To address this limitation without costly retraining, we introduce a multimodal feature-enhanced strategy that conditions the frozen diffusion backbone with complementary visual and textual cues from CLIP, explicitly enhancing the ability of semantic context capture and concentrating on sketch contours. Specifically, we inject global and local visual features derived from a pretrained CLIP visual encoder, and incorporate enriched textual guidance by combining learnable soft prompts with hard textual descriptions generated by BLIP. Furthermore, we employ the Circle-T loss to dynamically strengthen positive-pair attraction once negative samples are sufficiently separated, thereby adapting to sketch noise and enabling more effective sketch-3D alignment. Extensive experiments on two public benchmarks demonstrate that our method consistently outperforms state-of-the-art approaches in ZS-SBSR.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 3 minor

Summary. The manuscript presents Diff-SBSR, the first application of text-to-image diffusion models to zero-shot sketch-based 3D shape retrieval (ZS-SBSR). It freezes a Stable Diffusion U-Net backbone, conditions it multimodally by injecting global/local CLIP visual features and BLIP-generated text augmented with learnable soft prompts, extracts and aggregates intermediate U-Net layer representations for sketches and rendered 3D views, and optimizes with a Circle-T loss that strengthens positive-pair attraction after negatives are separated. Extensive experiments on two public benchmarks are reported to show consistent outperformance over prior SOTA methods.

Significance. If the performance gains are reproducible and the diffusion backbone demonstrably contributes shape bias beyond the CLIP/BLIP conditioning, the work would establish a practical route for repurposing large frozen generative models in sparse-input zero-shot retrieval without retraining. The emphasis on no-backbone fine-tuning and adaptation to sketch noise via the loss are pragmatic strengths that could influence follow-on work in cross-modal retrieval.

major comments (3)
  1. [§3] §3 (multimodal conditioning and U-Net feature extraction): The central claim that intermediate U-Net activations supply discriminative contour/shape information beyond the injected CLIP visual features and BLIP text is load-bearing for the key insight, yet no ablation isolates the U-Net contribution (e.g., conditioned U-Net features vs. direct CLIP embeddings on sketches). Without this, it remains possible that gains derive primarily from the external conditioning signals rather than the diffusion prior.
  2. [§4] §4 (experiments and tables): The reported outperformance on the two benchmarks is presented without statistical significance tests, standard deviations across runs, or explicit confirmation that baselines were re-implemented with identical protocols and hyperparameter tuning. This weakens the strength of the SOTA claim, especially given the domain gap and sparsity issues highlighted in the abstract.
  3. [§3.3] §3.3 (Circle-T loss): The loss is motivated as adapting to sketch noise, but the manuscript provides no sensitivity analysis on its hyperparameters or comparison against standard contrastive losses under the same multimodal conditioning, leaving unclear whether the dynamic positive-pair strengthening is essential to the reported gains.
minor comments (3)
  1. [Figure 2] The architecture diagram (Figure 2) would benefit from explicit arrows and labels indicating where CLIP local/global features and BLIP text are injected into the U-Net.
  2. [§3.2] Notation for feature aggregation across U-Net layers (e.g., the pooling or concatenation operation) is introduced without a compact equation or pseudocode, complicating reproducibility.
  3. [§2] Related-work discussion of prior diffusion-based retrieval or sketch-3D methods could be expanded with more recent citations to contextualize the novelty claim.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We sincerely thank the referee for the detailed and constructive feedback on our manuscript. We address each of the major comments below and outline the revisions we plan to make to strengthen the paper.

read point-by-point responses

  1. Referee: [§3] §3 (multimodal conditioning and U-Net feature extraction): The central claim that intermediate U-Net activations supply discriminative contour/shape information beyond the injected CLIP visual features and BLIP text is load-bearing for the key insight, yet no ablation isolates the U-Net contribution (e.g., conditioned U-Net features vs. direct CLIP embeddings on sketches). Without this, it remains possible that gains derive primarily from the external conditioning signals rather than the diffusion prior.

    Authors: We agree that an explicit ablation isolating the contribution of the U-Net features is important to substantiate the role of the diffusion prior. In the revised manuscript, we will include an additional ablation study comparing the performance using only the injected CLIP and BLIP features against the full model that extracts and aggregates intermediate U-Net layer representations. This will clarify the incremental benefit provided by the frozen diffusion backbone. revision: yes

  2. Referee: [§4] §4 (experiments and tables): The reported outperformance on the two benchmarks is presented without statistical significance tests, standard deviations across runs, or explicit confirmation that baselines were re-implemented with identical protocols and hyperparameter tuning. This weakens the strength of the SOTA claim, especially given the domain gap and sparsity issues highlighted in the abstract.

    Authors: We acknowledge the importance of statistical rigor in reporting results. We will re-implement all baseline methods using the same experimental protocols and hyperparameter settings as described in our paper. Additionally, we will conduct multiple runs with different random seeds to report mean performance with standard deviations and perform statistical significance tests (e.g., paired t-tests) to validate the improvements. These details will be added to the experimental section and tables in the revised version. revision: yes

  3. Referee: [§3.3] §3.3 (Circle-T loss): The loss is motivated as adapting to sketch noise, but the manuscript provides no sensitivity analysis on its hyperparameters or comparison against standard contrastive losses under the same multimodal conditioning, leaving unclear whether the dynamic positive-pair strengthening is essential to the reported gains.

    Authors: We appreciate this point regarding the necessity of the Circle-T loss. In the revision, we will provide a sensitivity analysis on the key hyperparameters of the Circle-T loss, such as the margin and temperature parameters. Furthermore, we will include a direct comparison against standard contrastive losses (e.g., InfoNCE) under identical multimodal conditioning and backbone settings to demonstrate the advantages of the dynamic positive-pair strengthening mechanism. revision: yes

Circularity Check

0 steps flagged

No significant circularity; derivation relies on external pretrained models and novel adaptations.

full rationale

The paper's central derivation introduces a multimodal conditioning strategy (CLIP visual features + BLIP text) and Circle-T loss applied to a frozen Stable Diffusion U-Net, without any equations or steps that reduce claimed representations or performance to quantities fitted directly on the ZS-SBSR benchmarks. No self-citations are load-bearing for uniqueness theorems, no ansatzes are smuggled via prior author work, and no predictions are statistically forced by input fitting. The approach is self-contained against external benchmarks via new loss and conditioning, with experiments providing independent validation.

Axiom & Free-Parameter Ledger

2 free parameters · 2 axioms · 0 invented entities

The method rests on the assumption that pretrained diffusion models already possess useful shape bias and open-vocabulary properties for sketches once conditioned; it introduces learnable soft prompts and Circle-T loss hyperparameters whose values are fitted during training but not specified in the abstract.

free parameters (2)
  • learnable soft prompts
    Additional prompt tokens whose weights are learned to enrich textual guidance from BLIP descriptions.
  • Circle-T loss hyperparameters
    Parameters controlling the dynamic attraction of positive pairs once negatives are separated.
axioms (2)
  • domain assumption Large-scale pretrained diffusion models inherently exhibit open-vocabulary capability and strong shape bias suitable for zero-shot visual retrieval.
    Stated as the key insight in the abstract and used to justify freezing the Stable Diffusion backbone.
  • domain assumption CLIP visual features and BLIP-generated text provide complementary cues that close the domain gap for sparse sketches without retraining the diffusion model.
    Central premise for the multimodal feature-enhanced strategy.

pith-pipeline@v0.9.0 · 5565 in / 1488 out tokens · 36480 ms · 2026-05-10T03:12:54.137690+00:00 · methodology
