Control Over Fano Parameter in Grating and One-Dimensional Photonic Crystal Cavity

Pratip Ghosh , Akshay K. Naik This is my paper

Pith reviewed 2026-05-09 23:36 UTC · model grok-4.3

classification ⚛️ physics.optics cond-mat.mes-hall
keywords Fano resonancephotonic crystal cavitythermo-optic tuningsilicon waveguidegrating couplerextinction ratiospectral slope
0
0 comments X

The pith

Thermo-optic effect tunes Fano parameter from negative to positive values in a silicon photonic crystal cavity with grating.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes that Fano resonances form through interference between a one-dimensional photonic crystal cavity mode and the oscillatory background produced by a grating coupler on a silicon waveguide. Heating the device changes the silicon refractive index and thereby shifts the relative phase between these two contributions, allowing the Fano asymmetry parameter to be adjusted continuously. This tuning reaches from roughly -3.2 to +1.7 while producing extinction ratios up to 21.6 dB and slopes up to 108 dB/nm. A reader would care because the same compact, simply fabricated structure can then be adjusted after fabrication to suit different sensing, filtering, or modulation needs without redesign.

Core claim

Fano resonance arises due to interference between cavity mode and an oscillatory background due to grating coupler. The dynamic tuning of Fano asymmetric parameter is achieved using thermo-optic effect in silicon. We experimentally tune the Fano parameter from -3.2 to +1.7 achieving a highest extinction ratio of 21.6 dB and spectral slope of 108 dB/nm. All the above is achieved in an ultra-compact design with simple fabrication and with multiple cavities or feedback elements. The steep slope offers distinct advantage over conventional cavity for sensing and modulation applications and the tunability enables dynamic control over gain, dynamic range, bandwidth and noise coupling.

What carries the argument

Interference between the cavity resonance and the grating coupler's oscillatory background, with the relative phase adjusted by thermo-optic refractive-index change in silicon.

If this is right

  • The achieved spectral slope of 108 dB/nm gives the device a clear performance edge over ordinary resonators for sensing and modulation tasks.
  • Post-fabrication adjustment of gain, dynamic range, bandwidth, and noise coupling becomes possible through simple temperature control.
  • The ultra-compact layout supports integration of several cavities or feedback elements on the same chip.
  • Simple fabrication combined with the tuning range allows device parameters to be optimized for different applications after the chip is made.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same interference-tuning principle could be combined with faster electro-optic or all-optical actuators to increase modulation speed while retaining the Fano control.
  • Arrays of such cavities on one waveguide might enable reconfigurable optical filters whose passband shape is adjusted on demand.
  • The wide Fano-parameter range suggests the approach could be used to switch between high-sensitivity and high-dynamic-range operating modes in a single sensor.

Load-bearing premise

The measured spectral features come only from interference between the cavity mode and the grating background, and heating affects solely the Fano asymmetry without introducing other thermal or fabrication-induced wavelength shifts.

What would settle it

If the same temperature-induced change in the resonance shape is observed after the grating is replaced by a flat, non-oscillatory reflector, or if the extracted Fano parameter stays constant when the device is heated under conditions that cancel refractive-index change, the interference-tuning interpretation would be ruled out.

Figures

Figures reproduced from arXiv: 2604.20451 by Akshay K. Naik, Pratip Ghosh.

Figure 1

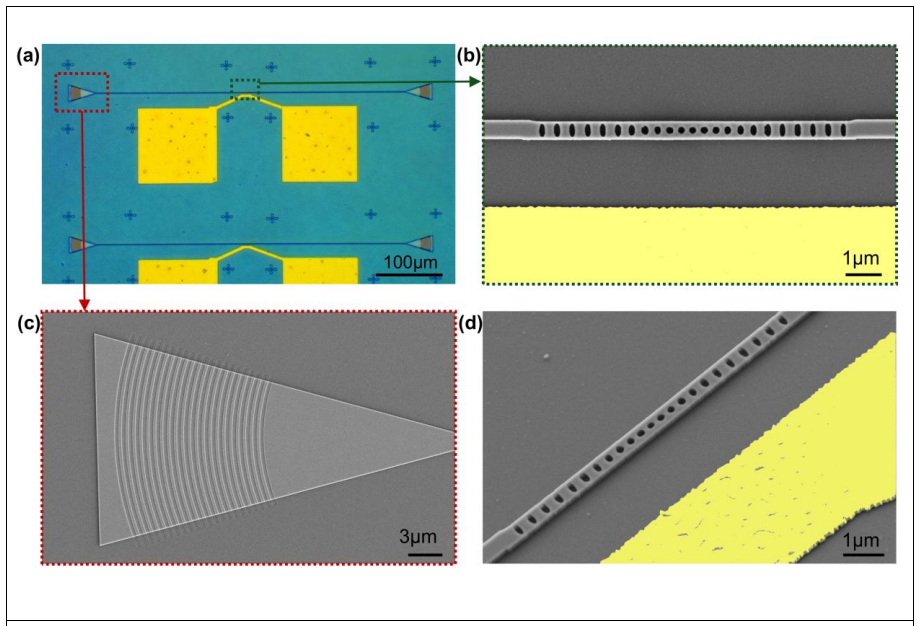

Figure 1. Figure 1: (a). optical image of the fabricated devices with the heating pads, (b) SEM image of the zoomed in image of the cavity region and (c) grating coupler, (d) Bird’s eye view of the cavity and heater region [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2

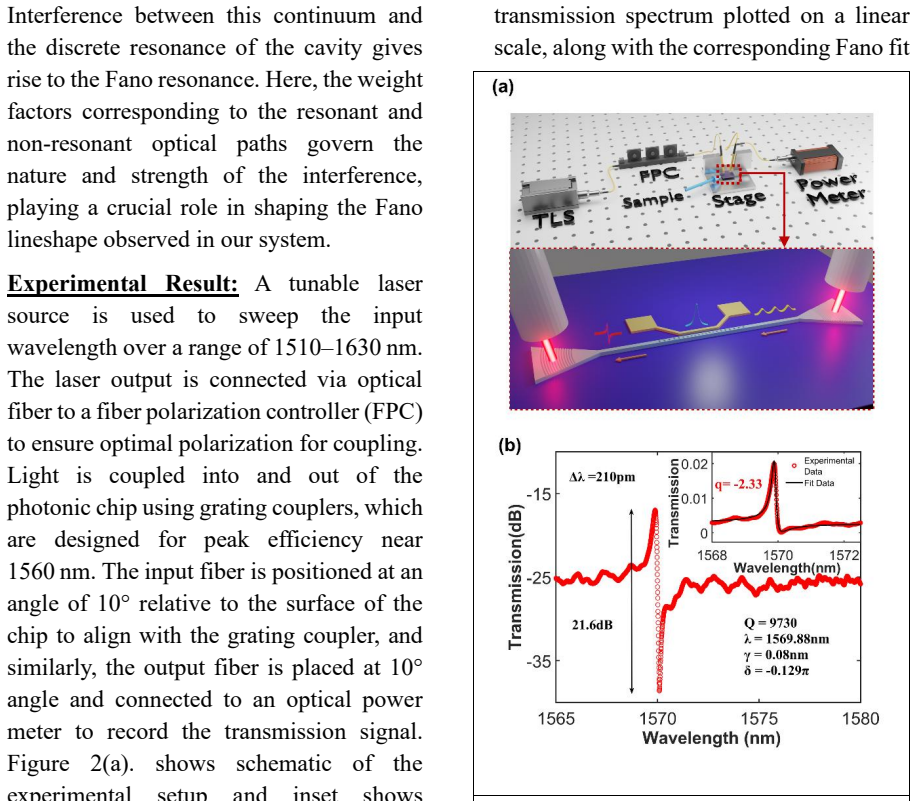

Figure 2. Figure 2: (a). shows schematic of the experimental setup and inset shows schematic of the device. The transmission spectrum of one of the fabricated devices exhibiting a characteristic Fano resonance is shown in [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 4

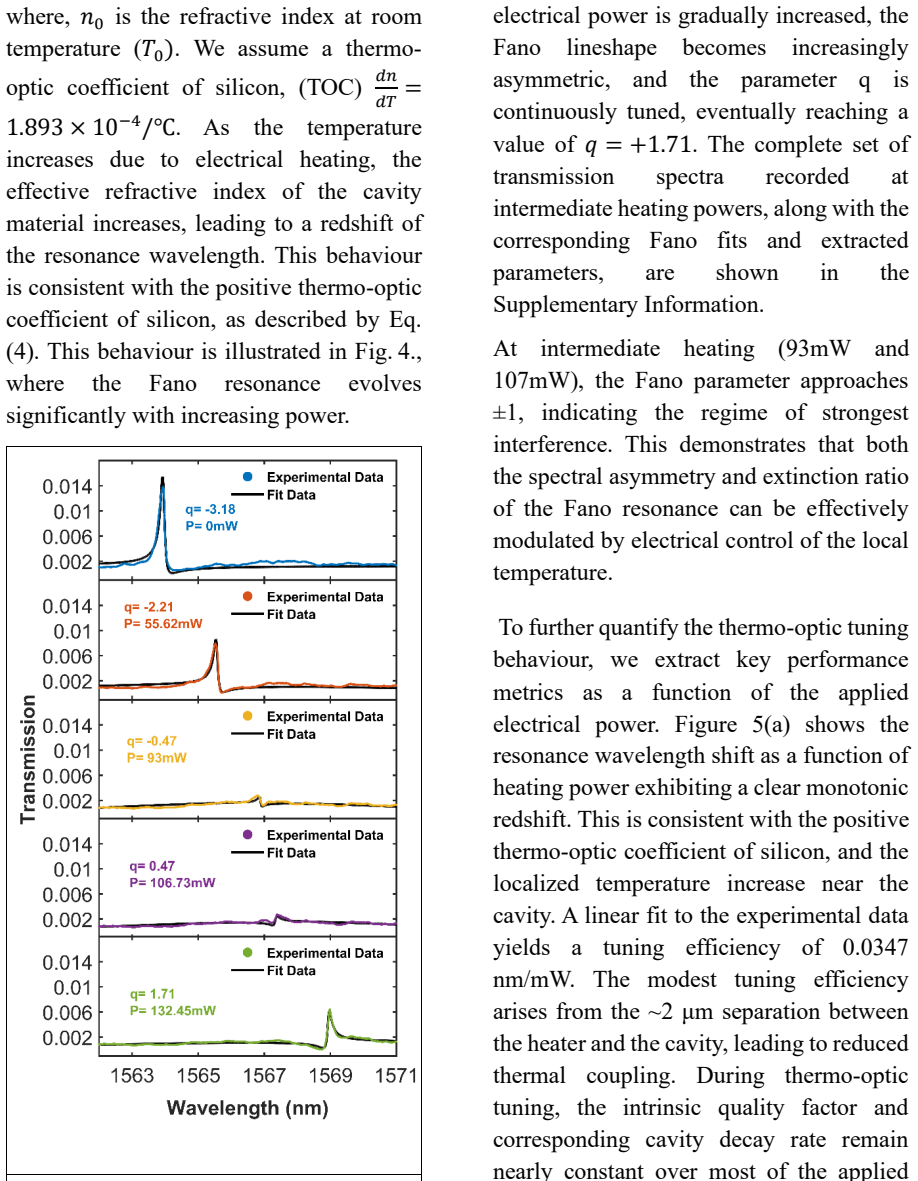

Figure 4. Figure 4: Tuning of Fano parameter due to thermooptic effect [PITH_FULL_IMAGE:figures/full_fig_p007_4.png] view at source ↗
Figure 5

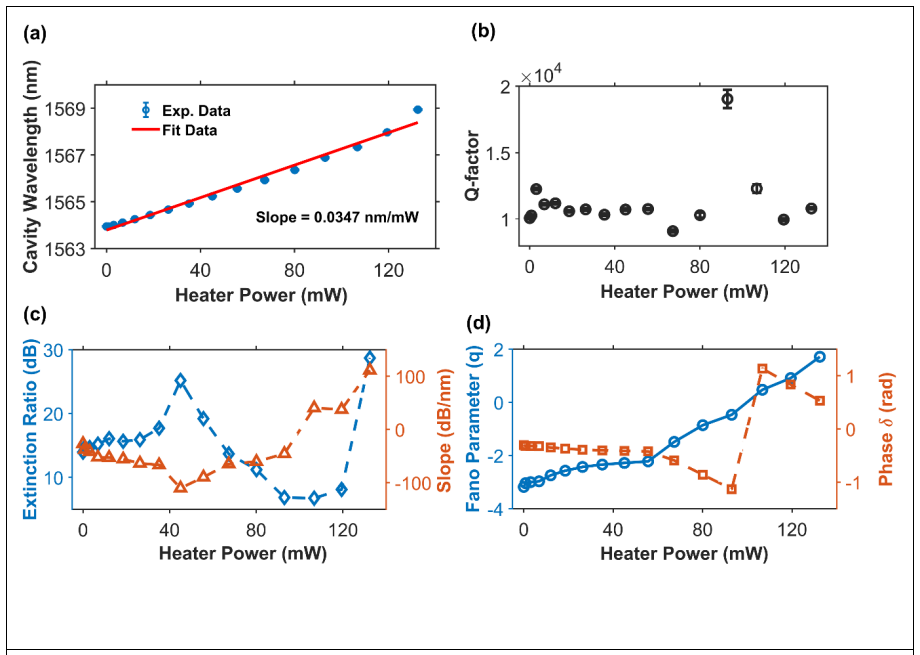

Figure 5. Figure 5: (d) shows the variation of the Fano asymmetry parameter 𝑞 with heater power, highlighting the continuous tuning of the interferenc condition achieved through electrical control. The corresponding evolution of the relative phase 𝛿, obtained from the relation 𝑞 = cot𝛿 , indicates a continuous transition of the phase from negative to positive values with increasing heater power. The ability to electrically tu… view at source ↗
Figure 6

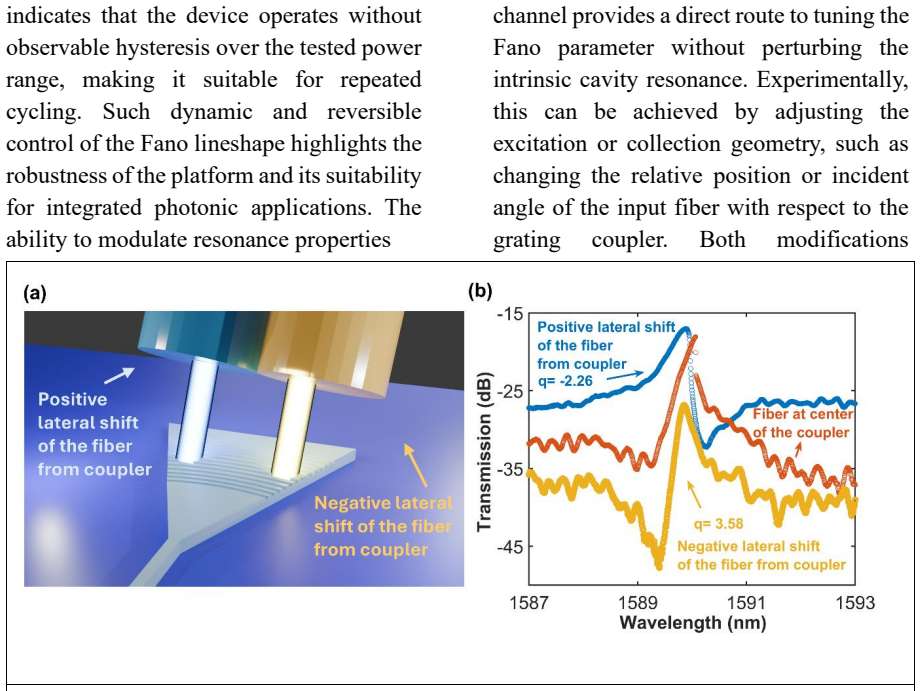

Figure 6. Figure 6: (a). shows the schematic of the experimental condition of the fiber at different position relative to the coupler (blue and yellow two different positions) [PITH_FULL_IMAGE:figures/full_fig_p009_6.png] view at source ↗
read the original abstract

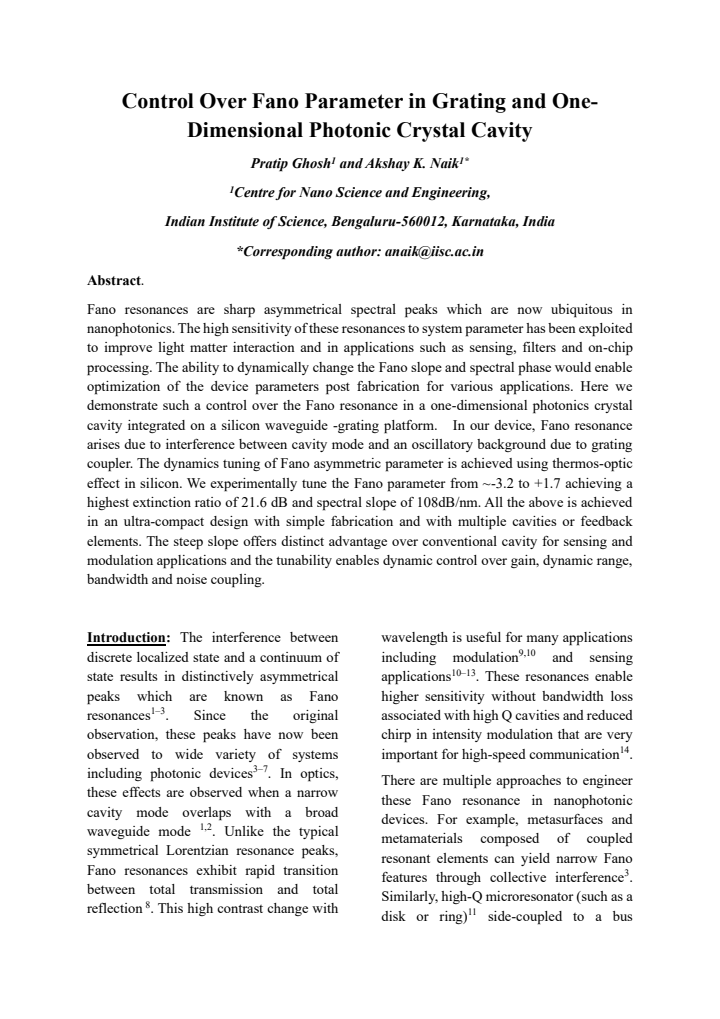

Fano resonances are sharp asymmetrical spectral peaks which are now ubiquitous in nanophotonics. The high sensitivity of these resonances to system parameter has been exploited to improve light matter interaction and in applications such as sensing, filters and on-chip processing. The ability to dynamically change the Fano slope and spectral phase would enable optimization of the device parameters post fabrication for various applications. Here we demonstrate such a control over the Fano resonance in a one-dimensional photonics crystal cavity integrated on a silicon waveguide -grating platform. In our device, Fano resonance arises due to interference between cavity mode and an oscillatory background due to grating coupler. The dynamics tuning of Fano asymmetric parameter is achieved using thermos-optic effect in silicon. We experimentally tune the Fano parameter from ~-3.2 to +1.7 achieving a highest extinction ratio of 21.6 dB and spectral slope of 108dB/nm. All the above is achieved in an ultra-compact design with simple fabrication and with multiple cavities or feedback elements. The steep slope offers distinct advantage over conventional cavity for sensing and modulation applications and the tunability enables dynamic control over gain, dynamic range, bandwidth and noise coupling.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript claims to experimentally demonstrate dynamic control over the Fano asymmetry parameter in a one-dimensional photonic crystal cavity integrated with a grating coupler on a silicon waveguide platform. Using the thermo-optic effect, the Fano parameter is tuned from approximately -3.2 to +1.7, yielding a maximum extinction ratio of 21.6 dB and spectral slope of 108 dB/nm in an ultra-compact device fabricated with standard processes.

Significance. If the central experimental claim holds after addressing potential confounding effects, the work provides a practical post-fabrication tuning mechanism for Fano resonances that could benefit sensing, filtering, and modulation applications by enabling adjustment of slope, phase, and dynamic range without additional cavities or feedback elements.

major comments (2)
  1. [Results section describing thermo-optic tuning experiments] Results section describing thermo-optic tuning experiments: The reported tuning range of the Fano parameter from -3.2 to +1.7 is extracted from transmission spectra, but the manuscript does not provide independent calibration spectra of the cavity resonance alone or the grating background alone under the same range of heater powers. Silicon's thermo-optic coefficient implies that both the cavity effective index (resonance shift) and grating response (background amplitude/phase) will change with temperature; without subtracting these, the extracted q values may partly reflect detuning rather than pure interference control between cavity mode and oscillatory background.
  2. [Experimental methods and fitting procedure] Experimental methods and fitting procedure: The model used to fit the Fano lineshape and extract the asymmetry parameter q is not specified, including how resonance wavelength, background oscillation, and any thermal shifts are parameterized or constrained during fitting. This is load-bearing for the quantitative claims of tuning range, extinction ratio, and slope, as unaccounted resonance movement could artifactually alter the apparent asymmetry.
minor comments (2)
  1. [Abstract and Results] The abstract states quantitative outcomes (tuning range, 21.6 dB extinction, 108 dB/nm slope) but the main text lacks accompanying raw spectra, error bars on fitted parameters, or heater power values for each measurement point, hindering reproducibility assessment.
  2. [Abstract] The mention of 'multiple cavities or feedback elements' in the abstract is not expanded with data or discussion in the main text, leaving unclear whether this is demonstrated or merely suggested as an advantage.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the careful review and constructive comments on our manuscript. We address each major comment below, providing clarifications on our experimental approach and indicating the specific revisions we will implement to strengthen the presentation of the results.

read point-by-point responses

  1. Referee: Results section describing thermo-optic tuning experiments: The reported tuning range of the Fano parameter from -3.2 to +1.7 is extracted from transmission spectra, but the manuscript does not provide independent calibration spectra of the cavity resonance alone or the grating background alone under the same range of heater powers. Silicon's thermo-optic coefficient implies that both the cavity effective index (resonance shift) and grating response (background amplitude/phase) will change with temperature; without subtracting these, the extracted q values may partly reflect detuning rather than pure interference control between cavity mode and oscillatory background.

    Authors: We acknowledge that both the cavity resonance and grating background are affected by the thermo-optic effect, and that independent calibration would help isolate the interference contribution. In our device, the Fano lineshape originates from interference between the high-Q cavity mode and the oscillatory background from the grating coupler. The cavity experiences a stronger wavelength shift due to its localized field enhancement, while the grating background varies more slowly. The extracted q values reflect the changing relative phase and amplitude in this interference. To address the concern directly, we will add to the revised manuscript: (i) transmission spectra of the grating coupler alone (fabricated without the photonic crystal cavity) under the same heater power range, and (ii) separate characterization of the bare cavity resonance shift. These data will be used to model and subtract background variations, confirming that the observed q tuning from -3.2 to +1.7 arises from controlled interference rather than unaccounted detuning. revision: yes

  2. Referee: Experimental methods and fitting procedure: The model used to fit the Fano lineshape and extract the asymmetry parameter q is not specified, including how resonance wavelength, background oscillation, and any thermal shifts are parameterized or constrained during fitting. This is load-bearing for the quantitative claims of tuning range, extinction ratio, and slope, as unaccounted resonance movement could artifactually alter the apparent asymmetry.

    Authors: We agree that the fitting model and constraints must be explicitly stated for reproducibility. The spectra were fitted to the standard Fano transmission formula T(λ) = | (q + ε)^2 / (1 + ε^2) |, where ε = 2(λ - λ_res)/Δλ, combined with a slowly varying sinusoidal background term representing the grating oscillation. During nonlinear least-squares fitting, λ_res is allowed to shift linearly with heater power (consistent with the measured thermo-optic coefficient), the linewidth Δλ is constrained to remain nearly constant, and the background amplitude/phase are fitted but bounded by the independently measured grating response. We will include the explicit functional form, a description of the parameterization, example fits with residuals, and the constraint strategy in the Experimental Methods section of the revised manuscript. This will demonstrate that the reported changes in q, extinction (21.6 dB), and slope (108 dB/nm) are not artifacts of unaccounted resonance movement. revision: yes

Circularity Check

0 steps flagged

No circularity: experimental tuning of Fano parameter is self-contained

full rationale

The paper reports an experimental demonstration of thermo-optic tuning of the Fano asymmetry parameter in a 1D PhC cavity integrated with a grating coupler. The claimed range (-3.2 to +1.7) and performance metrics (21.6 dB extinction, 108 dB/nm slope) are extracted directly from measured transmission spectra under varying heater power. No equations, derivations, or self-citations are presented that reduce the reported tuning to a fitted input by construction; the physical tuning mechanism operates externally to any parameter extraction. The result is therefore independent of the fitting process and does not exhibit any of the enumerated circularity patterns.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the established thermo-optic coefficient of silicon and the standard interference picture of Fano resonances; no new entities or free parameters are introduced beyond the measured q values.

axioms (1)
  • domain assumption Fano resonance arises due to interference between cavity mode and an oscillatory background due to grating coupler.
    Explicitly stated in the abstract as the physical origin of the resonance.

pith-pipeline@v0.9.0 · 5514 in / 1258 out tokens · 34570 ms · 2026-05-09T23:36:41.038670+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

3 extracted references · 3 canonical work pages

  1. [1]

    𝛿 2⁄ denotes the phase shift accumulated as the waveguide mode propagates between the two partially reflecting elements

    with transmittivity, 𝑡𝐹𝑃 = (1 − 𝑟2)𝑒 −𝑖𝛿 2⁄ 𝑟2𝑒−𝑖𝛿 − 1 (2) Where, the reflectivity of both mirrors is 𝑟, and the separation between them is 𝑙. 𝛿 2⁄ denotes the phase shift accumulated as the waveguide mode propagates between the two partially reflecting elements. The transmission spectra when the two components are present individually are show in figure ...

    work page 2016

  2. [2]

    Fano resonances in photonics,

    Comparison of representative Fano resonance implementations in integrated photonic platforms, including system type, tuning mechanism, Fano parameter control, extinction ratio, and spectral slope. single-cavity architecture, provides a flexible platform for optimizing spectral response in integrated photonic applications. Conclusion: In summary, we experi...

    work page 2017

  3. [3]

    Waves and fields in optoelectronics,

    captures this behaviour, yielding a maximum transmission at  = 𝜔0(Fig.S3b.). Next, we consider a different geometry comprising a single -mode input waveguide with two partially reflecting elements placed between the input and output ports, effectively forming a Fabry–Pérot interferometer, as depicted in Fig. S3c. Let the reflectivity of both mirrors be 𝑟...

    work page 2008
