Spin-wave hybridization in bismuth iron garnet Mie spheres induced by the inverse Faraday effect

Fedor Shuklin , Khristina Albitskaya , Alexander Chernov , Mihail Petrov This is my paper

Pith reviewed 2026-05-09 23:19 UTC · model grok-4.3

classification ❄️ cond-mat.mes-hall
keywords spin wavesinverse Faraday effectMie spheresbismuth iron garnetmagnon hybridizationoptical controldipole-exchange modesavoided crossings
0
0 comments X

The pith

Circularly polarized light hybridizes opposite-parity spin-wave modes inside bismuth iron garnet Mie spheres through the inverse Faraday effect, producing intensity-linear splittings.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper shows that light tuned to Mie resonances in BIG spheres creates a spatially patterned effective magnetic field via the inverse Faraday effect. This field preserves axial symmetry but breaks mirror parity, so it mixes magnon modes that share the same Jz but have opposite parity. The mixing opens avoided crossings whose size grows directly with pump intensity. A sympathetic reader would care because the approach supplies an all-optical knob for reshaping the dipole-exchange spin-wave spectrum without altering the sphere geometry or applying static fields. The work derives the splittings with coupled-mode theory and confirms them numerically, while arguing the MHz-scale gaps remain detectable once heating and damping are accounted for.

Core claim

The inverse Faraday effect induced by circularly polarized light collinear with the equilibrium magnetization generates an effective magnetic perturbation whose symmetry is inherited from the optical near field of the Mie resonance. This perturbation preserves axial symmetry while breaking mirror parity, thereby enabling hybridization between dipole-exchange spin-wave modes of opposite parity within the same Jz sector. Coupled-mode theory yields analytical expressions for the resulting avoided-crossing splittings, which scale linearly with optical pump intensity and reach their largest values near Mie resonances where both field enhancement and magneto-optical response are strongest.

What carries the argument

The inverse Faraday effect acting as a spatially structured effective magnetic field whose symmetry is set by the circularly polarized optical near field inside the Mie sphere.

If this is right

  • Spin-wave spectra become tunable by optical intensity without external magnets or structural changes.
  • Hybridization is restricted to same-Jz, opposite-parity pairs, enabling symmetry-selective control.
  • Splittings are largest near optical Mie resonances due to field enhancement.
  • The effect is predicted to produce observable MHz to hundreds-of-MHz gaps in BIG spheres.
  • Numerical calculations confirm the hybridization and the linear intensity scaling.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same optical perturbation could be used to modulate magnon propagation or lifetimes in real time.
  • Extension to other magneto-optical ferrimagnets with strong inverse Faraday response should produce analogous hybridization.
  • The platform may allow optical addressing of individual magnon modes in arrays of spheres for magnonic logic.
  • Heating limits could be tested by comparing continuous-wave versus pulsed excitation at fixed average intensity.

Load-bearing premise

Damping, linewidth broadening, and heating remain small enough that the predicted MHz-scale splittings stay observable under realistic optical pumping.

What would settle it

A measured spin-wave spectrum that shows avoided crossings whose separation increases linearly with pump intensity for circular polarization, vanishes for linear polarization, and peaks when the optical frequency is tuned through a Mie resonance.

Figures

Figures reproduced from arXiv: 2604.20479 by Alexander Chernov, Fedor Shuklin, Khristina Albitskaya, Mihail Petrov.

Figure 1
Figure 1. Figure 1: Schematic evolution of spin-wave modes in a ferromagnetic sphere driven by circularly polarized light 𝐸0 as the system radius grows. The inverse Faraday effect produces hybridization and avoided crossings between the 𝑙 = 0 Kittel mode and higher-order odd mode with 𝑙 = 1. nontrivial spatial texture and angular momentum [11, 15, 7]. These resonances not only enhance the internal field, but also provide addi… view at source ↗

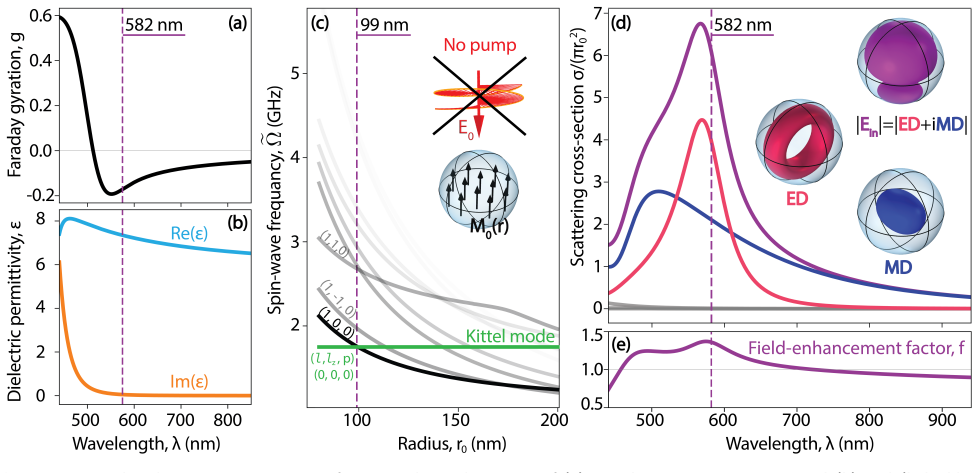

Figure 2
Figure 2. Figure 2: Optical and magnetic properties of a BIG sphere: dispersion of (a) Faraday gyration constant and (b) real (light-blue line) and imaginary (orange line) parts of dielectric permittivity; dashed line in (a) and (b) shows chosen pump wavelength of 582 nm; (c) spin-wave spectra of unperturbed (no pump) sphere with green line showing Kittel 𝑙 = 0, 𝑙𝑧 = 0, 𝑝 = 0 mode, and solid black line depicting odd 𝑙 = 1, 𝑙𝑧… view at source ↗

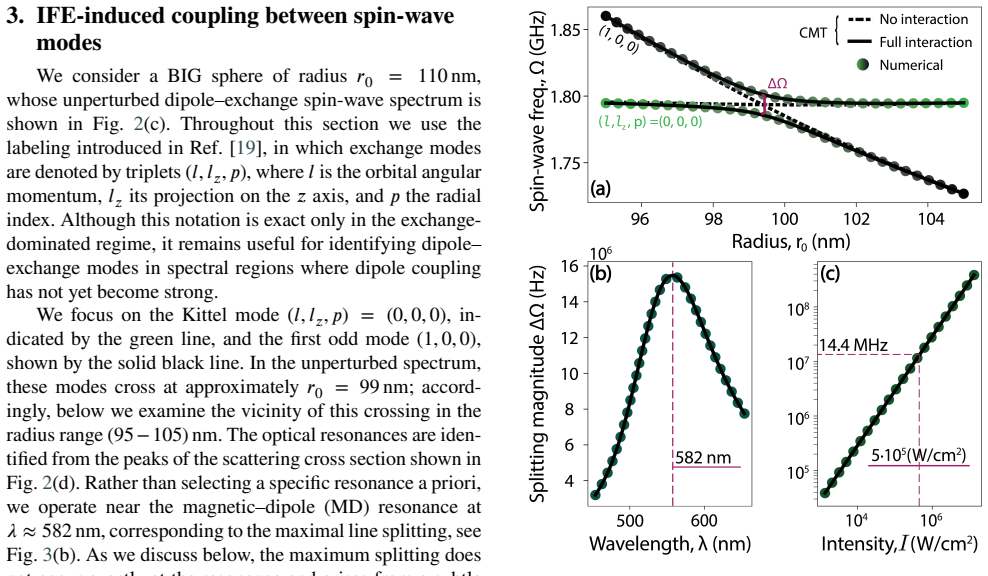

Figure 3
Figure 3. Figure 3: (b). As we discuss below, the maximum splitting does not occur exactly at the resonance and arises from a subtle interplay between the optical enhancement and the spectral dispersion of the Faraday gyration constant. The insets in [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗

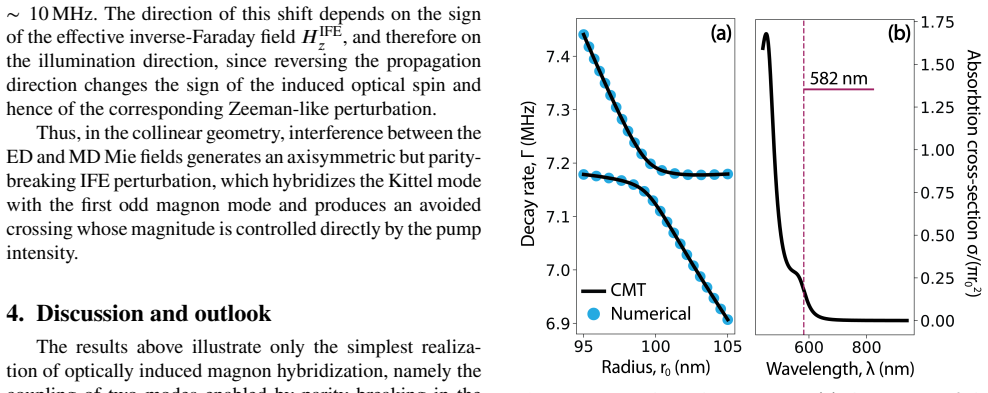

Figure 4
Figure 4. Figure 4: BIG sphere characteristics: (a) decay rates of the hybridized branches for the lossy spin-wave system calculated at pump intensity 𝐼 ≈ 5.3 × 105 W∕cm2 and wavelength 𝜆 = 582 nm; hollow circles show numerical data, solid lines show the CMT calculations; (b) normalized absorption cross￾section, calculated for the same intensity at the sphere radius 𝑟0 = 99 nm; dashed line marks pump wavelength. 𝐻CMT 𝜇𝜈 → 𝐻CM… view at source ↗
read the original abstract

We show that the inverse Faraday effect can be used to engineer dipole--exchange spin-wave spectra in ferrimagnetic bismuth iron garnet (BIG) Mie spheres. Internal optical Mie resonances generate spatially structured effective magnetic fields whose symmetry is inherited from the optical near field and which act as controllable perturbations of the magnon Hamiltonian. For circularly polarized light incident collinearly with the equilibrium magnetization, the optical perturbation preserves axial symmetry while breaking mirror parity, thereby enabling hybridization of magnon modes with opposite parity within the same $\widehat{J}_z$ sector. Using coupled-mode theory, we derive the corresponding avoided-crossing spectrum and analytical expressions for the induced level splittings, which scale linearly with pump intensity. Numerical calculations for BIG spheres confirm the predicted hybridization and show that the splitting is maximized near optical Mie resonances, where field enhancement and magneto-optical response are strongest. We further discuss the roles of damping, linewidth, and heating, and show that the predicted MHz--hundreds-of-MHz splittings should be observable under realistic conditions. These results identify BIG Mie resonators as a promising platform for symmetry-selective optical control of spin-wave spectra.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 1 minor

Summary. The manuscript claims that the inverse Faraday effect from circularly polarized light incident on bismuth iron garnet (BIG) Mie spheres generates spatially structured effective magnetic fields that break mirror parity while preserving axial symmetry. This enables hybridization of dipole-exchange magnon modes with opposite parity in the same Jz sector. Coupled-mode theory yields analytical expressions for the resulting avoided crossings with splittings linear in pump intensity; numerical calculations confirm the effect and its enhancement near optical Mie resonances. The authors further argue that MHz- to hundreds-of-MHz-scale splittings remain observable after accounting for damping, linewidth, and heating.

Significance. If the central results hold, the work identifies a promising route for symmetry-selective optical control of spin-wave spectra in ferrimagnetic resonators, with potential implications for magnonics. Credit is due for the analytical coupled-mode derivation of intensity-dependent splittings and for the numerical confirmation of hybridization maximized at Mie resonances. The explicit discussion of experimental feasibility (damping, linewidth, heating) is a positive feature, though it requires the strengthening noted below.

major comments (1)
  1. [Discussion of heating, linewidth, and observability] Discussion of heating, linewidth, and observability: The claim that the predicted MHz-scale splittings are observable under realistic optical pumping rests on the assertion that heating-induced shifts remain smaller than the splittings. The manuscript appears to rely on order-of-magnitude estimates of temperature rise rather than a self-consistent calculation of absorbed power (via the Mie-enhanced optical field), steady-state ΔT, and the consequent shift in saturation magnetization Ms(T) that detunes the unperturbed magnon frequencies. Because observability is part of the central claim, this quantitative gap is load-bearing.
minor comments (1)
  1. [Abstract] Abstract: The statement that numerical calculations 'confirm the predicted hybridization' would benefit from a brief indication of the sphere-size range and the numerical method employed (e.g., finite-element or Mie-series expansion), allowing readers to gauge the generality of the reported resonance enhancement.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the positive assessment of our work, including the analytical coupled-mode derivation and numerical confirmation of the hybridization effect. We address the major comment on the quantitative discussion of heating, linewidth, and observability below.

read point-by-point responses

  1. Referee: Discussion of heating, linewidth, and observability: The claim that the predicted MHz-scale splittings are observable under realistic optical pumping rests on the assertion that heating-induced shifts remain smaller than the splittings. The manuscript appears to rely on order-of-magnitude estimates of temperature rise rather than a self-consistent calculation of absorbed power (via the Mie-enhanced optical field), steady-state ΔT, and the consequent shift in saturation magnetization Ms(T) that detunes the unperturbed magnon frequencies. Because observability is part of the central claim, this quantitative gap is load-bearing.

    Authors: We agree that the current discussion of heating relies on order-of-magnitude estimates and that a self-consistent calculation would strengthen the manuscript. In the revised version we will add an explicit calculation of the absorbed power from the Mie-enhanced internal optical fields (using the known absorption coefficient of BIG at the pump wavelength), balance it against thermal dissipation to obtain the steady-state average temperature rise ΔT, and then evaluate the resulting shift in magnon frequencies via the temperature dependence of Ms(T) for bismuth iron garnet. This shift will be compared directly to the predicted intensity-linear splittings (MHz to hundreds of MHz) for representative pump intensities and sphere sizes. The updated section will also retain the existing treatment of damping and linewidth while incorporating any revised bounds on observability that emerge from the calculation. If the quantitative analysis reveals tighter constraints than our estimates, we will adjust the claims accordingly. revision: yes

Circularity Check

0 steps flagged

No circularity: derivation applies standard coupled-mode theory to an optically perturbed Hamiltonian

full rationale

The paper derives the avoided-crossing spectrum and linear-in-intensity splittings from coupled-mode theory applied to the magnon Hamiltonian perturbed by the inverse Faraday effect. This is a standard perturbative treatment whose outputs (hybridization conditions, parity mixing within Jz sectors) are not equivalent to any fitted parameters or self-cited inputs by construction. Numerical Mie-resonance calculations serve as independent verification rather than tautological confirmation. Discussion of damping and heating relies on order-of-magnitude estimates external to the core derivation. No self-definitional loops, fitted-input predictions, or load-bearing self-citations appear in the derivation chain.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on standard assumptions from magnonics and magneto-optics with no new free parameters or postulated entities introduced beyond the known properties of BIG.

axioms (1)
  • domain assumption Coupled-mode theory applies to the hybridization of magnon modes under the optical perturbation
    Invoked to obtain the avoided-crossing spectrum and analytical expressions for level splittings.
