A Python/CuPy Software Correlator for QUEST: Real-Time Performance and Initial Imaging

Jialang Ding , Guanhong Lin , Dejia Zhou , Jianli Zhang , Ran Duan , Fei Liu , Xiaoyun Ma , Jie Zhang
show 15 more authors
Meng Liu Chenchen Miao Yuan Liang Liaoyuan Liu Yingrou Zhan Yuting Chu Jing Qiao Wei Wang Zerui Wang Menquan Liu Meng Guo Di Li Pei Wang Xuanyu Wang Xiaohui Yan
Authors on Pith no claims yet

Pith reviewed 2026-05-09 23:12 UTC · model grok-4.3

classification 🌌 astro-ph.IM
keywords software correlatorradio interferometryGPU accelerationreal-time processingsynthesis imagingCuPyFX correlatorQUEST telescope
0
0 comments X

The pith

A Python/CuPy FX correlator reaches 1.51 GB/s throughput on one GPU for real-time four-antenna radio interferometry and produces initial CLEANed images of Cassiopeia A.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents a complete software correlator written in Python with CuPy GPU acceleration for small radio interferometer arrays, evaluated on the QUEST telescope. It integrates data ingest, correlation, channelization, RFI flagging, and calibration into one workflow and reports that the system sustains real-time rates in four-antenna mode while delivering calibrated visibilities whose phases flatten to a few degrees. These visibilities then yield a four-antenna synthesis image in which CLEAN recovers a compact source and lowers background fluctuations by roughly an order of magnitude. A sympathetic reader cares because the work shows that accessible, high-level code can support array commissioning and early imaging without dedicated hardware correlators.

Core claim

The central claim is that the described Python/CuPy FX software correlator achieves a measured peak throughput of 1.51 GB/s on a single NVIDIA RTX 4090D GPU, which is sufficient for real-time operation with four antennas; after delay and phase calibration the visibility phases across a clean 1.32-1.38 GHz band exhibit residual scatter of only a few degrees; and the calibrated visibilities form a four-antenna synthesis image of Cassiopeia A whose CLEANed version recovers a compact source at the phase center while reducing image-domain background fluctuations from order 0.1 to a few 0.01 Jy/beam.

What carries the argument

The FX software correlator implemented in Python with CuPy for GPU acceleration, combining multi-threaded data ingest, pinned-memory host-device transfers, GPU correlation, Polyphase Filter Bank channelization, MAD-based RFI flagging, and delay/phase calibration in a single end-to-end workflow.

If this is right

  • The software is suitable for small-array commissioning and initial synthesis imaging on QUEST.
  • Real-time operation becomes feasible for four-antenna configurations on commodity GPU hardware.
  • Calibrated visibilities with few-degree phase scatter are sufficient to produce usable CLEANed images that recover compact sources and suppress background fluctuations.
  • A GNSS-based beam measurement provides an independent commissioning check that can be repeated on other small arrays.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same high-level Python/CuPy stack could be reused by other educational or research groups building modest interferometers without access to FPGA or ASIC correlators.
  • Scaling the approach to eight or more antennas would require only additional GPU cards or nodes while retaining the same software structure.
  • The combination of MAD flagging and Polyphase Filter Bank channelization inside the same GPU workflow may generalize to other frequency bands or telescope sites facing similar RFI environments.

Load-bearing premise

The reported throughput, phase flattening, and image quality are achieved on real telescope data without unaccounted pipeline losses, artifacts, or calibration biases.

What would settle it

Processing the same raw voltage data with an independent, established correlator and finding that the resulting visibility amplitudes, phases, and final CLEANed image differ by more than the few-percent level reported here.

Figures

Figures reproduced from arXiv: 2604.20640 by Chenchen Miao, Dejia Zhou, Di Li, Fei Liu, Guanhong Lin, Jialang Ding, Jianli Zhang, Jie Zhang, Jing Qiao, Liaoyuan Liu, Meng Guo, Meng Liu, Menquan Liu, Pei Wang, Ran Duan, Wei Wang, Xiaohui Yan, Xiaoyun Ma, Xuanyu Wang, Yingrou Zhan, Yuan Liang, Yuting Chu, Zerui Wang.

Figure 1
Figure 1. Figure 1: The QUEST 4.5 m diameter radio telescope. 2. THE QUEST ARRAY QUEST (Qilu University Explorer Survey Telescope) is a decimeter-wave radio interferometer located in Zhangqiu District, Jinan, Shandong Province. The full array currently comprises twenty antennas distributed across three sites: six antennas at the north gate, ten antennas at the east gate, and four antennas located at a supercomputing park appr… view at source ↗
Figure 2
Figure 2. Figure 2: RF front-end diagram. 3. DATA ACQUISITION SYSTEM The backend is organized into an acquisition terminal and a processing terminal connected through high-speed InfiniBand (IB) networking (Clark et al. 2013). The acquisition side comprises six identical RFSoC-based modules, a central recorder, and a host computer, while the processing side consists of two heterogeneous servers ( [PITH_FULL_IMAGE:figures/full… view at source ↗
Figure 3
Figure 3. Figure 3: Terminal network diagram [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Comparison of sidelobe suppression between a standard FFT (rectangular window) and an 8-tap PFB with a Kaiser window (β = 8.0). The PFB reduces spectral leakage and is therefore preferred for the RFI-rich observing environment discussed in this paper. 4.2. Pipeline Architecture and Implementation The software is organized to overlap disk/network I/O with GPU computation [PITH_FULL_IMAGE:figures/full_fig_p… view at source ↗
Figure 5

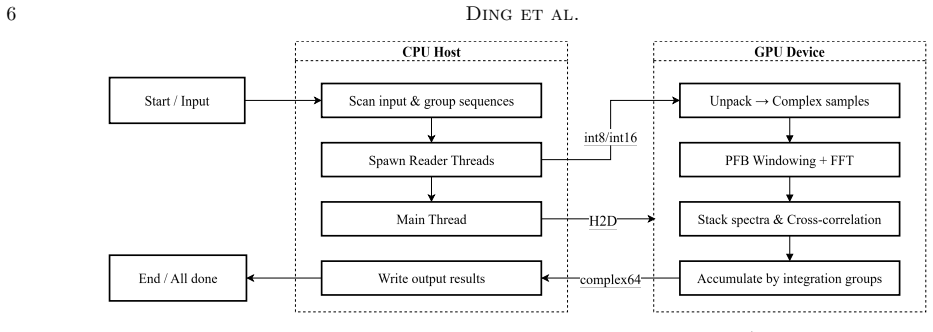

Figure 5. Figure 5: Software framework flowchart of the correlator. CPU tasks are dominated by I/O and scheduling, while the GPU handles unpacking, channelization, cross-multiplication, and integration. Asynchronous I/O: Reader threads follow a producer–consumer pattern and stream packets into pinned (page￾locked) host memory. This choice enables asynchronous host-to-device transfers through DMA and reduces the schedul￾ing ov… view at source ↗
Figure 6

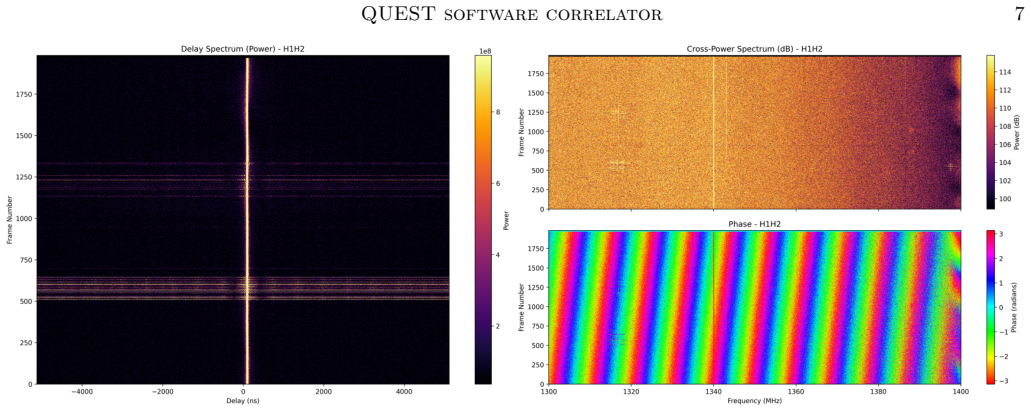

Figure 6. Figure 6: Example correlator output from continuous tracking of Cas A. The bandwidth is 1300–1400 MHz and the integration time is about 0.27 s per frame. The delay-spectrum peak remains stable over the short time interval shown, while the right-hand panels display the corresponding cross-power amplitude and phase [PITH_FULL_IMAGE:figures/full_fig_p007_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Dynamic spectrum from a long integration on Cas A for a single baseline. The upper panel shows power and the lower panel shows phase. Together they provide a compact diagnostic of both spectral occupancy and temporal behavior of the dominant RFI [PITH_FULL_IMAGE:figures/full_fig_p008_7.png] view at source ↗
Figure 8

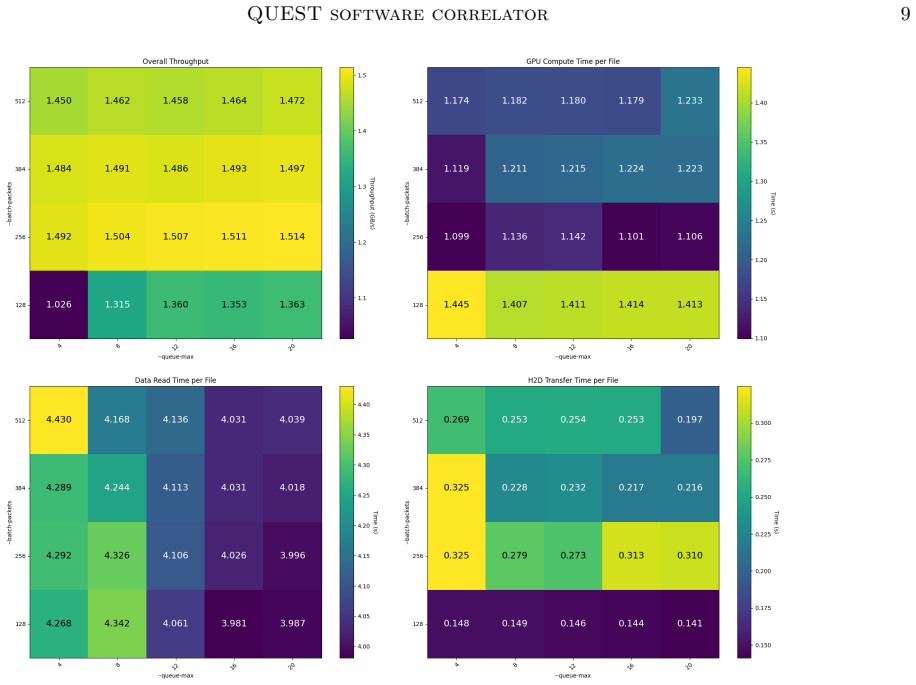

Figure 8. Figure 8: Sensitivity of correlator performance to batch-packets and queue-max. The panels show overall throughput, GPU compute time, data-read time, and H2D transfer time. The best throughput on the present platform is obtained near batch-packets= 256. The most useful interpretation of [PITH_FULL_IMAGE:figures/full_fig_p009_8.png] view at source ↗
Figure 9

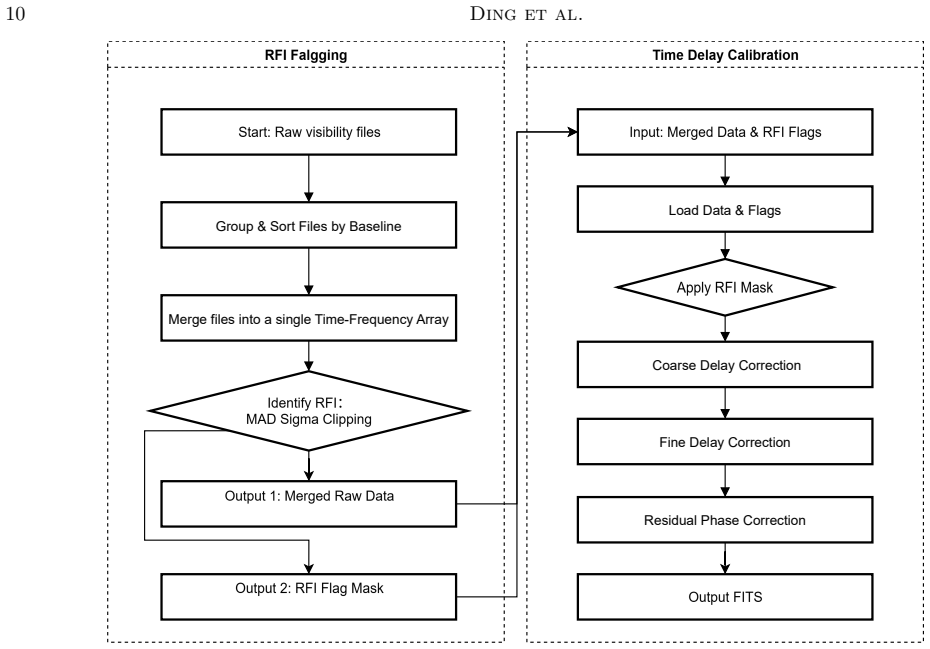

Figure 9. Figure 9: Flowchart of the post-calibration steps. The first stage derives an RFI mask; the second stage applies the mask and performs successive delay and phase corrections. where A is the visibility amplitude, σ is a user-defined threshold, and the factor 1.4826 converts MAD to the equivalent Gaussian standard deviation. In the results presented here we adopt σ = 5, which provides conservative rejection of strong … view at source ↗
Figure 10
Figure 10. Figure 10: Comparison of the measured group delay and the theoretical geometric delay. The offset between the two curves is dominated by non-geometric contributions that are removed by calibration. the clean 1.32–1.38 GHz band. The corrected phase scatter is only a few degrees overall (approximately ∼ 4 ◦ RMS by visual estimate from the displayed band), which is sufficient for the imaging validation carried out in S… view at source ↗
Figure 11
Figure 11. Figure 11: Visibility phase as a function of frequency after application of the delay and residual-phase corrections. The dominant instrumental phase slope has been removed, leaving residual scatter of only a few degrees across the selected clean band. 8. IMAGING VALIDATION The primary validation target of this paper is initial synthesis imaging from calibrated visibilities. We therefore use Cassiopeia A as the main… view at source ↗
Figure 12
Figure 12. Figure 12: Cassiopeia A imaging with a four-antenna QUEST subarray. Top row: CLEANed image, CLEAN component model, and residual map. Bottom row: dirty image and synthesized beam (PSF). The source is recovered as a compact feature at the phase center, while the residual map retains ring-like structure associated with sparse u–v coverage. • Dirty map: The inverse transform of the sampled visibilities shows Cas A as th… view at source ↗
Figure 13
Figure 13. Figure 13: Tracking history of GPS L5 signals with a single zenith-pointing 4.5 m antenna over 28 hr. The upper panel shows which satellites were tracked by each channel; the lower panel gives the number of simultaneously visible satellites [PITH_FULL_IMAGE:figures/full_fig_p013_13.png] view at source ↗
Figure 14

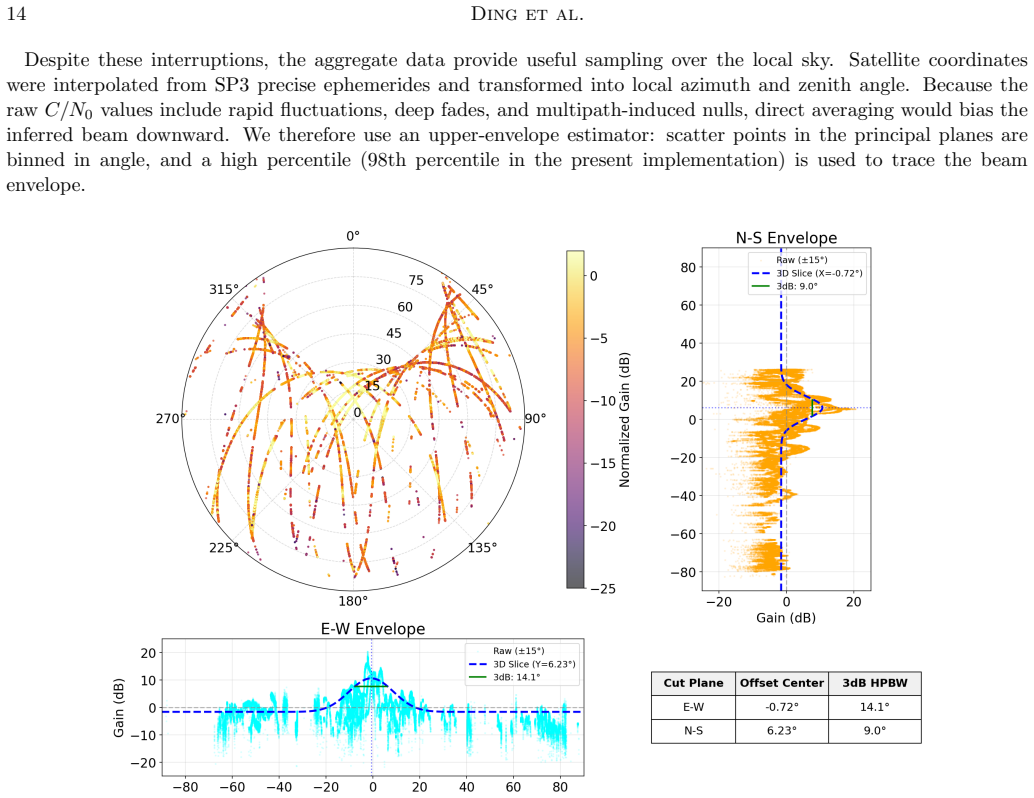

Figure 14. Figure 14: Primary-beam estimate of a single 4.5 m QUEST antenna derived from GNSS observations. The polar panel shows the reconstructed 2D beam pattern; the right and lower panels show the north–south and east–west cuts together with the percentile-based envelope estimate [PITH_FULL_IMAGE:figures/full_fig_p014_14.png] view at source ↗
read the original abstract

We present a Python/CuPy FX software correlator for small radio interferometer arrays and evaluate it on QUEST (Qilu University Explorer Survey Telescope). The system combines multi-threaded data ingest, pinned-memory host-device transfers, GPU-accelerated correlation, Polyphase Filter Bank channelization, MAD-based RFI flagging, and delay/phase calibration in a single workflow aimed at array commissioning. On a single NVIDIA RTX 4090D GPU, the implementation reaches a peak throughput of 1.51 GB/s, which is sufficient for real-time operation in the four-antenna mode tested here. After calibration, the visibility phase across a clean 1.32-1.38 GHz band is flattened to a residual scatter of a few degrees. Using the calibrated visibilities, we form a four-antenna synthesis image of Cassiopeia A; the CLEANed image recovers a compact source at the phase center and reduces image-domain background fluctuations from order 0.1 to a few 0.01 Jy/beam. These results indicate that the software is suitable for small-array commissioning and initial synthesis imaging on QUEST. A GNSS-based beam measurement is included as a supporting commissioning check.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 3 minor

Summary. The manuscript presents a Python/CuPy FX software correlator for small radio interferometer arrays, evaluated on the QUEST telescope. The integrated pipeline includes multi-threaded ingest, pinned-memory transfers, GPU correlation, PFB channelization, MAD flagging, and delay/phase calibration. On a single NVIDIA RTX 4090D GPU, it reports a peak throughput of 1.51 GB/s for four-antenna operation (sufficient for real-time), post-calibration visibility phase scatter of a few degrees over 1.32-1.38 GHz, and a CLEANed four-antenna synthesis image of Cassiopeia A recovering a compact source with background reduced from ~0.1 to ~0.01 Jy/beam. A GNSS-based beam measurement is provided as a supporting check.

Significance. If the reported metrics hold, this work is significant for demonstrating a practical, accessible GPU-accelerated correlator using Python/CuPy that achieves real-time performance on consumer hardware and enables initial synthesis imaging for small arrays. The complete end-to-end pipeline and application to real QUEST observations are strengths, as is the independent GNSS validation. This could facilitate commissioning and testing for similar instruments. The lack of detailed measurement protocols and quantitative error analysis, however, limits immediate reproducibility and impact.

major comments (2)
  1. [Performance evaluation section] Performance evaluation section: The peak throughput of 1.51 GB/s is reported without specifying the measurement protocol, including the timing method (e.g., CUDA events or host timers), exact data volume calculation, number of trials, or explicit accounting for all pipeline stages (ingest, transfers, correlation, channelization, flagging, calibration). This detail is load-bearing for the central claim of real-time operation in four-antenna mode.
  2. [Calibration and imaging results] Calibration and imaging results: The residual phase scatter ('a few degrees') and image background reduction ('a few 0.01 Jy/beam') are stated without quantitative statistics (e.g., standard deviation, histograms), error bars, or comparison to expected thermal noise levels. This affects assessment of the calibration effectiveness and image quality claims.
minor comments (3)
  1. [Abstract] The abstract phrase 'a few 0.01 Jy/beam' is imprecise; rephrase to 'approximately 0.01 Jy/beam' or provide a specific range for clarity.
  2. [Methods] Consider adding a table summarizing QUEST array parameters (e.g., antenna count, frequency band, baseline lengths) and correlator configuration settings to improve readability.
  3. [Figures] Figure captions should explicitly state the data source (real QUEST observations) and processing steps applied to aid interpretation.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their thoughtful and constructive review of our manuscript. The comments highlight important areas for improving clarity and reproducibility, which we address point by point below. We agree that additional methodological details are warranted and have prepared revisions to incorporate them.

read point-by-point responses

  1. Referee: [Performance evaluation section] Performance evaluation section: The peak throughput of 1.51 GB/s is reported without specifying the measurement protocol, including the timing method (e.g., CUDA events or host timers), exact data volume calculation, number of trials, or explicit accounting for all pipeline stages (ingest, transfers, correlation, channelization, flagging, calibration). This detail is load-bearing for the central claim of real-time operation in four-antenna mode.

    Authors: We acknowledge that the performance section would benefit from explicit documentation of the measurement protocol. In the revised manuscript we will add a dedicated paragraph describing the use of CUDA events for timing, the precise data-volume formula (accounting for 8-bit samples at the stated rate across four antennas), the number of averaged trials, and confirmation that the reported throughput encompasses the full pipeline including ingest, pinned transfers, correlation, PFB channelization, MAD flagging, and calibration. These additions will directly support the real-time claim without altering the reported numerical result. revision: yes

  2. Referee: [Calibration and imaging results] Calibration and imaging results: The residual phase scatter ('a few degrees') and image background reduction ('a few 0.01 Jy/beam') are stated without quantitative statistics (e.g., standard deviation, histograms), error bars, or comparison to expected thermal noise levels. This affects assessment of the calibration effectiveness and image quality claims.

    Authors: We agree that the calibration and imaging results would be strengthened by quantitative statistics. The revised manuscript will report the measured standard deviation of the post-calibration phase residuals, include a histogram of the phase distribution across the clean band, attach error bars to the quoted background levels, and compare the achieved image rms to the expected thermal noise calculated from the system equivalent flux density and integration time. These changes will allow readers to evaluate the calibration quality more rigorously. revision: yes

Circularity Check

0 steps flagged

No significant circularity: empirical engineering implementation with direct measurements

full rationale

The paper describes a complete FX correlator pipeline (ingest, transfers, correlation, PFB, flagging, calibration) and reports concrete empirical metrics from real QUEST observations: 1.51 GB/s throughput on RTX 4090D, residual phase scatter of a few degrees post-calibration, and CLEAN image background reduction on Cas A. No theoretical derivations, equations, fitted parameters renamed as predictions, or self-citation chains appear; all results are direct outputs of the implemented workflow applied to telescope data, with a supporting GNSS beam check. The work is self-contained as an engineering test without any reduction of claims to inputs by construction.

Axiom & Free-Parameter Ledger

0 free parameters · 3 axioms · 0 invented entities

The paper implements standard radio astronomy signal processing steps without introducing new free parameters, axioms beyond established techniques, or invented entities.

axioms (3)
  • standard math FX correlation computed via FFT-based cross-multiplication
    Core computational method for visibility generation in software correlators
  • standard math Polyphase Filter Bank for channelization
    Standard technique for efficient frequency channel separation in radio astronomy
  • domain assumption MAD-based RFI flagging
    Common statistical method for identifying and removing radio frequency interference
