arxiv: 2604.21247 · v2 · submitted 2026-04-23 · 💻 cs.NI · cs.PF

An Efficient Wireless iBCI Headstage with Adaptive ADC Sample Rate

Hongyao Liu , Junyi Wang , Jinglong Chen , Liuqun Zhai This is my paper

Pith reviewed 2026-05-08 14:03 UTC · model grok-4.3

classification 💻 cs.NI cs.PF

keywords wireless iBCIadaptive ADC samplingspike detectionpower efficiencyneural recordingbrain-computer interfaceserver-driven architecture

0 comments

The pith

A server learns electrode-specific optimal sample rates to dynamically reconfigure ADC hardware in a wireless iBCI headstage, cutting data volume and power at the acquisition layer.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper proposes a wireless implantable brain-computer interface headstage that uses adaptive analog-to-digital converter sampling rates adjusted by a remote server. The server learns an optimal per-electrode sample rate vector and reconfigures the ADC hardware directly, reducing data volume at the source instead of relying on later compression or processing. This approach is tested across subjects and electrode arrays in motor and visual tasks. Experiments report up to 40 milliwatts lower power consumption and 3.2 times less FPGA resource use while maintaining or improving decoding accuracy.

Core claim

By shifting from fixed high-rate sampling to server-driven, electrode-specific adaptive rates applied at the ADC, the headstage reduces power and data throughput at the acquisition stage while preserving downstream spike detection and decoding performance in both motor and visual tasks.

What carries the argument

The electrode-specific optimal sample rate vector, which the server learns and uses to reconfigure ADC hardware in real time, moving data reduction to the acquisition layer before digitization.

If this is right

Power savings of up to 40 mW extend usable recording time for battery-powered wireless implants.
Reduced data volume eases wireless bandwidth limits for higher-channel or longer-duration recordings.
Lower FPGA resource use allows simpler or smaller on-headstage hardware.
Maintained accuracy in motor and visual decoding supports use in practical brain-computer interface applications.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The same per-channel adaptive idea could apply to other multi-sensor implants where signal statistics vary across channels.
Combining the adaptive rates with on-chip spike detection might yield further efficiency gains.
Scaling the method to hundreds of channels would test whether the server learning step remains practical in real time.

Load-bearing premise

The server can learn and apply the right sample rates for each electrode in real time without missing important neural signals or creating artifacts that hurt decoding.

What would settle it

A side-by-side test in the same subjects showing lower decoding accuracy or added artifacts when adaptive sampling is active compared with constant high-rate sampling.

Figures

Figures reproduced from arXiv: 2604.21247 by Hongyao Liu, Jinglong Chen, Junyi Wang, Liuqun Zhai.

**Figure 1.** Figure 1: High-level pipeline of iBCIs. Despite iBCIs’ potential, the clinical translation of current iBCI systems is severely impeded by their reliance on percutaneous tethers. These physical connections not only introduce a persistent risk of infection at the skin interface but also anchor users to laboratory hardware, restricting mobility and natural behavior. Consequently, there is a critical imperative to tran… view at source ↗

**Figure 2.** Figure 2: Four example spike templates from a rat dataset [22] using Kilosort 4 [21]. datasets. Traditional spike sorting algorithms can be categorized into feature extraction [23] and template matching [21]. With high-density MEAs [4] containing hundreds or thousands of channels, the analysis faces the critical challenge of signal superposition. In these dense recording environments, the probability of ”spatiotemp… view at source ↗

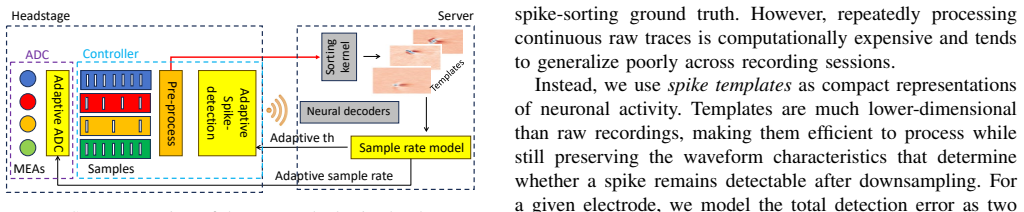

**Figure 3.** Figure 3: System overview of the proposed adaptive headstage. 0 10 20 Sample 0 10 20 Sample −5 0 Amp view at source ↗

**Figure 6.** Figure 6: Architecture of the prototype. To ensure that the realized hardware rate is the closest feasible rate that still meets the target, we choose xd,i = max x ∈ X view at source ↗

**Figure 7.** Figure 7: CR versus SDE across macaque and human datasets using three neural signal streaming schemes. Adaptive sample DCT CS 0 50 100 150 200 Power (mW) Adaptive sample DCT CS Adaptive sample DCT CS view at source ↗

**Figure 8.** Figure 8: Comparison of power consumption between adaptive sample and other two baselines across macaque, rat and human datasets. As shown in view at source ↗

**Figure 10.** Figure 10: Impact of adaptive sample, CS, and DCT on the motor decoder from CEBRA. 0 10 20 30 Film runtime (s) 0 20 40 Pred. err (%) DCT CS Adaptive sample Original view at source ↗

read the original abstract

Implantable Brain-Computer Interfaces (iBCIs) are increasingly pivotal in clinical and daily applications. However, wireless iBCIs face severe constraints in power consumption and data throughput. To mitigate these bottlenecks, we propose a wireless iBCI headstage featuring adaptive ADC sampling and spike detection. Distinguishing our design from traditional application-layer compression, we employ a server-driven architecture that achieves source-level efficiency. Specifically, the server learns an optimal, electrode-specific sample rate vector to dynamically reconfigure the ADC hardware. This strategy reduces data volume directly at the acquisition layer (ADC and amplifier) rather than relying on computationally intensive post-digitization processing. Extensive experiments across diverse subjects and arrays demonstrate a power reduction of up to 40 mW and a 3.2x decrease in FPGA resource utilization, all while maintaining or exceeding decoding accuracy in both motor and visual tasks. This design offers a highly practical solution for long-term in-vivo recording.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The server-driven per-electrode ADC reconfiguration targets real wireless iBCI power limits but the abstract gives no evidence on reconfiguration artifacts or validation methods.

read the letter

The main takeaway is a headstage design that lets a server pick and apply electrode-specific sample rates directly at the ADC and amplifier, cutting data volume at the source rather than after digitization. This is presented as distinct from standard compression pipelines. The reported outcomes are a power drop of up to 40 mW, 3.2 times lower FPGA usage, and decoding accuracy that stays the same or improves for motor and visual tasks across subjects and arrays. Those numbers address the actual constraints on wireless links and battery life in implantable systems, and the architecture choice makes sense for long-term use if the hardware can handle it cleanly. The work stays focused on an engineering fix without obvious circular claims or invented parameters. The abstract frames the server learning step as the key enabler, which is a reasonable system-level move. The soft spots are the missing pieces on how the reconfiguration actually works. Nothing is said about settling times, anti-aliasing during rate switches, clock handling, or whether simultaneous high-rate reference channels were used to check for transients or jitter. If rate changes occur near spike timescales, those effects could silently degrade the very accuracy the paper claims to preserve. The experiments are described only at summary level with no baselines, statistical tests, or exclusion criteria shown, so it is impossible to judge whether the gains are robust or depend on static-rate testing. This paper is for hardware and systems people working on wireless BCIs who need concrete ways to reduce throughput and power. A reader already building similar adaptive front-ends would get value from the high-level architecture even if the validation details are thin. I would send it for peer review. The idea is grounded in a real bottleneck and the numbers are specific enough to be worth checking against full methods and data, though the current description leaves the central dynamic-operation claim unverified.

Referee Report

2 major / 1 minor

Summary. The manuscript proposes a wireless implantable brain-computer interface (iBCI) headstage that uses a server-driven adaptive ADC sampling architecture. The server learns electrode-specific optimal sample-rate vectors and dynamically reconfigures the ADC hardware to reduce data volume at the acquisition layer (rather than via post-digitization compression). Experiments across diverse subjects and arrays are reported to achieve up to 40 mW power reduction, 3.2x lower FPGA resource utilization, and maintained or improved decoding accuracy for motor and visual tasks.

Significance. If the experimental claims are substantiated, the work offers a practical hardware-level approach to power and bandwidth constraints in wireless iBCIs, potentially supporting longer-term in-vivo use. The distinction from application-layer methods and the emphasis on source-level efficiency represent a useful engineering contribution in the field.

major comments (2)

The central claims rest on real-time dynamic per-electrode ADC reconfiguration without degradation of spike detection or downstream decoding. No description is provided of the reconfiguration protocol, settling time, anti-aliasing filter handling, clocking changes, or in-hardware validation (e.g., simultaneous high-rate reference channels) to rule out transients, quantization artifacts, or missed events during rate switches. This directly affects the validity of the reported accuracy maintenance under online operation.
The abstract states that 'extensive experiments across diverse subjects and arrays demonstrate' the performance gains, yet supplies no methods details, baselines, statistical tests, error bars, or exclusion criteria. Without these, it is impossible to evaluate whether the 40 mW power reduction and accuracy claims are robust or whether they derive from static-rate rather than truly adaptive testing.

minor comments (1)

Clarify the exact number of subjects, electrode arrays, and task paradigms in the abstract or early results section to allow readers to gauge the scope of the 'diverse subjects and arrays' claim.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive and detailed feedback on our manuscript. We address each major comment point by point below, indicating where revisions will be made to improve clarity, reproducibility, and substantiation of the claims.

read point-by-point responses

Referee: The central claims rest on real-time dynamic per-electrode ADC reconfiguration without degradation of spike detection or downstream decoding. No description is provided of the reconfiguration protocol, settling time, anti-aliasing filter handling, clocking changes, or in-hardware validation (e.g., simultaneous high-rate reference channels) to rule out transients, quantization artifacts, or missed events during rate switches. This directly affects the validity of the reported accuracy maintenance under online operation.

Authors: We agree that the manuscript would benefit from explicit details on the reconfiguration protocol to fully support the claims of maintained accuracy under dynamic online conditions. The current version describes the server-driven architecture at a high level but does not elaborate on implementation specifics such as settling time, filter synchronization, or clock domain handling. In the revised manuscript, we will add a new subsection to the Methods section that details the reconfiguration protocol, including measured settling times, anti-aliasing filter bandwidth adjustments coordinated with rate changes, and clocking strategies designed to minimize transients. We will also incorporate validation results using simultaneous high-rate reference channels on selected electrodes to demonstrate absence of missed spikes or artifacts during switches. These additions will directly address concerns regarding online validity. revision: yes
Referee: The abstract states that 'extensive experiments across diverse subjects and arrays demonstrate' the performance gains, yet supplies no methods details, baselines, statistical tests, error bars, or exclusion criteria. Without these, it is impossible to evaluate whether the 40 mW power reduction and accuracy claims are robust or whether they derive from static-rate rather than truly adaptive testing.

Authors: We acknowledge that the abstract's summary phrasing may have obscured the availability of supporting details, and we agree that explicit methodological transparency is necessary to evaluate robustness and confirm the adaptive (versus static) nature of the testing. The full manuscript includes a Methods section that specifies subject and array diversity, baseline comparisons (adaptive versus fixed-rate sampling), statistical tests (including paired comparisons with p-values), error bars (standard deviation across trials and sessions), and exclusion criteria (e.g., low-SNR channels). To resolve this, we will revise the abstract for greater precision and add a concise summary table in the Methods section that enumerates all experimental parameters, baselines, statistical methods, and criteria. Cross-references to Results figures will also be strengthened. revision: yes

Circularity Check

0 steps flagged

No circularity: empirical engineering design with no derivations or self-referential fits

full rationale

The manuscript describes a hardware architecture for adaptive per-electrode ADC sampling driven by server-side learning of sample-rate vectors, validated through experiments measuring power, FPGA resources, and decoding accuracy. No equations, first-principles derivations, fitted parameters renamed as predictions, or load-bearing self-citations appear in the abstract or described claims. The reported gains (up to 40 mW, 3.2x resource reduction) are presented as direct experimental outcomes rather than reductions to prior inputs by construction. The design is therefore self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

Review based on abstract only; the design implicitly rests on unstated assumptions about neural signal structure and hardware behavior that cannot be audited without the full manuscript.

axioms (2)

domain assumption Neural signals from different electrodes exhibit varying information density that permits safe reduction of sampling rates on some channels without loss of decoding utility.
Core premise enabling the adaptive rate vector and power savings.
domain assumption Dynamic reconfiguration of ADC sample rates incurs negligible overhead and does not introduce signal distortion or timing artifacts.
Required for the claimed hardware-level efficiency gains.

pith-pipeline@v0.9.0 · 5469 in / 1369 out tokens · 32843 ms · 2026-05-08T14:03:43.548976+00:00 · methodology

discussion (0)

Reference graph

Works this paper leans on

29 extracted references

[1]

Home use of a percutaneous wireless intracortical brain-computer interface by individuals with tetraplegia,

J. D. Simeralet al., “Home use of a percutaneous wireless intracortical brain-computer interface by individuals with tetraplegia,”IEEE Transac- tions on Biomedical Engineering, vol. 68, no. 7, pp. 2313–2325, 2021

2021
[2]

Measuring instability in chronic human intracortical neural recordings towards stable, long-term brain-computer interfaces,

T. K. Pun, M. Khoshnevis, T. Hosman, G. H. Wilson, A. Kapitonava, F. Kamdar, J. M. Henderson, J. D. Simeral, C. E. Vargas-Irwin, M. T. Harrisonet al., “Measuring instability in chronic human intracortical neural recordings towards stable, long-term brain-computer interfaces,” Communications Biology, vol. 7, no. 1, p. 1363, 2024

2024
[3]

The utah intracortical electrode array: a recording structure for potential brain- computer interfaces,

E. M. Maynard, C. T. Nordhausen, and R. A. Normann, “The utah intracortical electrode array: a recording structure for potential brain- computer interfaces,”Electroencephalography and clinical neurophysi- ology, vol. 102, no. 3, pp. 228–239, 1997

1997
[4]

Neuropixels 2.0: A miniaturized high-density probe for stable, long-term brain recordings,

N. A. Steinmetz, C. Aydin, A. Lebedeva, M. Okun, M. Pachitariu, M. Bauza, M. Beau, J. Bhagat, C. B ¨ohm, M. Brouxet al., “Neuropixels 2.0: A miniaturized high-density probe for stable, long-term brain recordings,”Science, vol. 372, no. 6539, p. eabf4588, 2021

2021
[5]

Reach and grasp by people with tetraplegia using a neurally controlled robotic arm,

L. R. Hochberg, D. Bacher, B. Jarosiewicz, N. Y . Masse, J. D. Simeral, J. V ogel, S. Haddadin, J. Liu, S. S. Cash, P. Van Der Smagtet al., “Reach and grasp by people with tetraplegia using a neurally controlled robotic arm,”Nature, vol. 485, no. 7398, pp. 372–375, 2012

2012
[6]

Schwartz a b, boninger ml, collinger jl. ten-dimensional anthropomorphic arm control in a human brain-machine interface: difficulties, solutions, and limitations,

B. Wodlinger, J. Downey, and E. Tyler-Kabara, “Schwartz a b, boninger ml, collinger jl. ten-dimensional anthropomorphic arm control in a human brain-machine interface: difficulties, solutions, and limitations,” J Neural Eng. IOP Publishing, vol. 12, p. 016011, 2015

2015
[7]

High-performance brain-to-text communication via handwriting,

F. R. Willett, D. T. Avansino, L. R. Hochberg, J. M. Henderson, and K. V . Shenoy, “High-performance brain-to-text communication via handwriting,”Nature, vol. 593, no. 7858, pp. 249–254, 2021

2021
[8]

Intracortical microstimulation of human somatosensory cortex,

S. N. Flesher, J. L. Collinger, S. T. Foldes, J. M. Weiss, J. E. Downey, E. C. Tyler-Kabara, S. J. Bensmaia, A. B. Schwartz, M. L. Boninger, and R. A. Gaunt, “Intracortical microstimulation of human somatosensory cortex,”Science translational medicine, vol. 8, no. 361, pp. 361ra141– 361ra141, 2016

2016
[9]

Clinical translation of a high-performance neural prosthesis,

V . Giljaet al., “Clinical translation of a high-performance neural prosthesis,”Nature medicine, vol. 21, no. 10, pp. 1142–1145, 2015

2015
[10]

Research on terahertz band electromagnetic characteristics of propagation and scattering in the cold magnetized plasma medium,

H. Liu and Y . Chao, “Research on terahertz band electromagnetic characteristics of propagation and scattering in the cold magnetized plasma medium,”Optik, vol. 217, p. 164905, 2020

2020
[11]

Analysis of terahertz wave on increasing radar cross section of 3d conductive model,

H. Liu, P. Wang, J. Wu, X. Yan, Y . Zhang, and X. Zhang, “Analysis of terahertz wave on increasing radar cross section of 3d conductive model,”Electronics, vol. 10, no. 1, p. 74, 2021

2021
[12]

Switchable and dual-tunable multilayered terahertz absorber based on patterned graphene and vanadium dioxide,

H. Liu, P. Wang, J. Wu, X. Yan, X. Yuan, Y . Zhang, and X. Zhang, “Switchable and dual-tunable multilayered terahertz absorber based on patterned graphene and vanadium dioxide,”Micromachines, vol. 12, no. 6, p. 619, 2021

2021
[13]

The rcs of the 3-d conductor sphere calculated in thz band and the homogeneous magnetized dense plasma sheath,

H.-y. Liu and Y . Chao, “The rcs of the 3-d conductor sphere calculated in thz band and the homogeneous magnetized dense plasma sheath,” Optik, vol. 208, p. 164525, 2020

2020
[14]

A wireless subdural- contained brain–computer interface with 65,536 electrodes and 1,024 channels,

T. Jung, N. Zeng, J. D. Fabbri, G. Eichler, Z. Li, E. Zabeh, A. Das, K. Willeke, K. E. Wingel, A. Dubeyet al., “A wireless subdural- contained brain–computer interface with 65,536 electrodes and 1,024 channels,”Nature Electronics, pp. 1–17, 2025

2025
[15]

Researches on the scattering character- istics in thz band of conductor cylinder coated with parabolic distribution and time-varying plasma media,

H.-Y . Liu, Y . Chao, and S. Liu, “Researches on the scattering character- istics in thz band of conductor cylinder coated with parabolic distribution and time-varying plasma media,”Optik, vol. 207, p. 163891, 2020

2020
[16]

A low-power programmable neural spike de- tection channel with embedded calibration and data compression,

A. Rodriguez-Perez, J. Ruiz-Amaya, M. Delgado-Restituto, and A. Rodriguez-Vazquez, “A low-power programmable neural spike de- tection channel with embedded calibration and data compression,”IEEE transactions on biomedical circuits and systems, vol. 6, no. 2, pp. 87– 100, 2012

2012
[17]

An unsupervised compressed sensing algorithm for multi-channel neural recording and spike sorting,

T. Xiong, J. Zhang, C. Martinez-Rubio, C. S. Thakur, E. N. Eskandar, S. P. Chin, R. Etienne-Cummings, and T. D. Tran, “An unsupervised compressed sensing algorithm for multi-channel neural recording and spike sorting,”IEEE Transactions on Neural Systems and Rehabilitation Engineering, vol. 26, no. 6, pp. 1121–1130, 2018

2018
[18]

Deep compressive autoencoder for action potential compression in large-scale neural recording,

T. Wu, W. Zhao, E. Keefer, and Z. Yang, “Deep compressive autoencoder for action potential compression in large-scale neural recording,”Journal of neural engineering, vol. 15, no. 6, p. 066019, 2018

2018
[19]

Neuralite: Enabling wireless high-resolution brain-computer interfaces,

H. Liu, J. Wang, L. Zhai, Y . Fang, and J. Huang, “Neuralite: Enabling wireless high-resolution brain-computer interfaces,” inProceedings of the 30th Annual International Conference on Mobile Computing and Networking, 2024, pp. 984–999

2024
[20]

Neuron-aware brain-to- computer communication for wireless intracortical bci,

H. Liu, J. Wang, X. Chen, and J. Huang, “Neuron-aware brain-to- computer communication for wireless intracortical bci,” inProceedings of the 25th International Workshop on Mobile Computing Systems and Applications, 2024, pp. 107–113

2024
[21]

Spike sorting with kilosort4,

M. Pachitariu, S. Sridhar, J. Pennington, and C. Stringer, “Spike sorting with kilosort4,”Nature methods, vol. 21, no. 5, pp. 914–921, 2024

2024
[22]

Fully integrated silicon probes for high-density recording of neural activity,

J. J. Jun, N. A. Steinmetz, J. H. Siegle, D. J. Denman, M. Bauza, B. Barbarits, A. K. Lee, C. A. Anastassiou, A. Andrei, C ¸ . Aydınet al., “Fully integrated silicon probes for high-density recording of neural activity,”Nature, vol. 551, no. 7679, pp. 232–236, 2017

2017
[23]

Performance comparison of extracellular spike sorting algorithms for single-channel recordings,

J. Wild, Z. Prekopcsak, T. Sieger, D. Novak, and R. Jech, “Performance comparison of extracellular spike sorting algorithms for single-channel recordings,”Journal of neuroscience methods, vol. 203, no. 2, pp. 369– 376, 2012

2012
[24]

A high-performance neural prosthesis enabled by control algorithm design,

V . Gilja, P. Nuyujukian, C. A. Chestek, J. P. Cunningham, B. M. Yu, J. M. Fan, M. M. Churchland, M. T. Kaufman, J. C. Kao, S. I. Ryuet al., “A high-performance neural prosthesis enabled by control algorithm design,”Nature neuroscience, vol. 15, no. 12, pp. 1752–1757, 2012

2012
[25]

Accurate estimation of neural population dynamics without spike sorting,

E. M. Trautmann, S. D. Stavisky, S. Lahiri, K. C. Ames, M. T. Kaufman, D. J. O’Shea, S. Vyas, X. Sun, S. I. Ryu, S. Ganguli et al., “Accurate estimation of neural population dynamics without spike sorting,”Neuron, vol. 103, no. 2, pp. 292–308, 2019

2019
[26]

Large- scale neural recordings call for new insights to link brain and behavior,

A. E. Urai, B. Doiron, A. M. Leifer, and A. K. Churchland, “Large- scale neural recordings call for new insights to link brain and behavior,” Nature neuroscience, vol. 25, no. 1, pp. 11–19, 2022

2022
[27]

Massively parallel recordings in macaque motor cortex during an instructed delayed reach-to-grasp task,

T. Brochier, L. Zehl, Y . Hao, M. Duret, J. Sprenger, M. Denker, S. Gr¨un, and A. Riehle, “Massively parallel recordings in macaque motor cortex during an instructed delayed reach-to-grasp task,”Scientific data, vol. 5, no. 1, pp. 1–23, 2018

2018
[28]

Learnable latent embeddings for joint behavioural and neural analysis,

S. Schneider, J. H. Lee, and M. W. Mathis, “Learnable latent embeddings for joint behavioural and neural analysis,”Nature, vol. 617, no. 7960, pp. 360–368, 2023

2023
[29]

Dct learning-based hardware design for neural signal acquisition systems,

C. Aprile, J. W ¨uthrich, L. Baldassarre, Y . Leblebici, and V . Cevher, “Dct learning-based hardware design for neural signal acquisition systems,” in Proceedings of the Computing Frontiers Conference, 2017, pp. 391–394

2017
