arxiv: 2604.21673 · v1 · submitted 2026-04-23 · 💻 cs.IT · math.IT

Hierarchical Joint Source-Channel Coding with Constrained Information Leakage

Yiqi Chen , Holger Boche , Marc Geitz This is my paper

Pith reviewed 2026-05-08 13:53 UTC · model grok-4.3

classification 💻 cs.IT math.IT
keywords hierarchical joint source-channel codinginformation leakagedistortion constraintsinner and outer boundsside informationachievable regiontwo-phase transmission
0
0 comments X

The pith

Inner and outer bounds characterize the achievable distortion-leakage region in hierarchical joint source-channel coding.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper examines a two-phase communication system where an encoder sends information over a channel and the receiver uses side information of varying quality to reconstruct a source. In the first phase a basic reconstruction occurs with lower-quality side information, while extra data sent in that phase can be decoded only in the second phase when better side information is available, improving the later reconstruction at the cost of possible extra leakage. The authors derive general inner and outer bounds that identify which triples of first-phase distortion D1, second-phase distortion D2, and leakage L can be achieved simultaneously. They also give a condition under which these bounds coincide with the channel capacity. A sympathetic reader would care because the bounds supply concrete design rules for systems that must deliver usable early outputs while protecting against leakage and still exploit better side information later.

Core claim

The authors show that for the hierarchical joint source-channel coding setup with a leakage constraint on the first-phase reconstruction, a given distortion-leakage triple (D1, D2, L) is achievable precisely when it satisfies the general inner and outer bounds they derive, and that these bounds meet the channel capacity under an identified capacity-achieving condition.

What carries the argument

General inner and outer bounds on the achievable (D1, D2, L) region that arise from the two-phase hierarchical structure in which side-information quality strictly governs whether supplemental phase-one information can be decoded.

If this is right

  • The bounds determine exactly which combinations of D1, D2 and L are possible for given source and channel statistics.
  • Under the capacity-achieving condition the system reaches the best possible performance without violating the leakage limit.
  • Sending extra phase-one information improves phase-two reconstruction but requires rate allocation that respects the first-phase leakage constraint.
  • The amount of hierarchical information can be tuned according to the expected distribution of side-information qualities at the receiver.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If the bounds turn out to be tight for common source-channel pairs, they could guide the design of explicit codes for secure hierarchical transmission.
  • The same bounding technique could be applied to continuous-valued sources or to networks with multiple receivers that possess different side-information qualities.
  • Extending the hierarchy to three or more phases might yield scaling rules that relate total leakage to the number of reconstruction levels.

Load-bearing premise

The model requires that the hierarchical two-phase structure holds with side-information quality determining decodability of the extra phase-one information and that leakage is measured only on the first-phase reconstruction.

What would settle it

For a concrete binary source and binary symmetric channel, compute the inner and outer bounds for chosen D1, D2, L values and check whether a practical code achieves the claimed region or whether the bounds fail to coincide under the stated capacity-achieving condition.

Figures

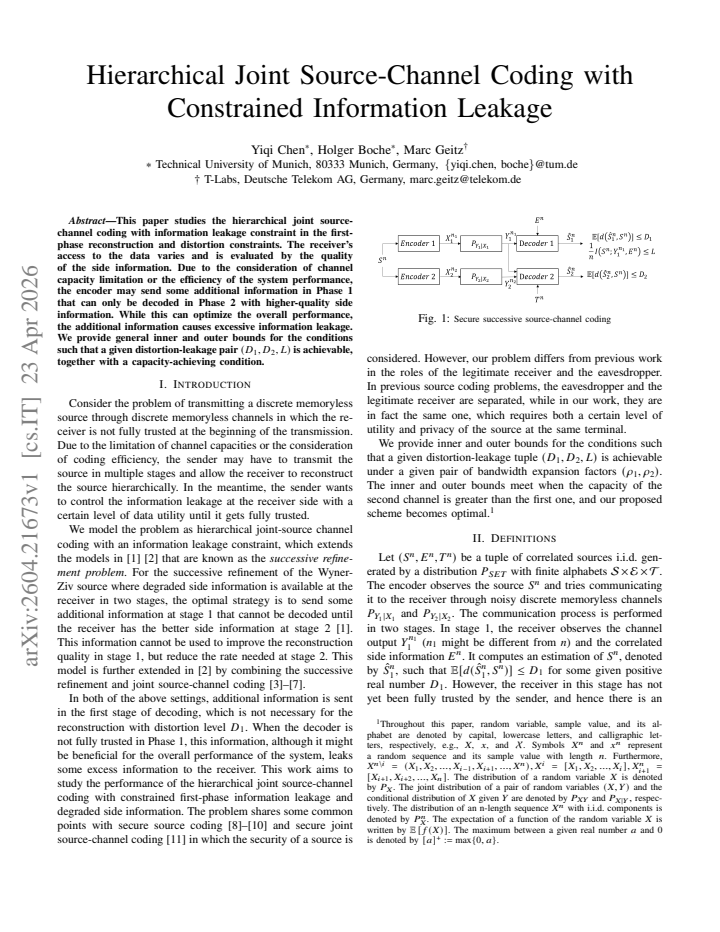

Figures reproduced from arXiv: 2604.21673 by Holger Boche, Marc Geitz, Yiqi Chen.

Figure 1
Figure 1. Figure 1: Secure successive source-channel coding considered. However, our problem differs from previous work in the roles of the legitimate receiver and the eavesdropper. In previous source coding problems, the eavesdropper and the legitimate receiver are separated, while in our work, they are in fact the same one, which requires both a certain level of utility and privacy of the source at the same terminal. We pro… view at source ↗
read the original abstract

This paper studies the hierarchical joint source-channel coding with information leakage constraint in the first-phase reconstruction and distortion constraints. The receiver's access to the data varies and is evaluated by the quality of the side information. Due to the consideration of channel capacity limitation or the efficiency of the system performance, the encoder may send some additional information in Phase 1 that can only be decoded in Phase 2 with higher-quality side information. While this can optimize the overall performance, the additional information causes excessive information leakage. We provide general inner and outer bounds for the conditions such that a given distortion-leakage pair $(D_1,D_2,L)$ is achievable, together with a capacity-achieving condition.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 2 minor

Summary. The manuscript studies hierarchical joint source-channel coding with an information leakage constraint applied to the first-phase reconstruction and distortion constraints in a two-phase setup. The receiver's side information quality determines the decodability of additional information sent in Phase 1. The key contribution is the derivation of general inner and outer bounds on the achievable distortion-leakage pairs (D1, D2, L), along with a capacity-achieving condition.

Significance. This work extends JSCC theory to hierarchical settings with security constraints. The provision of inner and outer bounds and a capacity-achieving condition could be valuable for theoretical understanding if they are tight and illustrated with examples. However, without specific numerical results or comparisons to existing bounds, the significance is moderate at best.

minor comments (2)
  1. [Abstract] The abstract mentions 'general inner and outer bounds' but does not specify the channel model or source distribution assumptions, which would help readers assess the scope.
  2. [Abstract] The capacity-achieving condition is mentioned but not described even at a high level, making it difficult to gauge its novelty.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for reviewing our manuscript and for the summary of our contributions on hierarchical joint source-channel coding with constrained information leakage. We address the concern regarding the work's significance below.

read point-by-point responses

  1. Referee: However, without specific numerical results or comparisons to existing bounds, the significance is moderate at best.

    Authors: We respectfully disagree that the absence of numerical results or explicit comparisons diminishes the significance of the work. The manuscript derives general inner and outer bounds on the achievable (D1, D2, L) region together with a capacity-achieving condition for this hierarchical setting with leakage constraints. Such general characterizations are standard and valuable in information-theoretic literature, as they establish fundamental limits that apply across a wide range of source and channel models. Specific numerical evaluations would necessarily be limited to particular source distributions or channel parameters and are better suited for follow-up work; the current contribution focuses on the general theoretical framework. revision: no

Circularity Check

0 steps flagged

No significant circularity; bounds derived from standard IT arguments

full rationale

The paper states it provides general inner and outer bounds on achievable (D1, D2, L) pairs under the defined hierarchical JSCC model with leakage only on Phase-1 reconstruction. No equations, fitted parameters, or self-citations are exhibited that reduce the claimed bounds to the inputs by construction. The model assumptions (side-information quality determining decodability) are explicitly part of the problem setup rather than smuggled in. The derivation chain is therefore self-contained against external benchmarks and does not match any enumerated circularity pattern.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Only the abstract is available; no free parameters, axioms, or invented entities are stated in the provided text.

pith-pipeline@v0.9.0 · 5411 in / 1053 out tokens · 59175 ms · 2026-05-08T13:53:37.063419+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

14 extracted references · 14 canonical work pages

  1. [1]

    On successive refinement for the wyner- ziv problem,

    Y . Steinberg and N. Merhav, “On successive refinement for the wyner- ziv problem,”IEEE Transactions on Information Theory, vol. 50, no. 8, pp. 1636–1654, 2004

    work page 2004

  2. [2]

    On hierarchical joint source-channel cod- ing with degraded side information,

    Y . Steinberg and N. Merhav, “On hierarchical joint source-channel cod- ing with degraded side information,”IEEE Transactions on Information Theory, vol. 52, no. 3, pp. 886–903, 2006

    work page 2006

  3. [3]

    Multiple access channels with arbitrarily correlated sources,

    T. Cover, A. E. Gamal, and M. Salehi, “Multiple access channels with arbitrarily correlated sources,”IEEE Transactions on Information Theory, vol. 26, no. 6, pp. 648–657, 1980

    work page 1980

  4. [4]

    Common information is far less than mutual information.,

    P. G ´acs, J. Korner,et al., “Common information is far less than mutual information.,”Problems of Control and Information Theory, vol. 2, pp. 149–162, 1973

    work page 1973

  5. [5]

    Source coding for a simple network,

    R. M. Gray and A. D. Wyner, “Source coding for a simple network,” Bell System Technical Journal, vol. 53, no. 9, pp. 1681–1721, 1974

    work page 1974

  6. [6]

    Broadcast channels with arbitrarily correlated sources,

    T. Han and M. Costa, “Broadcast channels with arbitrarily correlated sources,”IEEE Transactions on Information Theory, vol. 33, no. 5, pp. 641–650, 1987

    work page 1987

  7. [7]

    Lossy communication of correlated sources over multiple access channels,

    S. H. Lim, P. Minero, and Y .-H. Kim, “Lossy communication of correlated sources over multiple access channels,” in2010 48th An- nual Allerton Conference on Communication, Control, and Computing (Allerton), pp. 851–858, IEEE, 2010

    work page 2010

  8. [8]

    Secure multiterminal source coding with side information at the eavesdropper,

    J. Villard and P. Piantanida, “Secure multiterminal source coding with side information at the eavesdropper,”IEEE Transactions on Information Theory, vol. 59, no. 6, pp. 3668–3692, 2013

    work page 2013

  9. [9]

    Secure lossy source coding with side infor- mation,

    E. Ekrem and S. Ulukus, “Secure lossy source coding with side infor- mation,” in2011 49th Annual Allerton Conference on Communication, Control, and Computing (Allerton), pp. 1098–1105, IEEE, 2011

    work page 2011

  10. [10]

    Secure source coding with a helper,

    R. Tandon, S. Ulukus, and K. Ramchandran, “Secure source coding with a helper,” in2009 47th Annual Allerton Conference on Communication, Control, and Computing (Allerton), pp. 1061–1068, IEEE, 2009

    work page 2009

  11. [11]

    Secure transmission of sources over noisy channels with side information at the receivers,

    J. Villard, P. Piantanida, and S. Shamai, “Secure transmission of sources over noisy channels with side information at the receivers,”IEEE Transactions on Information Theory, vol. 60, no. 1, pp. 713–739, 2013

    work page 2013

  12. [12]

    Csisz ´ar and J

    I. Csisz ´ar and J. K ¨orner,Information Theory: Coding Theorems for Discrete Memoryless Systems. Cambridge University Press, 2011

    work page 2011

  13. [13]

    Information theoretic security,

    Y . Liang, H. V . Poor, S. Shamai,et al., “Information theoretic security,” Foundations and Trends® in Communications and Information Theory, vol. 5, no. 4–5, pp. 355–580, 2009

    work page 2009

  14. [14]

    El Gamal and Y .-H

    A. El Gamal and Y .-H. Kim,Network Information Theory. Cambridge University Press, 2011. APPENDIXA PROOF OF LEMMA1 The proof is an extension of that of [12, Theorem 17.21]. Define functions𝑓:Y 𝑛 → I, 𝜙:Y 𝑛 → J, 𝑔:Y × I × J → L. Following the argument for [12, Lemma 17.22], there exist such functions𝑓 , 𝜙, 𝑔such that(𝑉 𝑛 (𝑓(𝑆 𝑛), 𝜙(𝑆 𝑛)), 𝑊 𝑛 (𝑔(𝑆 𝑛, 𝑓(𝑆 𝑛...

    work page 2011
