arxiv: 2604.21783 · v1 · submitted 2026-04-23 · ❄️ cond-mat.mtrl-sci

Recognition: unknown

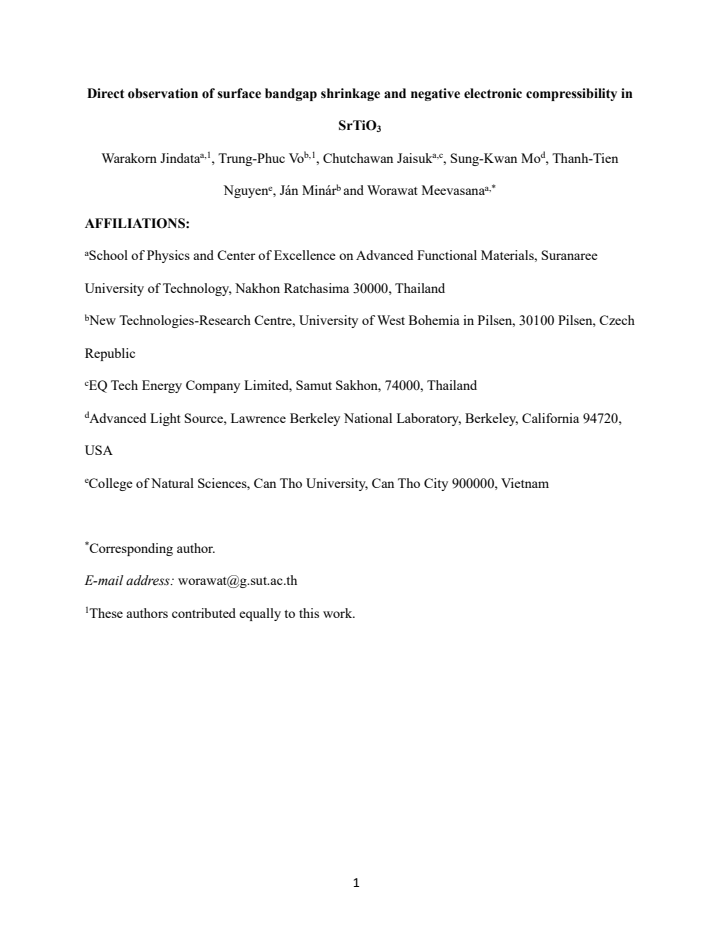

Direct observation of surface bandgap shrinkage and negative electronic compressibility in SrTiO3

Warakorn Jindata , Trung-Phuc Vo , Chutchawan Jaisuk , Sung-Kwan Mo , Thanh-Tien Nguyen , J\'an Min\'ar , Worawat Meevasana

Authors on Pith no claims yet

Pith reviewed 2026-05-09 21:31 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci

keywords SrTiO3negative electronic compressibilitysurface bandgapARPESUV dopingKTaO3oxide surfacesDFT calculations

0 comments

The pith

SrTiO3 surfaces shrink their bandgap by 390 meV and display negative electronic compressibility when electrons are added, unlike KTaO3.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper compares how the surface electronic structures of SrTiO3 and KTaO3 change when ultraviolet light adds electrons. In SrTiO3 the surface bandgap narrows by about 390 meV while the valence band peak moves toward lower binding energies by up to 200 meV, an effect the authors link to negative electronic compressibility. Density-functional-theory calculations indicate that the surface itself and oxygen vacancies both help drive the material toward a more metallic state. This spectroscopic observation connects bandgap tuning at oxide surfaces to an unusual charge response that could matter for electronic and energy-storage devices.

Core claim

Under UV-induced electron doping, SrTiO3 shows a 390 meV reduction in surface bandgap and a counterintuitive valence-band shift to lower binding energies of up to 200 meV, which the authors identify as a direct spectroscopic signature of negative electronic compressibility; KTaO3 lacks this behavior, and slab DFT calculations reproduce the bandgap narrowing from surface formation and oxygen-vacancy effects.

What carries the argument

ARPES tracking of surface band positions versus UV-induced electron density, combined with DFT slab calculations that model surface-induced gap reduction and oxygen-vacancy contributions.

If this is right

Bandgap engineering at the SrTiO3 surface becomes directly tied to the negative-compressibility response.
The material gains a spectroscopic handle for designing oxide surfaces with tunable carrier response.
SrTiO3 becomes a candidate for high-performance capacitive energy storage that exploits the anomalous compressibility.
Surface defect engineering (oxygen vacancies) offers a route to further control the observed gap shrinkage.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

If the NEC signature is robust, similar valence-band shifts may appear in other titanate surfaces under controlled doping.
Capacitance-voltage profiling on the same surfaces could provide an independent electrical test of the compressibility sign.
The contrast with KTaO3 suggests that the effect depends on specific lattice or orbital details that could be engineered in heterostructures.

Load-bearing premise

The observed shift of the valence band peak to lower binding energies with added electrons is produced by negative electronic compressibility rather than by UV-induced surface changes or experimental artifacts.

What would settle it

A direct capacitance measurement showing positive instead of negative compressibility, or an ARPES experiment in which the valence-band shift disappears when electron density is varied without UV light, would falsify the NEC interpretation.

read the original abstract

In this work, we investigate and compare the electronic structures of SrTiO3 and KTaO3 under ultraviolet (UV) light induced electron doping. Using angle-resolved photoemission spectroscopy (ARPES), the evolution of the surface electronic structures of SrTiO3 and KTaO3 is systematically examined as a function of electron density. In contrast to KTaO3, SrTiO3 exhibits a pronounced shrinking of its surface bandgap by approximately 390 meV, accompanied by a counterintuitive shift of the valence band peak toward lower binding energies of up to 200 meV with increasing electron density. This anomalous behavior constitutes a spectroscopic signature of negative electronic compressibility (NEC). Density-functional-theory calculations provide qualitative support for the experimental observations. The calculations show that surface formation already reduces the apparent near-gap separation in SrTiO3, while additional electron accumulation further drives the slab toward a more metallic state; oxygen-vacancy models likewise produce strong bandgap reduction, identifying plausible mechanisms contributing to the observed surface bandgap shrinkage. These findings establish a direct spectroscopic link between bandgap engineering and the NEC effect at the SrTiO3 surface, highlighting the potential of SrTiO3 for next-generation oxide electronic, optoelectronic, and high-performance capacitive energy storage devices applications.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

ARPES shows clear surface bandgap shrinkage in SrTiO3 under UV doping with a valence-band shift they tie to negative compressibility, but the attribution needs work to separate from band-bending effects.

read the letter

The paper's main result is ARPES data on SrTiO3 surfaces where UV-induced electron doping shrinks the apparent bandgap by roughly 390 meV and moves the valence-band peak toward lower binding energy by up to 200 meV. This does not occur the same way in KTaO3, and the authors interpret the counterintuitive shift as a spectroscopic signature of negative electronic compressibility. DFT slab calculations give qualitative support by showing that surface termination and oxygen vacancies already narrow the gap, with further electron accumulation pushing the system metallic. That contrast between the two materials and the specific experimental numbers are the concrete new pieces here. The work is straightforward to follow and connects the observations to possible uses in oxide electronics and energy storage. The soft spot sits in the NEC claim. Any accumulating surface charge produces band bending that rigidly shifts bands relative to the Fermi level in ARPES; without a Poisson-Schrödinger estimate of the expected electrostatic shift at the reported densities, it is hard to know how much of the 200 meV movement remains after that correction. The abstract does not describe such a subtraction or error analysis on the shifts, so the central interpretation rests on the direction of the movement alone. Other surface reconstructions or UV-induced artifacts could contribute as well. This is the kind of paper that oxide-interface and ARPES groups would want to see. Readers working on SrTiO3 2DEGs or negative compressibility would find the numbers and the material comparison useful even if they end up questioning the exact mechanism. It deserves peer review because the experimental observations are specific and the topic is relevant, though referees will likely press on isolating the compressibility contribution from electrostatic shifts.

Referee Report

2 major / 3 minor

Summary. The manuscript reports ARPES measurements comparing UV-induced electron doping in SrTiO3 and KTaO3 surfaces. It claims that SrTiO3 exhibits a surface bandgap shrinkage of approximately 390 meV and a counterintuitive shift of the valence band peak to lower binding energies by up to 200 meV as electron density increases, in contrast to KTaO3; this anomalous shift is interpreted as a spectroscopic signature of negative electronic compressibility (NEC). Qualitative DFT calculations are presented showing that surface formation and oxygen-vacancy formation reduce the apparent bandgap, providing mechanistic support for the observations and suggesting applications in oxide electronics and energy storage.

Significance. If the central interpretation holds after addressing electrostatic contributions, the work would provide a direct experimental link between surface bandgap modification and NEC in SrTiO3, with the KTaO3 contrast highlighting material specificity and the DFT results offering plausible mechanisms. This could impact understanding of oxide interfaces for electronic and capacitive devices, though the current support remains observational and qualitative rather than quantitatively validated.

major comments (2)

[Abstract and the ARPES results section on valence-band evolution with electron density] The core claim that the up to 200 meV valence-band shift to lower binding energy with rising electron density constitutes a direct signature of NEC (chemical potential decreasing with density) is load-bearing but not isolated from rigid electrostatic effects. In ARPES, surface charge accumulation from UV doping produces band bending that rigidly shifts all bands relative to E_F; the manuscript provides no self-consistent Poisson-Schrödinger estimate or equivalent subtraction of this contribution for the reported carrier densities, leaving undetermined how much (if any) of the observed shift can be attributed to NEC rather than surface potential changes.
[DFT calculations and discussion section] The DFT calculations are stated to provide qualitative support for bandgap reduction via surface formation and oxygen vacancies, yet no quantitative comparison is made to the experimental 390 meV shrinkage value or the 200 meV shift; this weakens the link between the modeled mechanisms and the claimed NEC signature.

minor comments (3)

[Experimental methods and results sections] Error bars, data exclusion criteria, and details of peak-fitting procedures for extracting bandgap and valence-band positions are not reported, making it difficult to assess the precision of the 390 meV and 200 meV values.
[Experimental methods] The method for quantifying electron density from the ARPES data (including any assumptions in the UV doping process) should be described explicitly, as this is central to the density-dependent claims.
[ARPES data presentation] The manuscript should clarify whether the reported shifts are measured relative to a fixed reference (e.g., core levels) or solely to E_F, to help separate rigid shifts from intrinsic band movements.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive and detailed comments. We address each major comment point by point below, offering clarifications based on the manuscript content and indicating where revisions will be made.

read point-by-point responses

Referee: [Abstract and the ARPES results section on valence-band evolution with electron density] The core claim that the up to 200 meV valence-band shift to lower binding energy with rising electron density constitutes a direct signature of NEC (chemical potential decreasing with density) is load-bearing but not isolated from rigid electrostatic effects. In ARPES, surface charge accumulation from UV doping produces band bending that rigidly shifts all bands relative to E_F; the manuscript provides no self-consistent Poisson-Schrödinger estimate or equivalent subtraction of this contribution for the reported carrier densities, leaving undetermined how much (if any) of the observed shift can be attributed to NEC rather than surface potential changes.

Authors: We agree that distinguishing the contribution of negative electronic compressibility from rigid electrostatic band bending is important for strengthening the interpretation. The manuscript emphasizes the material contrast: under similar UV-induced electron doping, SrTiO3 shows the valence-band peak shifting to lower binding energies by up to 200 meV, whereas KTaO3 does not exhibit this anomalous shift. Rigid band bending from surface charge accumulation would be anticipated to affect both systems similarly, so the observed specificity supports an intrinsic effect tied to NEC in SrTiO3. However, we acknowledge that the current presentation does not include a quantitative Poisson-Schrödinger estimate to subtract the electrostatic contribution at the reported carrier densities. In the revised manuscript, we will add such an estimate using the experimentally determined electron densities to better isolate the NEC signature. revision: yes
Referee: [DFT calculations and discussion section] The DFT calculations are stated to provide qualitative support for bandgap reduction via surface formation and oxygen vacancies, yet no quantitative comparison is made to the experimental 390 meV shrinkage value or the 200 meV shift; this weakens the link between the modeled mechanisms and the claimed NEC signature.

Authors: The DFT results are explicitly described as providing qualitative mechanistic support, demonstrating that surface formation reduces the apparent near-gap separation and that oxygen vacancies further drive the system toward a metallic state. This is consistent in direction with the experimental bandgap shrinkage of approximately 390 meV. We concur that the absence of a direct quantitative comparison to the measured 390 meV and 200 meV values limits the strength of the connection. In the revised discussion section, we will incorporate a more explicit comparison between the calculated bandgap reductions and the experimental values while preserving the qualitative character of the modeling. revision: yes

Circularity Check

0 steps flagged

No circularity: experimental ARPES observations and qualitative DFT interpreted directly without self-referential derivations or fitted predictions.

full rationale

The paper reports direct ARPES measurements of bandgap evolution and valence-band shifts in SrTiO3 under UV doping, contrasted with KTaO3, and offers a qualitative interpretation linking the anomalous 200 meV shift to negative electronic compressibility. DFT is invoked only for qualitative support on surface and vacancy effects. No equations, parameter fits, or derivations are presented that reduce any claimed result to its own inputs by construction. No load-bearing self-citations or uniqueness theorems are used. The central claims rest on raw spectral data and external physical interpretation rather than any closed loop of self-definition or statistical forcing.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The central claim rests on standard assumptions in ARPES for interpreting band positions and gaps, plus the attribution of spectral changes solely to electron density increase. No free parameters, new entities, or ad-hoc axioms are explicitly introduced in the abstract; DFT is used qualitatively to identify plausible mechanisms.

axioms (2)

domain assumption ARPES peak positions and apparent gaps accurately reflect the surface electronic structure without significant matrix element or final-state effects altering the observed shifts.
Invoked implicitly when equating measured valence band peak movement and bandgap shrinkage directly to NEC and surface changes.
domain assumption UV illumination induces controlled electron doping at the surface without concurrent structural or chemical changes that could independently affect the spectra.
Required to attribute all observed evolution to increasing electron density alone.

pith-pipeline@v0.9.0 · 5561 in / 1731 out tokens · 65906 ms · 2026-05-09T21:31:12.247441+00:00 · methodology

discussion (0)

Reference graph

Works this paper leans on

9 extracted references

[1]

Introduction The discovery of a two-dimensional electron gas (2DEG) [1-5] at the interface between the insulating oxides LaAlO3 and SrTiO3 has generated extensive interest in oxide-based low-dimensional electron systems because of their rich and diverse electronic properties, including high carrier mobility [6,7], superconductivity [8,9], large magnetores...

2009
[2]

Caputo, M

M. Caputo, M. Boselli, A. Filippetti, S. Lemal, D. Li, A. Chikina, C. Cancellieri, T. Schmitt, J.-M. Triscone, P. Ghosez, S. Gariglio, and V . N. Strocov, Phys. Rev. Mater. 4 (2020) 035001. [4] F. Alarab, K. Hricovini, B. Leikert, L. Nicolaï, M. Fanciulli, O. Heckmann, C. Richter, L. Prušakova, Z. Jansa, P. Šutta, J. Rault, P. Lefevre, M. Sing, M. Muntwil...

2020
[3]

Vivek, M

M. Vivek, M. O. Goerbig, and M. Gabay, Topological states at the (001) surface of SrTiO3, Phys. Rev. B 95 (2017) 165117. [20] S. N. Rebeca, T. Jiab, H. M. Sohailb, M. Hashimoto, D. Lu, Z.-X. Shen, and R. G. Moore, Dichotomy of the photo-induced 2-dimensional electron gas on SrTiO3 surface terminations, Proc. Natl. Acad. Sci. 116 (2019) 16687-16691. [21] E...

2017
[4]

Zhang, T.-R

Y . Zhang, T.-R. Chang, B. Zhou, Y .-T. Cui, H. Yan, Z. Liu, F. Schmitt, J. Lee, R. Moore, Y . Chen, H. Lin, H.-T. Jeng, S.-K. Mo, Z. Hussain, A. Bansil, Z.-X. Shen, Direct observation of the transition from indirect to direct bandgap in atomically thin epitaxial MoSe₂, Nat. Nanotechnol. 9 (2014) 111. [28] S. Y . Xu, Y . Xia, L. A. Wray, S. Jia, F. Meier,...

2014
[5]

Nathabumroong, T

S. Nathabumroong, T. Eknapakul, P. Jaiban, B. Yotburut, S. Siriroj, T. Saisopa, S.-K. Mo, R. Supruangnet, H. Nakajima, R. Yimnirun, S. Maensiri, and W. Meevasana, Sci. Rep. 10 (2020) 5153. [35] W. Jindata, K. Hantanasirisakul, T. Eknapakul, J. D. Denlinger, S. Sangphet, S. Chaiyachad, C. Jaisuk, A. Rasritat, T. Sawasdee, H. Nakajima, A. Rattanachata, I. F...

2020
[6]

V . M. Longo, M. G. S. Costa, A. Z. Simões, I. L. V . Rosa, C. O. P. Santos, J Andrés, E. Longoa and J. A. Varelaa, Phys. Chem. Chem. Phys. 12 (2010) 7566-7579. [41] J. P. Perdew, K. Burke, and M. Ernzerhof, Phys. Rev. Lett. 77 (1996) 3865. [42] G. Kresse and D. Joubert, Phys. Rev. B 59 (1999) 1758. [43] A. D. Corso, Comput. Mater. Sci. 95 (2014) 337. [44...

2010
[7]

Suwanwong, T

S. Suwanwong, T. Eknapakul, Y . Rattanachai, C. Masingboon, S. Rattanasuporn, R. Phatthanakun, H. Nakajima, P.D.C. King, S. K. Hodak, and W. Meevasana, Appl. Surf. Sci. 355 (2015) 210-212. [58] S. Cook, M. T. Dylla, R. A. Rosenberg, Z. R. Mansley, G. J. Snyder, L. D. Marks, and D. D. Fong, Adv. Electron. Mater. 5 (2019) 1800460. [59] J. Shen, H. Lee, R. V...

2015
[8]

2D character of the observed band Figure S1 shows the photon-energy dependence of the ARPES spectra, demonstrating negligible variation of the Fermi momentum (kF). Figures S1(a)-S1(e) present the ARPES energy band dispersion measured along the same momentum cut using low photon flux at photon energies (Ep) of 45, 50, 55, 60, and 65 eV , respectively. In a...
[9]

Determining the change of bandgap of SrTiO3 upon electron doping by using onset-to-onset separation As shown in Figs. S2(a)-S2(b), for the onset-to-onset separation, the evolution of the CBM onset shows a downward shift to higher binding energies, reaching approximately 230 meV with the ranging from -0.66 eV to -0.89 eV at the highest electron density. In...

2010
