arxiv: 2604.21891 · v1 · submitted 2026-04-23 · 📡 eess.SY · cs.AI· cs.SY

A Multi-Stage Warm-Start Deep Learning Framework for Unit Commitment

Muhy Eddin Za'ter , Anna Van Boven , Bri-Mathias Hodge , Kyri Baker This is my paper

Pith reviewed 2026-05-09 20:47 UTC · model grok-4.3

classification 📡 eess.SY cs.AIcs.SY

keywords unit commitmenttransformer modelwarm startmixed integer linear programmingpower system schedulingdeep learningfeasibility post-processingvariable fixation

0 comments

The pith

A transformer predicts generator schedules that are refined by rules and fed as warm starts to a solver, always yielding feasible unit commitment plans faster and sometimes at lower cost.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a multi-stage method to solve the unit commitment problem, which decides when to turn power plants on and off to meet demand over days ahead. It starts with a transformer neural network that guesses the commitment schedule for 72 hours. These guesses are then adjusted using simple rules to satisfy physical constraints like minimum run times, and selected variables are fixed based on prediction confidence before handing off to a traditional mathematical solver. This hybrid approach is shown to always find a valid plan and often does so much quicker than solving from scratch, sometimes even finding lower-cost plans. Grid operators could use this to handle longer planning periods and more variable renewable energy without missing tight decision deadlines.

Core claim

The proposed framework uses a transformer-based architecture to predict generator commitment schedules over a 72-hour horizon. Raw predictions are refined with deterministic post-processing heuristics that enforce minimum up/down times and minimize excess capacity. These refined predictions serve as a warm start for a MILP solver, with a confidence-based variable fixation strategy to reduce the search space. On a single-bus test system, the pipeline achieves 100% feasibility, significantly accelerates computation times, and in about 20% of instances produces a lower-cost feasible schedule than the solver alone.

What carries the argument

Transformer-based schedule predictor followed by post-processing heuristics and confidence-based variable fixation to generate warm starts for the MILP solver.

Load-bearing premise

The transformer's raw guesses on new cases are close enough to workable schedules that the rules and solver can quickly turn them into high-quality feasible solutions.

What would settle it

On a larger or more variable test system, if the warm-started solver exceeds time limits or returns higher costs than the unaided solver in most instances, the claimed speed and quality gains would not hold.

Figures

Figures reproduced from arXiv: 2604.21891 by Anna Van Boven, Bri-Mathias Hodge, Kyri Baker, Muhy Eddin Za'ter.

**Figure 1.** Figure 1: The 3 stages of the proposed pipeline. Stage 1 is the deep learning model. Stage 2 is the post-processing heuristics to [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗

**Figure 2.** Figure 2: The components of the proposed architecture. The latent component is used to process the input with positional encoding. [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗

**Figure 3.** Figure 3: Predicted generator statuses on a sample data point where the model prediction obtained a lower cost than the ground [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗

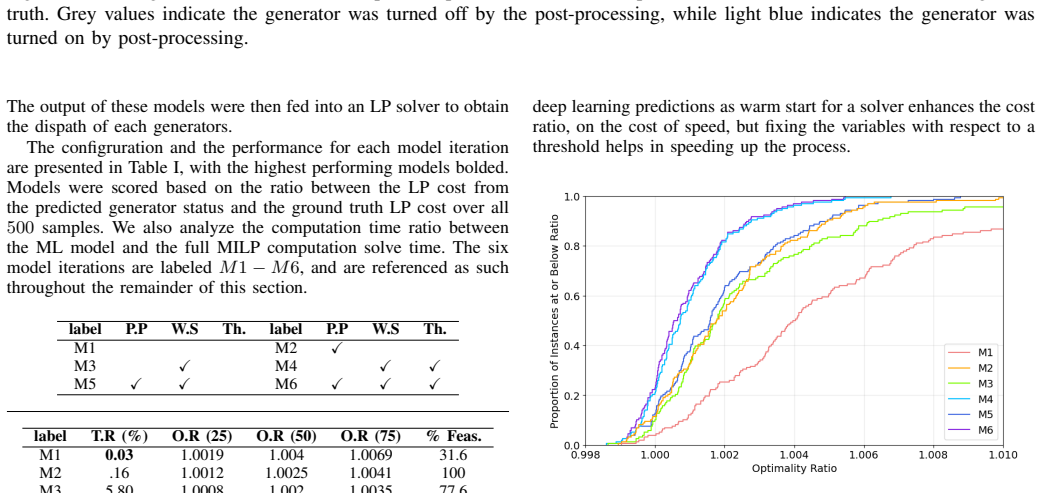

**Figure 4.** Figure 4: Distribution of optimality ratios for models M1 - M6, [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗

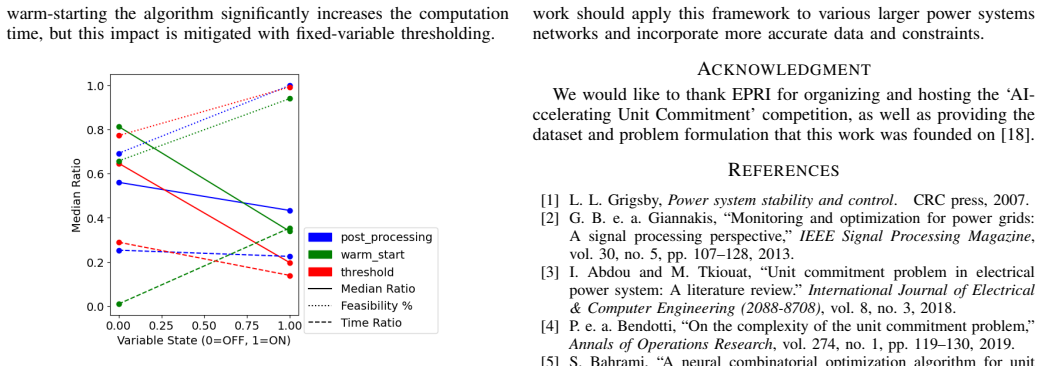

**Figure 5.** Figure 5: Main effects (scaled from 0 to 1) for optimality ratio [PITH_FULL_IMAGE:figures/full_fig_p006_5.png] view at source ↗

read the original abstract

Maintaining instantaneous balance between electricity supply and demand is critical for reliability and grid instability. System operators achieve this through solving the task of Unit Commitment (UC),ca high dimensional large-scale Mixed-integer Linear Programming (MILP) problem that is strictly and heavily governed by the grid physical constraints. As grid integrate variable renewable sources, and new technologies such as long duration storage in the grid, UC must be optimally solved for multi-day horizons and potentially with greater frequency. Therefore, traditional MILP solvers increasingly struggle to compute solutions within these tightening operational time limits. To bypass these computational bottlenecks, this paper proposes a novel framework utilizing a transformer-based architecture to predict generator commitment schedules over a 72-hour horizon. Also, because raw predictions in highly dimensional spaces often yield physically infeasible results, the pipeline integrates the self-attention network with deterministic post-processing heuristics that systematically enforce minimum up/down times and minimize excess capacity. Finally, these refined predictions are utilized as a warm start for a downstream MILP solver, while employing a confidence-based variable fixation strategy to drastically reduce the combinatorial search space. Validated on a single-bus test system, the complete multi-stage pipeline achieves 100\% feasibility and significantly accelerates computation times. Notably, in approximately 20\% of test instances, the proposed model reached a feasible operational schedule with a lower overall system cost than relying solely on the solver.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The transformer warm-start pipeline for 72-hour UC is concrete and gets feasible solutions on single-bus tests, but the evaluation skips the network constraints that actually drive the computational difficulty.

read the letter

The paper's main piece is a transformer that predicts generator commitments over 72 hours, followed by deterministic post-processing to enforce minimum up and down times plus excess-capacity trimming, then a confidence-based fixation step that feeds a reduced MILP to the solver. On their single-bus instances this produces 100% feasible schedules, cuts solve time, and in roughly 20% of cases even yields lower total cost than the solver run from scratch. That combination of learned prediction, hard-constraint repair, and variable fixation is not a standard extension of earlier ML-for-UC work, and the pipeline is described clearly enough to reproduce the high-level flow.

Referee Report

2 major / 2 minor

Summary. The paper proposes a multi-stage framework for the Unit Commitment (UC) problem that combines a transformer-based model to predict generator commitment schedules over a 72-hour horizon, deterministic post-processing heuristics to enforce minimum up/down times and capacity limits, and the use of these predictions as warm starts for a MILP solver with confidence-based variable fixation to shrink the search space. Validation on a single-bus test system is reported to yield 100% feasibility, accelerated solve times, and lower system costs than the solver alone in approximately 20% of instances.

Significance. A hybrid ML-plus-solver pipeline that can occasionally produce lower-cost feasible schedules while guaranteeing feasibility would be a useful contribution to accelerating UC for systems with high renewable penetration. The specific combination of self-attention prediction, constraint-repair heuristics, and warm-start variable fixation is technically interesting and could be extended if the approach proves robust on more realistic instances.

major comments (2)

[Abstract and Introduction] Abstract and Introduction: The motivation highlights the computational difficulty of large-scale UC with variable renewables, multi-day horizons, and network flow constraints (including Kirchhoff's laws and line capacities), yet every quantitative result—including the 100% feasibility and time-acceleration claims—is obtained on a single-bus system that contains no transmission constraints or inter-area flows. The post-processing heuristics address only temporal and capacity constraints; it is therefore unclear whether the transformer predictions and variable-fixation strategy remain effective or feasible-preserving once the full network-constrained MILP is considered.
[Numerical Results] Numerical Results (implied by abstract claims): The abstract states 100% feasibility and cost improvement in ~20% of test instances, but supplies no information on test-set size, statistical significance, baseline solver configuration (time limit, MIP gap tolerance, warm-start usage), or any ablation that isolates the contribution of the transformer versus the heuristics versus the fixation strategy. These omissions make it impossible to judge whether the reported gains are robust or merely artifacts of the simplified single-bus setting.

minor comments (2)

[Abstract] Abstract: Typo 'ca high dimensional' should read 'a high-dimensional'.
[Abstract] Abstract: The phrase 'significantly accelerates computation times' should be accompanied by at least one quantitative metric (e.g., average or median speedup factor) to be informative.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments. We agree that the motivation in the introduction references general UC challenges including network constraints, while the quantitative results are confined to a single-bus system. We will revise the manuscript to align the stated scope with the presented experiments and to supply the missing experimental details and ablations. Below we respond to each major comment.

read point-by-point responses

Referee: [Abstract and Introduction] Abstract and Introduction: The motivation highlights the computational difficulty of large-scale UC with variable renewables, multi-day horizons, and network flow constraints (including Kirchhoff's laws and line capacities), yet every quantitative result—including the 100% feasibility and time-acceleration claims—is obtained on a single-bus system that contains no transmission constraints or inter-area flows. The post-processing heuristics address only temporal and capacity constraints; it is therefore unclear whether the transformer predictions and variable-fixation strategy remain effective or feasible-preserving once the full network-constrained MILP is considered.

Authors: We thank the referee for identifying this scope mismatch. The introduction provides general context on UC challenges, including network constraints, to situate the contribution. The framework predicts and repairs commitment schedules for temporal and capacity constraints via the transformer and heuristics; the final MILP stage, seeded by the warm-start and confidence-based fixation on commitment variables, is responsible for enforcing any remaining constraints, including network flows when they are modeled. Because the fixation operates only on binary commitment decisions, it is formulation-agnostic. Nevertheless, we have not tested the pipeline on instances that include transmission constraints, so the quality of the warm-start and the resulting solve-time or cost benefits under network constraints have not been quantified. In the revised manuscript we will update the abstract and introduction to state explicitly that all reported numerical results pertain to the single-bus case without transmission constraints. We will also add a discussion paragraph describing how the approach extends to network-constrained UC and noting the additional verification that would be required. revision: partial
Referee: [Numerical Results] Numerical Results (implied by abstract claims): The abstract states 100% feasibility and cost improvement in ~20% of test instances, but supplies no information on test-set size, statistical significance, baseline solver configuration (time limit, MIP gap tolerance, warm-start usage), or any ablation that isolates the contribution of the transformer versus the heuristics versus the fixation strategy. These omissions make it impossible to judge whether the reported gains are robust or merely artifacts of the simplified single-bus setting.

Authors: We acknowledge that the abstract does not contain these details and that they are essential for assessing robustness. Although the experimental protocol is described in the body of the manuscript, we will expand the revised version with a concise experimental-setup subsection and a summary table. We will report the exact test-set size, include statistical significance measures (e.g., confidence intervals or hypothesis tests) for the observed cost improvements, specify the baseline solver settings (time limit, MIP gap tolerance, and whether warm-starting was enabled for the pure-solver baseline), and add ablation experiments that successively disable the transformer, the post-processing heuristics, and the variable-fixation step. These additions will allow readers to isolate component contributions and to evaluate the results more rigorously even within the single-bus setting. revision: yes

Circularity Check

0 steps flagged

No significant circularity; empirical validation on held-out data is independent of fitted parameters

full rationale

The paper trains a transformer to predict 72-hour commitment schedules from data, applies deterministic post-processing heuristics for min up/down times and capacity, then feeds the result as a warm-start into a standard MILP solver with variable fixation. All performance metrics (100% feasibility, solve-time reduction, occasional cost improvement) are measured on held-out test instances rather than being algebraically or statistically forced by the training objective itself. No self-citations, uniqueness theorems, or ansatzes from prior author work are invoked as load-bearing steps; the pipeline does not rename known results or define predictions in terms of themselves. The derivation chain therefore remains self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

2 free parameters · 1 axioms · 0 invented entities

The framework rests on the standard supervised-learning assumption that historical operating data are representative of future conditions and that post-hoc heuristics can reliably repair model outputs without destroying solution quality.

free parameters (2)

transformer hyperparameters and training schedule
Learned from data; central to prediction accuracy.
confidence threshold for variable fixation
Chosen to balance speed and solution quality; not derived from first principles.

axioms (1)

domain assumption Historical unit-commitment data distribution matches future operating conditions.
Required for the trained model to generalize.

pith-pipeline@v0.9.0 · 5559 in / 1377 out tokens · 42359 ms · 2026-05-09T20:47:36.533362+00:00 · methodology

discussion (0)

Reference graph

Works this paper leans on

23 extracted references · 1 canonical work pages

[1]

L. L. Grigsby,Power system stability and control. CRC press, 2007

2007
[2]

Monitoring and optimization for power grids: A signal processing perspective,

G. B. e. a. Giannakis, “Monitoring and optimization for power grids: A signal processing perspective,”IEEE Signal Processing Magazine, vol. 30, no. 5, pp. 107–128, 2013

2013
[3]

Unit commitment problem in electrical power system: A literature review

I. Abdou and M. Tkiouat, “Unit commitment problem in electrical power system: A literature review.”International Journal of Electrical & Computer Engineering (2088-8708), vol. 8, no. 3, 2018

2088
[4]

On the complexity of the unit commitment problem,

P. e. a. Bendotti, “On the complexity of the unit commitment problem,” Annals of Operations Research, vol. 274, no. 1, pp. 119–130, 2019

2019
[5]

A neural combinatorial optimization algorithm for unit commitment in ac power systems,

S. Bahrami, “A neural combinatorial optimization algorithm for unit commitment in ac power systems,” in2022 IEEE International Con- ference on Communications, Control, and Computing Technologies for Smart Grids (SmartGridComm). IEEE, 2022, pp. 14–20

2022
[6]

Feasibility layer aided machine learning ap- proach for day-ahead operations,

A. V . Ramesh and X. Li, “Feasibility layer aided machine learning ap- proach for day-ahead operations,”IEEE Transactions on Power Systems, vol. 39, no. 1, p. 1582–1593, Jan. 2024

2024
[7]

The role of extended horizon methodology in renewable-dense grids with inter-day long-duration energy storage,

A. A. e. a. Thatte, “The role of extended horizon methodology in renewable-dense grids with inter-day long-duration energy storage,” in 2024 IEEE Power & Energy Society General Meeting (PESGM). IEEE, 2024, pp. 1–5

2024
[8]

Machine learning approaches to the unit commit- ment problem: Current trends, emerging challenges, and new strategies,

Y . Yang and L. Wu, “Machine learning approaches to the unit commit- ment problem: Current trends, emerging challenges, and new strategies,” The Electricity Journal, vol. 34, no. 1, p. 106889, 2021

2021
[9]

Feasibility layer aided machine learning ap- proach for day-ahead operations,

A. V . Ramesh and X. Li, “Feasibility layer aided machine learning ap- proach for day-ahead operations,”IEEE Transactions on Power Systems, vol. 39, no. 1, pp. 1582–1593, 2023

2023
[10]

The use of artificial intelligence for the unit commitment problem: State of the art,

J. Milla and J. I. P ´erez-D´ıaz, “The use of artificial intelligence for the unit commitment problem: State of the art,” inELECTRIMACS 2024, E. Belenguer and H. Beltran, Eds. Cham: Springer Nature Switzerland, 2025, p. 713–725

2024
[11]

A gan-based fully model-free learning method for short- term scheduling of large power system,

J. e. a. Guan, “A gan-based fully model-free learning method for short- term scheduling of large power system,”IEEE Transactions on Power Systems, vol. 37, no. 4, p. 2655–2665, Jul. 2022

2022
[12]

Graph convolutional network-based security-constrained unit commitment leveraging power grid topology in learning,

X. e. a. Tang, “Graph convolutional network-based security-constrained unit commitment leveraging power grid topology in learning,”Energy Reports, vol. 9, p. 3544–3552, Dec. 2023

2023
[13]

Data-driven decision-making for scuc: An improved deep learning approach based on sample coding and seq2seq technique,

N. e. a. Yang, “Data-driven decision-making for scuc: An improved deep learning approach based on sample coding and seq2seq technique,” Protection and Control of Modern Power Systems, vol. 10, no. 2, p. 13–24, Mar. 2025

2025
[14]

Learning-assisted variables reduc- tion method for large-scale milp unit commitment,

M. I. A. Shekeew and B. Venkatesh, “Learning-assisted variables reduc- tion method for large-scale milp unit commitment,”IEEE Open Access Journal of Power and Energy, vol. 10, p. 245–258, 2023

2023
[15]

Reinforcement learning and mixed-integer program- ming for power plant scheduling in low carbon systems: Comparison and hybridisation,

C. e. a. O’Malley, “Reinforcement learning and mixed-integer program- ming for power plant scheduling in low carbon systems: Comparison and hybridisation,”Applied Energy, vol. 349, p. 121659, Nov. 2023

2023
[16]

Fsnet: Feasibility-seeking neural network for constrained optimization with guarantees.arXiv preprint arXiv:2506.00362, 2025

H. T. Nguyen and P. L. Donti, “Fsnet: Feasibility-seeking neural network for constrained optimization with guarantees,”arXiv preprint arXiv:2506.00362, 2025

work page arXiv 2025
[17]

Attention is all you need,

A. Vaswaniet al., “Attention is all you need,” inNeurIPS, 2017

2017
[18]

Ai-ccelerating unit commitment,

Electric Power Research Institute, “Ai-ccelerating unit commitment,” 2025-2026

2025
[19]

On layer normalization in the transformer architecture,

R. Xionget al., “On layer normalization in the transformer architecture,” 2020

2020
[20]

Zhou,Machine learning

Z.-H. Zhou,Machine learning. Springer nature, 2021

2021
[21]

Decoupled weight decay regularization,

I. Loshchilov and F. Hutter, “Decoupled weight decay regularization,” 2019

2019
[22]

Super-convergence: Very fast training of neural networks using large learning rates,

L. N. Smith and N. Topin, “Super-convergence: Very fast training of neural networks using large learning rates,” 2019

2019
[23]

Spatio-temporal deep learning-assisted reduced security-constrained unit commitment,

A. V . Ramesh and X. Li, “Spatio-temporal deep learning-assisted reduced security-constrained unit commitment,”IEEE Transactions on Power Systems, vol. 39, no. 2, pp. 4735–4746, 2023

2023
