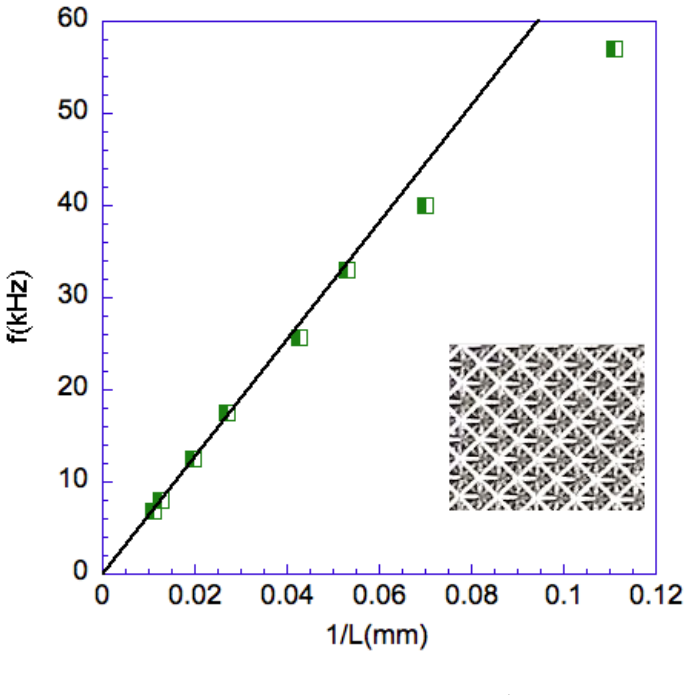

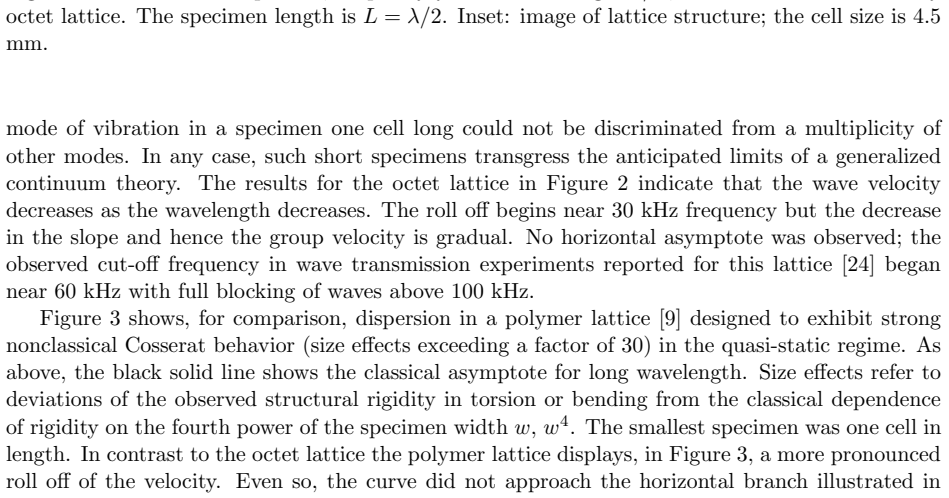

Figure 2. Figure 2: Elastic wave dispersion, frequency f vs. inverse length 1/L, in a Ti-5553 titanium alloy octet lattice. The specimen length is L = λ/2. Inset: image of lattice structure; the cell size is 4.5 mm. mode of vibration in a specimen one cell long could not be discriminated from a multiplicity of other modes. In any case, such short specimens transgress the anticipated limits of a generalized continuum theory. T… view at source ↗
Figure 1
Figure 1. Figure 1: The horizontal branch was, by contrast, observed in polymer foams [16] with positive and view at source ↗
Figure 3

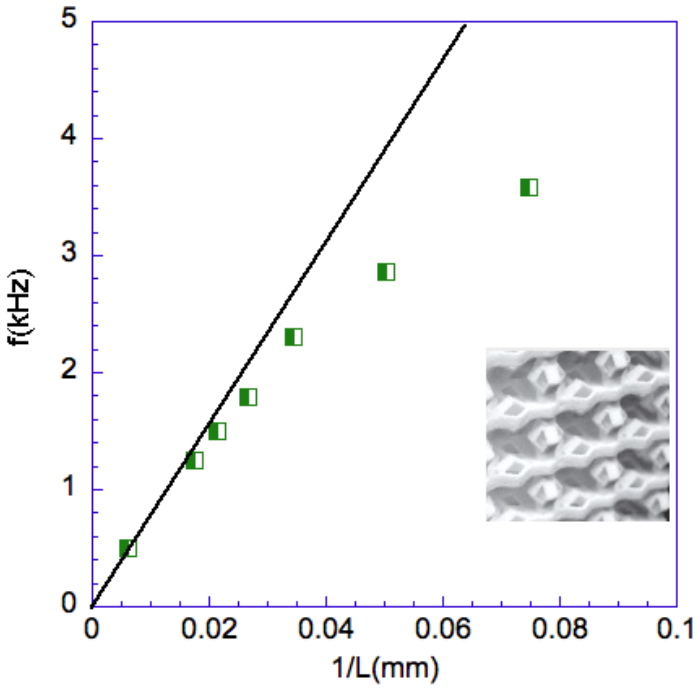

Figure 3. Figure 3: Elastic wave dispersion, frequency f vs. inverse length, in a polymer lattice with designed hollow ribs. The specimen length is L = λ/2. Inset: image of lattice structure; the cell size is 9 mm in the longitudinal direction. Adapted from [9]. 4 Analysis 4.1 Microstructure / micromorphic elasticity In microstructure elasticity [4], also called micromorphic elasticity, the points in the continuum translate a… view at source ↗
Figure 4

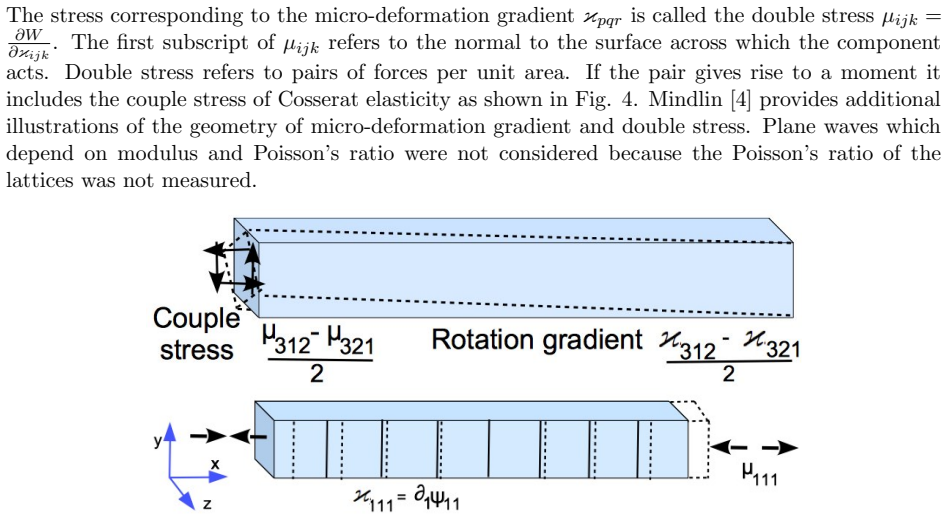

Figure 4. Figure 4: Gradients of micro-deformation κpqr and corresponding double stress µpqr, adapted from [4]. Arrows represent forces. Top: Cosserat freedom within micromorphic framework. Bottom: micromorphic freedom for axial compression. The constitutive equations for the isotropic microstructure theory are for the Cauchy stress, Eq. (1), for the relative stress Eq. (2) and for the double stress, Eq. (3), in which δpq is … view at source ↗
read the original abstract

Elastic wave dispersion is studied in an octet truss lattice and compared with a designed rib lattice known to exhibit strong Cosserat elastic effects. Dispersion entails variation of wave speed with frequency. The phenomenon is experimentally investigated by exciting standing waves in specimens of different length at discrete frequencies. At lower frequencies corresponding to long wavelengths, wave propagation is classically non-dispersive. As wavelength approaches a small multiple of the rib length, dispersion is observed. The material exhibited cut-off frequencies above which no signals were propagated. The physical origin of the dispersion and cut-off is resonance of the ribs. Interpreted as micromorphic continua, cellular solid behavior reveals elastic constants associated with flexibility of the unit cell in comparison with that of the overall material.
