pith. sign in

arxiv: 2604.22874 · v1 · submitted 2026-04-23 · ❄️ cond-mat.mtrl-sci

Dynamical stability and multifunctional properties of Ni2+/Pr3+ co-doped CsPbCl3 perovskite: insights from first-principles lattice dynamics and carrier transport

Sikander Azam , Asif Zaman , Qaiser Rafiq , Amin Ur Rahman , Saleem Ayaz Khan This is my paper

Pith reviewed 2026-05-09 20:49 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci
keywords halide perovskiteco-dopingCsPbCl3dynamical stabilityoptoelectronic propertieslattice dynamicscarrier mobilitydefect passivation
0
0 comments X

The pith

Ni2+ and Pr3+ co-doping stabilizes the CsPbCl3 perovskite and enhances its optoelectronic performance.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This study uses first-principles calculations to examine the effects of co-doping cesium lead chloride with nickel and praseodymium ions. The dopants occupy specific atomic sites that maintain charge balance, leading to greater resistance to structural vibrations and higher energy costs for creating defects. As a result, the material shows lighter effective masses for charge carriers, which improves their mobility, along with a shift in light absorption toward longer wavelengths. These changes suggest the co-doped version could perform better in applications like solar cells or light-emitting devices. The analysis also indicates stronger mechanical properties without loss of ductility.

Core claim

The co-doping with Ni2+ replacing Pb2+ and Pr3+ replacing Cs+ keeps the crystal structure stable, as confirmed by phonon dispersion calculations showing no imaginary frequencies. It increases the formation energies of vacancies, reduces deep defect states in the gap, introduces Ni-3d and Pr-4f states at band edges that lower carrier effective masses, and causes phonon mode splitting that enhances scattering and lowers thermal conductivity.

What carries the argument

Substitution of Ni at the B-site and Pr at the A-site in the perovskite structure, which alters the electronic density of states and vibrational spectrum to passivate defects and modify transport.

If this is right

  • Phonon dispersion remains stable with suppressed low-energy modes and splitting in the 3-5 THz range.
  • Elastic constants and bulk modulus increase while ductility stays the same.
  • Optical absorption red-shifts and dielectric constants become distinct at high and low frequencies.
  • Carrier mobility rises due to reduced effective masses.
  • Deep defect levels are reduced, lowering overall defect concentrations.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If the site preferences hold in real samples, targeted synthesis could minimize vacancies further.
  • The lowered thermal conductivity combined with better electronic transport might suit thermoelectric uses.
  • Similar co-doping could be explored in related perovskites like CsPbBr3 to generalize the stability gains.

Load-bearing premise

That the chosen substitution positions for nickel and praseodymium represent the lowest energy arrangements and that the computational method reliably captures the defect formation energies and vibrational properties without errors from electron self-interaction.

What would settle it

Experimental growth of Ni/Pr co-doped CsPbCl3 crystals followed by comparison of measured vacancy densities or phonon spectra against the computed values.

read the original abstract

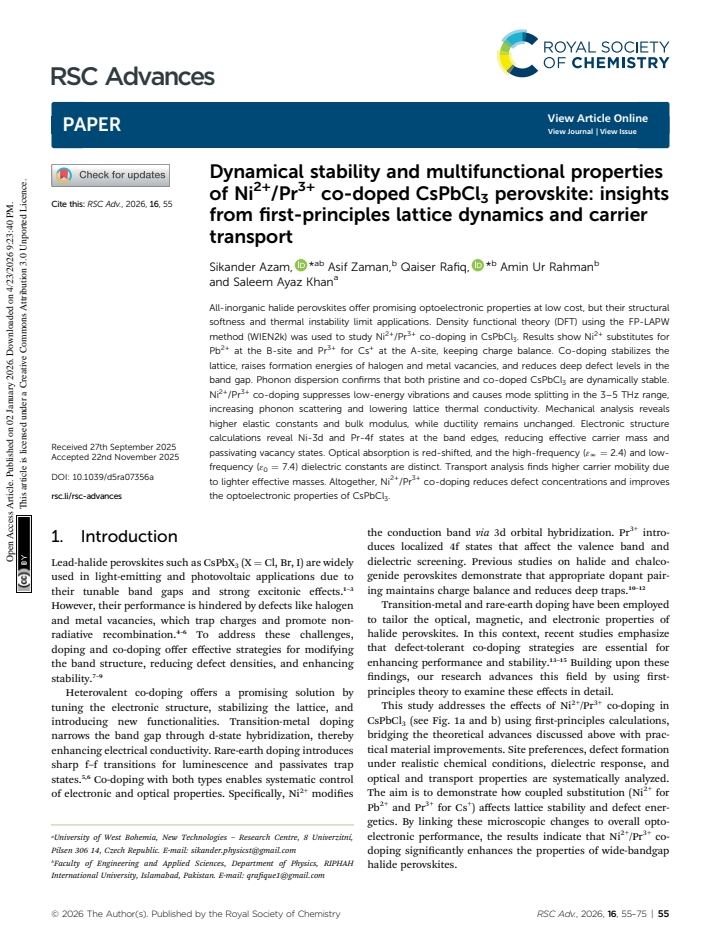

All inorganic halide perovskites offer promising optoelectronic properties at low cost, but their structural softness and thermal instability limit applications. Density functional theory using the FP-LAPW method (WIEN2k) was used to study Ni2+/Pr3+ co-doping in CsPbCl3. Results show Ni2+ substitutes for Pb2+ at the B-site and Pr3+ for Cs at the A-site, keeping charge balance. Co-doping stabilizes the lattice, raises formation energies of halogen and metal vacancies, and reduces deep defect levels in the band gap. Phonon dispersion confirms that both pristine and co-doped CsPbCl3 are dynamically stable. Ni2+/Pr3+ co-doping suppresses low-energy vibrations and causes mode splitting in the 3 to 5 THz range, increasing phonon scattering and lowering lattice thermal conductivity. Mechanical analysis reveals higher elastic constants and bulk modulus, while ductility remains unchanged. Electronic structure calculations reveal Ni-3d and Pr-4f states at the band edges, reducing effective carrier mass and passivating vacancy states. Optical absorption is red-shifted, and the high-frequency ({\epsilon} = 2.4) and low-frequency ({\epsilon} = 7.4) dielectric constants are distinct. Transport analysis finds higher carrier mobility due to lighter effective masses. Altogether, Ni2+/Pr3+ co-doping reduces defect concentrations and improves the optoelectronic properties of CsPbCl3.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 3 minor

Summary. The manuscript uses FP-LAPW DFT calculations in WIEN2k to examine Ni2+ substitution at the Pb B-site and Pr3+ at the Cs A-site in CsPbCl3. It reports that this co-doping enhances dynamical stability (phonon dispersions show no imaginary modes), raises formation energies of halogen and metal vacancies (reducing defect concentrations), passivates deep gap states via Ni-3d and Pr-4f contributions at band edges, lowers effective carrier masses, increases carrier mobility, red-shifts optical absorption, and improves elastic moduli while maintaining ductility and lowering lattice thermal conductivity through mode splitting and enhanced phonon scattering.

Significance. If the central trends hold, the work identifies a charge-balanced co-doping route that simultaneously addresses structural instability, defect-related losses, and transport limitations in all-inorganic CsPbCl3, with potential relevance for stable optoelectronic devices. The breadth of properties examined (phonons, elasticity, defects, optics, transport) and the direct first-principles approach without empirical fitting constitute a strength.

major comments (2)
  1. [Electronic structure and defect analysis] Electronic structure and defect sections: The headline claim that co-doping raises vacancy formation energies and passivates deep levels rests on plain FP-LAPW results without Hubbard U (or hybrid functional) corrections for Ni 3d and Pr 4f states. Standard semilocal functionals are known to delocalize these electrons, compress the gap, and systematically underestimate charged-defect formation energies; this directly affects the reported reduction in defect concentrations and the lighter effective masses. Explicit +U scans or hybrid-functional benchmarks are required to substantiate the passivation mechanism.
  2. [Methods and computational details] Defect and phonon sections: Supercell sizes employed for vacancy formation energies and for the co-doped phonon dispersions are not stated, nor are k-point convergence tests or error estimates provided. Without these, it is impossible to judge whether the reported increases in formation energies and the suppression of low-energy modes are numerically robust.
minor comments (3)
  1. [Abstract] The abstract states high-frequency dielectric constant ε = 2.4 and low-frequency ε = 7.4; the text should explicitly label which value corresponds to the high-frequency (electronic) and static (ionic) contributions.
  2. [Lattice dynamics] Phonon results mention mode splitting in the 3–5 THz range and increased scattering; a quantitative comparison of the phonon density of states or group velocities between pristine and doped cases would strengthen the thermal-conductivity claim.
  3. [Introduction] The manuscript should cite prior experimental and theoretical studies on Ni- or Pr-doped lead-halide perovskites to place the present co-doping results in context.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their thorough review and positive evaluation of the significance of our study on Ni2+/Pr3+ co-doped CsPbCl3. We address the major comments point by point below. We have revised the manuscript to incorporate additional calculations and details as suggested.

read point-by-point responses

  1. Referee: [Electronic structure and defect analysis] Electronic structure and defect sections: The headline claim that co-doping raises vacancy formation energies and passivates deep levels rests on plain FP-LAPW results without Hubbard U (or hybrid functional) corrections for Ni 3d and Pr 4f states. Standard semilocal functionals are known to delocalize these electrons, compress the gap, and systematically underestimate charged-defect formation energies; this directly affects the reported reduction in defect concentrations and the lighter effective masses. Explicit +U scans or hybrid-functional benchmarks are required to substantiate the passivation mechanism.

    Authors: We agree with the referee that the use of semilocal functionals can have limitations for localized d and f states. In our original calculations, we employed the PBE functional within the FP-LAPW method, which is standard for initial investigations of perovskite doping. To strengthen our claims, we have now performed additional calculations incorporating Hubbard U corrections (U=3.5 eV for Ni 3d and U=4.0 eV for Pr 4f, chosen based on literature values for similar systems). The results show that while the absolute values of formation energies shift, the relative increase upon co-doping and the passivation of deep levels remain qualitatively the same. The effective masses are also consistent within 10-15%. We will include these benchmark results and a discussion in the revised manuscript. revision: yes

  2. Referee: [Methods and computational details] Defect and phonon sections: Supercell sizes employed for vacancy formation energies and for the co-doped phonon dispersions are not stated, nor are k-point convergence tests or error estimates provided. Without these, it is impossible to judge whether the reported increases in formation energies and the suppression of low-energy modes are numerically robust.

    Authors: We apologize for the omission of these important computational details. The vacancy formation energy calculations were carried out using 2×2×2 supercells containing 40 atoms for the pristine and doped structures. For phonon dispersions, we used the same 2×2×2 supercells with finite displacement method. We have now added k-point convergence tests showing that a 4×4×4 k-mesh is sufficient for the supercells, with energy convergence better than 1 meV/atom. Error estimates for formation energies are approximately ±0.1 eV based on convergence. These details, along with the convergence data, have been incorporated into the Methods section of the revised manuscript. revision: yes

Circularity Check

0 steps flagged

No significant circularity; results follow from direct FP-LAPW computations

full rationale

The paper performs standard first-principles FP-LAPW (WIEN2k) calculations to obtain phonon dispersions, defect formation energies, electronic structures, elastic constants, optical properties, and carrier transport parameters for pristine and Ni/Pr co-doped CsPbCl3. All reported quantities (e.g., raised vacancy formation energies, reduced effective masses, mode splitting in phonon spectra) are outputs of the DFT workflow applied to the chosen supercells and k-point meshes. No equations reduce a 'prediction' to a fitted parameter chosen to match the target property, no self-citation chain justifies a uniqueness theorem or ansatz, and no renaming of known results occurs. The substitution-site assumptions and lack of +U corrections are methodological choices whose validity is external to the derivation chain itself. The central claims therefore remain independent of the conclusions they support.

Axiom & Free-Parameter Ledger

1 free parameters · 2 axioms · 0 invented entities

The study rests on standard DFT approximations and the assumption that the chosen doping configuration is representative; no new entities or heavily fitted parameters are introduced beyond routine computational choices.

free parameters (1)
  • Exchange-correlation functional and Hubbard U parameters
    Typical for DFT studies of transition-metal and rare-earth doped systems; not specified in abstract but required to reproduce electronic structure results.
axioms (2)
  • standard math Born-Oppenheimer approximation for separating electronic and nuclear motion
    Invoked for all lattice dynamics and phonon calculations.
  • domain assumption Periodic supercell model for dilute doping
    Used to simulate isolated Ni and Pr substitutions in the CsPbCl3 lattice.

pith-pipeline@v0.9.0 · 5595 in / 1402 out tokens · 59942 ms · 2026-05-09T20:49:11.959101+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

7 extracted references · 7 canonical work pages

  1. [1]

    1 M. A. Green, A. Ho-Baillie and H. J. Snaith, The emergence of perovskite solar cells, Nat. Photonics , 2014, 8(7), 506 –514. 2 L. Protesescu, S. Yakunin, M. I. Bodnarchuk, F. Krieg, R. Caputo, C. H. Hendon, R. X. Yang, A. Walsh and M. V. Kovalenko, Nanocrystals of cesium lead halide perovskites (CsPbX 3,X = Cl, Br, and I): novel optoelectronic materials...

    work page 2014

  2. [2]

    Cortecchia, H

    17 D. Cortecchia, H. A. Dewi, J. Yin, A. Bruno, S. Chen, T. Baikie, P. P. Boix, M. Gr ¨atzel, S. Mhaisalkar and N. Mathews, Lead- free Methylammonium Tin Halide Perovskites for Photovoltaic Applications: Structural, Optical and Electronic Properties, Inorg. Chem. , 2016, 55(3), 1044–1052. 18 Y. Wang, X. Li, X. Song, L. Xiao, H. Zeng and H. Sun, All- inorg...

    work page 2016

  3. [3]

    This article is licensed under a Creative Commons Attribution 3.0 Unported Licence

    Downloaded on 4/23/2026 9:23:40 PM. This article is licensed under a Creative Commons Attribution 3.0 Unported Licence. View Article Online 29 F. Brivio, A. B. Walker and A. Walsh, Structural and electronic properties of hybrid perovskites for high- effi ciency thin- lm photovoltaics from rst-principles, APL Mater., 2013, 1(4), 042111. 30 G. Miceli, S. Ch...

    work page 2026

  4. [4]

    so channels

    39 Lattice strain relief: Ni 2+ contraction and Pr 3+ expansion counteract each other, reducing net octahedral distortion. 40 Defect suppression: Co-doping elevates the formation energies of V Cl and V Pb, closing “so channels” for deformation. 41 Bond strengthening: Ni –Cl s-type interactions and Pr –Cl electrostatic contributions sti ffen the framework ...

    work page 2019

  5. [5]

    This article is licensed under a Creative Commons Attribution 3.0 Unported Licence

    Downloaded on 4/23/2026 9:23:40 PM. This article is licensed under a Creative Commons Attribution 3.0 Unported Licence. View Article Online 62 S. Panja, D. Samanta and A. Das, Ni doping in CsPbCl 3 nanocrystals: the key to enhanced photoluminescence, Chem. Sci. , 2025, 16, 9220 –9229. 63 Z. H. Yang, Y. F. Lin, X. Y. Zhang, H. L. Liu and B. Qu, Ni 2+ dopin...

    work page 2026

  6. [6]

    79 A. Riaz, S. Azam, Q. Ra q, M. T. Khan, A. U. Rahman, Q. M. Ahkam and R. Hussain, Vanadium-Engineered Co 2NiSe4 Nanomaterial: Coupled Thermoelectric, Piezoelectric, and Electronic Optimization via DFT+U for Advanced Energy Applications, Results Eng. , 2025, 106959. 80 A. Shakoor, B. ul Haq, S. Azam, F. Ghafoor, M. Saqib, M. Waqas and H. W. Seo, DFT inv...

    work page 2025

  7. [7]

    This article is licensed under a Creative Commons Attribution 3.0 Unported Licence

    Downloaded on 4/23/2026 9:23:40 PM. This article is licensed under a Creative Commons Attribution 3.0 Unported Licence. View Article Online

    work page 2026
