arxiv: 2604.23463 · v1 · submitted 2026-04-25 · 📊 stat.ME · math.ST· stat.TH

Recognition: unknown

A theory of ROC analysis of rule-out and rule-in diagnostics with applications to mammography data

Michelle Mastrianni , Kwok Lung Fan , Yee Lam Elim Thompson , Jessie J.J. Gommers , Ioannis Sechopoulos , Fredrik Strand , Weijie Chen , Gary Levine
show 2 more authors
Mukul Sherekar Frank W. Samuelson
Authors on Pith no claims yet

Pith reviewed 2026-05-08 07:38 UTC · model grok-4.3

classification 📊 stat.ME math.STstat.TH
keywords ROC curvesbivariate copulasrule-out diagnosticsrule-in diagnosticsmammographyAI-assisted diagnosisdiagnostic correlation
0
0 comments X

The pith

Bivariate copulas show that higher radiologist-AI correlation on diseased cases raises the AUC of rule-out ROC curves, with the opposite pattern for rule-in.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a theory for combined ROC curves when two correlated diagnostic tests are used to rule-out or rule-in disease, modeled via bivariate copulas. It proves general relationships showing how dependence structure between tests in diseased versus non-diseased groups controls the area under these curves. This matters for medical imaging because it predicts performance gains when pairing radiologists with AI without requiring new trials. The predictions match observed patterns in three real mammography datasets.

Core claim

When two tests are combined under a rule-out strategy, the AUC of the resulting ROC curve increases if correlation is higher among diseased cases and lower among non-diseased cases. The opposite correlation pattern increases AUC under a rule-in strategy. Bivariate copulas prove these relations by separating the marginal distributions of each test from their dependence structure.

What carries the argument

Bivariate copulas that model dependence between the two tests independently of their marginal distributions, allowing explicit derivation of combined ROC curves and AUCs for rule-out and rule-in rules.

Load-bearing premise

The joint behavior of the two diagnostic tests can be described by a bivariate copula separating marginal distributions from dependence.

What would settle it

Observe whether increasing radiologist-AI correlation specifically on diseased cases in mammography data raises the empirical AUC of the rule-out curve as predicted.

Figures

Figures reproduced from arXiv: 2604.23463 by Frank W. Samuelson, Fredrik Strand, Gary Levine, Ioannis Sechopoulos, Jessie J.J. Gommers, Kwok Lung Fan, Michelle Mastrianni, Mukul Sherekar, Weijie Chen, Yee Lam Elim Thompson.

Figure 1
Figure 1. Figure 1: Use of a bi-normal distribution to obtain the false positive fraction (FPF) and true positive fraction view at source ↗
Figure 2
Figure 2. Figure 2: An example of Gaussian copula density plots for a joint diagnostic setting. Contours representing view at source ↗
Figure 3
Figure 3. Figure 3: On the left, we model the Test-A-alone (e.g. AI-alone), Test-B-alone (e.g. radiologist-alone), view at source ↗
Figure 4
Figure 4. Figure 4: The top-left plot gives both empirical and fitted radiologist- and AI-alone ROC curves on the view at source ↗
Figure 5

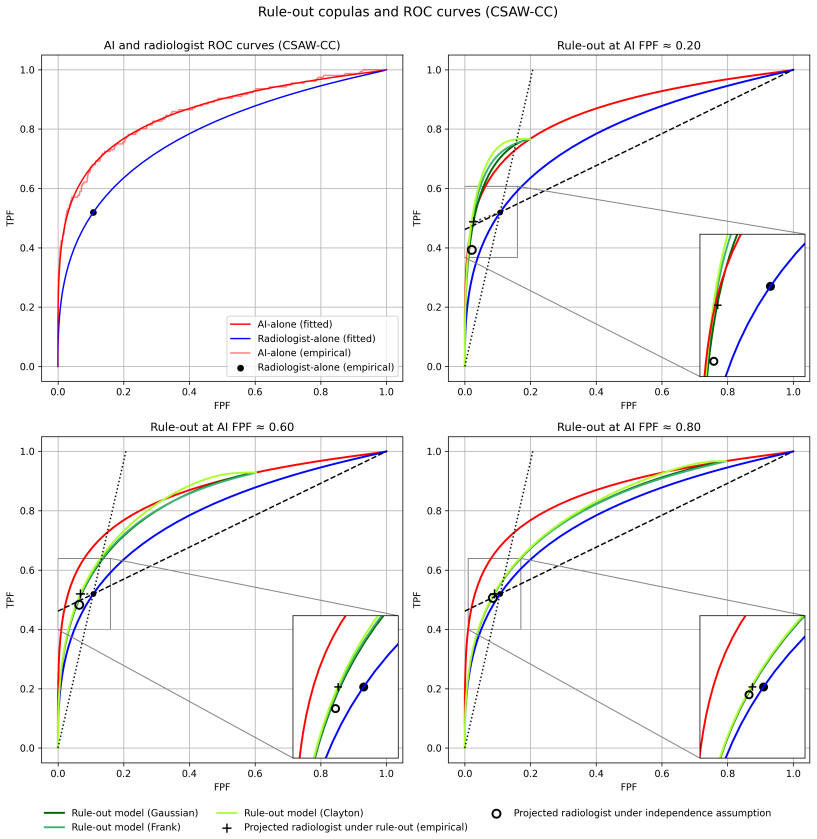

Figure 5. Figure 5: The top-left plot gives both empirical and fitted radiologist- and AI-alone ROC curves on the view at source ↗
Figure 6
Figure 6. Figure 6: The top-left plot gives both empirical and fitted radiologist- and AI-alone ROC curves on the view at source ↗
read the original abstract

Multiple diagnostic tests are frequently used to determine the presence of a disease condition in patients. In this paper, we use bivariate copulas to examine the properties of receiver operating characteristic (ROC) curves formed when two correlated diagnostic tests are used together to rule-out ("believe the negative") and rule-in ("believe the positive") patients for disease. We use this theory to analyze three mammography data sets where AI devices are applied to reduce radiologists' workload or improve diagnostic performance. Our analysis shows with generality that increasing the radiologist-AI correlation for diseased cases enhances the area under the ROC curve (AUC) of a radiologist-AI rule-out curve, whereas decreasing correlation for non-diseased cases has a similar effect. The opposite trends hold for rule-in scenarios. Applications to clinical mammography data show that projected empirical radiologist performance under a rule-out or rule-in scenario is consistent with the theory.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript develops a bivariate copula framework to derive properties of ROC curves for combined rule-out (both tests negative) and rule-in (both tests positive) diagnostics from two correlated tests. It claims general results that increasing radiologist-AI correlation among diseased cases (or decreasing it among non-diseased cases) raises the AUC of the rule-out ROC, with opposite effects for rule-in; these are illustrated on three mammography datasets showing empirical consistency.

Significance. If the derivations hold, the work supplies a flexible, copula-based toolkit for quantifying how test dependence modulates combined diagnostic performance in rule-out and rule-in settings. This is directly relevant to AI-assisted mammography, where the theory can inform workload-reduction strategies. The separation of marginals from dependence via copulas and the data applications are clear strengths.

major comments (2)
  1. [§3] §3 (Theoretical results on correlation and AUC): The generality claim that varying the copula parameter produces the stated monotonic AUC effects for rule-out and rule-in does not automatically extend to all bivariate copulas. For families with asymmetric tail dependence (Clayton for lower tail, Gumbel for upper tail), increasing the parameter at fixed Kendall’s tau can alter joint survival probabilities near the relevant thresholds differently than for symmetric copulas (Gaussian, Frank). The integral defining the AUC may therefore change sign for some threshold choices; the derivation should state the required copula properties or include explicit checks for asymmetric families.
  2. [§4] §4 (Mammography applications): The reported consistency between theory and the three datasets depends on the chosen copula family and marginal estimators. No sensitivity analysis to alternative copulas (or to the specific parametric forms) is provided, leaving open whether the observed agreement is robust or an artifact of the selected dependence structure.
minor comments (2)
  1. [Notation] The notation for the combined rule-out and rule-in thresholds (around Eq. (5)–(7)) would be clearer if accompanied by a small numerical example showing how the joint probability is computed from the copula.
  2. [Figures] Figures displaying the empirical and theoretical ROC curves lack confidence bands or variability measures, making it hard to judge how closely the data track the predicted curves.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the detailed and constructive report. The comments highlight important points about the scope of the theoretical results and the robustness of the empirical applications. We address each major comment below and will revise the manuscript to incorporate clarifications and additional analyses.

read point-by-point responses

  1. Referee: [§3] §3 (Theoretical results on correlation and AUC): The generality claim that varying the copula parameter produces the stated monotonic AUC effects for rule-out and rule-in does not automatically extend to all bivariate copulas. For families with asymmetric tail dependence (Clayton for lower tail, Gumbel for upper tail), increasing the parameter at fixed Kendall’s tau can alter joint survival probabilities near the relevant thresholds differently than for symmetric copulas (Gaussian, Frank). The integral defining the AUC may therefore change sign for some threshold choices; the derivation should state the required copula properties or include explicit checks for asymmetric families.

    Authors: We agree that the monotonicity results in §3 are derived under the assumption that increasing the copula parameter strengthens positive dependence in a manner that monotonically affects the relevant joint survival probabilities for rule-out (lower tail) and rule-in (upper tail) thresholds. The proofs rely on the copula being increasing in concordance and on the survival copula preserving the direction of the effect for the AUC integral. While this holds for the symmetric families (Gaussian, Frank) emphasized in the paper, we acknowledge that asymmetric tail dependence in families such as Clayton or Gumbel could, in principle, produce non-monotonic behavior for certain threshold configurations. We will revise §3 to explicitly state the required copula properties (positive quadrant dependence together with monotonicity of the survival function with respect to the dependence parameter) and add numerical verification for Clayton and Gumbel copulas across a range of Kendall’s tau values and clinically relevant thresholds to confirm that the stated AUC directions remain valid in the mammography context. revision: yes

  2. Referee: [§4] §4 (Mammography applications): The reported consistency between theory and the three datasets depends on the chosen copula family and marginal estimators. No sensitivity analysis to alternative copulas (or to the specific parametric forms) is provided, leaving open whether the observed agreement is robust or an artifact of the selected dependence structure.

    Authors: The Gaussian copula was selected for the applications because it permits straightforward control of dependence via a single parameter while remaining consistent with the marginal ROC curves estimated from the data. Marginal distributions were fitted using both parametric (beta) and nonparametric (empirical) approaches, with results shown to be insensitive to this choice. Nevertheless, we accept that a sensitivity check is warranted. In the revised manuscript we will add a dedicated subsection in §4 that repeats the rule-out and rule-in AUC calculations for the three mammography datasets under the Clayton and Frank copulas (matched to the same Kendall’s tau values), as well as under a nonparametric rank-based dependence estimator. We will report the resulting AUC values and their agreement with the theoretical predictions to demonstrate robustness. revision: yes

Circularity Check

0 steps flagged

Derivation is self-contained via standard copula mathematics with no reduction to inputs or self-citations

full rationale

The paper's core results on how radiologist-AI correlation affects rule-out and rule-in AUC are obtained by modeling the joint distribution of two tests with bivariate copulas, separating marginals from dependence structure, and integrating the resulting joint survival or distribution functions to obtain the combined ROC curves. This is a direct mathematical derivation from copula properties (a standard external tool) rather than any fit to the mammography data or self-referential definition. The general claims follow from varying the copula parameter while holding marginals fixed and examining the sign of the AUC change; no equations reduce to tautologies or fitted parameters renamed as predictions. Applications to the three data sets are presented only as consistency checks after the theory is derived. No load-bearing self-citations, uniqueness theorems, or ansatzes imported from prior author work appear in the derivation chain. The paper is therefore self-contained against external statistical benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the mathematical properties of copulas for dependence modeling, with no free parameters or invented entities mentioned in the abstract.

axioms (1)
  • standard math Bivariate copulas can model the dependence between two diagnostic test results while preserving marginal distributions.
    This is a standard property of copulas used in the theory.

pith-pipeline@v0.9.0 · 5498 in / 1176 out tokens · 34172 ms · 2026-05-08T07:38:38.368526+00:00 · methodology
