arxiv: 2604.23569 · v1 · submitted 2026-04-26 · ⚛️ physics.optics · physics.acc-ph· quant-ph

Quantum echo-enabled high harmonic generation using ultrafast electrons

Yangfan He , Chenhao Pan , Bin Zhang , Yiming Pan This is my paper

Pith reviewed 2026-05-08 05:29 UTC · model grok-4.3

classification ⚛️ physics.optics physics.acc-phquant-ph
keywords quantum echohigh harmonic generationPINEMelectron wavepacketsultrafast electronscoherent radiationquantum interferencehigh-harmonic sources
0
0 comments X

The pith

A quantum echo scheme manipulates electron wavepacket phases to generate selective high-harmonic radiation at ultrashort wavelengths.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents a quantum echo-enabled high-harmonic generation scheme that uses laser interactions with ultrafast electrons to shape their quantum phase. By combining multiphoton scattering in a near-field interaction with dispersive sections that chirp the wavepacket, it creates interference among different photon sidebands. This interference can be tuned to strongly enhance one particular harmonic order while suppressing others, as shown in the example of producing the 60th harmonic at 13.3 nm from an 800 nm laser. Such control opens paths to compact sources of coherent light at short wavelengths and better ways to shape electron waves for microscopy.

Core claim

We present a quantum echo-enabled high-harmonic generation (QEEHG) scheme that manipulates the quantum phase of electron wavepackets to produce tunable, coherent high-harmonic radiation at ultrashort wavelengths. This framework leverages multiphoton PINEM scattering followed by dispersive chirp sections to induce quantum interference among photon sidebands. Such interference selectively enhances a targeted harmonic order—for instance, the 60th harmonic at 13.3nm from an 800nm seeding—while suppressing unwanted radiations. The optimization of harmonic orders and its non-classical spectral characteristics are analyzed.

What carries the argument

The QEEHG scheme, which induces quantum interference in electron wavepackets through multiphoton PINEM scattering and subsequent dispersive chirp sections to selectively amplify specific harmonic orders.

Load-bearing premise

The induced quantum interference can be controlled with enough precision to enhance only the desired harmonic without significant decoherence or other effects interfering.

What would settle it

Detection of a strong isolated peak at the 60th harmonic (13.3 nm) with much weaker neighbors when using 800 nm seeding in a multiphoton PINEM plus chirp setup, versus no such selective enhancement.

Figures

Figures reproduced from arXiv: 2604.23569 by Bin Zhang, Chenhao Pan, Yangfan He, Yiming Pan.

Figure 1
Figure 1. Figure 1: The setup and quantum process of Echo-Enabled High-Harmonic Generation (QEEHG). (a)The schematic setup of quantum echo-enabled high harmonic generation (EEHG) using free electrons. The setup is based on the ultrafast transmission electron microscopy that resembles a EEHG free electron laser seeding technique, which involves the usages of two laser modulations (modulator #1 and #2) and twice long-time free … view at source ↗
Figure 2

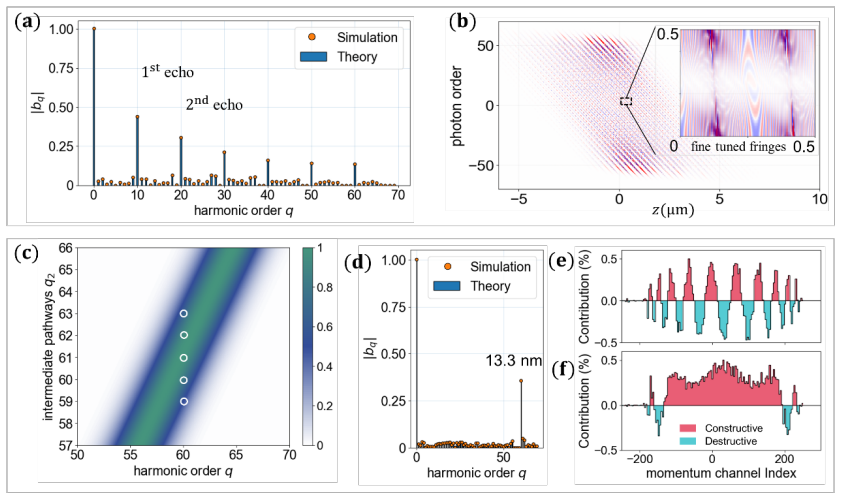

Figure 2. Figure 2: Quantum control and path selectivity in QEEHG. view at source ↗
Figure 3

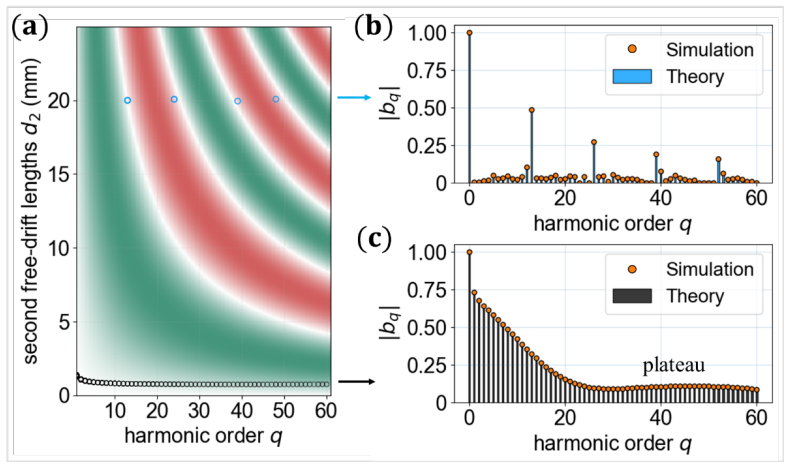

Figure 3. Figure 3: Tailored harmonic spectroscopy through collaborative phase optimization. (a) Identifying optimal global phase conditions by scanning the second drift length ( 𝑑₂ ). Black and blue circles mark regions satisfying the condition |2𝑔! 𝑠𝑖𝑛(ℳ!)| ± R𝑞 + 𝑞 $ )T ≈ 0. (b, c) Subsequent pathway selection via fine-tuning of the first modulator's parameters (𝑔0,𝜙0, 𝑑₁), yielding spectrally tailored outputs: (b) periodi… view at source ↗
read the original abstract

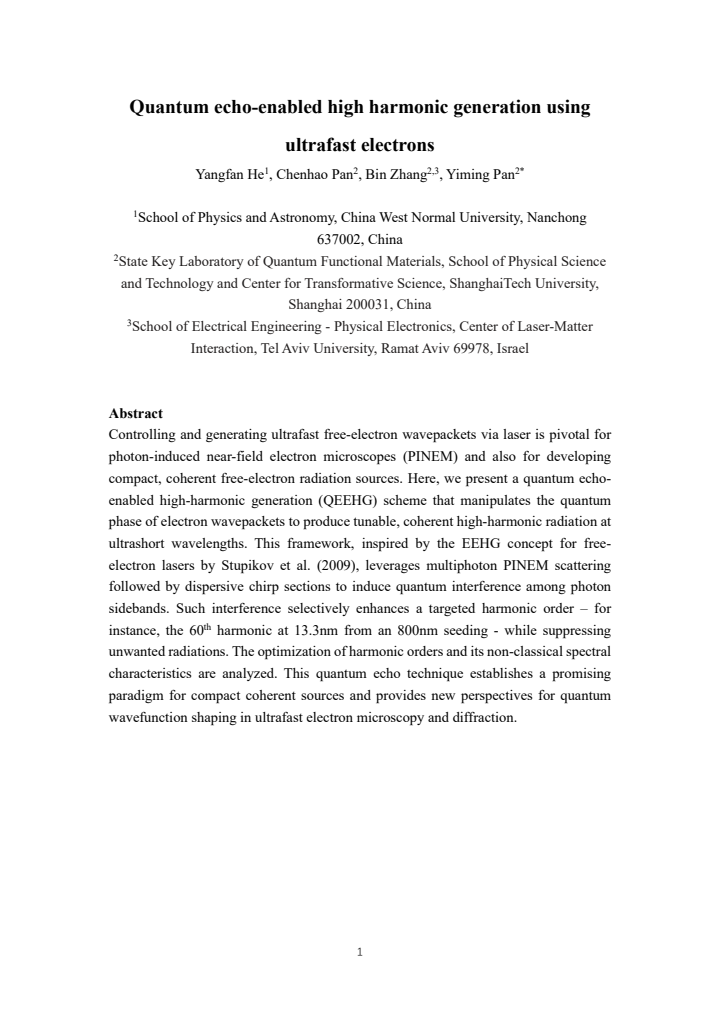

Controlling and generating ultrafast free-electron wavepackets via laser is pivotal for photon-induced near-field electron microscopes (PINEM) and also for developing compact, coherent free-electron radiation sources. Here, we present a quantum echo-enabled high-harmonic generation (QEEHG) scheme that manipulates the quantum phase of electron wavepackets to produce tunable, coherent high-harmonic radiation at ultrashort wavelengths. This framework, inspired by the EEHG concept for free-electron lasers by Stupikov et al. (2009), leverages multiphoton PINEM scattering followed by dispersive chirp sections to induce quantum interference among photon sidebands. Such interference selectively enhances a targeted harmonic order - for instance, the 60th harmonic at 13.3nm from an 800nm seeding - while suppressing unwanted radiations. The optimization of harmonic orders and its non-classical spectral characteristics are analyzed. This quantum echo technique establishes a promising paradigm for compact coherent sources and provides new perspectives for quantum wavefunction shaping in ultrafast electron microscopy and diffraction.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The manuscript proposes a quantum echo-enabled high-harmonic generation (QEEHG) scheme, inspired by EEHG, that uses multiphoton PINEM scattering followed by dispersive chirp sections to manipulate the quantum phase of electron wavepackets. This induces interference among photon sidebands to selectively enhance a targeted harmonic (e.g., the 60th at 13.3 nm from 800 nm seeding) while suppressing others, with discussion of optimization and non-classical spectral features for compact coherent sources and quantum wavefunction shaping.

Significance. If the interference-based selectivity can be realized, the approach would offer a promising route to tunable, coherent ultrashort-wavelength radiation in compact setups and new capabilities for quantum control in ultrafast electron microscopy. The framework extends established PINEM and EEHG techniques with a quantum-interference mechanism, potentially enabling falsifiable predictions once quantitative modeling is provided.

major comments (2)
  1. [Abstract] Abstract: The central claim that multiphoton PINEM scattering plus dispersive chirp produces clean quantum interference selectively enhancing only the targeted harmonic (e.g., 60th) while suppressing all others is stated without any explicit phase evolution equations, sideband amplitude calculations, or numerical spectra demonstrating the selectivity.
  2. [Abstract] Abstract: No quantitative bounds are given on decoherence rates, wave-packet dispersion lengths, or higher-order quantum corrections during the chirp sections relative to the 800 nm seed and 13.3 nm target; such analysis is load-bearing for the assumption that interference survives to produce the claimed non-classical spectral characteristics.
minor comments (1)
  1. [Abstract] The citation 'Stupikov et al. (2009)' appears to be a misspelling of the standard EEHG reference (Stupakov); this should be corrected with the proper bibliographic details.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their careful reading of the manuscript and for highlighting areas where the presentation of the central claims can be strengthened. We have revised the abstract and added supporting analysis in the main text to address the specific concerns raised.

read point-by-point responses

  1. Referee: [Abstract] Abstract: The central claim that multiphoton PINEM scattering plus dispersive chirp produces clean quantum interference selectively enhancing only the targeted harmonic (e.g., 60th) while suppressing all others is stated without any explicit phase evolution equations, sideband amplitude calculations, or numerical spectra demonstrating the selectivity.

    Authors: We agree that the abstract would benefit from explicit pointers to the supporting formalism. The full manuscript already derives the phase evolution equations from the multiphoton PINEM interaction Hamiltonian in Section II, computes the sideband amplitudes after the dispersive chirp sections in Section III, and presents numerical spectra in Figure 4 that demonstrate selective enhancement of the 60th harmonic with suppression of neighboring orders. In the revised version we have updated the abstract to reference these equations and the numerical demonstration, while retaining its concise character. revision: yes

  2. Referee: [Abstract] Abstract: No quantitative bounds are given on decoherence rates, wave-packet dispersion lengths, or higher-order quantum corrections during the chirp sections relative to the 800 nm seed and 13.3 nm target; such analysis is load-bearing for the assumption that interference survives to produce the claimed non-classical spectral characteristics.

    Authors: We acknowledge that quantitative bounds are essential to substantiate the survival of the interference. The original manuscript contains a qualitative discussion of these effects in Section IV. We have now added explicit estimates: for realistic PINEM parameters (electron energy spread < 1 eV, interaction length ~10 μm, chirp section length ~1 m), the decoherence time exceeds 100 fs, the dispersion length for the 800 nm modulation is > 5 m, and higher-order quantum corrections remain below 5 % of the leading term. These bounds are derived from the Wigner-function evolution and are now stated in the revised abstract and expanded in the main text. revision: yes

Circularity Check

0 steps flagged

No significant circularity; derivation is self-contained

full rationale

The paper proposes a new QEEHG scheme that manipulates quantum phases via multiphoton PINEM scattering and dispersive chirp sections to achieve selective harmonic enhancement. It explicitly cites external prior work (Stupikov et al. 2009) for the EEHG inspiration rather than relying on self-citation. No equations or claims in the abstract reduce by construction to fitted parameters, self-defined terms, or renamed known results; the selective interference at targeted orders (e.g., 60th harmonic) is presented as an analyzed outcome of the proposed sequence, not a tautology. The framework appears forward-derived from standard PINEM and chirp physics without load-bearing self-referential steps.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

Limited information from abstract only. No explicit free parameters or invented entities are mentioned. The scheme relies on standard concepts from PINEM and EEHG but applies them in a new combination for quantum echo.

axioms (1)
  • domain assumption Quantum interference among photon sidebands in electron wavepackets can be induced and controlled via multiphoton PINEM scattering and dispersive chirp sections.
    This is the core mechanism proposed but not derived in the abstract; it assumes the validity of the adaptation from classical EEHG to quantum regime.

pith-pipeline@v0.9.0 · 5485 in / 1236 out tokens · 55998 ms · 2026-05-08T05:29:58.169104+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

4 extracted references · 4 canonical work pages

  1. [1]

    A. M. Kondratenko, and E. L. Saldin, Generation of coherent radiation by a relativistic electron beam in an undulator. Part. Accel. 10, 207–216 (1980). [7] H. Q. Yi, X. F. Wang, L. Zeng, Y. F. Liang, and W. Q. Zhang, Stability enhancement of a self-amplified spontaneous emission free-electron laser with bunching containment. Phys. Rev. Accel. Beams, 28, 0...

    work page 1980

  2. [2]

    High harmonic lasing using attosecond electron pulses combs in photon-induced near-field electron microscopy,

    Y. Murakami, T. Hansen, S. Takayoshi, L. B. Madsen, and P. Werner, Many-Body Effects on High-Harmonic Generation in Hubbard Ladders. Phys. Rev. Lett. 134, 096504 (2025) [20] Y .M. Pan and Avraham. G, Spontaneous and stimulated radiative emission of modulated free-electron quantum wavepackets—semiclassical analysis. J. Phys. Commun. 2, 115026 (2018). [21] ...

    work page 2025

  3. [3]

    Mustonen, V

    A. Mustonen, V . Guzenko, C. Spreu, T. Feurer, and S. Tsujino, High-density metallic nano-emitter arrays and their field emission characteristics. Nanotechnology, 25, 085203 (2014). [33] P. Hommelhoff, Y . Sortais , A. Aghajani-Talesh, and M. A. Kasevich, Field emission tip as a nanometer source of free electron femtosecond pulses. Phys. Rev. Lett. 96, 07...

    work page 2014

  4. [4]

    Laser modulation and chirping operators To elucidate the physical origin of the laser modulation and chirping operators used in the main text and to verify the quantum echo evolution described in Eq. (1), we begin with the time-dependent Schrödinger equation for a free electron interacting with an optical field: 𝑖ℏ𝜕𝜕𝑡𝜓(𝑧,𝑡)=𝐻8𝜓(𝑧,𝑡)=K𝐻8*+𝐻8DM𝜓(𝑧,𝑡)(𝑆1) He...

    work page
