arxiv: 2604.23943 · v1 · submitted 2026-04-27 · ❄️ cond-mat.mtrl-sci

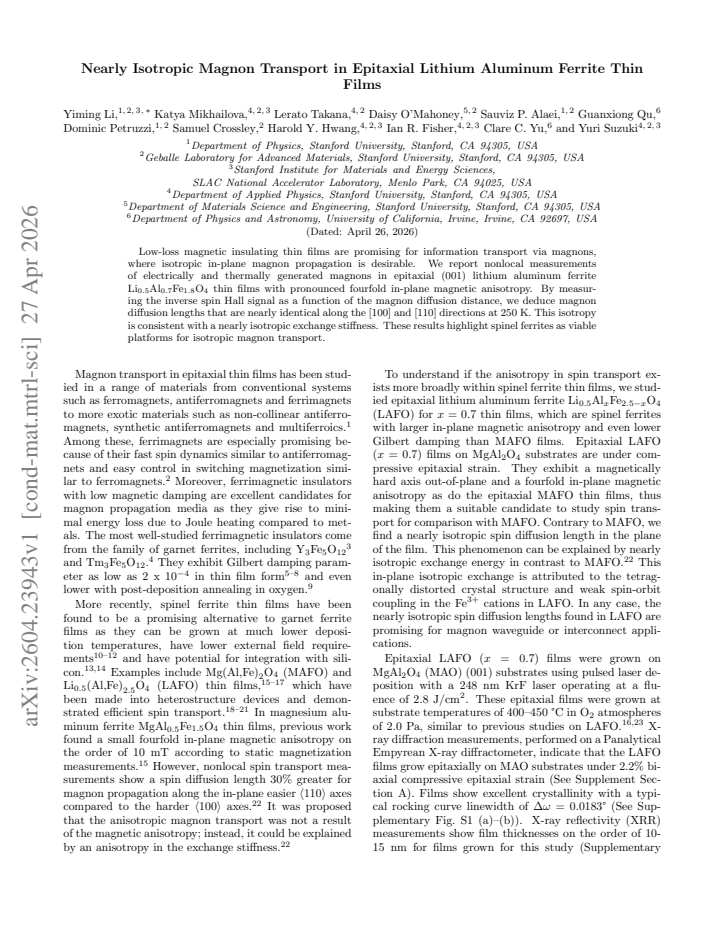

Nearly Isotropic Magnon Transport in Epitaxial Lithium Aluminum Ferrite Thin Films

Yiming Li , Katya Mikhailova , Lerato Takana , Daisy O'Mahoney , Sauviz P. Alaei , Guanxiong Qu , Dominic Petruzzi , Samuel Crossley
show 4 more authors
Harold Y. Hwang Ian R. Fisher Clare C. Yu Yuri Suzuki
This is my paper

Pith reviewed 2026-05-08 03:32 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci
keywords magnon transportdiffusion lengthinverse spin Hall effectlithium aluminum ferritespinel ferriteisotropic propagationexchange stiffnessepitaxial thin films
0
0 comments X

The pith

In epitaxial lithium aluminum ferrite films, magnon diffusion lengths are nearly identical along the [100] and [110] directions at 250 K.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper measures how far magnons travel before decaying in thin films of lithium aluminum ferrite grown on (001) substrates. Nonlocal experiments generate magnons electrically or thermally and detect the resulting inverse spin Hall signals at varying distances to extract diffusion lengths in two crystal directions. The lengths turn out nearly the same, which matches expectations for nearly isotropic exchange stiffness even though the films show clear fourfold magnetic anisotropy. If this holds, magnon signals can move without strong directional preference, easing the design of magnonic circuits that carry information with low loss in insulating films.

Core claim

Nonlocal measurements of electrically and thermally generated magnons in epitaxial (001) Li0.5Al0.7Fe1.8O4 thin films yield magnon diffusion lengths that are nearly identical along the [100] and [110] directions at 250 K. This isotropy is consistent with a nearly isotropic exchange stiffness, positioning spinel ferrites as platforms for isotropic in-plane magnon transport.

What carries the argument

Dependence of the nonlocal inverse spin Hall voltage on injector-detector separation distance, from which direction-specific magnon diffusion lengths are extracted.

Load-bearing premise

That the measured inverse spin Hall signals as a function of distance arise exclusively from magnon diffusion lengths without directional contributions from interfaces or other channels.

What would settle it

Independent measurements of spin-wave dispersion or exchange stiffness that reveal clear differences between the [100] and [110] directions would contradict the reported near-isotropy.

Figures

Figures reproduced from arXiv: 2604.23943 by Clare C. Yu, Daisy O'Mahoney, Dominic Petruzzi, Guanxiong Qu, Harold Y. Hwang, Ian R. Fisher, Katya Mikhailova, Lerato Takana, Samuel Crossley, Sauviz P. Alaei, Yiming Li, Yuri Suzuki.

Figure 2

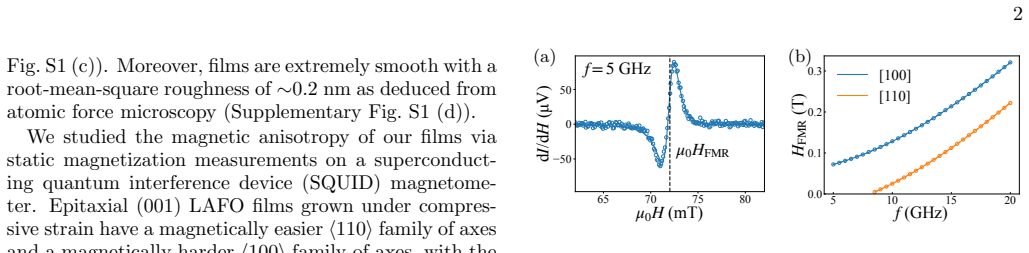

Figure 2. Figure 2: FIG. 2. (a) Field dependence of the FMR signal at 5 GHz and view at source ↗
Figure 1

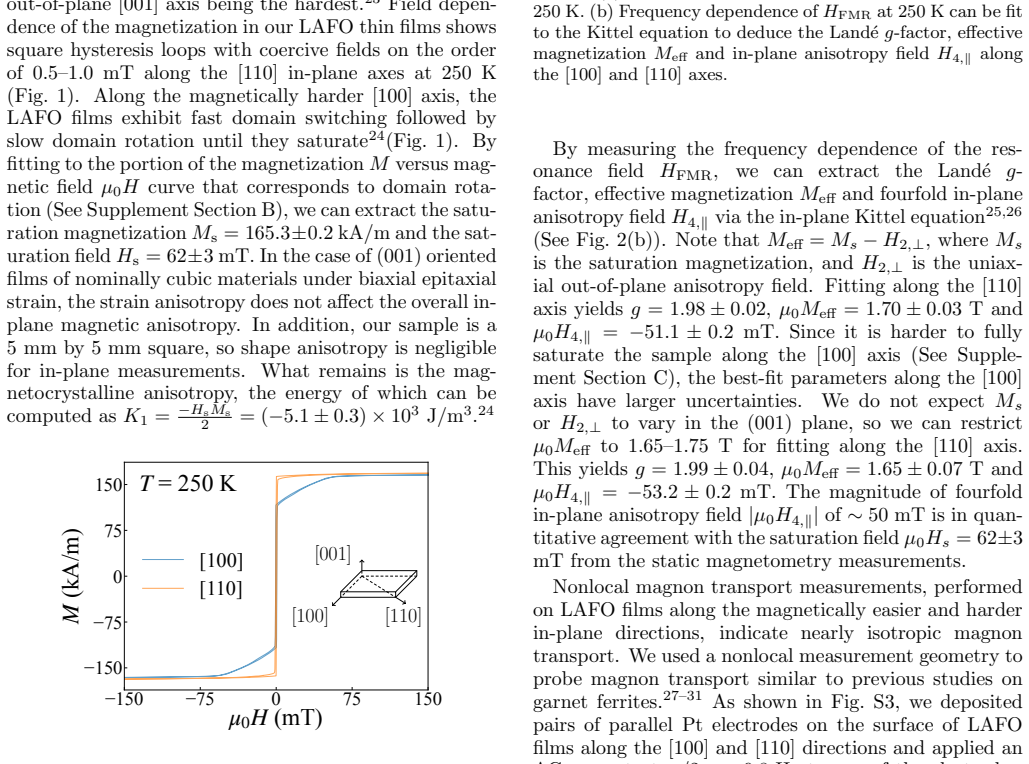

Figure 1. Figure 1: FIG. 1. Field dependence of the magnetization for a (001) view at source ↗
Figure 4

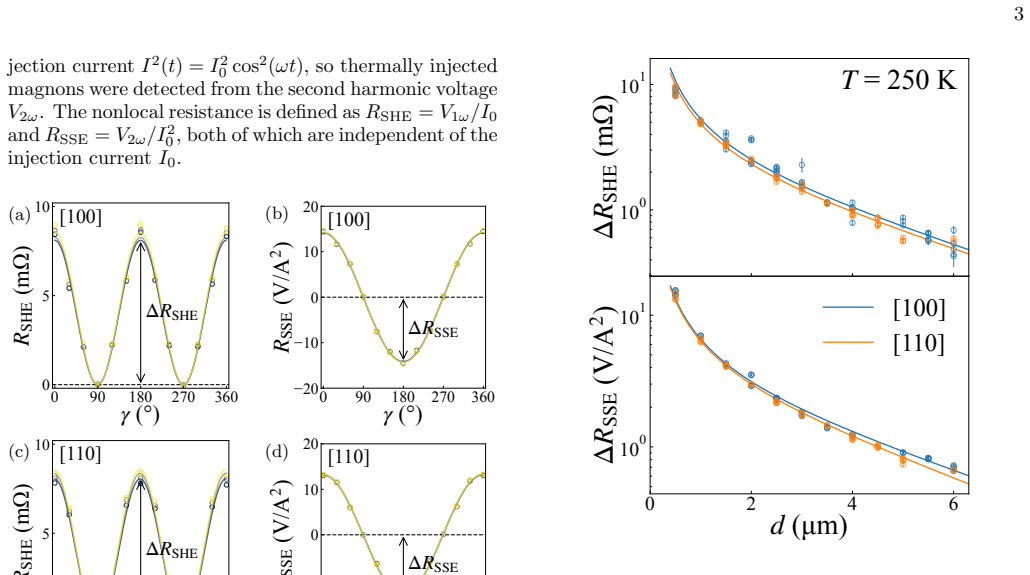

Figure 4. Figure 4: FIG. 4. Amplitudes of the SHE nonlocal resistance ∆ view at source ↗
read the original abstract

Low-loss magnetic insulating thin films are promising for information transport via magnons, where isotropic in-plane magnon propagation is desirable. We report nonlocal measurements of electrically and thermally generated magnons in epitaxial (001) lithium aluminum ferrite Li$_{0.5}$Al$_{0.7}$Fe$_{1.8}$O$_4$ thin films with pronounced fourfold in-plane magnetic anisotropy. By measuring the inverse spin Hall signal as a function of the magnon diffusion distance, we deduce magnon diffusion lengths that are nearly identical along the [100] and [110] directions at 250~K. This isotropy is consistent with a nearly isotropic exchange stiffness. These results highlight spinel ferrites as viable platforms for isotropic magnon transport.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript reports nonlocal measurements of electrically and thermally generated magnons in epitaxial (001) Li0.5Al0.7Fe1.8O4 thin films that exhibit pronounced fourfold in-plane magnetic anisotropy. By fitting the distance dependence of the inverse spin Hall voltage, the authors extract magnon diffusion lengths that are nearly identical along the [100] and [110] directions at 250 K and interpret this isotropy as evidence for nearly isotropic exchange stiffness, positioning these films as platforms for isotropic magnon transport.

Significance. If the extracted diffusion lengths are robust, the result supplies concrete evidence that spinel ferrite films can support direction-independent magnon propagation despite magnetic anisotropy, which is a desirable feature for magnonic interconnects and logic. The work adds to the limited experimental literature on magnon diffusion in low-damping insulating oxides.

major comments (2)
  1. [Results section on magnon diffusion length extraction] The central extraction of λ_[100] ≈ λ_[110] from the nonlocal voltage versus distance data implicitly assumes that the overall amplitude prefactor (injection efficiency, detection efficiency, and geometric factors) is identical for the two directions. Given the documented fourfold anisotropy, the equilibrium magnetization orientation, magnon-mode ellipticity, and Pt/ferrite interfacial spin-mixing conductance can differ between [100] and [110], which would shift the apparent decay length even if the true diffusion constant were isotropic. This assumption is load-bearing for the isotropy claim and requires explicit justification or normalization in the data-analysis section.
  2. [Figure and table presenting distance-dependent ISHE data] The manuscript provides no quantitative values, uncertainties, or statistical tests for the statement that the diffusion lengths are 'nearly identical.' Without reported error bars on the fitted λ, goodness-of-fit metrics, or a direct comparison of the two data sets (e.g., a statistical test for equality), it is impossible to assess whether the observed similarity exceeds experimental scatter or fitting ambiguity.
minor comments (2)
  1. [Abstract] The abstract states the isotropy conclusion but omits the actual fitted values of λ and their uncertainties; adding these numbers would make the claim immediately quantifiable.
  2. [Methods / data analysis] Notation for the magnon diffusion length (λ) and the functional form used in the fits should be defined once in the main text and used consistently; the current presentation leaves the precise model equation implicit.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their careful reading of our manuscript and for providing constructive feedback. We address each of the major comments in detail below.

read point-by-point responses

  1. Referee: [Results section on magnon diffusion length extraction] The central extraction of λ_[100] ≈ λ_[110] from the nonlocal voltage versus distance data implicitly assumes that the overall amplitude prefactor (injection efficiency, detection efficiency, and geometric factors) is identical for the two directions. Given the documented fourfold anisotropy, the equilibrium magnetization orientation, magnon-mode ellipticity, and Pt/ferrite interfacial spin-mixing conductance can differ between [100] and [110], which would shift the apparent decay length even if the true diffusion constant were isotropic. This assumption is load-bearing for the isotropy claim and requires explicit justification or normalization in the data-analysis section.

    Authors: We appreciate the referee pointing out this potential issue with our analysis. Upon re-examination, our fitting routine treats the amplitude as a free parameter separately for the [100] and [110] datasets. The diffusion length λ is extracted from the slope of the semi-log plot or the exponential fit, which is decoupled from the prefactor. We have verified that the fitted amplitudes do not differ significantly between directions, suggesting that the interfacial and geometric factors are similar despite the anisotropy. In the revised manuscript, we will explicitly state the fitting model, report the amplitude values, and provide a brief justification based on the similar Pt/ferrite interface and the in-plane isotropy of the magnon generation/detection under the applied field conditions. This addition will strengthen the robustness of our isotropy conclusion. revision: partial

  2. Referee: [Figure and table presenting distance-dependent ISHE data] The manuscript provides no quantitative values, uncertainties, or statistical tests for the statement that the diffusion lengths are 'nearly identical.' Without reported error bars on the fitted λ, goodness-of-fit metrics, or a direct comparison of the two data sets (e.g., a statistical test for equality), it is impossible to assess whether the observed similarity exceeds experimental scatter or fitting ambiguity.

    Authors: We fully agree that providing quantitative uncertainties and statistical analysis is necessary to support the claim of near equality. We will revise the manuscript to include the best-fit values of the magnon diffusion lengths along with their standard errors from the nonlinear least-squares fits. We will also report the goodness-of-fit metrics such as R-squared or chi-squared values for each dataset. Furthermore, we will include a direct statistical comparison, for example by testing the null hypothesis that λ_[100] = λ_[110] using the covariance from the fits or a bootstrap method. These additions will allow readers to quantitatively evaluate the similarity. revision: yes

Circularity Check

0 steps flagged

No circularity: experimental extraction of diffusion lengths from direct measurements

full rationale

The paper reports measurements of nonlocal inverse spin Hall voltage versus magnon diffusion distance in epitaxial films, then fits to extract λ_[100] and λ_[110] at 250 K and notes they are nearly identical. This is a standard data-reduction step from experiment; the isotropy conclusion follows from comparing the two fitted values rather than presupposing them. No equations, self-citations, or ansatzes in the abstract or described chain reduce the result to its inputs by construction. The acknowledged fourfold anisotropy raises a possible systematic assumption about direction-independent prefactors, but that is a correctness concern, not a circularity loop. The derivation chain is self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The claim rests on standard domain assumptions in magnon transport experiments and the extraction of diffusion lengths from distance-dependent signals.

free parameters (1)
  • magnon diffusion length
    Value extracted by fitting the distance dependence of the inverse spin Hall signal; central to the isotropy claim.
axioms (1)
  • domain assumption The inverse spin Hall voltage is proportional to the local magnon density at the detector electrode
    Standard assumption invoked when converting measured signals to diffusion lengths.

pith-pipeline@v0.9.0 · 5472 in / 1230 out tokens · 77003 ms · 2026-05-08T03:32:54.086845+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

8 extracted references · 8 canonical work pages

  1. [1]

    [110] [001] FIG. 1. Field dependence of the magnetization for a (001) LAFO film on (001) MAO along the in-plane [100] and [110] directions at 250 K. (inset) Schematic diagram of the LAFO film showing the [001] out-of-plane axis and the [100] and [110] in-plane axes. Broadband ferromagnetic resonance (FMR) measure- ments demonstrate magnetic anisotropy val...

    work page

  2. [2]

    (b) FIG. 2. (a) Field dependence of the FMR signal at 5 GHz and 250 K. (b) Frequency dependence ofH FMR at 250 K can be fit to the Kittel equation to deduce the Land´ eg-factor, effective magnetizationM effand in-plane anisotropy fieldH 4,∥ along the [100] and [110] axes. By measuring the frequency dependence of the res- onance fieldH FMR, we can extract ...

    work page

  3. [3]

    directions. The consistency between both types of magnons also indicates that secondary effects (such as the local generation of magnons due to the thermal gradient at the detector) does not strongly affectλ SSE.30,32 4 Orientationλ SHE(µm)λ SSE(µm)

    work page

  4. [4]

    Spin-diffusion lengthλfor SHE and SSE generated magnons propagating along the [100] and [110] axes at 250 K

    3.24±0.15 2.93±0.07 TABLE I. Spin-diffusion lengthλfor SHE and SSE generated magnons propagating along the [100] and [110] axes at 250 K. Our nonlocal measurements provide compelling evi- dence that magnon transport in (001) LAFO films exhibit isotropic behavior with spin diffusion lengths on the order of 3µm. This result can be understood by considering ...

    work page

  5. [5]

    and [110] directions. This crucial difference be- tween MAFO and LAFO leads us to suspect that the magnon injection mechanisms are dependent on the crys- tallographic direction in MAFO, which may underlie the 5 divergent behavior at smalldand might also lead to an anisotropic spin diffusion length. In summary, we have demonstrated that magnon transport in...

    work page doi:10.25740/dn330pg4198

  6. [6]

    axis untilHreaches a thresholdH s, at which the magnetization saturates. The magnetization of the ma- 41 42 43 44 45 46 47 2θ (°) 100 101 102 103 104 105 106 Intensity (a.u.) MAO (004) LAFO (004) (a) 21.50 21.55 21.60 21.65 ω (°) 0 50 100 150 200 250 300 Intensity (a.u.) LAFO (004) FWHM=0.01829° (b) 0 1 2 3 4 2θ (°) 103 104 105 106 107 108 Intensity (a.u....

    work page

  7. [7]

    Nor could it be attributed to anisotropic two-magnon scattering, which could not simultaneously account for the larger offset and smaller slope of the [110] linewidth 49,50

    and harder [100] axes 49. Nor could it be attributed to anisotropic two-magnon scattering, which could not simultaneously account for the larger offset and smaller slope of the [110] linewidth 49,50. 0 10 20 30 f (GHz) 0.0 0.2 0.4HFMR (T) [100] [110] (a) 0 10 20 30 f (GHz) 0 1 2ΔHHWHM (mT) [100]

    work page

  8. [8]

    Novel Magnetic Materials for Spintronic Device Technology,

    (b) FIG. S2. (a) Frequency dependence of the FMR resonance fieldH FMR along the [100] and [110] directions. (b) Frequency dependence of the FMR linewidthµ0∆HHWHM along the [100] and [110] directions. Fitting along the [100] direction starts atf= 15 GHz. Solid curves show the fitting results, and dashed curves are interpolations of the best-fit curves to l...

    work page doi:10.1063/1.4759039 2025
