arxiv: 2604.23960 · v1 · submitted 2026-04-27 · 💻 cs.RO

Multi-Robot Motions in Milliseconds: Vector-Accelerated Primitives for Sampling-Based Planning

James D. Motes , Marco Morales , Nancy M. Amato This is my paper

Pith reviewed 2026-05-08 03:27 UTC · model grok-4.3

classification 💻 cs.RO
keywords multi-robot motion planningsampling-based planningvector accelerationSIMDmotion validationconflict detectionVAMP
0
0 comments X

The pith

Vector-accelerated primitives let sampling-based planners solve multi-robot motion problems over 850X faster, with some solutions in milliseconds.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper extends the VAMP framework to multi-robot motion planning by creating two new primitives that use SIMD vector instructions to check motions and detect conflicts across all robots at once. On dedicated validation benchmarks these primitives deliver more than 1100X speedup; when plugged into representative sampling-based planners for manipulators, rigid bodies, and mixed teams the overall planning time drops by more than 850X in many cases. The resulting capability turns previously slow multi-robot queries into real-time responses, making dynamic coordination of robot teams practical.

Core claim

Multi-robot MotionValidation (MotVal) and FindFirstConflict (FFC) primitives, built on SIMD parallelism, replace the scalar loops that previously validated entire team trajectories and located the first colliding pair; integrating them into existing MRMP algorithms produces the observed order-of-magnitude reductions in validation and planning time.

What carries the argument

Multi-robot MotionValidation (MotVal) and FindFirstConflict (FFC) primitives that vectorize configuration-space checks and earliest-collision searches across all robots simultaneously.

If this is right

  • Existing sampling-based MRMP algorithms gain immediate large speedups simply by swapping in the two new primitives.
  • Some multi-robot instances that previously took seconds now finish in milliseconds, enabling reactive replanning.
  • Heterogeneous teams mixing manipulators and mobile bases become computationally tractable under the same planner frameworks.
  • Validation-dominated phases of multi-robot search are no longer the dominant bottleneck.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same vectorization pattern could be applied to other hardware such as GPUs or vector units on embedded processors to scale to larger robot teams.
  • The primitives may combine with lazy or anytime variants of sampling-based planners to further reduce latency in changing environments.
  • Warehouse or factory settings with dozens of robots could move from offline to online coordination if these speedups hold outside the tested scenarios.

Load-bearing premise

The manipulator, rigid-body, and heterogeneous-team test cases, together with the chosen baseline implementations, are representative of the multi-robot problems where these speedups will appear.

What would settle it

A new multi-robot benchmark with substantially different robot counts, dynamics, or obstacle density in which the same modified planners show planning-time speedups below 100X or solutions that still require seconds.

Figures

Figures reproduced from arXiv: 2604.23960 by James D. Motes, Marco Morales, Nancy M. Amato.

Figure 1
Figure 1. Figure 1: The multi-robot MOTVAL primitive utilizes the rake technique to check for robot-robot collisions in parallel between configurations at timesteps distributed in time over the motions. The paths of the blue and yellow robots are shown with the gradient indicating later timesteps in darker colors. Fig. 1a shows the initial rake simultaneously checking timesteps in the batch {0, tmax 4 , 2tmax 4 , 3tmax 4 } fo… view at source ↗
Figure 2
Figure 2. Figure 2: (a) 16 Panda manipulators in the CAGE environment resembling a floor and ceiling mounted multi-robot team operated in a shared workspace (e.g., automotive manufacturing). A random start and goal position is sampled for each manipulator with the end effector inside the cage. (b) 8 Panda manipulators form a corridor. A random start is sampled for each manipulator, and a goal pose is selected with the end-eff… view at source ↗
Figure 3
Figure 3. Figure 3: This table reports the percentage of validation effort performed before early termination out of the total number of CCs available for a set of 1000 randomly generated multi-robot motions in the CAGE scenario shown in view at source ↗
Figure 4
Figure 4. Figure 4: Per algorithm speedups using the SIMD primitives vs baseline FCL or sphere-based CC implementations. Speedup color range is in log scale. Scenarios where one or both methods failed to solve any trials are left empty. † denotes sparse estimates (trials pairs < 10). (a) 4 Panda Manipulators (b) 8 Panda Manipulators (c) 4 Flying Sphere Robots (d) 8 Flying Sphere Robots (e) 16 Flying Sphere Robots (f) 32 Flyin… view at source ↗
Figure 5
Figure 5. Figure 5: Cumulative distribution of planning times for all three scenarios. Each algorithm is run with three validation strategies: multi-robot adaptation of VAMP, FCL, and the sphere-based representation (indicated by different line types). (a,b) The CAGE scenario with 5 random tasks with 10 trials each. (c-f) The CROSS scenario with 30 trials. (g,h) The HETEROGENEOUS scenario with 10 trials. Fig. 5c-5f shows the … view at source ↗

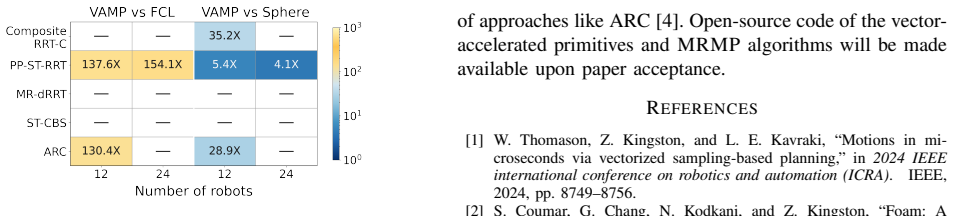

Figure 6
Figure 6. Figure 6: HETEROGENEOUS Per Algorithm Speedups also applies to the effort to find conflicts in ST-CBS and ARC (in addition to ARC’s use of Composite RRT-C as a local subplanner). Thus as the number of robots increases, a greater portion of effort is spent on validation and thus the greater potential for speedup. The one exception is PP-ST￾RRT which plans for individual robot Cspaces sequentially while still checking… view at source ↗
read the original abstract

In this paper, we extend the recent Vector-Accelerated Motion Planning (VAMP) framework to multi-robot motion planning (MRMP). We develop two vector-accelerated primitives, multi-robot MotionValidation (MotVal) and FindFirstConflict (FFC), which exploit SIMD parallelism within the multi-robot domain. On pure multi-robot motion validation tests, this achieves over 1100X speedup in validation time. Additionally, we modify a representative set of MRMP algorithms to use these new primitives. The relative speedup for each algorithm is studied on scenarios with manipulator, rigid body, and heterogeneous teams with some instances producing multi-robot solutions in the order of milliseconds and, in many cases, shows planning time speedups of over 850X.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The paper extends the Vector-Accelerated Motion Planning (VAMP) framework to multi-robot motion planning (MRMP) by developing two vector-accelerated primitives, multi-robot MotionValidation (MotVal) and FindFirstConflict (FFC), that exploit SIMD parallelism. It modifies a representative set of sampling-based MRMP algorithms to use these primitives and reports empirical results claiming over 1100X speedup in pure multi-robot motion validation time and over 850X speedup in planning time across manipulator, rigid-body, and heterogeneous-team scenarios, with some instances producing solutions in milliseconds.

Significance. If the performance claims hold under more rigorous benchmarking, the work would be significant for enabling real-time multi-robot planning. The primitives provide a concrete, hardware-leveraging approach to accelerate core operations in MRMP, which could transfer to practical robotics applications requiring fast collision checking and conflict resolution in high-dimensional spaces.

major comments (2)
  1. [§5] §5 (Experimental Evaluation): the central speedup claims (>1100X validation, >850X planning) are presented as direct wall-clock comparisons but omit the number of trials, variance or standard deviations, and any details on baseline scalar implementations (e.g., whether they received equivalent compiler flags, manual optimizations, or SIMD treatment). This information is load-bearing for assessing whether the reported factors are robust or implementation-dependent.
  2. [§5] §5 and abstract: the evaluation is confined to three scenario classes (manipulator, rigid body, heterogeneous teams) without systematic variation in robot count, obstacle density, or configuration-space dimensionality. The abstract's generalization to 'practical multi-robot problems' therefore rests on untested assumptions about representativeness.
minor comments (1)
  1. [Abstract] Abstract: the final sentence contains awkward phrasing ('with some instances producing multi-robot solutions in the order of milliseconds and, in many cases, shows planning time speedups') that reduces readability; a minor rewording would improve clarity.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback on our manuscript. We address each major comment below and will revise the paper to strengthen the experimental presentation while preserving the core contributions.

read point-by-point responses

  1. Referee: [§5] §5 (Experimental Evaluation): the central speedup claims (>1100X validation, >850X planning) are presented as direct wall-clock comparisons but omit the number of trials, variance or standard deviations, and any details on baseline scalar implementations (e.g., whether they received equivalent compiler flags, manual optimizations, or SIMD treatment). This information is load-bearing for assessing whether the reported factors are robust or implementation-dependent.

    Authors: We agree that the current manuscript does not provide sufficient detail on the experimental protocol for the speedup measurements. We will revise §5 to explicitly state the number of independent trials performed for each timing result, report variance or standard deviations alongside the average speedups, and describe the compilation settings and optimization level used for the scalar baseline implementations (including whether manual SIMD was applied). These additions will make the performance claims more transparent and reproducible. revision: yes

  2. Referee: [§5] §5 and abstract: the evaluation is confined to three scenario classes (manipulator, rigid body, heterogeneous teams) without systematic variation in robot count, obstacle density, or configuration-space dimensionality. The abstract's generalization to 'practical multi-robot problems' therefore rests on untested assumptions about representativeness.

    Authors: The three scenario classes were deliberately chosen to span distinct robot types and planning challenges that commonly arise in multi-robot settings. While the evaluation does not include a full parametric sweep over robot count, obstacle density, and dimensionality, the consistent speedups observed across these cases support the utility of the proposed primitives. We will revise the abstract to avoid any overgeneralization and expand the discussion in §5 to explicitly note the scope of the tested scenarios along with their limitations, thereby clarifying the basis for broader applicability. revision: partial

Circularity Check

0 steps flagged

No circularity in empirical speedup claims

full rationale

The paper extends the VAMP framework by introducing MotVal and FFC primitives that exploit SIMD for multi-robot validation and conflict detection. Speedup figures (1100X validation, 850X planning) are obtained via direct wall-clock measurements on manipulator, rigid-body, and heterogeneous-team instances after modifying a representative set of MRMP algorithms. No equations, fitted parameters, or derivations are presented that reduce these measured gains to self-referential inputs or prior results by construction. The VAMP citation supplies context for the single-robot baseline but does not bear the load of the multi-robot performance claims, which rest on independent experimental comparisons.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the assumption that SIMD vector operations can be applied to joint multi-robot configuration validation and conflict detection without correctness loss or prohibitive overhead; no free parameters or new physical entities are introduced in the abstract.

axioms (1)
  • domain assumption SIMD parallelism can be exploited for multi-robot state validation and conflict detection without introducing errors or excessive overhead
    Invoked when the authors state that the new primitives 'exploit SIMD parallelism within the multi-robot domain'

pith-pipeline@v0.9.0 · 5428 in / 1284 out tokens · 49565 ms · 2026-05-08T03:27:59.040352+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

23 extracted references · 2 canonical work pages

  1. [1]

    Motions in mi- croseconds via vectorized sampling-based planning,

    W. Thomason, Z. Kingston, and L. E. Kavraki, “Motions in mi- croseconds via vectorized sampling-based planning,” in2024 IEEE international conference on robotics and automation (ICRA). IEEE, 2024, pp. 8749–8756

    2024

  2. [2]

    Foam: A Tool for Spherical Ap- proximation of Robot Geometry

    S. Coumar, G. Chang, N. Kodkani, and Z. Kingston, “Foam: A tool for spherical approximation of robot geometry,”arXiv preprint arXiv:2503.13704, 2025

    work page arXiv 2025

  3. [3]

    Conflict-based search for optimal multi-agent pathfinding,

    G. Sharon, R. Stern, A. Felner, and N. R. Sturtevant, “Conflict-based search for optimal multi-agent pathfinding,”Artificial Intelligence, vol. 219, pp. 40–66, 2015

    2015

  4. [4]

    Adaptive robot coordination: A subproblem-based approach for hybrid multi- robot motion planning,

    I. Solis, J. Motes, M. Qin, M. Morales, and N. M. Amato, “Adaptive robot coordination: A subproblem-based approach for hybrid multi- robot motion planning,”IEEE Robotics and Automation Letters, vol. 9, no. 8, pp. 7238–7245, 2024

    2024

  5. [5]

    St-cbs: Spatio-temporal conflict based search in continuous space for multi-agent pathfinding,

    J. Sim, S. Lim, and C. Nam, “St-cbs: Spatio-temporal conflict based search in continuous space for multi-agent pathfinding,” inProceed- ings of the 40th ACM/SIGAPP Symposium on Applied Computing, 2025, pp. 815–822

    2025

  6. [6]

    An algorithm for planning collision-free paths among polyhedral obstacles,

    T. Lozano-P ´erez and M. A. Wesley, “An algorithm for planning collision-free paths among polyhedral obstacles,”Communications of the ACM, vol. 22, no. 10, pp. 560–570, Oct. 1979

    1979

  7. [7]

    On the “piano movers

    J. T. Schwartz and M. Sharir, “On the “piano movers” problem. ii. general techniques for computing topological properties of real algebraic manifolds,”Advances in applied Mathematics, vol. 4, no. 3, pp. 298–351, 1983

    1983

  8. [8]

    J. F. Canny,The Complexity of Robot Motion Planning. Cambridge, MA: MIT Press, 1988

    1988

  9. [9]

    Prob- abilistic roadmaps for path planning in high-dimensional configuration spaces,

    L. E. Kavraki, P. ˇSvestka, J. C. Latombe, and M. H. Overmars, “Prob- abilistic roadmaps for path planning in high-dimensional configuration spaces,”IEEE Trans. Robot. Automat., vol. 12, no. 4, pp. 566–580, Aug. 1996

    1996

  10. [10]

    Randomized kinodynamic planning,

    S. M. LaValle and J. J. Kuffner, “Randomized kinodynamic planning,” inProc. IEEE Int. Conf. Robot. Autom. (ICRA), 1999, pp. 473–479

    1999

  11. [11]

    A single-query bi-directional prob- abilistic roadmap planner with lazy collision checking,

    G. S ´anchez and J.-C. Latombe, “A single-query bi-directional prob- abilistic roadmap planner with lazy collision checking,” inRobotics Research: The Tenth International Symposium. Springer, 2003, pp. 403–417

    2003

  12. [12]

    Path planning using lazy prm,

    R. Bohlin and L. E. Kavraki, “Path planning using lazy prm,” inProc. IEEE Int. Conf. Robot. Autom. (ICRA), Apr. 2000

    2000

  13. [13]

    Using a prm planner to compare centralized and decoupled planning for multi-robot systems,

    G. Sanchez and J.-C. Latombe, “Using a prm planner to compare centralized and decoupled planning for multi-robot systems,” inProc. IEEE Int. Conf. Robot. Autom. (ICRA), vol. 2, 2002, pp. 2112–2119

    2002

  14. [14]

    Finding a needle in an exponential haystack: Discrete rrt for exploration of implicit roadmaps in multi-robot motion planning,

    K. Solovey, O. Salzman, and D. Halperin, “Finding a needle in an exponential haystack: Discrete rrt for exploration of implicit roadmaps in multi-robot motion planning,”The International Journal of Robotics Research, vol. 35, no. 5, pp. 501–513, 2016

    2016

  15. [15]

    Si-rrt and st-rrt* for prioritized multi-manipulator planning: Empirical evaluation,

    N. Kerimov, A. Onegin, and K. Yakovlev, “Si-rrt and st-rrt* for prioritized multi-manipulator planning: Empirical evaluation,” inInter- national Conference on Interactive Collaborative Robotics. Springer, 2025, pp. 371–384

    2025

  16. [16]

    Representation- optimal multi-robot motion planning using conflict-based search,

    I. Solis, J. Motes, R. Sandstr ¨om, and N. M. Amato, “Representation- optimal multi-robot motion planning using conflict-based search,” IEEE Robotics and Automation Letters, vol. 6, no. 3, pp. 4608–4615, 2021

    2021

  17. [17]

    Subdimensional expansion for multirobot path planning,

    G. Wagner and H. Choset, “Subdimensional expansion for multirobot path planning,”Artificial Intelligence, vol. 219, pp. 1–24, 2015

    2015

  18. [18]

    Vamp-mr: Vector-accelerated mo- tion planning and execution for multi-robot-arms,

    P. Huang, C. Gao, and J. Li, “Vamp-mr: Vector-accelerated mo- tion planning and execution for multi-robot-arms,” https://github.com/ vamp-mr/vamp-mr, 2026, aAAI 2026 Workshop on Multi-Agent Path Finding (WoMAPF), project website

    2026

  19. [19]

    Rrt-connect: An efficient approach to single-query path planning,

    J. J. Kuffner and S. M. LaValle, “Rrt-connect: An efficient approach to single-query path planning,” inProceedings 2000 ICRA. Millennium conference. IEEE international conference on robotics and automa- tion. Symposia proceedings (Cat. No. 00CH37065), vol. 2. IEEE, 2000, pp. 995–1001

    2000

  20. [20]

    Distributionally robust sampling-based motion planning under uncertainty

    J. van den Berg and M. Overmars, “Prioritized motion planning for multiple robots [conference presentation]. 2005 ieee,” inRSJ Interna- tional Conference on Intelligent Robots and Systems, Edmonton, AB, Canada. https://doi. org/10.1109/IROS, 2005

    work page doi:10.1109/iros 2005

  21. [21]

    St-rrt*: Asymptotically-optimal bidirectional motion planning through space- time,

    F. Grothe, V . N. Hartmann, A. Orthey, and M. Toussaint, “St-rrt*: Asymptotically-optimal bidirectional motion planning through space- time,” in2022 International Conference on Robotics and Automation (ICRA). IEEE, 2022, pp. 3314–3320

    2022

  22. [22]

    Fcl: A general purpose library for collision and proximity queries,

    J. Pan, S. Chitta, and D. Manocha, “Fcl: A general purpose library for collision and proximity queries,” in2012 IEEE international conference on robotics and automation. IEEE, 2012, pp. 3859–3866

    2012

  23. [23]

    The Open Motion Planning Library,

    I. A. S ¸ucan, M. Moll, and L. E. Kavraki, “The Open Motion Planning Library,”IEEE Robotics & Automation Magazine, vol. 19, no. 4, pp. 72–82, December 2012, https://ompl.kavrakilab.org

    2012
