arxiv: 2604.24042 · v1 · submitted 2026-04-27 · 🪐 quant-ph · math.DS

Lobe Dynamics, Phase-Space Transport, and Non-Adiabatic Leakage Thresholds in the Nonautonomous Kerr-Cat Qubit

Stephen Wiggins This is my paper

Pith reviewed 2026-05-08 04:20 UTC · model grok-4.3

classification 🪐 quant-ph math.DS
keywords Kerr-cat qubitnonautonomous dynamicslobe dynamicsMelnikov methodphase-space transportnon-adiabatic leakagenormal form reduction
0
0 comments X

The pith

Static equilibrium pictures fail to capture the dynamics of state preparation and gate operations in Kerr-cat qubits under time-dependent driving.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper demonstrates that time-dependent microwave pulses require a nonautonomous treatment of the Kerr-cat qubit model. For state preparation with ramped drives, a reduced quintic normal form reveals symmetric moving branches that organize the formation of cat states near the vacuum. For gate execution, modeling fast pulses as perturbations to the figure-eight separatrix and applying Melnikov's method identifies transient lobe dynamics as the mechanism behind non-adiabatic leakage, yielding an amplitude-width threshold curve as a geometric indicator. This shifts the description from fixed points to evolving phase-space structures that control transport and leakage.

Core claim

Static algebraic equilibrium pictures are incomplete for describing both state formation and gate-induced transport in the Kerr-cat qubit. Nonautonomous state preparation yields a quintic reduced normal form identifying two symmetric post-threshold moving branches organizing the local state-formation dynamics. For gate execution, Melnikov's method applied to the perturbed resonant figure-eight separatrix derives a leading-order transport criterion where transient lobe dynamics serve as a semiclassical mechanism for non-adiabatic leakage, with the amplitude-width threshold curve providing a geometric indicator for the onset of gate-pulse-induced transport.

What carries the argument

The quintic reduced normal form for state preparation and Melnikov's perturbative transport criterion for gate-induced lobe dynamics on the figure-eight separatrix.

If this is right

  • State formation in ramped Kerr-cat systems follows organized moving branches rather than fixed equilibria.
  • Gate pulses induce transport when their amplitude and width exceed a threshold curve derived from lobe overlap.
  • Non-adiabatic leakage can be predicted geometrically from phase-space lobe dynamics without full quantum simulation.
  • Diagnostics can separate reduced branch dynamics from full phase-twist relaxation in hardware coordinates.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • These thresholds could guide the design of faster, lower-leakage pulses by avoiding the critical amplitude-width region.
  • Extending the analysis to include quantum corrections might refine the leading-order semiclassical predictions.
  • Similar nonautonomous methods could apply to other driven nonlinear oscillators in quantum hardware.
  • The moving branches suggest new ways to stabilize cat states by controlling the ramp rates.

Load-bearing premise

The semiclassical phase-space model and local invariant-graph reduction remain valid under explicit time dependence, with Melnikov's method capturing the leading transport without significant higher-order corrections.

What would settle it

Numerical simulation of the full nonautonomous Kerr-cat model showing significant deviation from the predicted quintic branch dynamics or Melnikov-derived threshold curve for pulse parameters.

Figures

Figures reproduced from arXiv: 2604.24042 by Stephen Wiggins.

Figure 1
Figure 1. Figure 1: Unperturbed conservative skeleton in the rotated coordinate frame (X, Y ). The red H = 0 contour is the bounded figure-eight separatrix of the resonant Hamiltonian system. The saddle at the origin is marked explicitly, and the surrounding Hamiltonian contours show the two lobe regions associated with the two macro￾scopic coherent-state wells. Because the H = 0 contour is bounded, the unstable branches emer… view at source ↗
Figure 2
Figure 2. Figure 2: Nonautonomous preparation dynamics separated into reduced and full-system diagnostics. view at source ↗
Figure 3
Figure 3. Figure 3: Signed leading-order Melnikov splitting distance M(t0) for a Gaussian gate pulse with fixed width σ = 0.30 and amplitudes A = 2.0, 4.0, 6.0, computed from the analytic resonant homoclinic branch used in the canonical Melnikov calculation. The dashed horizontal line marks M(t0) = 0. For amplitudes large enough that M(t0) has simple zeros, the time-dependent stable and unstable curves intersect transversally… view at source ↗
Figure 4
Figure 4. Figure 4: Leading-order transport threshold for gate-induced leakage in the semiclassical model. The red curve is the canonical numerically evaluated level set Mmax(A, σ) = 0 in the gate amplitude-width plane, plotted with pulse width σ on the horizontal axis and gate amplitude A on the vertical axis. Below the curve, Mmax(A, σ) < 0, no Melnikov zeros are detected, and the first-order calculation predicts no transve… view at source ↗
read the original abstract

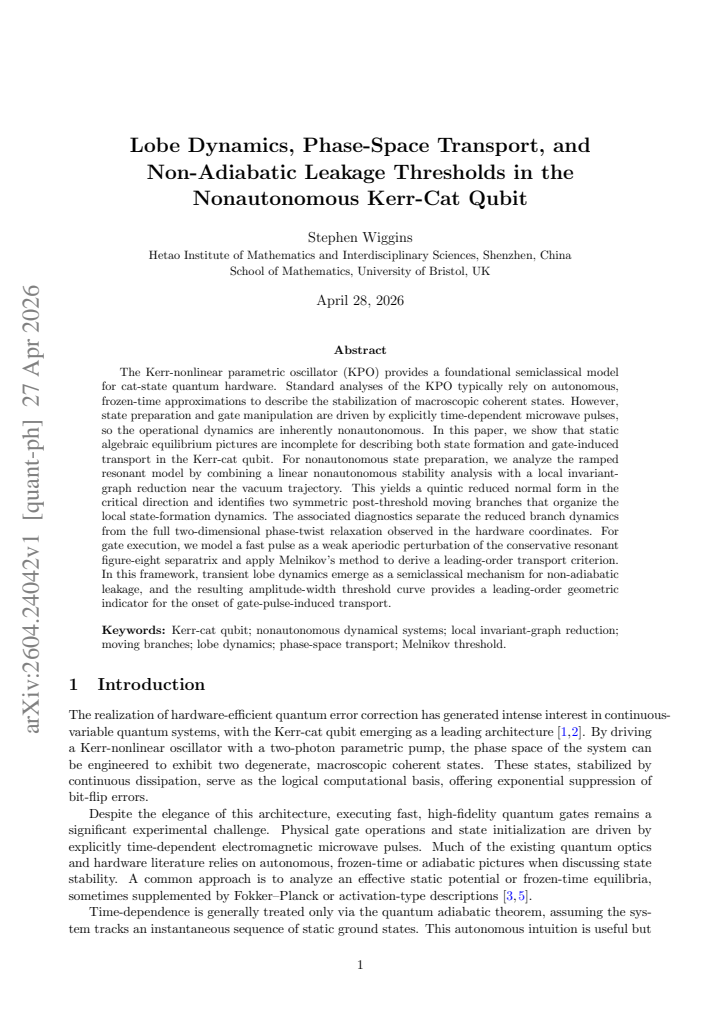

The Kerr-nonlinear parametric oscillator (KPO) provides a foundational semiclassical model for cat-state quantum hardware. Standard analyses of the KPO typically rely on autonomous, frozen-time approximations to describe the stabilization of macroscopic coherent states. However, state preparation and gate manipulation are driven by explicitly time-dependent microwave pulses, so the operational dynamics are inherently nonautonomous. In this paper, we show that static algebraic equilibrium pictures are incomplete for describing both state formation and gate-induced transport in the Kerr-cat qubit. For nonautonomous state preparation, we analyze the ramped resonant model by combining a linear nonautonomous stability analysis with a local invariant-graph reduction near the vacuum trajectory. This yields a quintic reduced normal form in the critical direction and identifies two symmetric post-threshold moving branches that organize the local state-formation dynamics. The associated diagnostics separate the reduced branch dynamics from the full two-dimensional phase-twist relaxation observed in the hardware coordinates. For gate execution, we model a fast pulse as a weak aperiodic perturbation of the conservative resonant figure-eight separatrix and apply Melnikov's method to derive a leading-order transport criterion. In this framework, transient lobe dynamics emerge as a semiclassical mechanism for non-adiabatic leakage, and the resulting amplitude-width threshold curve provides a leading-order geometric indicator for the onset of gate-pulse-induced transport.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper claims that static algebraic equilibria are insufficient for the Kerr-cat qubit under explicit time dependence. For nonautonomous state preparation, linear stability analysis combined with local invariant-graph reduction near the vacuum produces a quintic normal form whose two symmetric post-threshold moving branches organize the local dynamics. For gate execution, a fast pulse is treated as a weak aperiodic perturbation to the conservative resonant figure-eight separatrix; Melnikov's method then yields a leading-order transport criterion in which transient lobe dynamics supply a semiclassical mechanism for non-adiabatic leakage, with the resulting amplitude-width threshold curve serving as a geometric indicator for the onset of gate-induced transport.

Significance. If the semiclassical thresholds remain predictive once quantized, the work supplies an analytical geometric framework for pulse design that could reduce leakage in cat-qubit hardware. The explicit use of normal-form reduction and Melnikov integrals on the nonautonomous resonant model is a clear strength, offering falsifiable leading-order predictions rather than purely numerical results.

major comments (2)
  1. [Gate execution / Melnikov transport criterion] The central claim that the Melnikov-derived amplitude-width threshold provides a leading-order indicator for non-adiabatic leakage rests on the classical phase-space model remaining valid under explicit time dependence. Near the vacuum, however, quantum fluctuations, tunneling, or decoherence can produce leakage rates that deviate from the classical manifold-splitting criterion. The manuscript does not supply an error bound or direct comparison with quantum simulations showing that higher-order quantum corrections remain sub-leading across the reported regime (see the gate-execution analysis and the weakest-assumption paragraph in the reader's note).
  2. [Nonautonomous state preparation / normal-form reduction] The quintic reduced normal form is asserted to identify the two symmetric moving branches that organize state-formation dynamics. The reduction steps from the nonautonomous linear stability analysis and invariant-graph construction are not shown in sufficient detail to confirm that the quintic truncation captures the qualitative post-threshold behavior without qualitative changes from omitted higher-order terms.
minor comments (2)
  1. A figure showing the perturbed separatrix, the computed Melnikov lobes, and the resulting threshold curve would greatly aid readability of the transport criterion.
  2. Notation for the coefficients appearing in the quintic normal form should be defined explicitly when first introduced.

Simulated Author's Rebuttal

2 responses · 1 unresolved

We thank the referee for the careful reading, positive assessment of significance, and constructive major comments. We respond point by point below, indicating planned revisions where the manuscript can be strengthened without altering its semiclassical scope.

read point-by-point responses

  1. Referee: [Gate execution / Melnikov transport criterion] The central claim that the Melnikov-derived amplitude-width threshold provides a leading-order indicator for non-adiabatic leakage rests on the classical phase-space model remaining valid under explicit time dependence. Near the vacuum, however, quantum fluctuations, tunneling, or decoherence can produce leakage rates that deviate from the classical manifold-splitting criterion. The manuscript does not supply an error bound or direct comparison with quantum simulations showing that higher-order quantum corrections remain sub-leading across the reported regime (see the gate-execution analysis and the weakest-assumption paragraph in the reader's note).

    Authors: The work is framed explicitly as a semiclassical analysis of the nonautonomous resonant model. Melnikov's method supplies the leading-order separatrix splitting and associated lobe-transport criterion under the weak-perturbation assumption stated in the gate-execution section. We agree that quantum fluctuations and decoherence will ultimately set the precise leakage rates, but the geometric threshold remains a useful leading-order indicator in the macroscopic-cat regime where the classical transport mechanism dominates. We will add a concise paragraph in the discussion clarifying the validity assumptions and noting that quantitative error bounds would require a separate quantized treatment outside the present scope. revision: partial

  2. Referee: [Nonautonomous state preparation / normal-form reduction] The quintic reduced normal form is asserted to identify the two symmetric moving branches that organize state-formation dynamics. The reduction steps from the nonautonomous linear stability analysis and invariant-graph construction are not shown in sufficient detail to confirm that the quintic truncation captures the qualitative post-threshold behavior without qualitative changes from omitted higher-order terms.

    Authors: We accept that the reduction procedure was presented too concisely. In the revised manuscript we will expand the relevant section to display the complete sequence: the nonautonomous linear stability analysis about the vacuum trajectory, the local invariant-graph construction, the near-identity coordinate change isolating the critical direction, and the explicit computation of the quintic normal form. We will also include a brief estimate showing that the neglected higher-order terms do not change the sign of the leading coefficient or the existence of the two symmetric moving branches. revision: yes

standing simulated objections not resolved
  • Supplying direct quantum simulations or quantitative error bounds that would confirm the sub-leading character of quantum corrections to the classical Melnikov threshold

Circularity Check

0 steps flagged

No significant circularity; derivations apply standard methods independently

full rationale

The paper's core derivations—linear nonautonomous stability analysis combined with local invariant-graph reduction yielding a quintic normal form for state preparation, and Melnikov's method applied to a weak aperiodic perturbation of the resonant figure-eight separatrix for the transport criterion—are presented as direct applications of established dynamical systems techniques to the nonautonomous Kerr-cat equations. No steps reduce by construction to fitted parameters, self-definitions, or load-bearing self-citations; the quintic branches and amplitude-width threshold emerge from the model equations without tautological renaming or imported uniqueness theorems. The chain remains self-contained, with results framed as geometric indicators derived from perturbation theory rather than equivalent to inputs.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract alone supplies insufficient detail to enumerate specific free parameters, axioms, or invented entities; the analysis implicitly rests on the validity of the semiclassical KPO model and standard dynamical-systems perturbation techniques.

pith-pipeline@v0.9.0 · 5546 in / 1321 out tokens · 108528 ms · 2026-05-08T04:20:57.965951+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

12 extracted references · 12 canonical work pages

  1. [1]

    Mirrahimi, Z

    M. Mirrahimi, Z. Leghtas, V. V. Albert, S. Touzard, R. J. Schoelkopf, L. Jiang, and M. H. Devoret,Dynamically protected cat-qubits: a new paradigm for universal quantum computation, New J. Phys.16, 045014 (2014)

    work page 2014

  2. [2]

    Goto,Bifurcation-based adiabatic quantum computation with a nonlinear oscillator network, Scientific Reports6, 21686 (2016)

    H. Goto,Bifurcation-based adiabatic quantum computation with a nonlinear oscillator network, Scientific Reports6, 21686 (2016)

    work page 2016

  3. [3]

    Consani and P

    G. Consani and P. A. Warburton,Effective Hamiltonians for interacting superconducting qubits: local basis reduction and the Schrieffer–Wolff transformation, New J. Phys.22, 053040 (2020)

    work page 2020

  4. [4]

    Grimm, N

    A. Grimm, N. E. Frattini, S. Puri, S. O. Mundhada, S. Touzard, M. Mirrahimi, S. M. Girvin, S. Shankar, and M. H. Devoret.Stabilization and operation of a Kerr-cat qubit. Nature584, 205-209 (2020)

    work page 2020

  5. [5]

    M. I. Dykman.Fluctuating Nonlinear Oscillators: From Nanomechanics to Quantum Supercon- ducting Circuits. Oxford University Press (2012)

    work page 2012

  6. [6]

    W. A. Coppel.Dichotomies in Stability Theory. Lecture Notes in Mathematics, Vol. 629. Springer- Verlag, Berlin (1978)

    work page 1978

  7. [7]

    Wiggins.Nonautonomous Dynamics: The Research Landscape

    S. Wiggins.Nonautonomous Dynamics: The Research Landscape. International Journal of Bifur- cation and Chaos35, 2540009 (2025)

    work page 2025

  8. [8]

    Wiggins.Introduction to Applied Nonlinear Dynamical Systems and Chaos

    S. Wiggins.Introduction to Applied Nonlinear Dynamical Systems and Chaos. Springer-Verlag, New York (2003)

    work page 2003

  9. [9]

    P. E. Kloeden and M. Rasmussen.Nonautonomous Dynamical Systems. Mathematical Surveys and Monographs, Vol. 176. American Mathematical Society (2011). 25

    work page 2011

  10. [10]

    J. A. Langa, J. C. Robinson, and A. Su´ arez.Stability, instability, and bifurcation phenomena in non-autonomous differential equations. Nonlinearity15, 887 (2002)

    work page 2002

  11. [11]

    Rasmussen.Attractivity and Bifurcation for Nonautonomous Dynamical Systems

    M. Rasmussen.Attractivity and Bifurcation for Nonautonomous Dynamical Systems. Lecture Notes in Mathematics 1907, Springer (2007)

    work page 1907

  12. [12]

    Malhotra and S

    N. Malhotra and S. Wiggins,Geometric structures, lobe dynamics, and Lagrangian transport in flows with aperiodic time-dependence, with applications to Rossby wave flow, J. Nonlinear Sci.8, 401–456 (1998). 26

    work page 1998
