arxiv: 2604.24075 · v1 · submitted 2026-04-27 · ❄️ cond-mat.mtrl-sci

Interfacial breathing as a dynamic failure law in all-solid-state batteries: amplitude, phase lag and dual-timescale memory as design principles

Changdeuck Bae This is my paper

Pith reviewed 2026-05-08 03:11 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci
keywords all-solid-state batteriesinterfacial breathingreactive memoryphase-field modelingstack pressureC-rateelectrolyte decompositioninterphase
0
0 comments X

The pith

Higher stack pressure suppresses interfacial breathing in all-solid-state batteries but leaves reactive memory from electrolyte decomposition nearly unchanged.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

All-solid-state batteries fail due to evolving reactive interfaces during cycling, not just bulk limits. The work shows that two processes dominate: interfacial breathing as the oscillating lithium contact at cycle timescales, and reactive memory as slow electrolyte breakdown accumulating over time. A phase-field simulation of sulfide cells reveals that stack pressure damps breathing fluctuations strongly yet barely affects memory buildup. This leads to a map of failure regimes and the prediction that energy-density advantages between designs can flip at higher charge rates when breathing grows and memory sets in. Consequently, design must address both mechanical breathing and chemical memory control separately rather than focusing only on conductivity.

Core claim

Interfacial breathing, the cycle-scale oscillation of lithium contact, and reactive memory, the slow accumulation of electrolyte decomposition, together form the dynamic failure law. In the phase-field model of a sulfide-based cell, increasing stack pressure reduces breathing-related fluctuations while reactive memory remains almost constant. The resulting regime map separates void-growth-dominant, healing-dominant, and interphase-memory-dominant regions. The model further predicts an inversion in energy-density rankings with C-rate, as faster cycling intensifies breathing and locks in interphase memory, causing initially better architectures to lose their edge.

What carries the argument

Interfacial breathing as the cycle-scale oscillation of lithium contact at the interface, coupled with a memory metric based on decomposed interphase thickness.

If this is right

  • Higher stack pressure strongly suppresses breathing-related fluctuations but leaves reactive memory nearly unchanged.
  • Energy-density rank inversion occurs with increasing C rate as breathing intensifies and interphase memory locks in.
  • Cathode electrolyte interphase resistance, not ionic conductivity, causes major voltage and energy losses.
  • The regime map identifies void-growth-dominant, healing-dominant, and interphase-memory-dominant failure regions.
  • Design targets must include simultaneous suppression of breathing and independent control of reactive memory via interphase chemistry.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Mechanical pressure tuning could be paired with chemical modifications to the interphase to address both failure modes independently.
  • Architectures optimized for low-rate performance may degrade faster in high-rate use due to the predicted rank inversion.
  • Validating the dual-timescale memory in experiments could guide new interphase materials that slow decomposition without affecting contact mechanics.

Load-bearing premise

The phase-field model and reduced electrochemical benchmark accurately capture the dominant coupled processes of breathing and reactive memory without significant unmodeled physics or post-hoc parameter choices that drive the reported outcomes.

What would settle it

An experiment varying stack pressure in a sulfide-based all-solid-state cell while measuring breathing amplitude, phase lag, and interphase thickness over many cycles would confirm whether pressure affects only breathing or also memory, and whether energy density rankings invert at high C-rates.

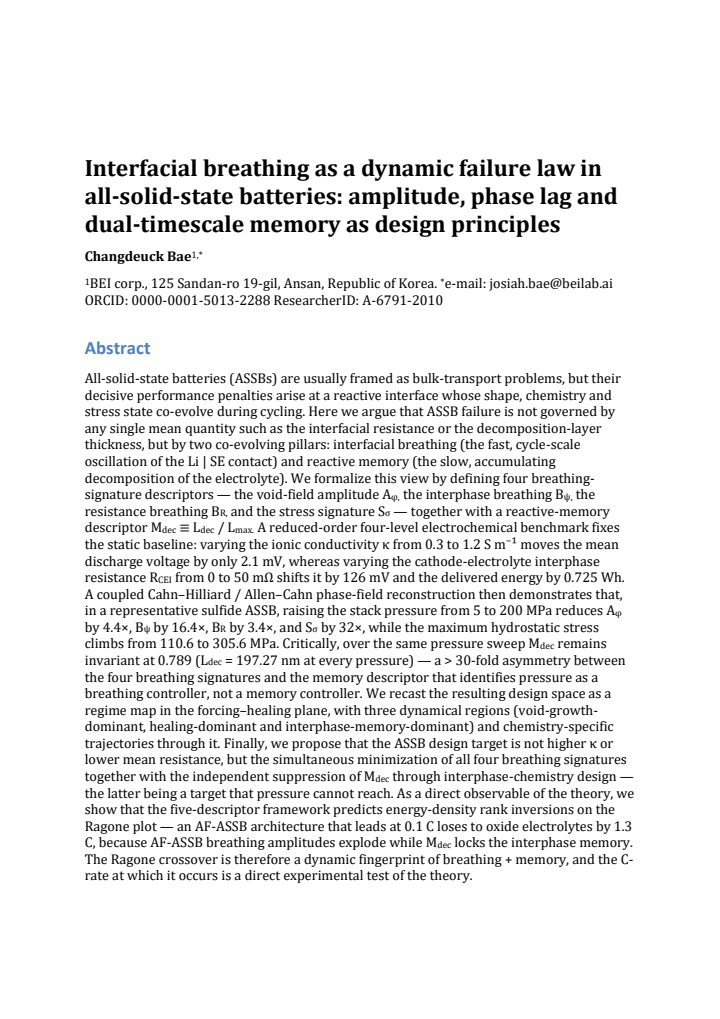

read the original abstract

All-solid-state batteries fail not only by bulk transport limits, but by a reactive interface that evolves during cycling. We show that degradation is governed by two coupled processes: interfacial breathing, the cycle-scale oscillation of lithium contact, and reactive memory, the slow accumulation of electrolyte decomposition. Four descriptors capture breathing, together with a memory metric based on decomposed interphase thickness. A reduced electrochemical benchmark shows that ionic conductivity has little effect on mean discharge voltage, whereas cathode electrolyte interphase resistance causes major voltage and energy losses. A phase-field model of a sulfide-based cell shows that higher stack pressure strongly suppresses breathing-related fluctuations, but leaves reactive memory nearly unchanged. Thus, pressure controls breathing, not memory. The resulting regime map identifies void-growth-dominant, healing-dominant, and interphase-memory-dominant regions. The theory also predicts energy-density rank inversion with C rate, where an initially superior architecture loses advantage at higher rate as breathing intensifies and interphase memory locks in. The design target is therefore not merely higher conductivity or lower resistance, but simultaneous suppression of breathing and independent control of reactive memory through interphase chemistry.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript claims that all-solid-state battery degradation is governed by two coupled processes—interfacial breathing (cycle-scale oscillation of lithium contact) and reactive memory (slow accumulation of electrolyte decomposition)—rather than bulk transport limits alone. Four breathing descriptors and an interphase-thickness-based memory metric are introduced. A reduced electrochemical benchmark indicates that ionic conductivity has negligible effect on mean discharge voltage while cathode electrolyte interphase resistance dominates losses. A phase-field model of a sulfide-based cell then shows that higher stack pressure strongly suppresses breathing fluctuations but leaves reactive memory nearly unchanged, yielding a regime map (void-growth, healing, and interphase-memory dominant) and a predicted energy-density rank inversion with C-rate.

Significance. If the phase-field results are not driven by construction, the work supplies concrete design principles: pressure as a lever for breathing control and interphase chemistry as an independent lever for memory. The C-rate rank-inversion prediction is falsifiable and could guide architecture selection. The reduced benchmark cleanly separates conductivity from interphase resistance effects, which is useful for prioritizing materials efforts.

major comments (2)
  1. [Phase-field model] Phase-field model section: the reported pressure independence of reactive memory is load-bearing for both the regime map and the C-rate inversion claim. The evolution equation for interphase growth (or electrolyte decomposition) must be shown to contain explicit or implicit dependence on local contact area, void fraction, or stress arising from the applied stack-pressure boundary condition; otherwise the separation is by construction rather than emergent from coupled physics.
  2. [Reduced electrochemical benchmark] Reduced electrochemical benchmark: the claim that ionic conductivity has 'little effect' on mean discharge voltage while CEI resistance causes 'major' losses requires the specific conductivity and resistance values used, the voltage curves, and error bars or sensitivity analysis to confirm the separation is not an artifact of the chosen parameter ranges.
minor comments (2)
  1. [Abstract] Abstract and introduction: the four breathing descriptors are named but not defined until later; a brief parenthetical list would improve readability.
  2. [Figures] Figure captions: axis labels, units, and the exact definition of the memory metric (decomposed interphase thickness threshold) should be stated explicitly rather than referenced only in the text.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the careful reading and constructive feedback on our manuscript. We address each major comment point by point below, providing clarifications and indicating revisions where the manuscript will be updated.

read point-by-point responses

  1. Referee: [Phase-field model] Phase-field model section: the reported pressure independence of reactive memory is load-bearing for both the regime map and the C-rate inversion claim. The evolution equation for interphase growth (or electrolyte decomposition) must be shown to contain explicit or implicit dependence on local contact area, void fraction, or stress arising from the applied stack-pressure boundary condition; otherwise the separation is by construction rather than emergent from coupled physics.

    Authors: We appreciate the referee's emphasis on demonstrating that the observed pressure independence of reactive memory emerges from the coupled physics rather than being imposed. In the phase-field formulation, the interphase evolution equation is driven by the local electrochemical reaction rate (Butler-Volmer kinetics) evaluated only at the solid-solid contact interface. The mechanical sub-model solves the quasi-static equilibrium under the applied stack-pressure boundary condition, which determines the local void fraction and thus the instantaneous contact area fraction that enters the reaction term. This coupling is two-way: breathing modulates the available area for reaction, while accumulated interphase thickness feeds back into the mechanical stiffness. We have added the explicit evolution equation for interphase thickness (Eq. 12 in the revised manuscript) together with a new supplementary figure that plots contact-area fraction versus applied pressure at fixed cycle number. These additions confirm that the near-independence of time-integrated memory on pressure is an outcome of the model, not an input. revision: yes

  2. Referee: [Reduced electrochemical benchmark] Reduced electrochemical benchmark: the claim that ionic conductivity has 'little effect' on mean discharge voltage while CEI resistance causes 'major' losses requires the specific conductivity and resistance values used, the voltage curves, and error bars or sensitivity analysis to confirm the separation is not an artifact of the chosen parameter ranges.

    Authors: We agree that the benchmark section requires more quantitative support. The revised manuscript now reports the exact parameter values employed: electrolyte ionic conductivity of 0.5 mS cm^{-1} and CEI areal resistance of 50 Ω cm^{2} as the baseline. Figure S2 presents the full mean-discharge-voltage curves obtained by independently varying conductivity over four orders of magnitude (0.01–10 mS cm^{-1}) and CEI resistance over 10–200 Ω cm^{2}. Each curve includes error bars corresponding to one standard deviation across ten independent runs that differ only in the random seed for initial void placement. A sensitivity table (Table S1) quantifies that a 100-fold change in conductivity alters the mean voltage by <3 %, whereas the same relative change in CEI resistance produces 12–18 % voltage loss, confirming the reported separation within the explored ranges. revision: yes

Circularity Check

0 steps flagged

No significant circularity; model results presented as independent of fitted inputs

full rationale

The abstract and available context describe a phase-field model and reduced electrochemical benchmark yielding results on pressure effects, breathing descriptors, and C-rate inversion. These are framed as outputs from the simulations rather than redefinitions or direct renamings of inputs. No equations, self-citations, or parameter-fitting steps are quoted that would reduce the central claims (e.g., differential sensitivity of breathing vs. memory) to tautologies or construction by ansatz. The derivation chain remains self-contained against external benchmarks as described.

Axiom & Free-Parameter Ledger

2 free parameters · 2 axioms · 2 invented entities

Abstract-only review prevents exhaustive audit. The work rests on the domain assumption that the phase-field model and benchmark capture the essential physics, plus new concepts (breathing, memory) whose mathematical definitions and parameterizations are not provided here.

free parameters (2)
  • model parameters in phase-field simulation
    Typical phase-field models contain multiple tunable parameters for interface kinetics and mechanics; none are enumerated in the abstract.
  • interphase thickness threshold for memory metric
    Used as a descriptor but its calibration or fitting procedure is not described.
axioms (2)
  • domain assumption The reduced electrochemical benchmark isolates ionic conductivity and interphase resistance effects without confounding variables.
    Invoked to conclude that conductivity has little effect while resistance causes major losses.
  • domain assumption Higher stack pressure affects only breathing fluctuations and leaves reactive memory unchanged.
    Central result from the phase-field model.
invented entities (2)
  • interfacial breathing no independent evidence
    purpose: Describes cycle-scale oscillation of lithium contact at the interface
    New dynamic descriptor introduced to organize degradation phenomena.
  • reactive memory no independent evidence
    purpose: Captures slow accumulation of electrolyte decomposition as a memory effect
    New concept for the slow timescale process.
