Graph-augmented Segmentation of Complex Shapes in Laser Powder bed Fusion for Enhanced In Situ Inspection

Stefano Raimondo , Matteo Bugatti , Marco Grasso (Department of Mechanical Engineering , Politecnico di Milano , Milan , Italy) This is my paper

Pith reviewed 2026-05-08 04:33 UTC · model grok-4.3

classification 💻 cs.CV

keywords graph neural networkimage segmentationlaser powder bed fusionin-situ inspectionadditive manufacturingU-Netlattice structuresgeometry reconstruction

0 comments

The pith

A Graph Neural Network bottleneck inside a U-Net preserves global geometry for more consistent segmentation of lattice structures in laser powder bed fusion images despite illumination changes.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper proposes a graph-augmented segmentation method that embeds a Graph Neural Network bottleneck into a U-Net to model dependencies among spatial regions rather than processing pixels independently. This design targets the challenge of spatial and layer-wise photometric variability that affects powder bed images in Laser Powder Bed Fusion processes. The approach aims to maintain overall geometrical information when reconstructing complex shapes such as lattices. A sympathetic reader would care because more reliable in-situ geometry verification could support faster qualification and reduced post-build inspection for additively manufactured parts. The evaluation against benchmark techniques on real L-PBF data supports its use for robust industrial monitoring.

Core claim

The central claim is that embedding a Graph Neural Network bottleneck into a U-Net architecture models relational information among spatial regions, thereby preserving global geometrical information and enhancing the consistency and accuracy of geometry reconstruction in the presence of spatial and layer-wise photometric variability systematically faced in real L-PBF data.

What carries the argument

Graph Neural Network bottleneck embedded into a U-Net architecture that models dependencies and relational information among spatial regions to preserve global geometrical information.

If this is right

The method improves segmentation performance for in-situ reconstruction of lattice structures produced by L-PBF.
It reduces sensitivity to industrial illumination conditions and layer-to-layer pixel intensity variability.
It offers a scalable solution for robust in-situ inspection and geometric verification in industrial environments.
It handles complex shapes more reliably than edge detection or standard pixel-wise machine learning approaches.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The same relational modeling could extend to image analysis tasks in other additive manufacturing processes that encounter variable lighting.
Integration with real-time process control might allow automatic correction of deviations during the build.
Details of graph construction from image regions remain key; different topologies could yield further gains not explored here.
Performance on non-lattice complex geometries would test whether the benefit generalizes beyond the evaluated structures.

Load-bearing premise

Embedding a Graph Neural Network bottleneck will reliably preserve global geometrical information and outperform pixel-wise methods under real industrial illumination and layer-to-layer variability.

What would settle it

A comparative test on a fresh collection of L-PBF powder bed images with new illumination patterns or lattice designs in which the graph-augmented model shows no accuracy gain over a plain U-Net would falsify the central claim.

Figures

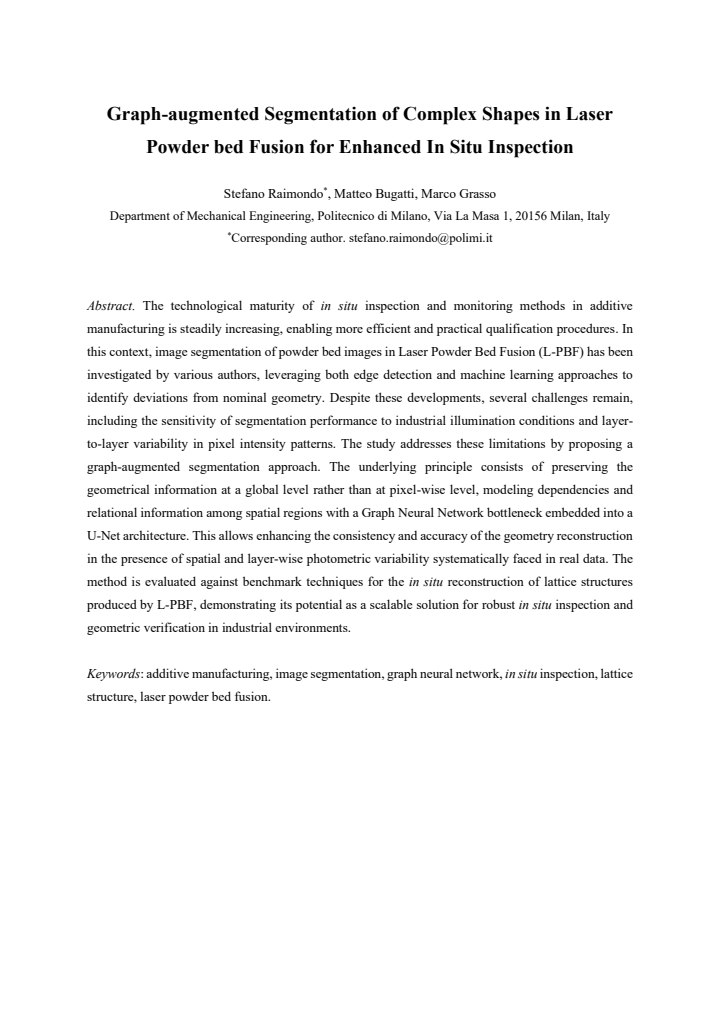

Figures reproduced from arXiv: 2604.24234 by Italy), Marco Grasso (Department of Mechanical Engineering, Matteo Bugatti, Milan, Politecnico di Milano, Stefano Raimondo.
